Home >> Isuzu >> 2002 >> Rodeo LS 4WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Power Locks

Power Locks

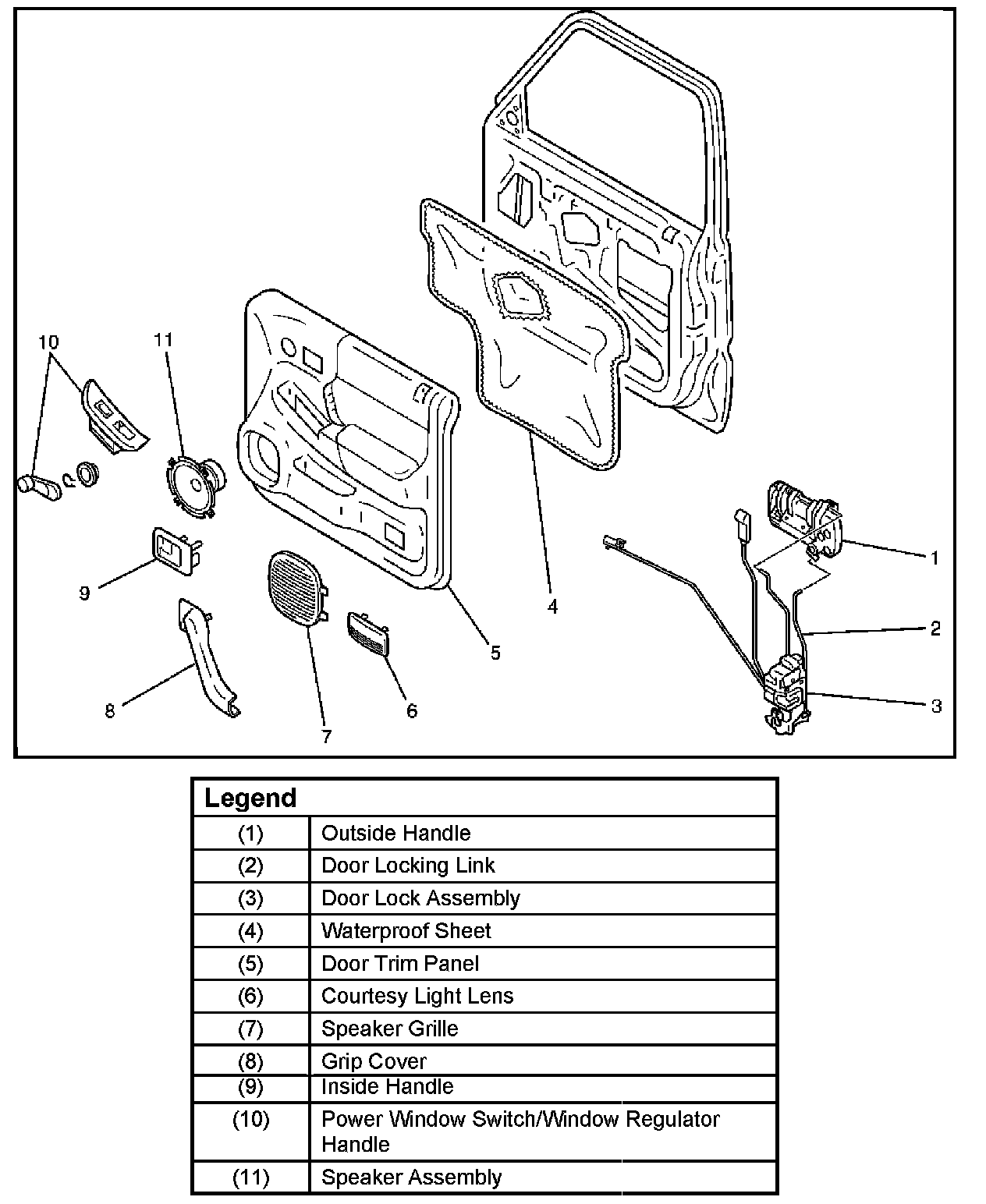

Front Door Lock Assembly And Associated Parts:

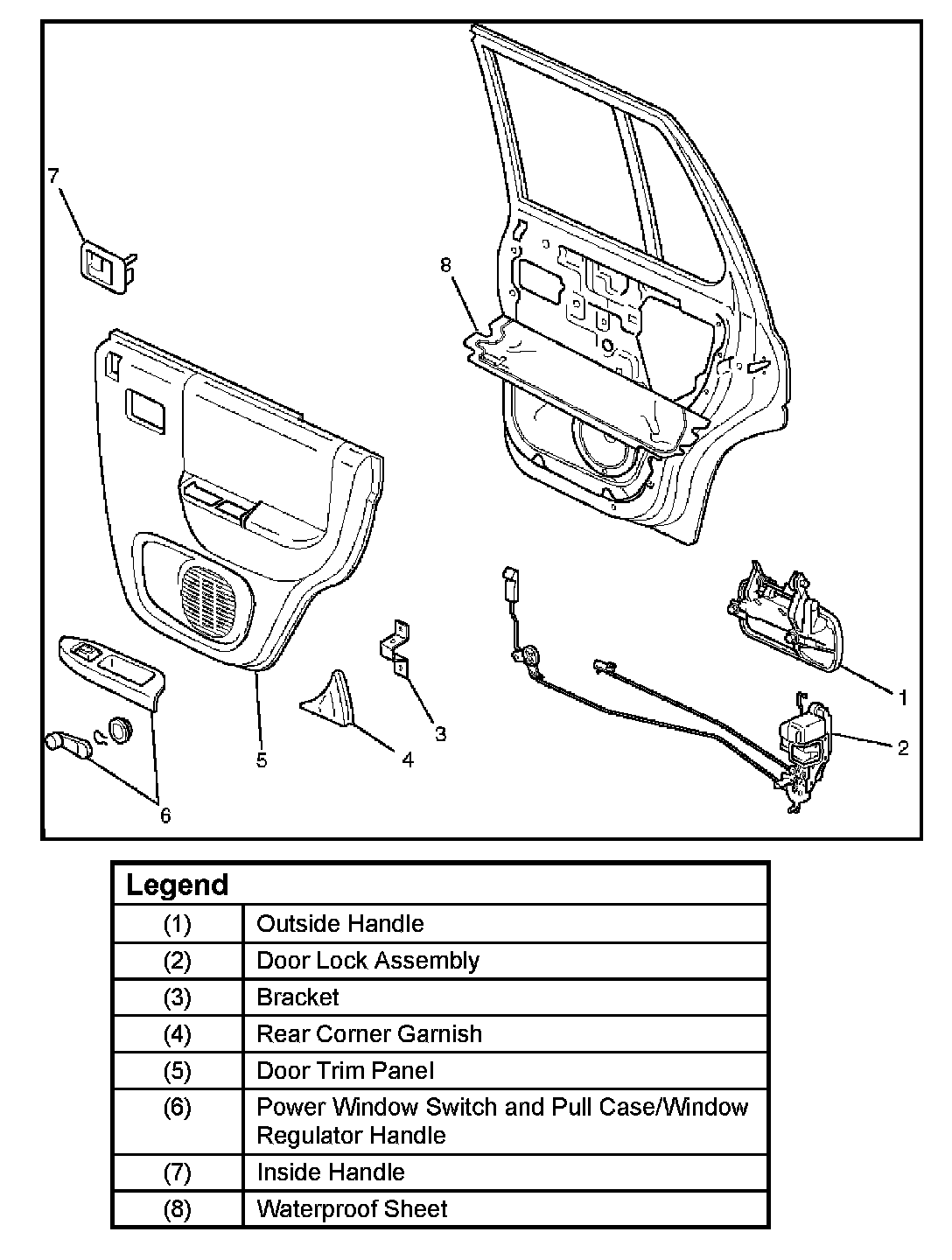

Rear Door Lock Assembly And Associated Parts:
