Isuzu
>>
2002
>>
Rodeo LS 4WD V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

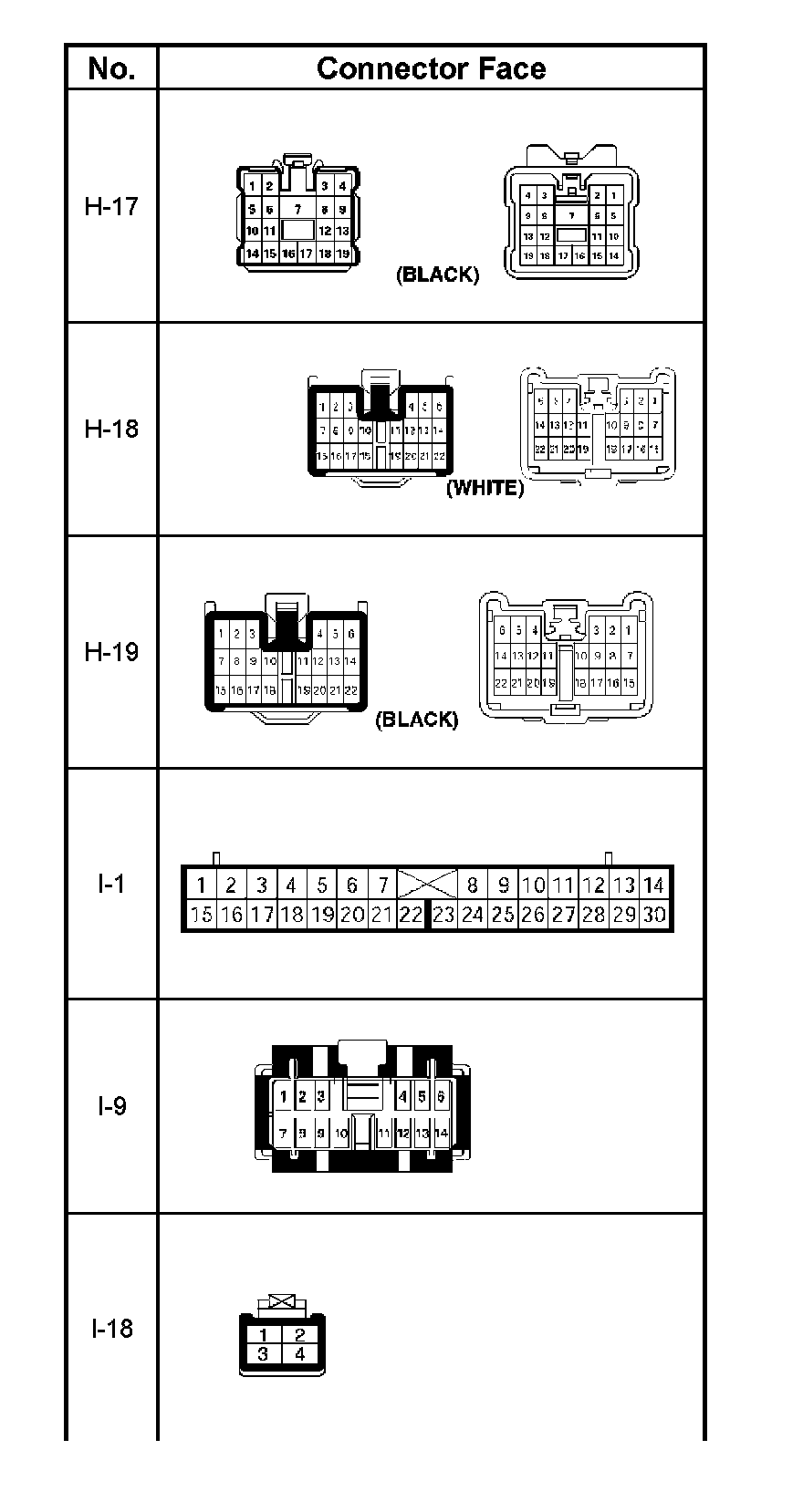

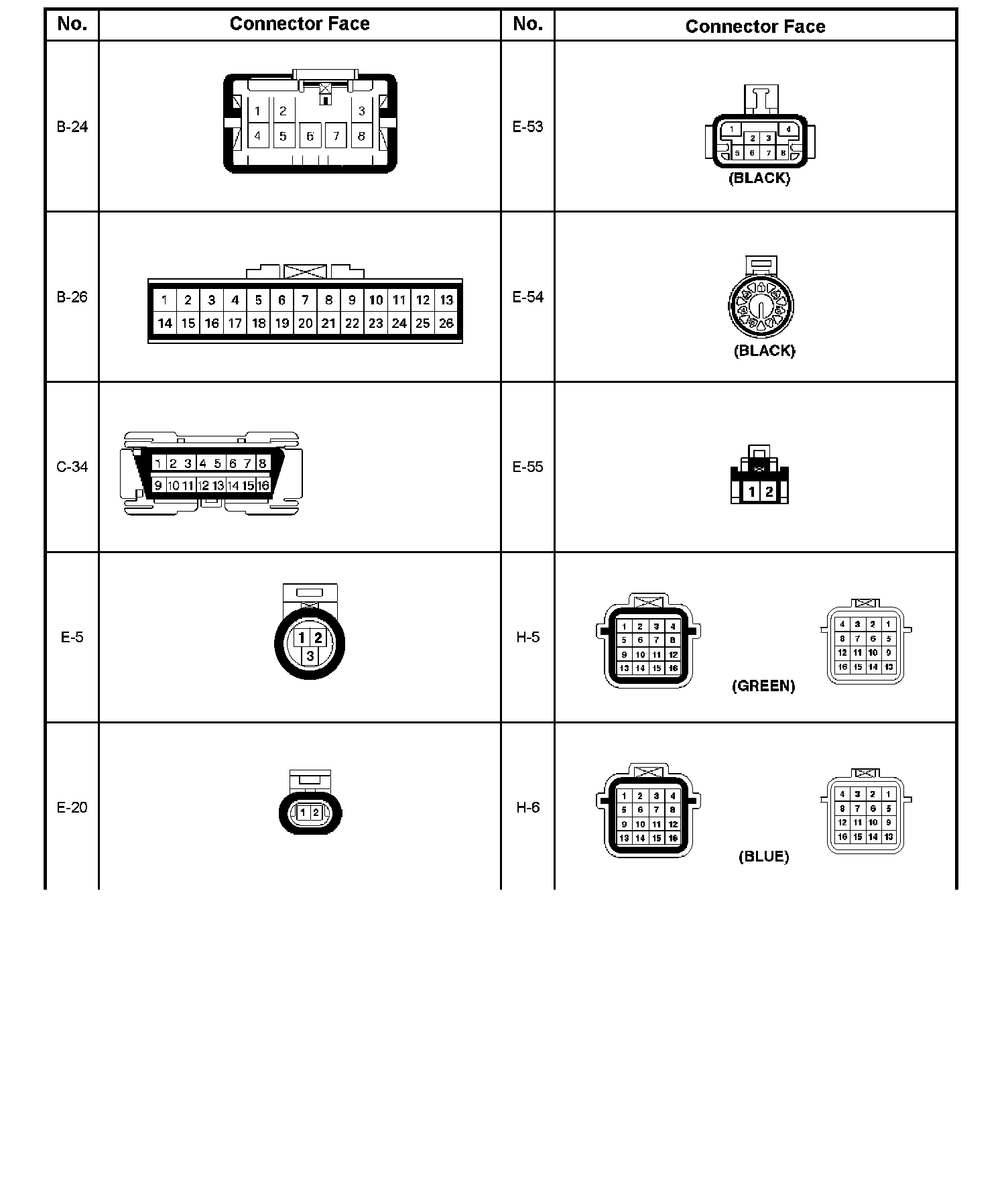

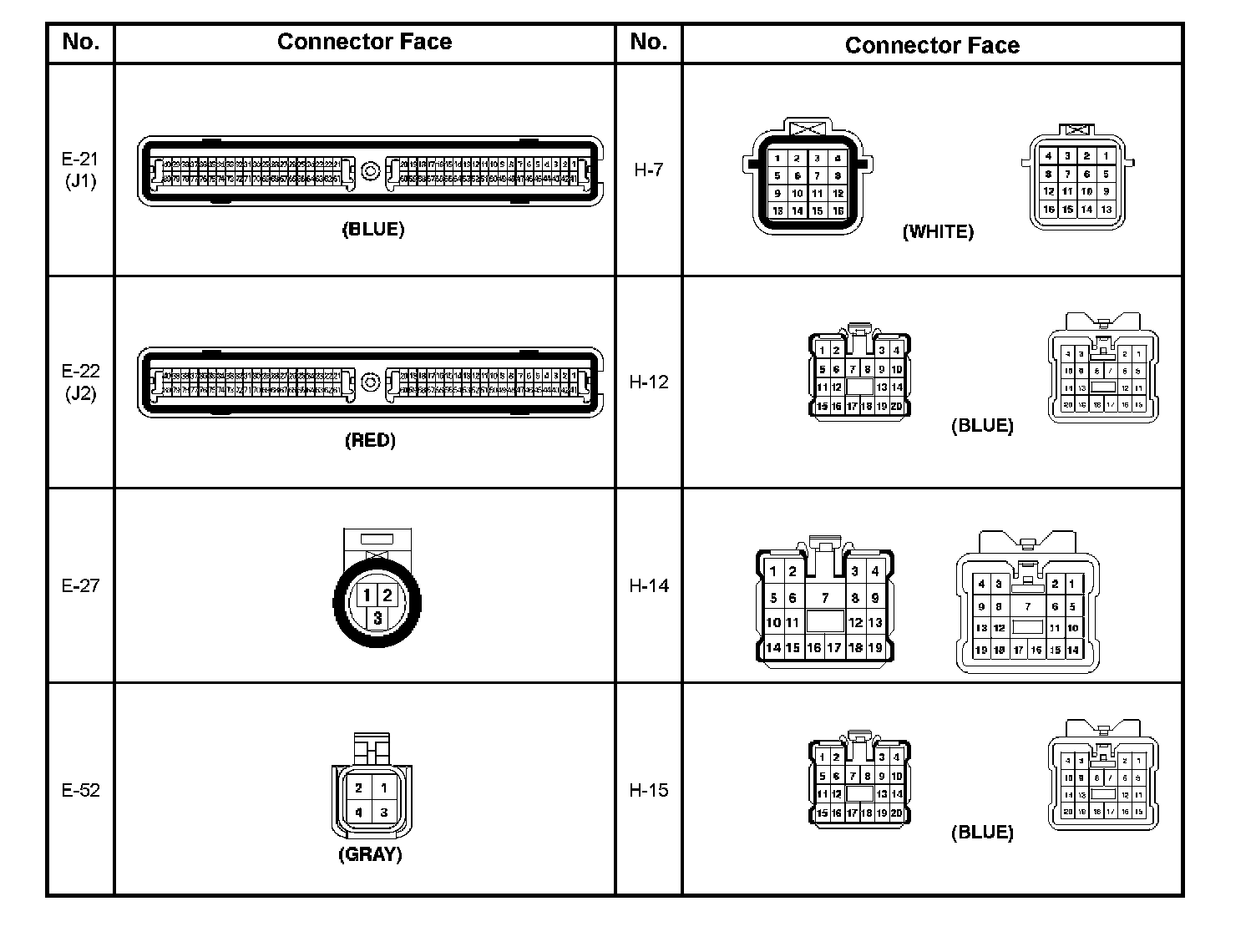

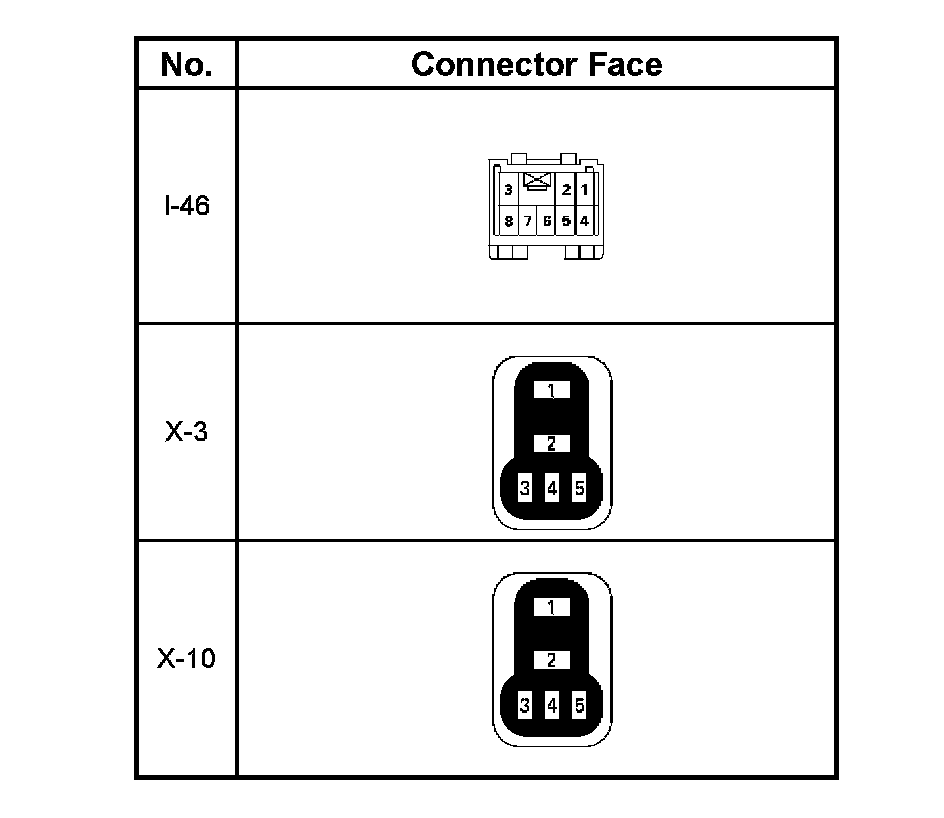

Harness Connector Faces
1 of 4
2 of 4
3 of 4
4 of 4
