Home >> Isuzu >> 2002 >> Rodeo LS 4WD V6-3.2L >> Repair and Diagnosis >> Cruise Control >> Diagrams

Cruise Control: Diagrams

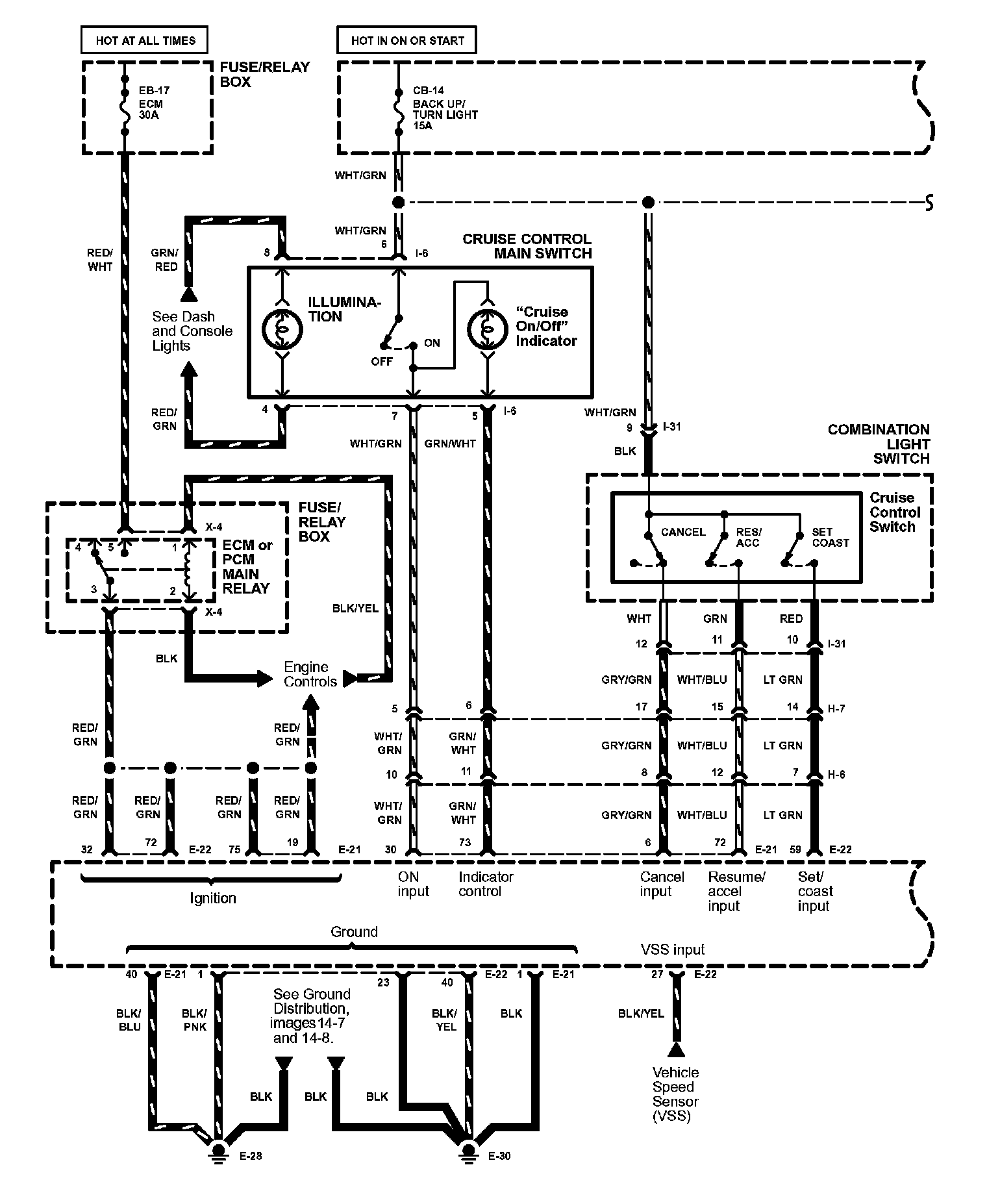

Cruise Control Image 34:

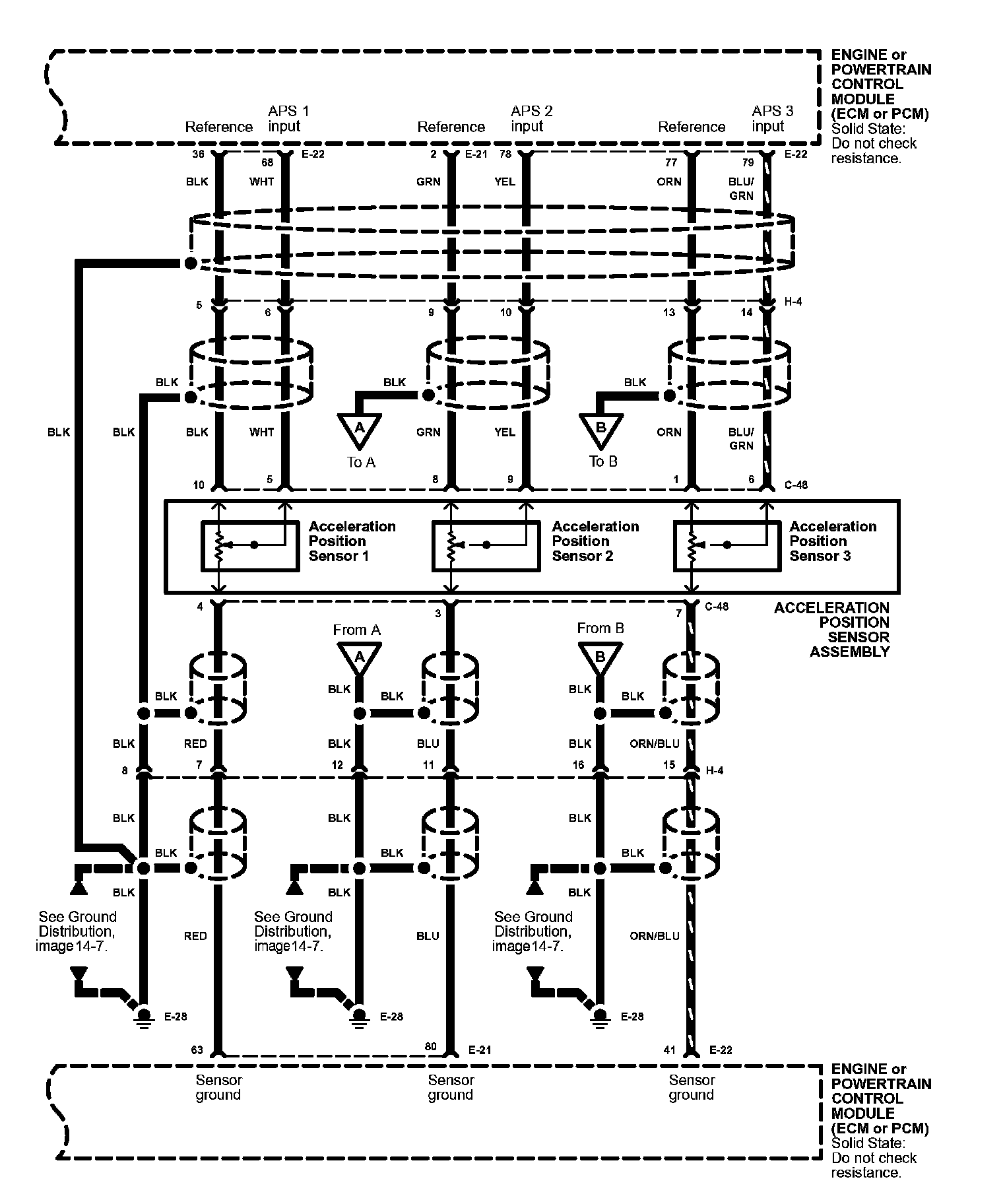

Cruise Control Image 34-1:

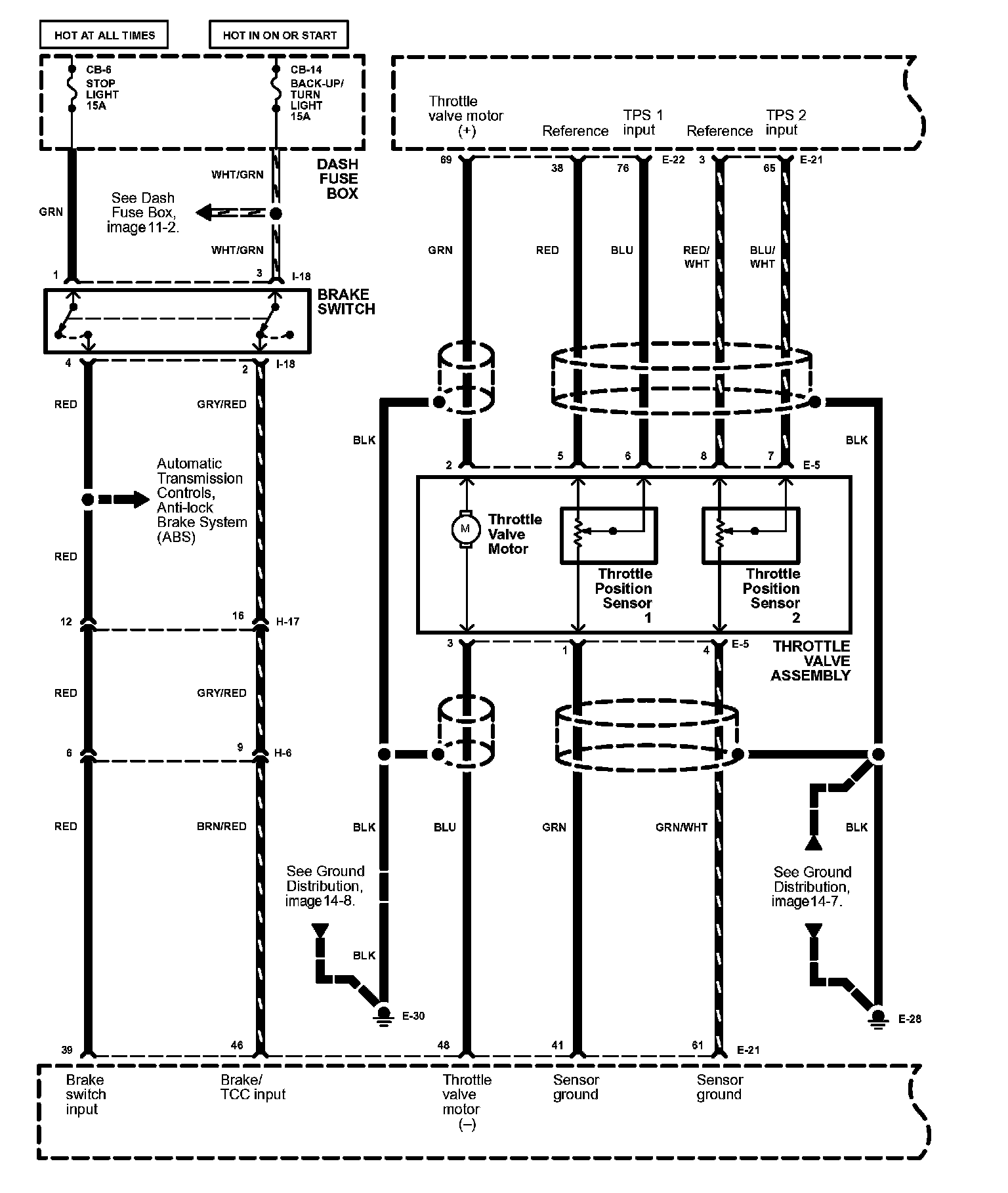

Cruise Control Image 34-2:

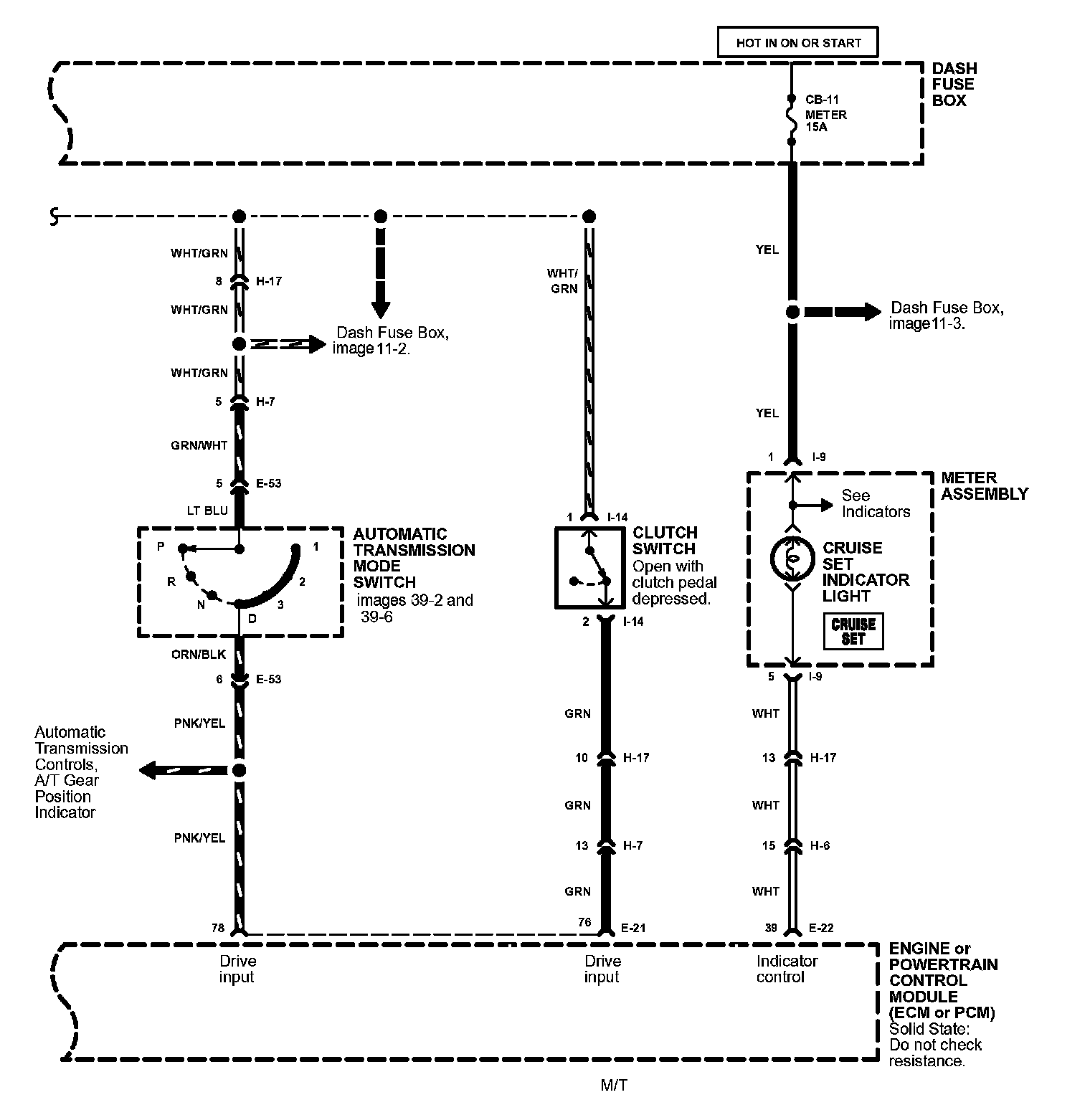

Cruise Control Image 34-3:
