Keyless Entry: Diagrams

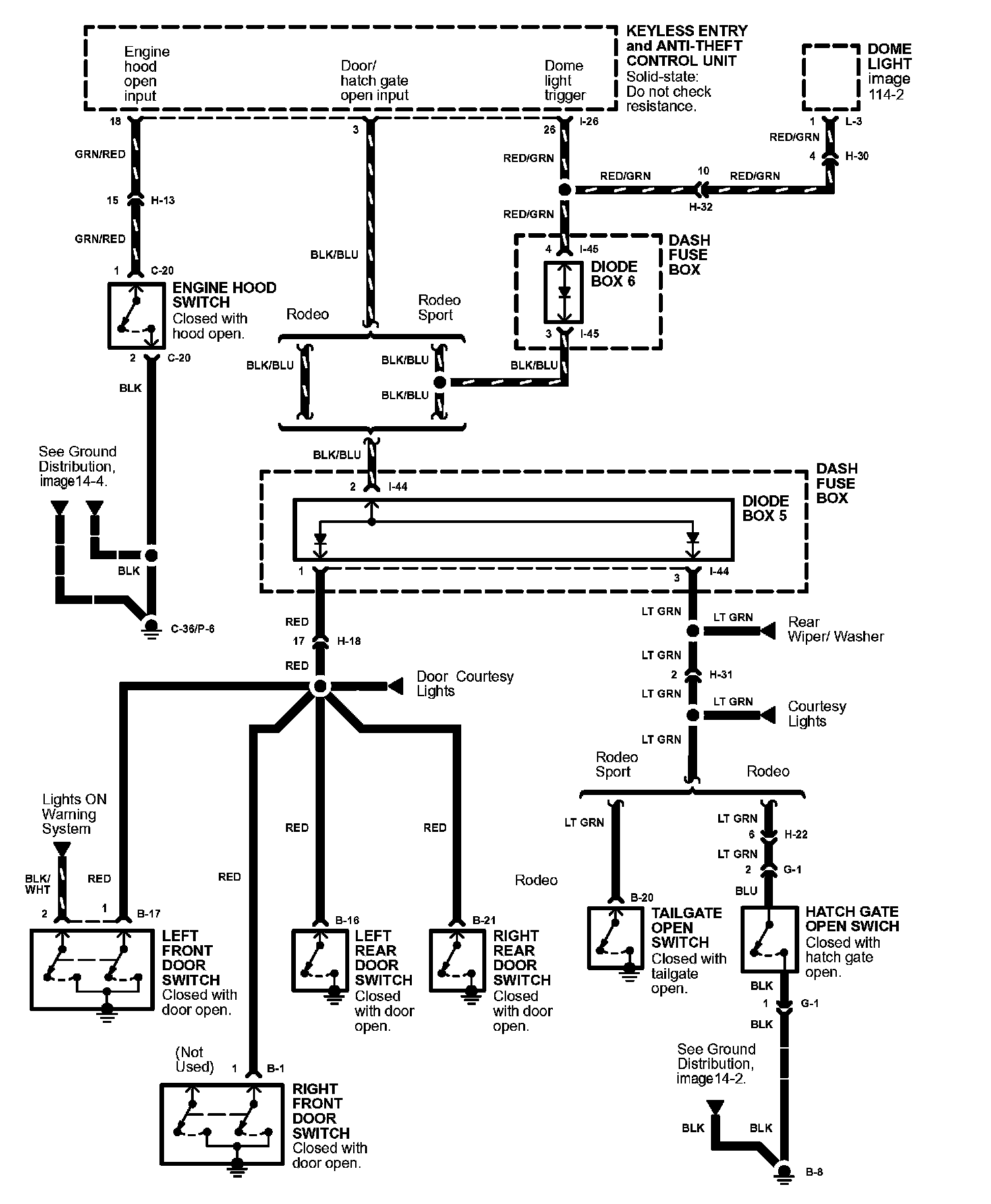

Keyless Entry And Anti-Theft System Image 133:

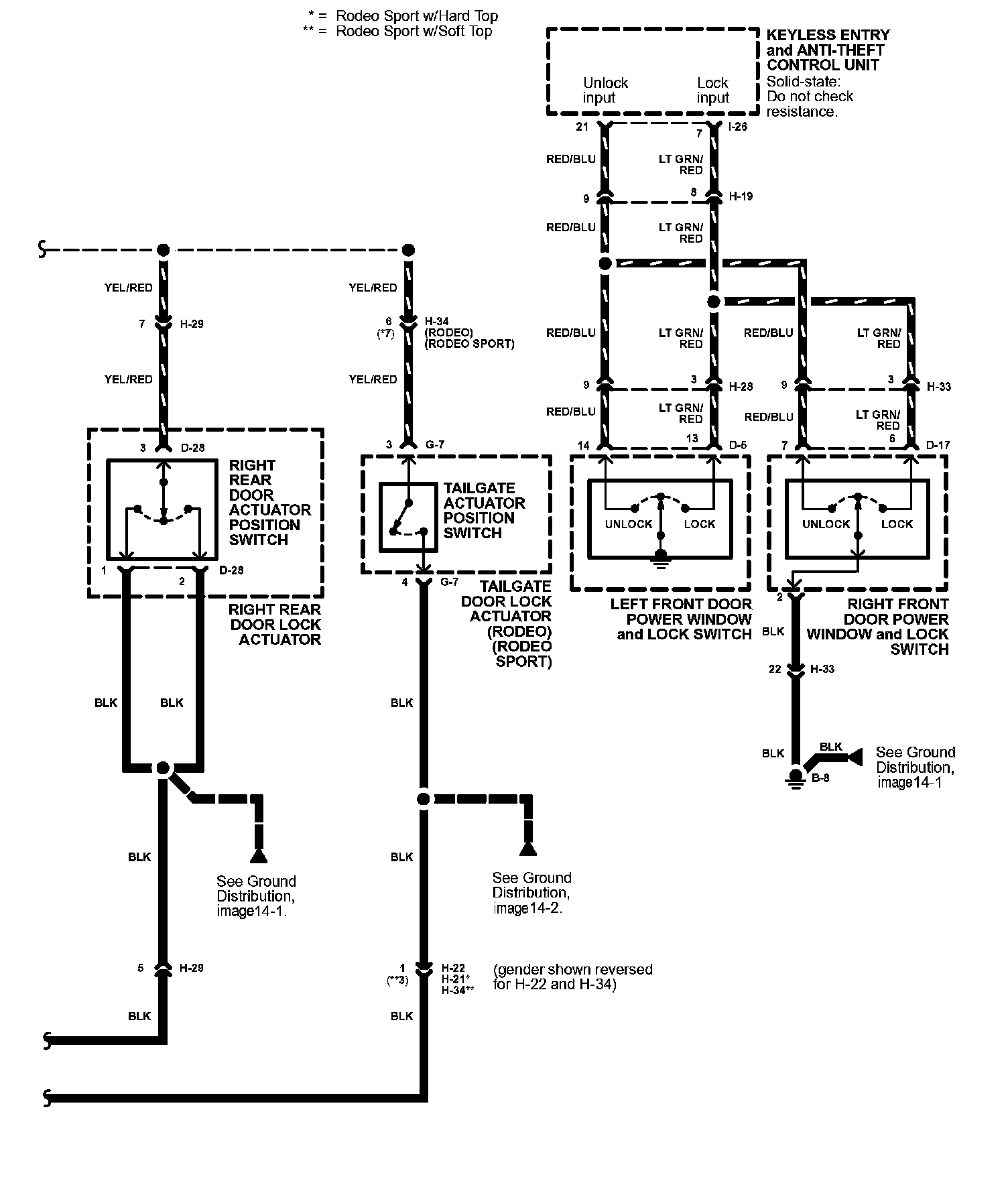

Keyless Entry And Anti-Theft System Image 133-1:

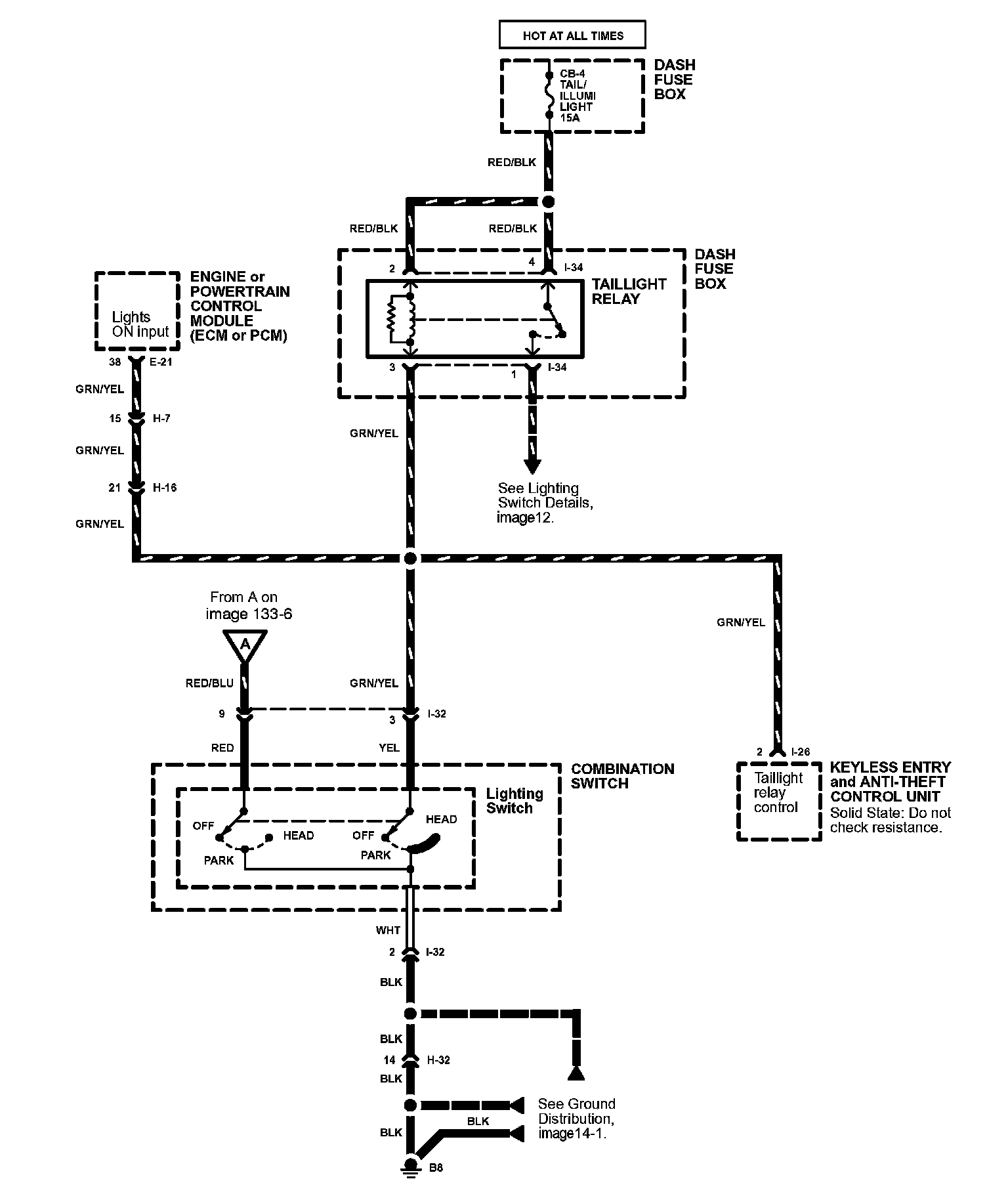

Keyless Entry And Anti-Theft System Image 133-2:

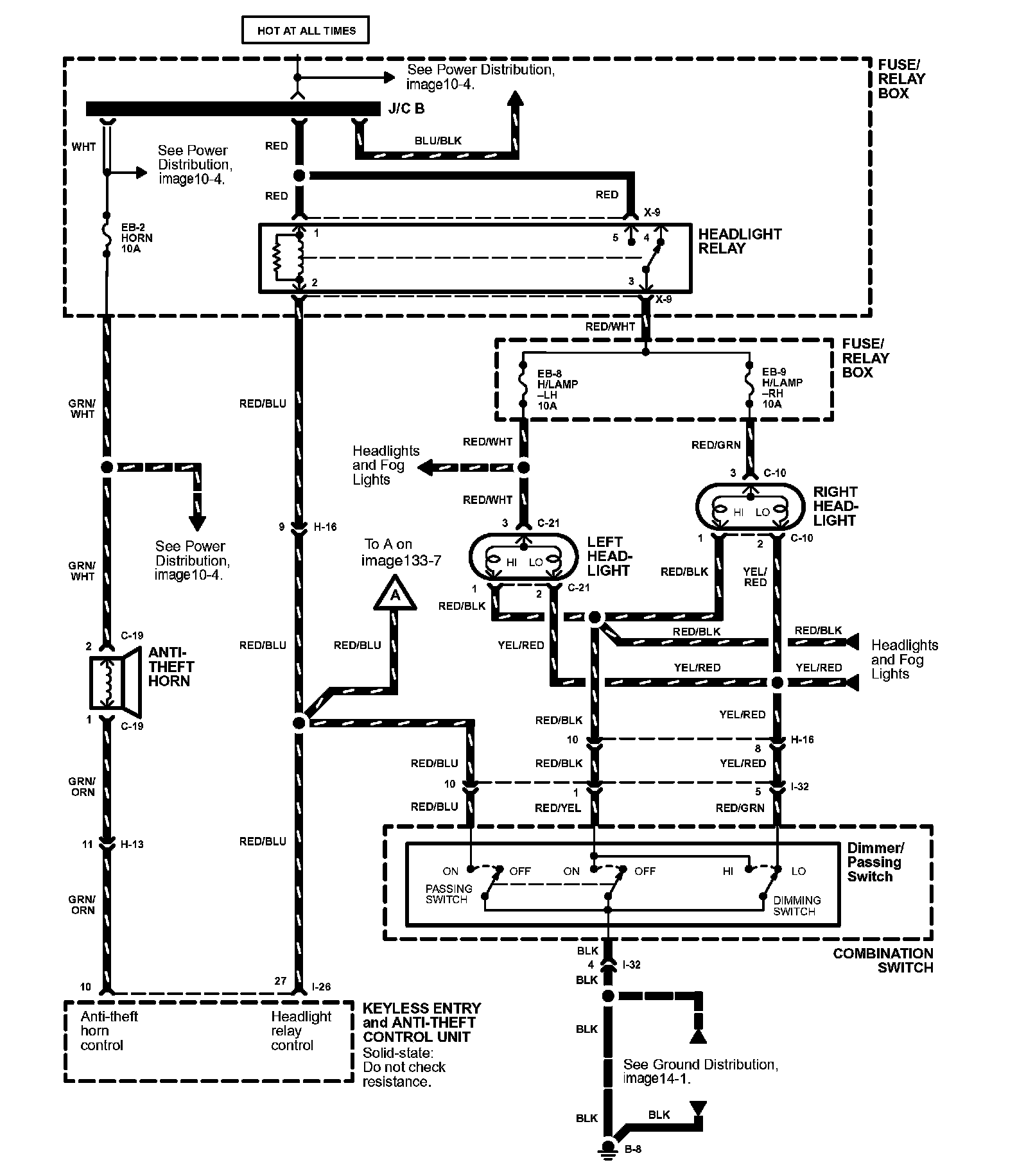

Keyless Entry And Anti-Theft System Image 133-3:

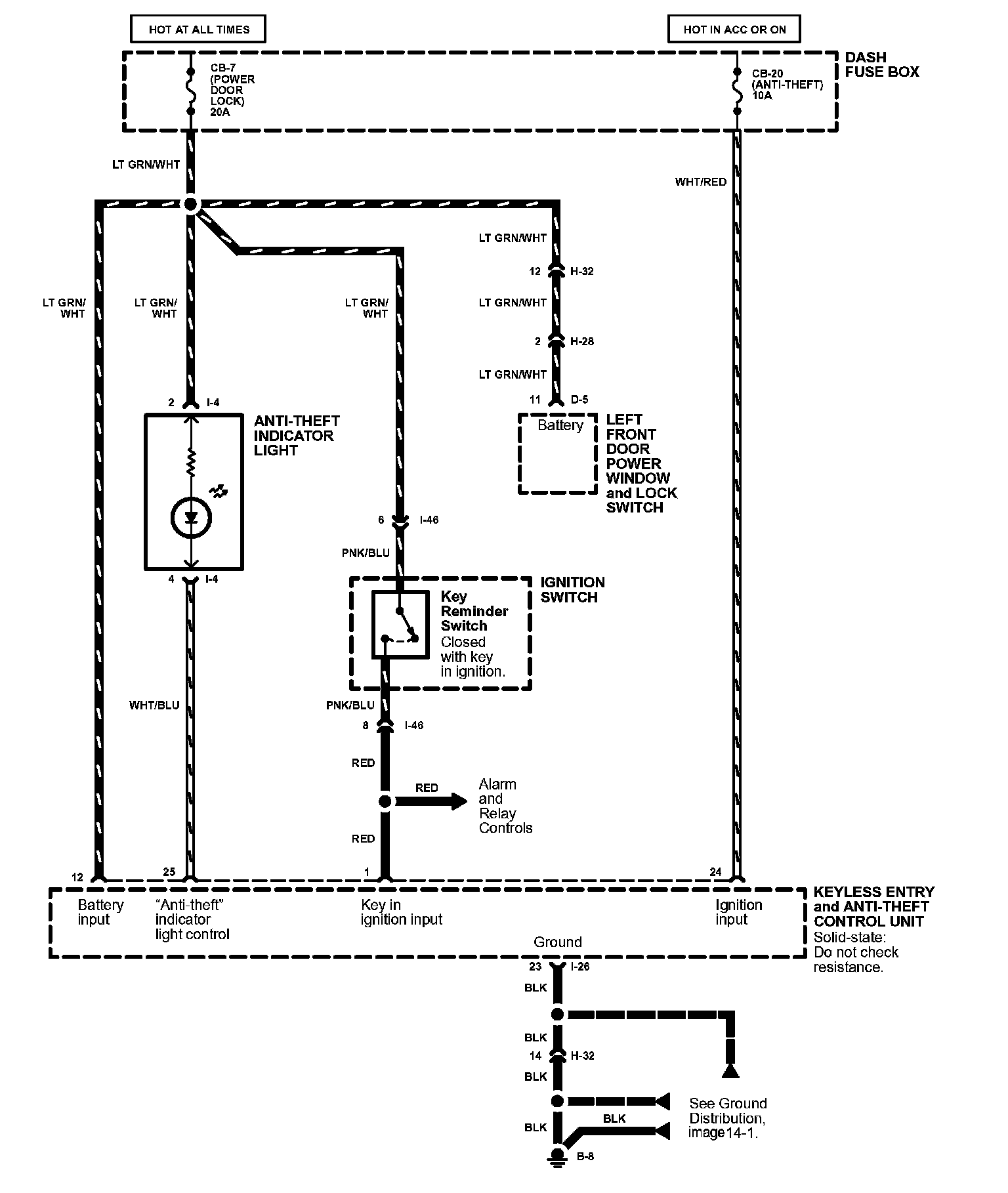

Keyless Entry And Anti-Theft System Image 133-4:

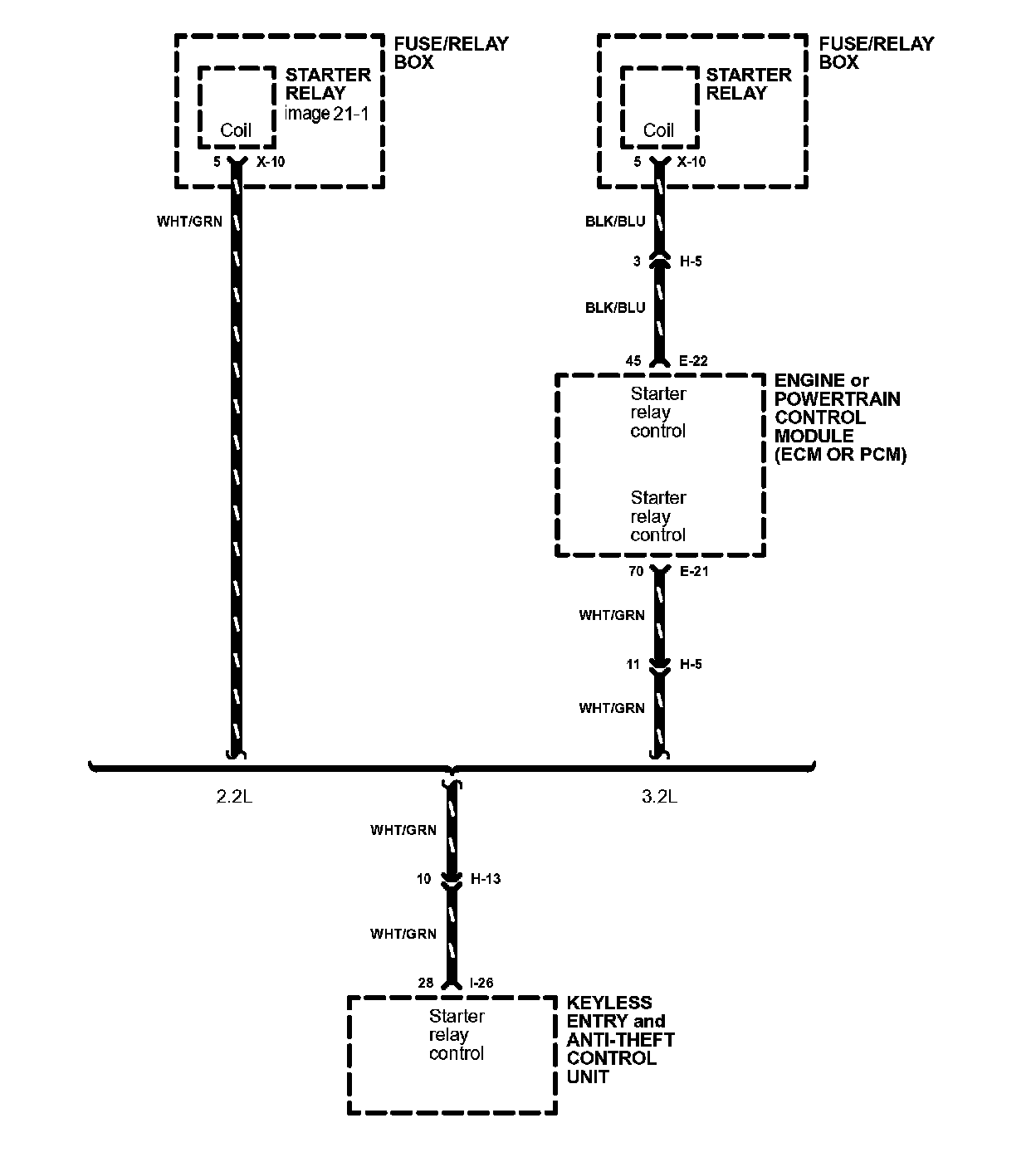

Keyless Entry And Anti-Theft System Image 133-5:

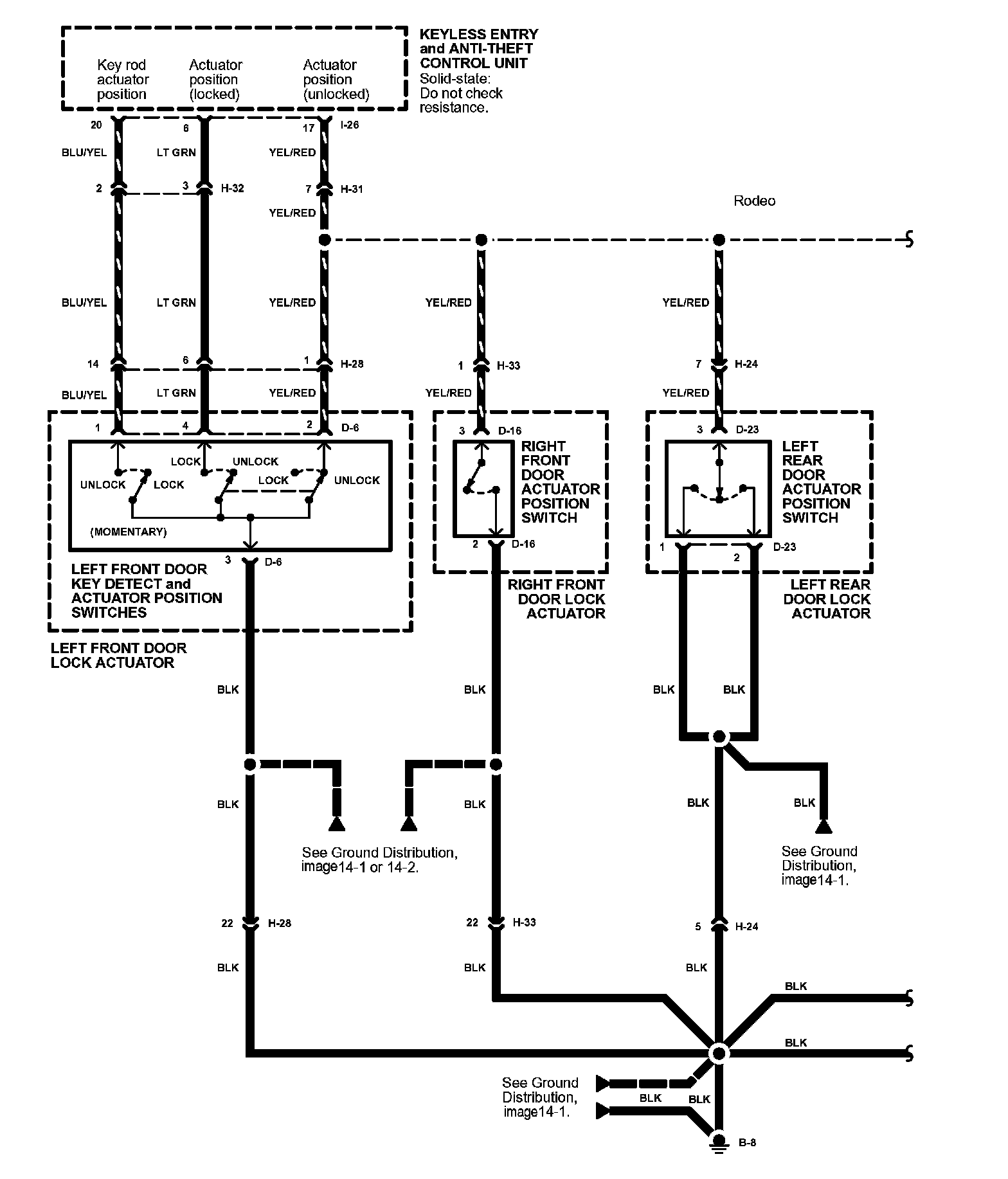

Keyless Entry And Anti-Theft System Image 133-6:

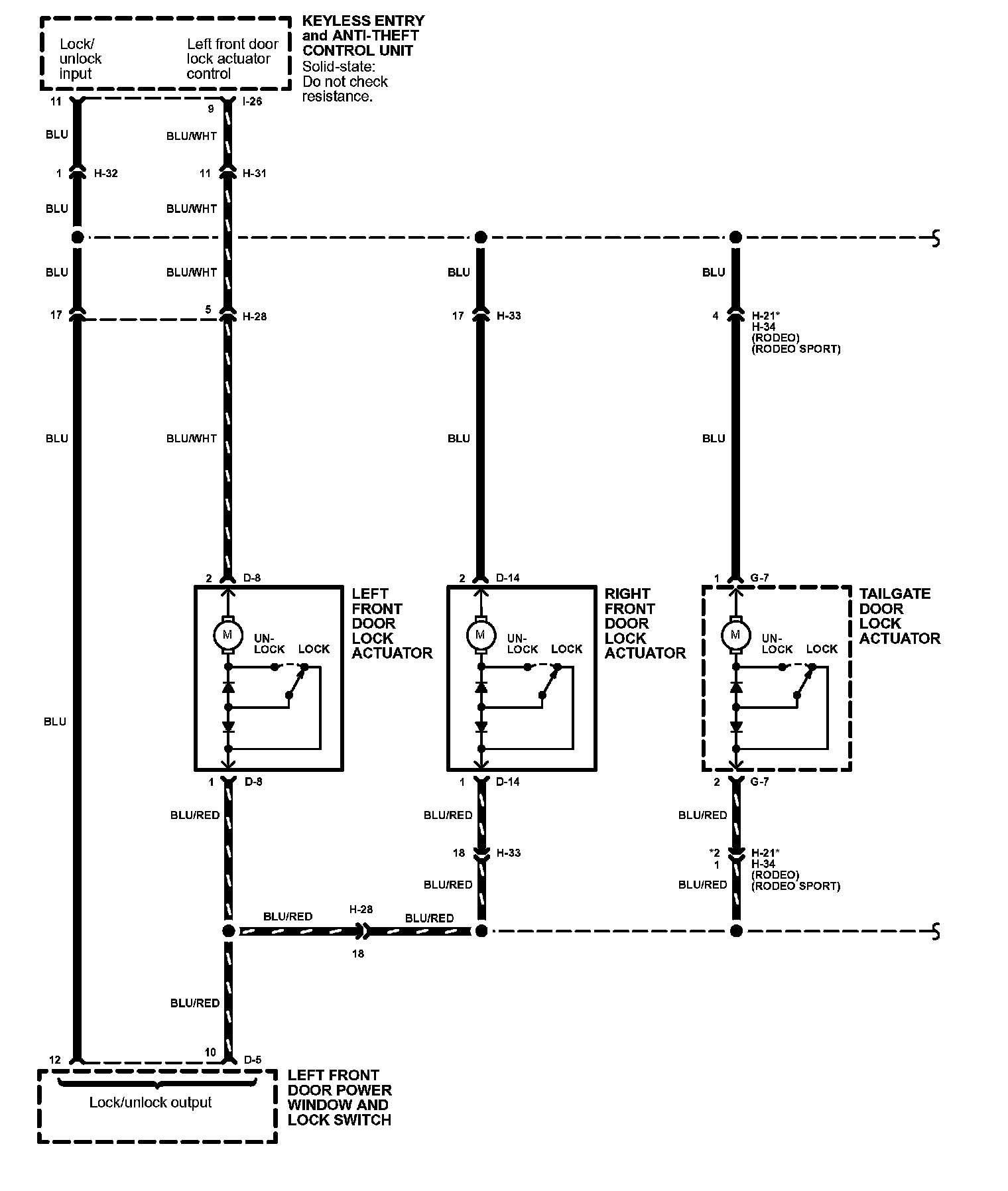

Keyless Entry And Anti-Theft System Image 133-7:

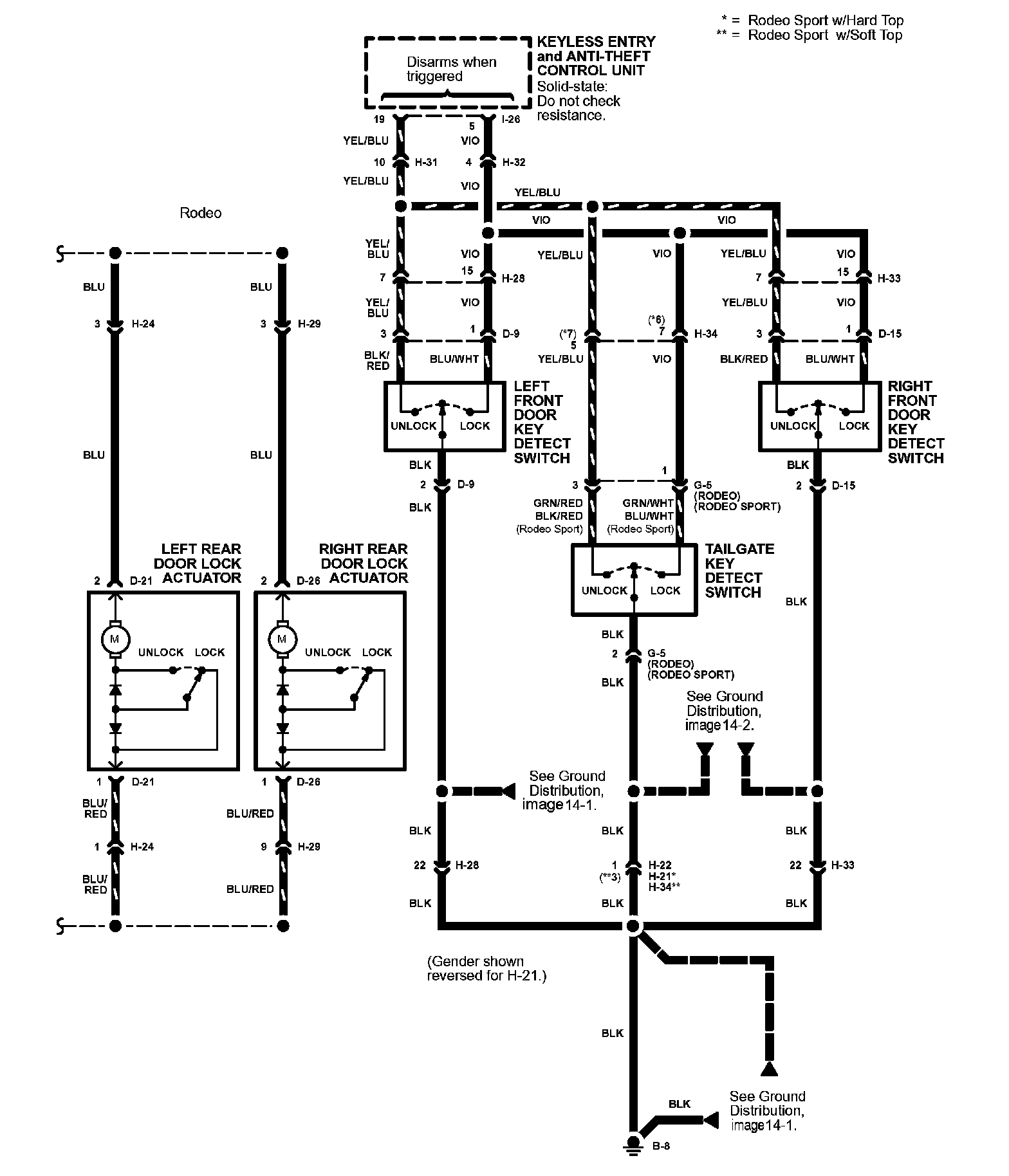

Keyless Entry And Anti-Theft System Image 133-8:
