Home >> Isuzu >> 2001 >> Rodeo S 4WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module

Ignition Control Module

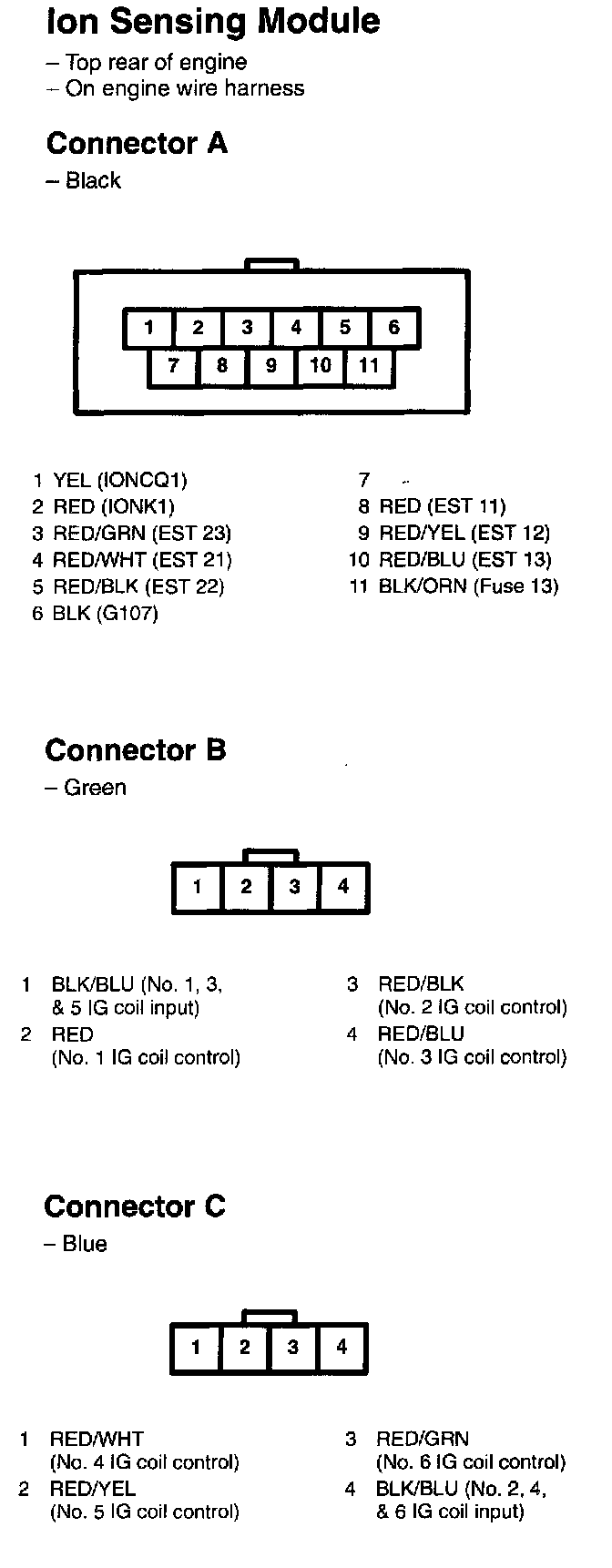

Ion Sensing Module Connectors A - C:
