Connecting Rod Bearing
Connecting Rod BearingBearing Oil Clearance
Standard 0.019 - 0.043 mm (0.0007 - 0.0017 in.)
Limit 0.08 mm (0.0031 in.)
1 of 2
2 of 2

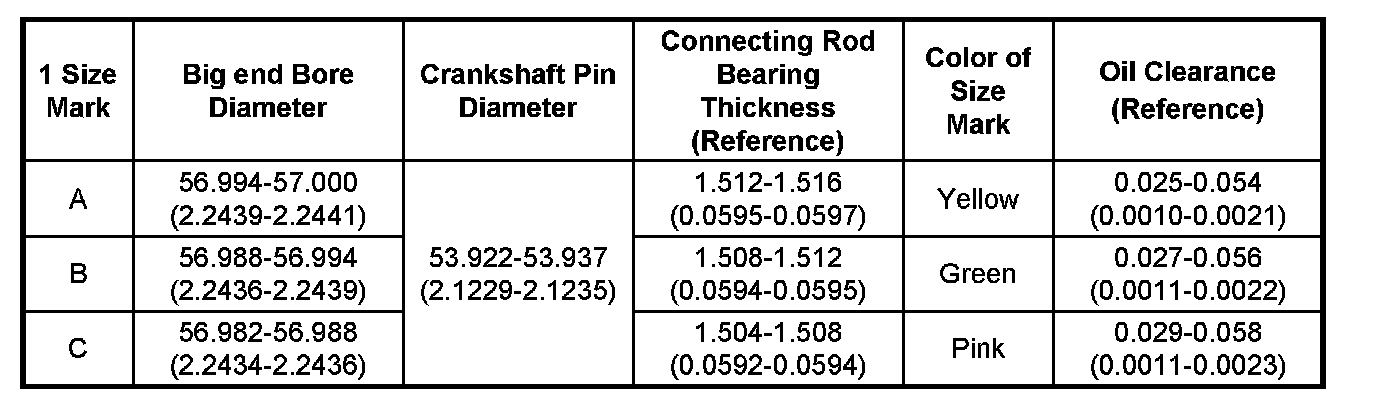

Bearing Selection Table
Bearing Oil Clearance
Standard 0.019 - 0.043 mm (0.0007 - 0.0017 in.)
Limit 0.08 mm (0.0031 in.)
1 of 2
2 of 2
Bearing Selection Table
