Home >> Isuzu >> 2001 >> Rodeo LS 4WD V6-3.2L >> Repair and Diagnosis >> Powertrain Management >> Locations >> Engine Components

Engine Components

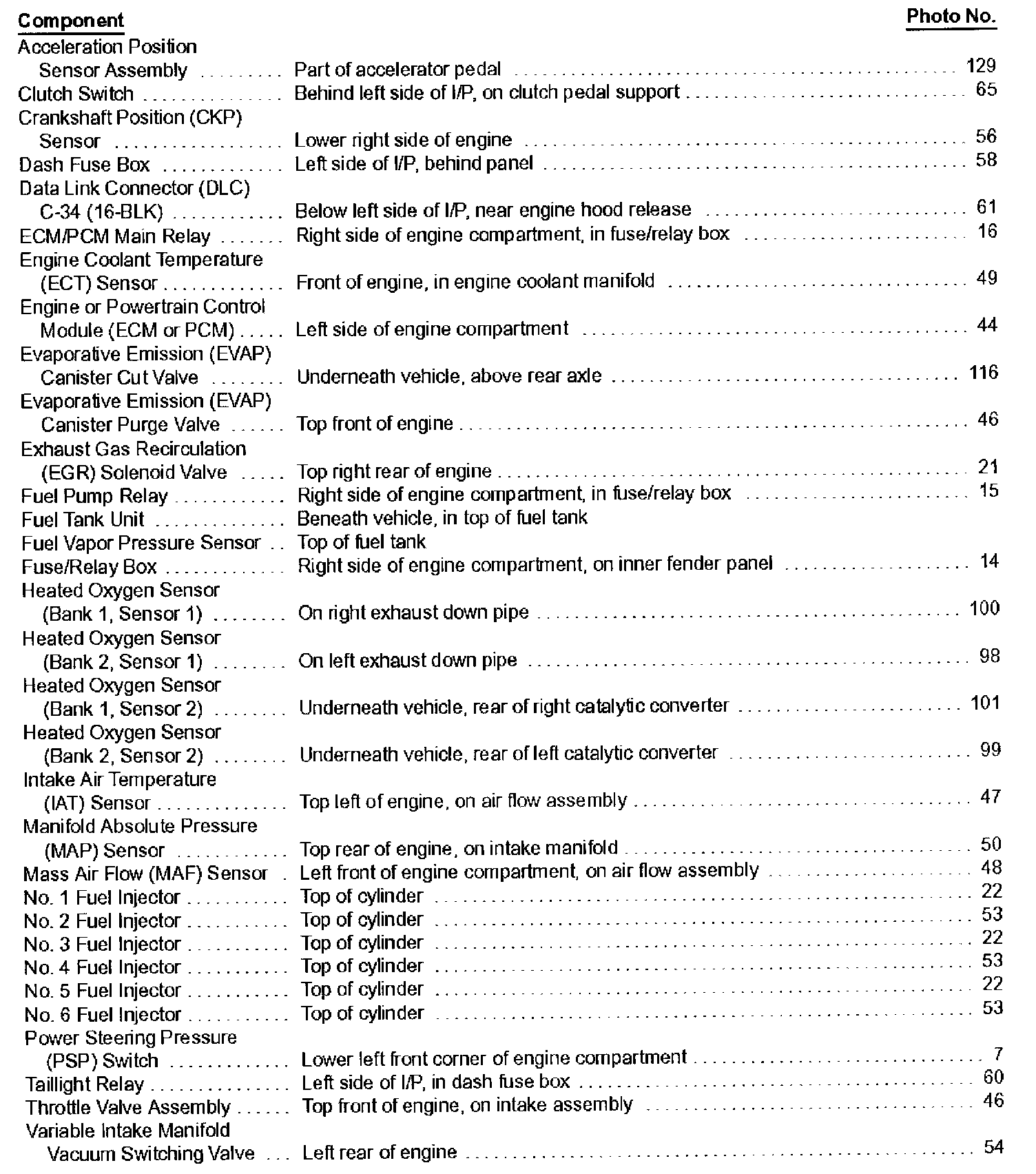

Engine Controls Index (Part 1) 3.2L:

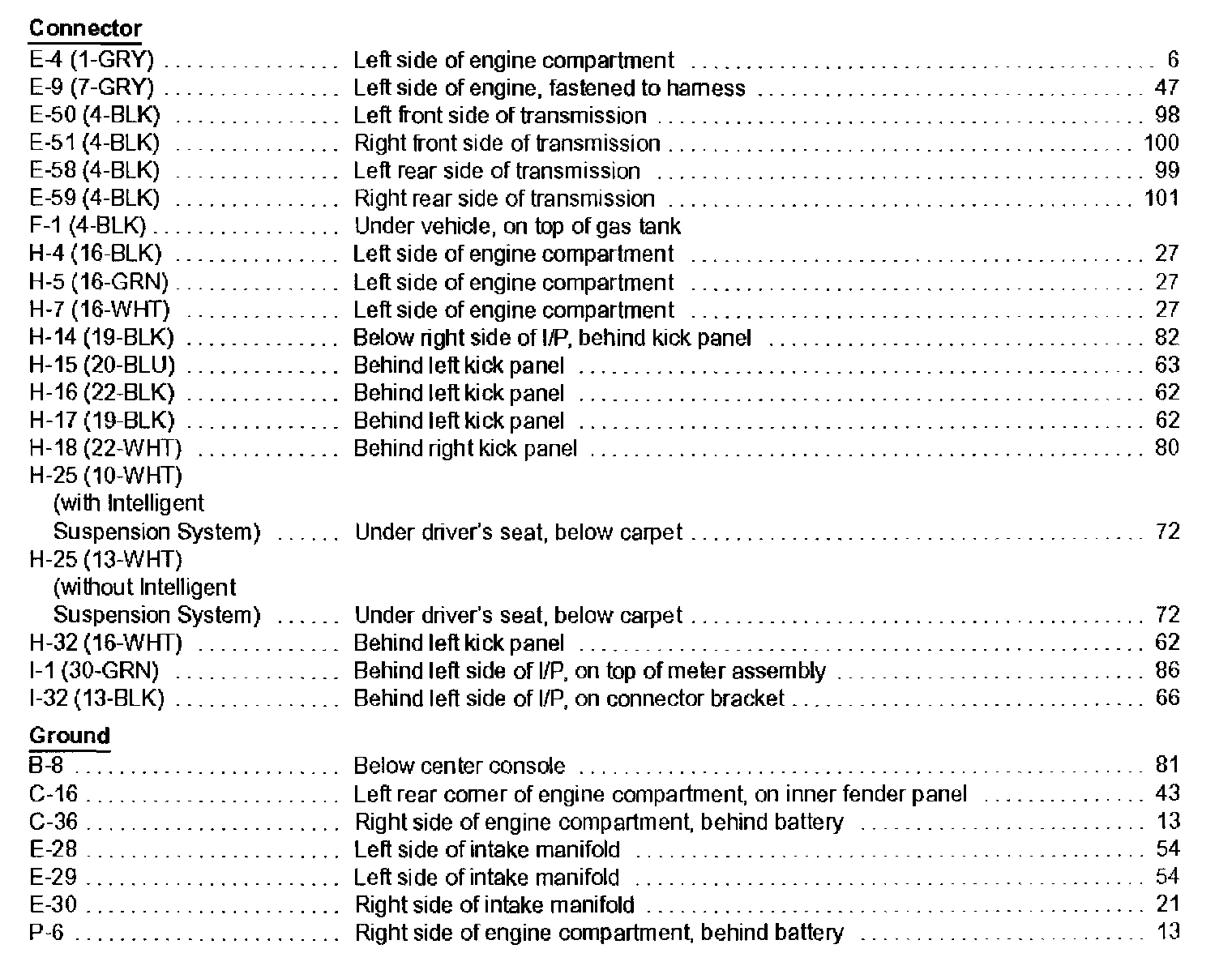

Engine Controls Index (Part 2) 3.2L:

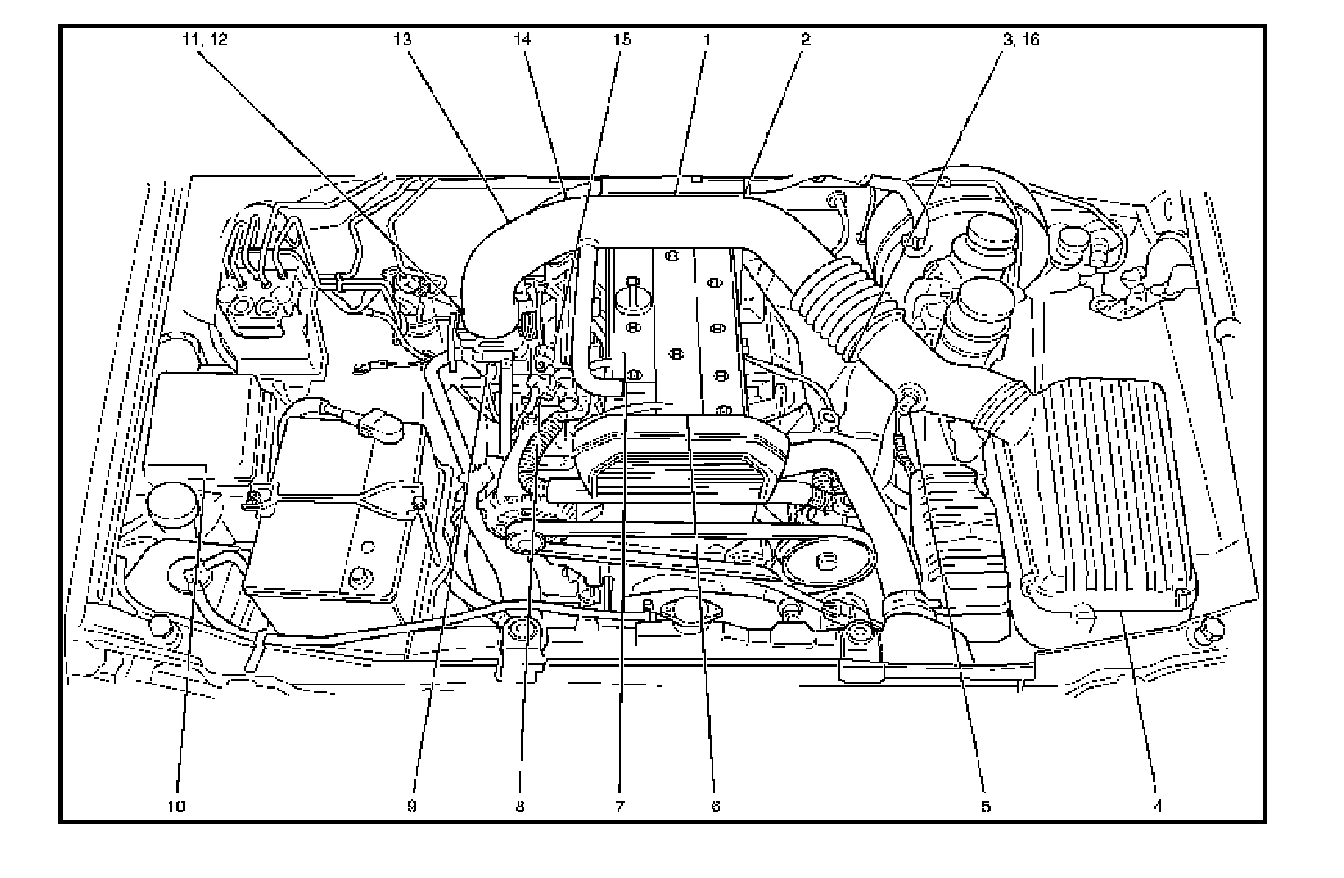

Component Locator:

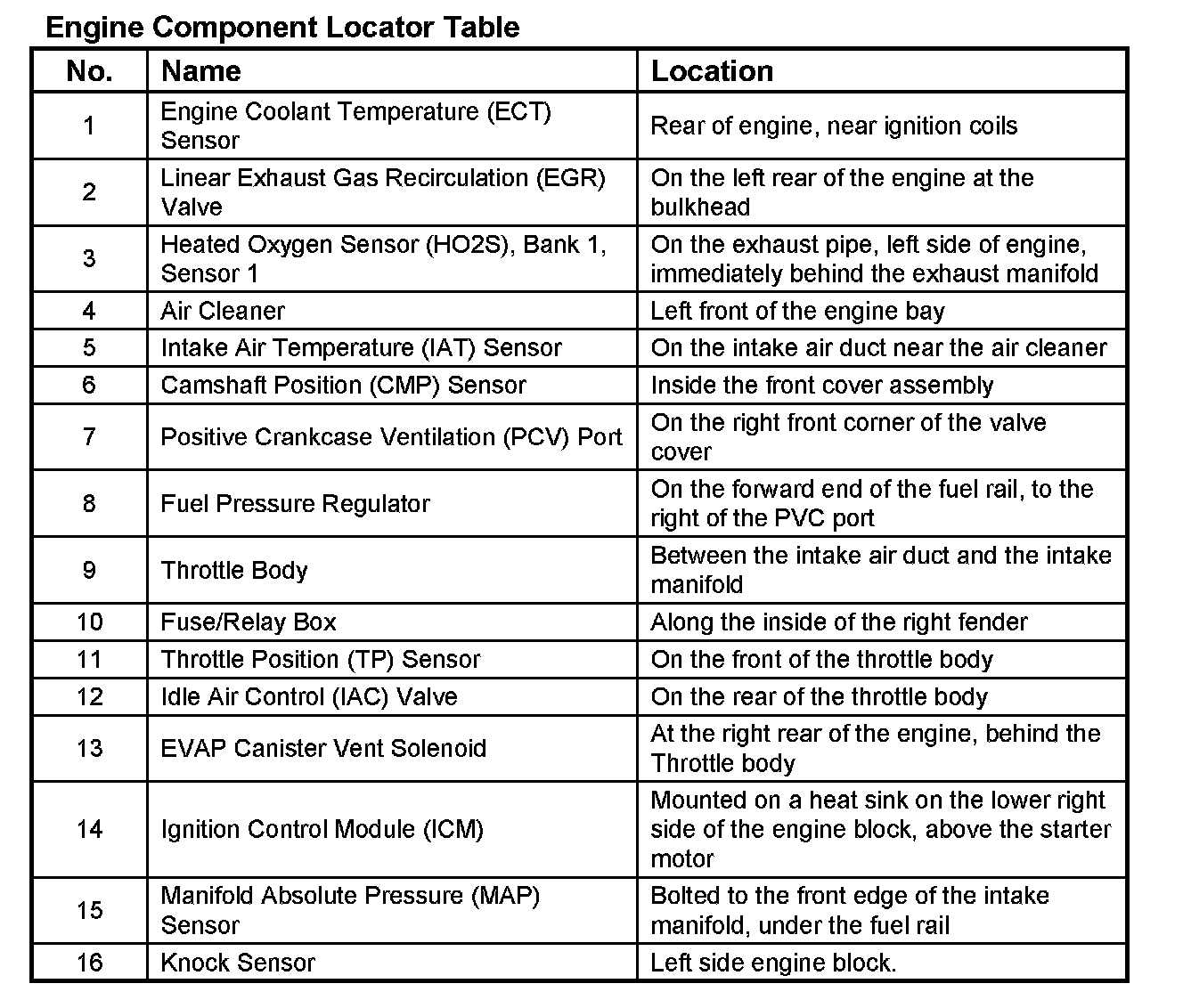

Engine Component Locator Table:
