Home >> Isuzu >> 2001 >> Rodeo LS 4WD V6-3.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Component Locations >> Engine Components

Engine Components

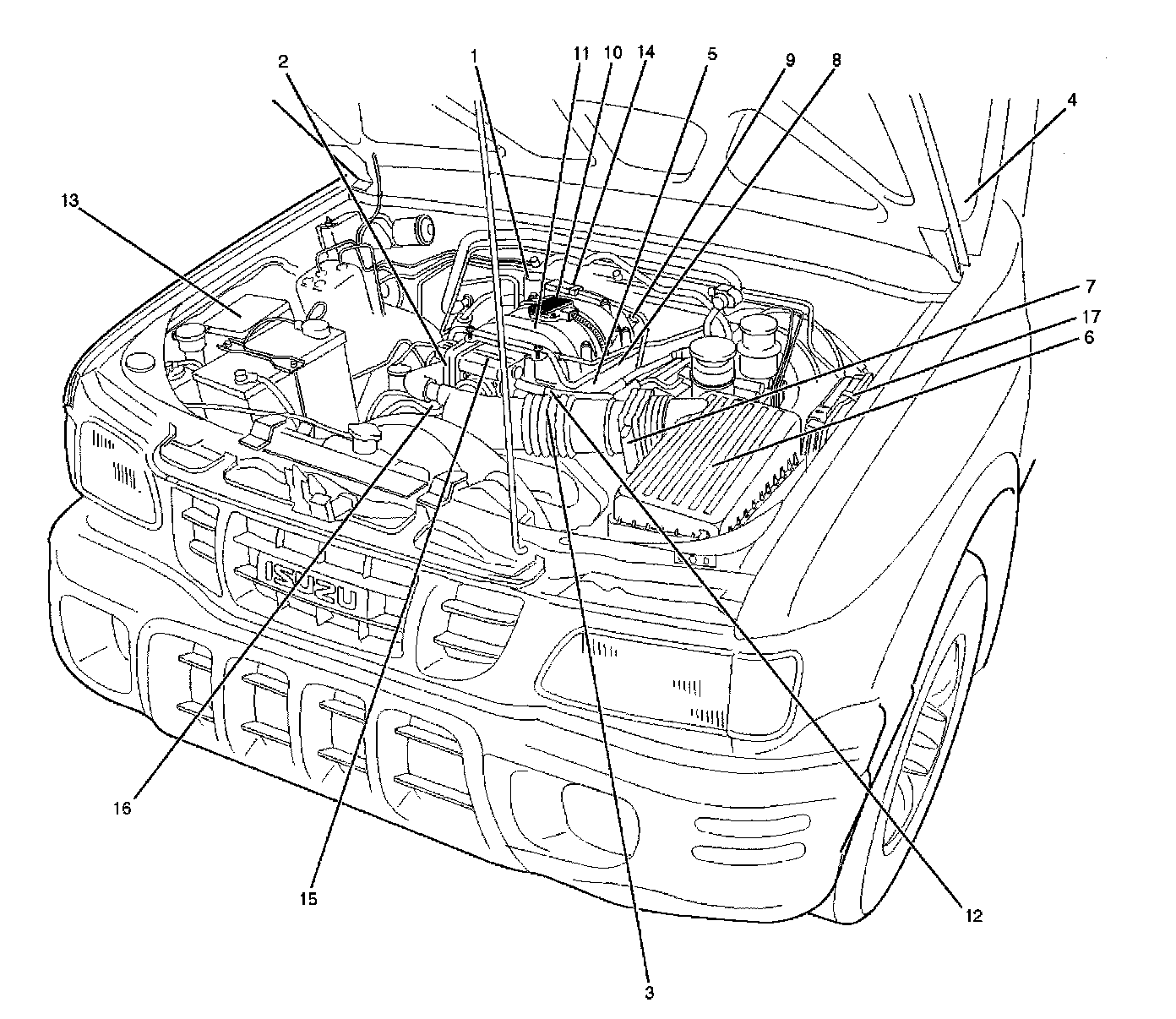

Engine Component Locator View:

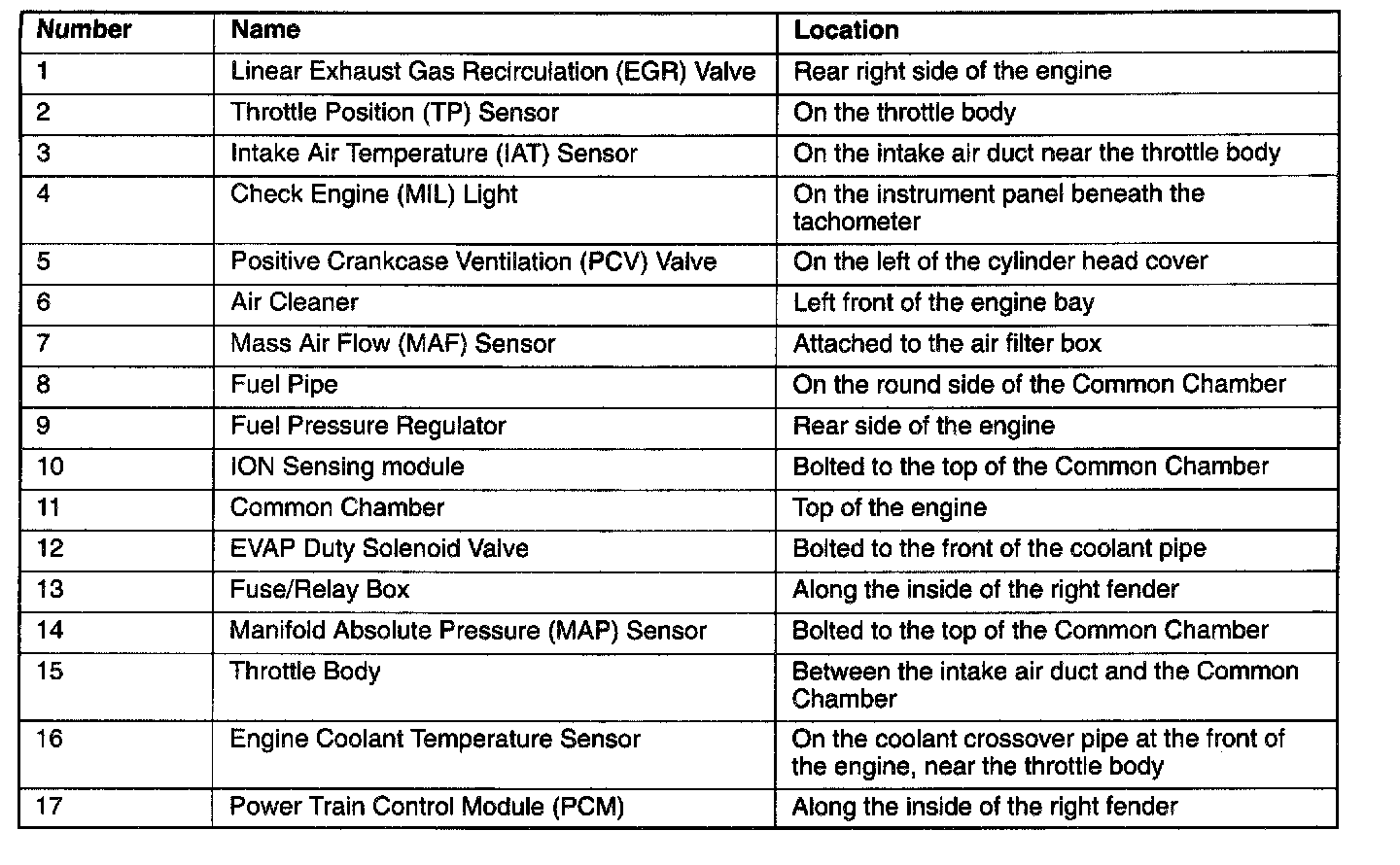

Engine Component Locator Table:
