Power and Ground Distribution: Locations

Power Distribution Index:

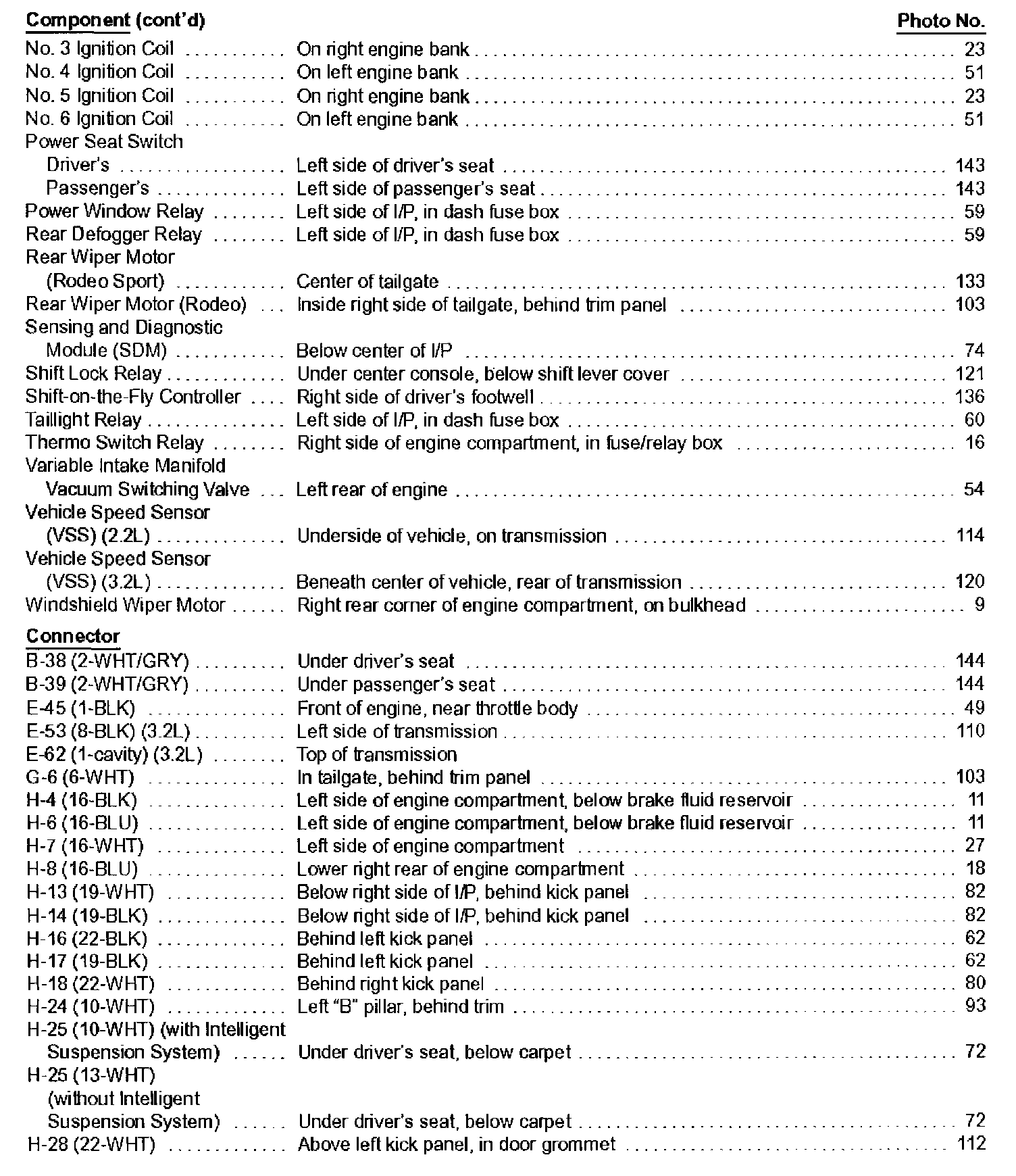

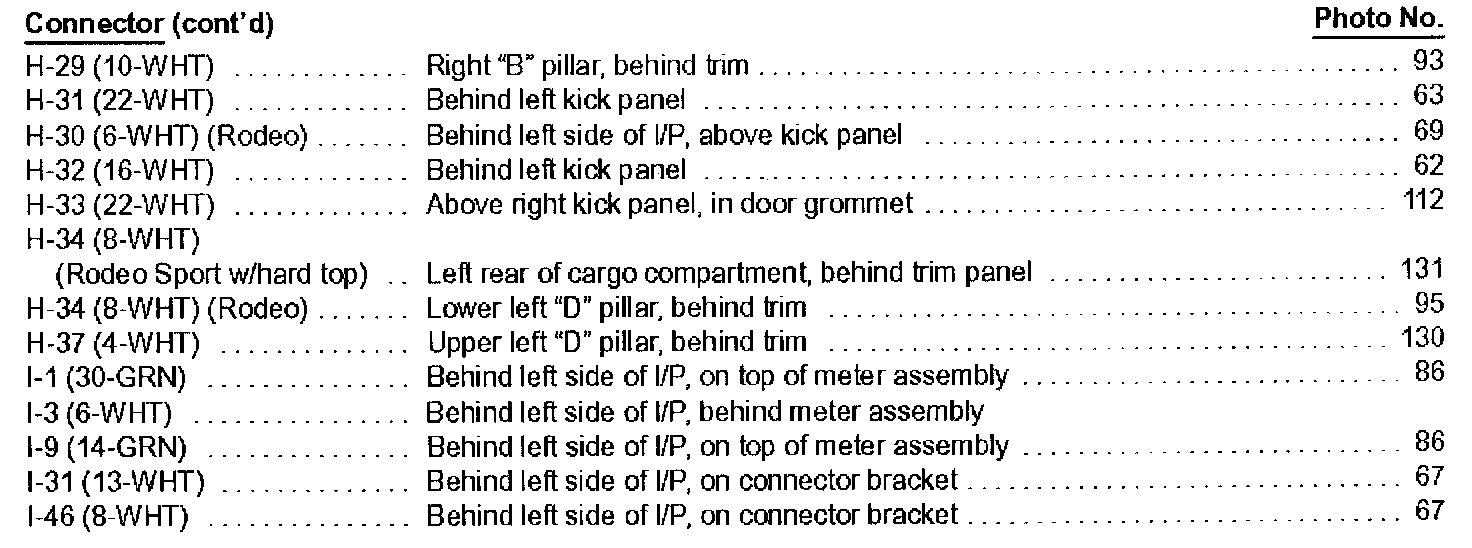

Dash Fuse Box Index (Part 1):

Dash Fuse Box Index (Part 2):

Dash Fuse Box Index (Part 3):

Ground Distribution Index (Part 1):

Ground Distribution Index (Part 2):

Ground Distribution Index (Part 3):

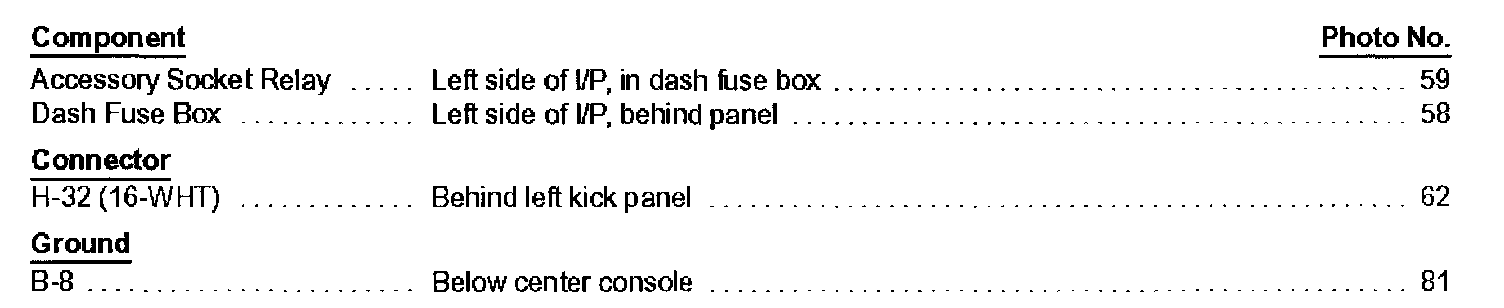

Accessory Sockets Index:

Component Location Index photographs can be found at Diagnosis and Repair/Locations/Components
Locations
