Home >> Isuzu >> 2001 >> Rodeo LS 4WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Ignition Switch Lock Cylinder

Ignition Switch Lock Cylinder

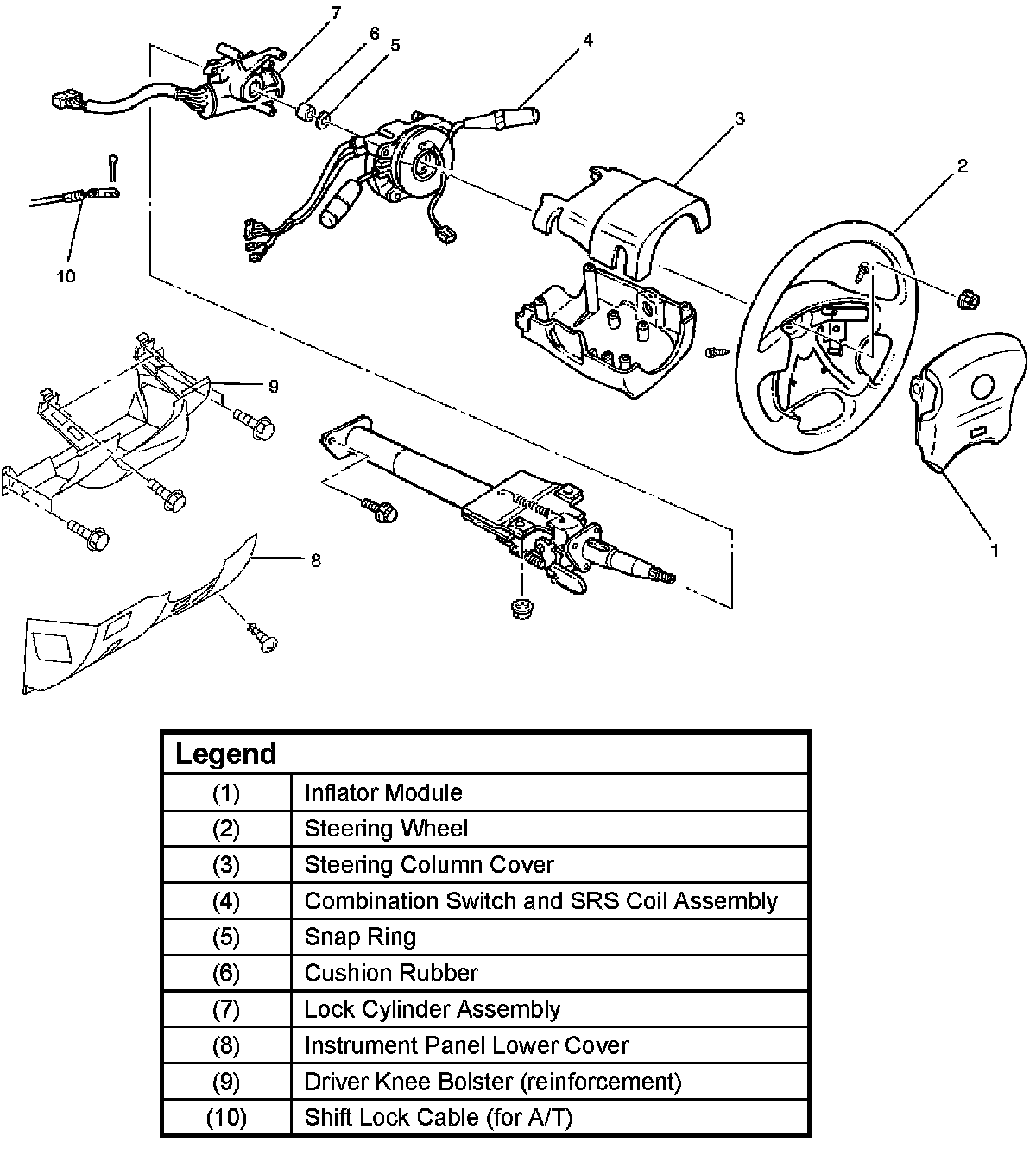

Lock Cylinder and Associated Parts:





Lock Cylinder and Associated Parts
