Isuzu
>>
2001
>>
Rodeo LS 4WD V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
General Module
General Module

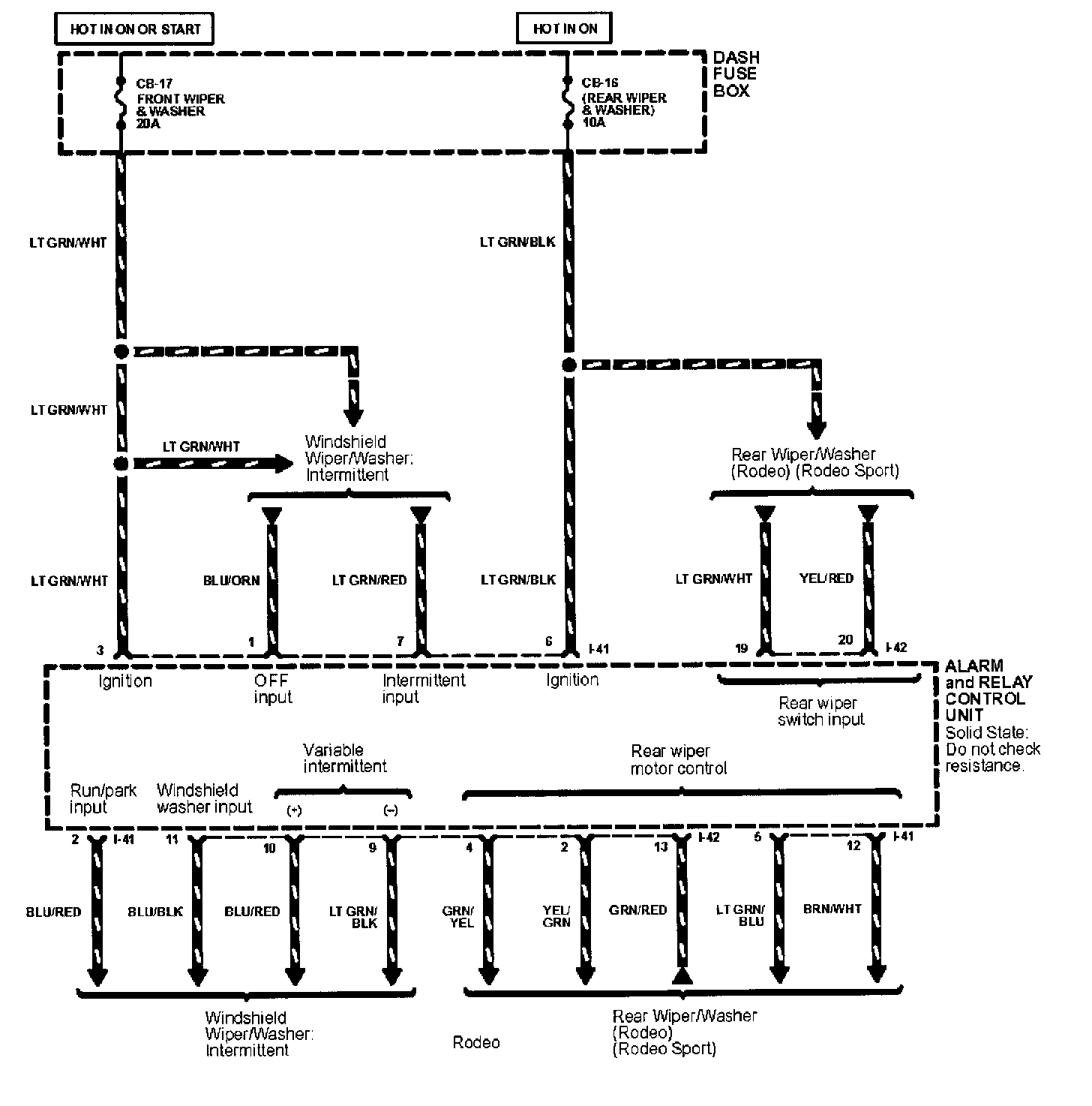

Alarm And Relay Controls Image 70:

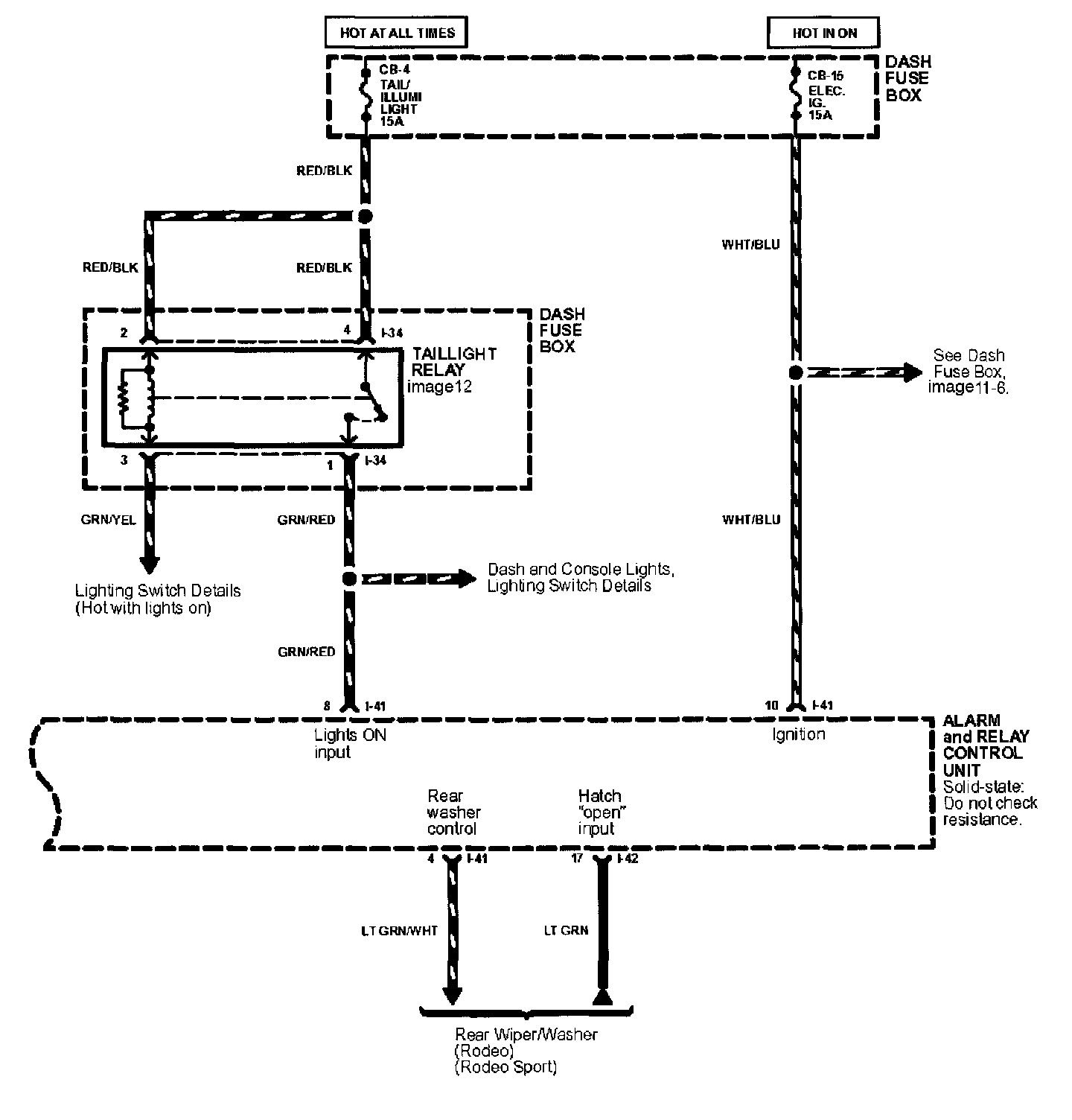

Alarm And Relay Controls Image 70-1:

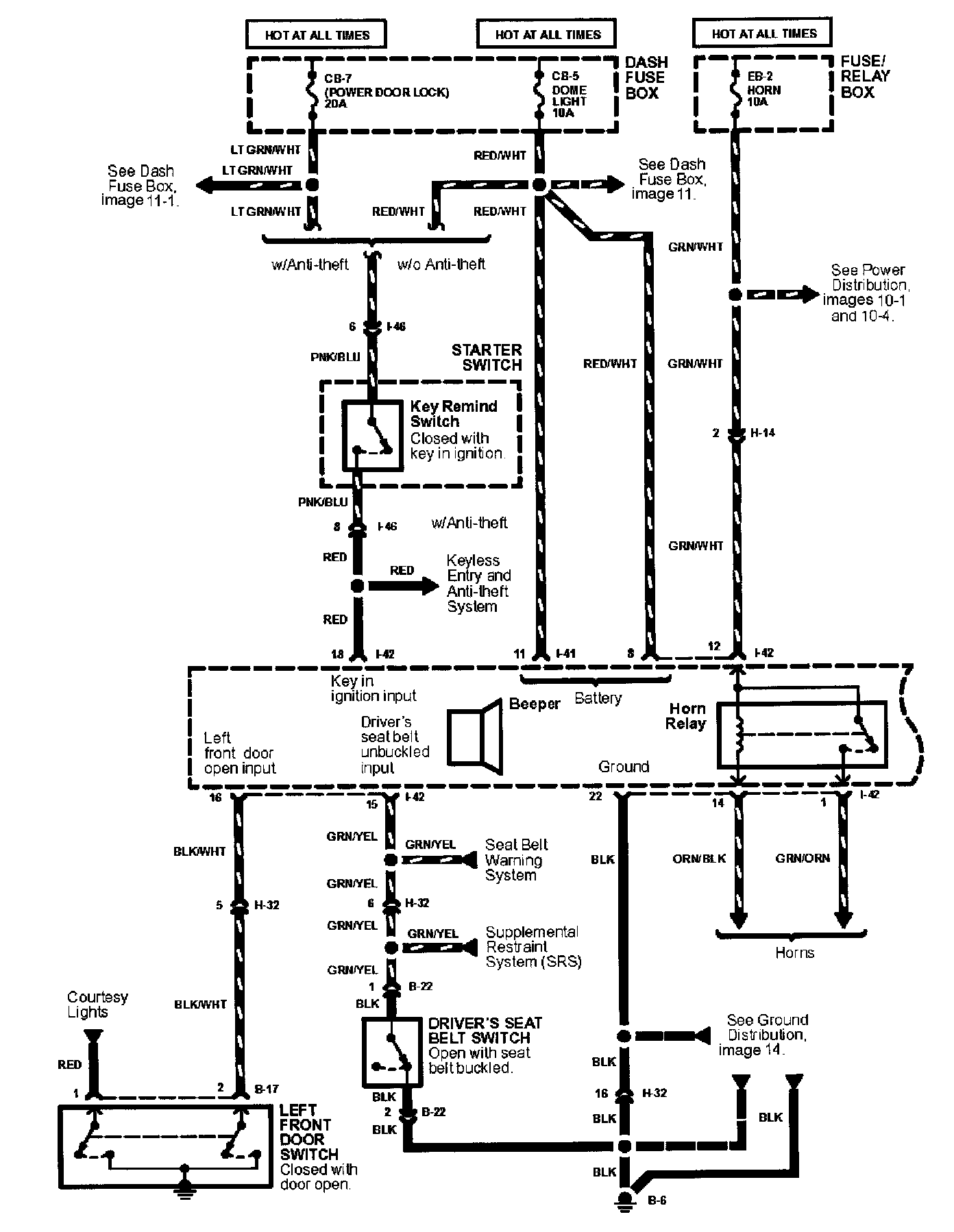

Alarm And Relay Controls Image 70-2:
