Home >> Isuzu >> 2001 >> Rodeo LS 4WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control Systems

Transmission Control Systems

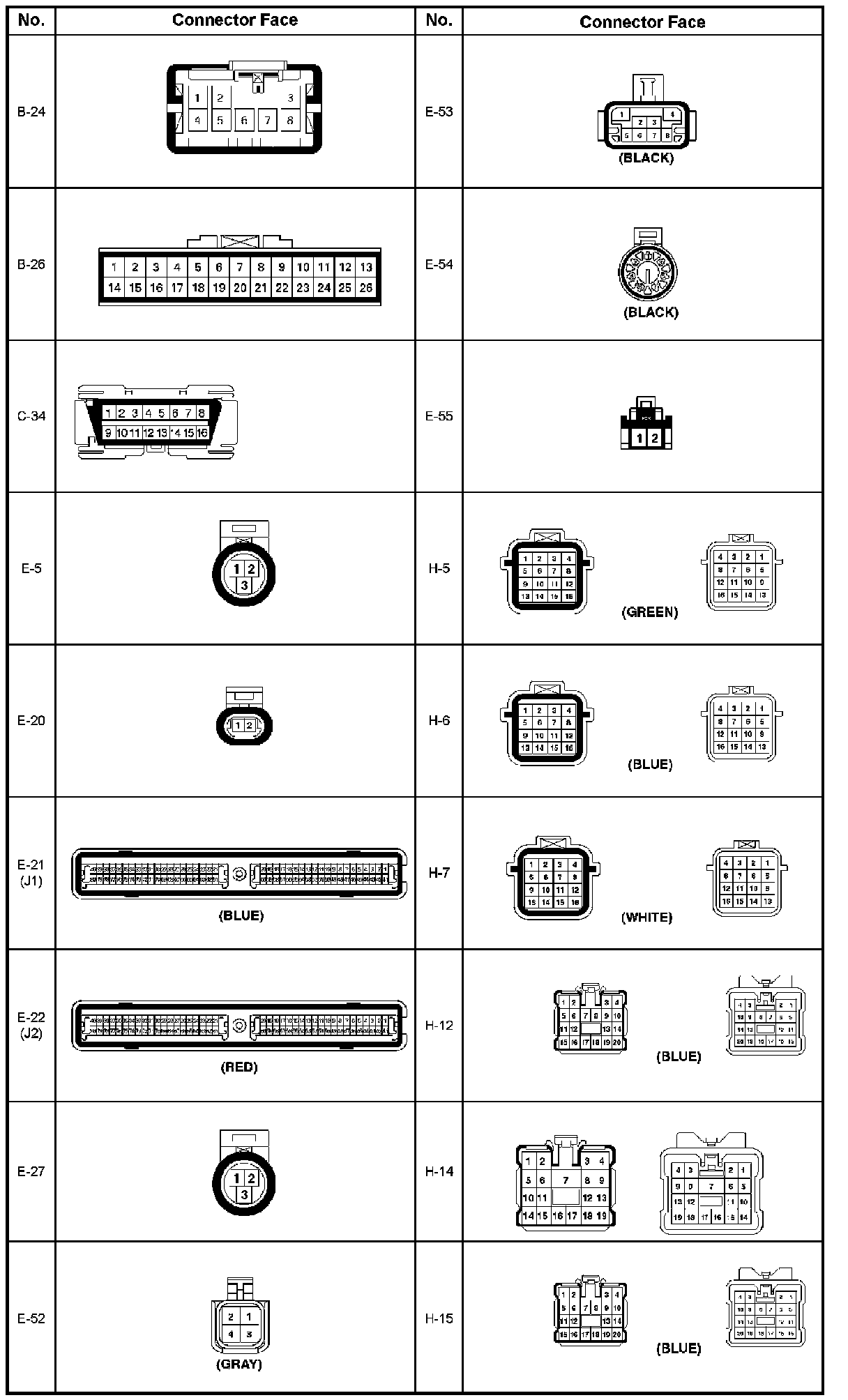

HARNESS CONNECTOR FACES

1 of 2

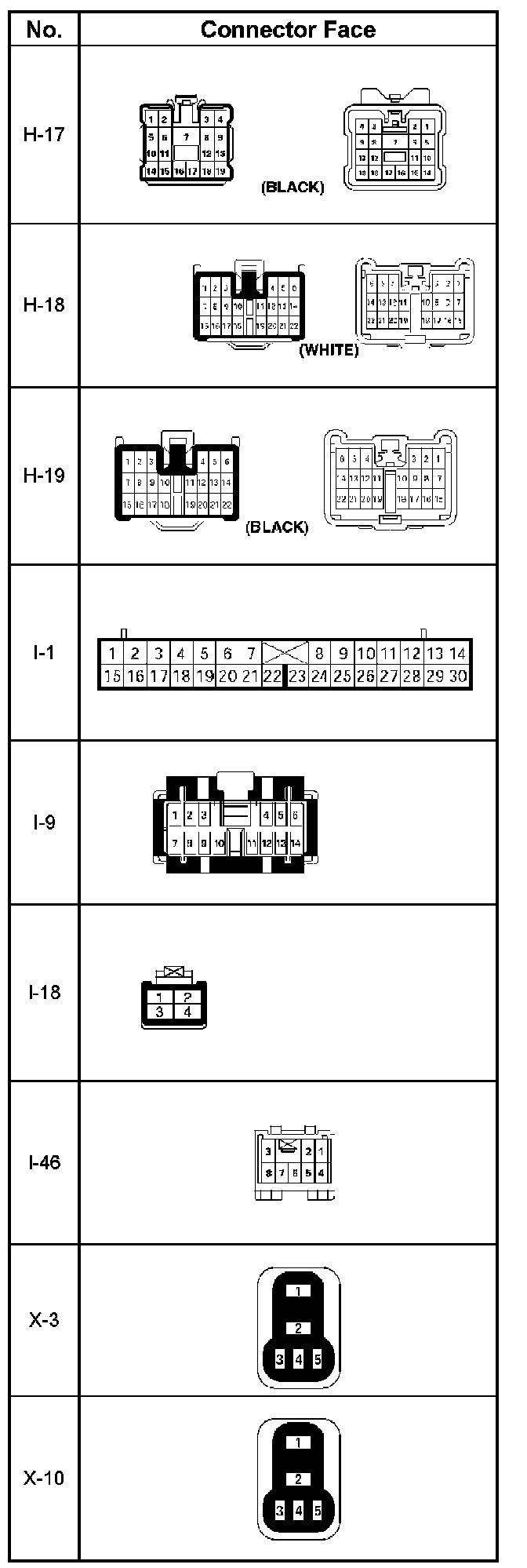

2 of 2
