Home >> Isuzu >> 2001 >> Rodeo LS 4WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector

Fuel Injector

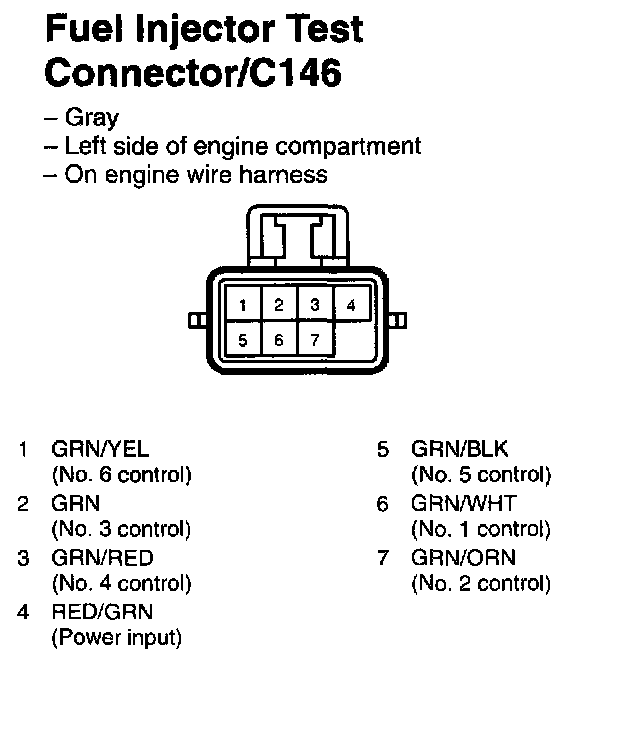

Fuel Injector Test Connector/C146:
