Home >> Isuzu >> 1985 >> Impulse L4-1994cc 2.0L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Throttle Position Sensor

Throttle Position Sensor

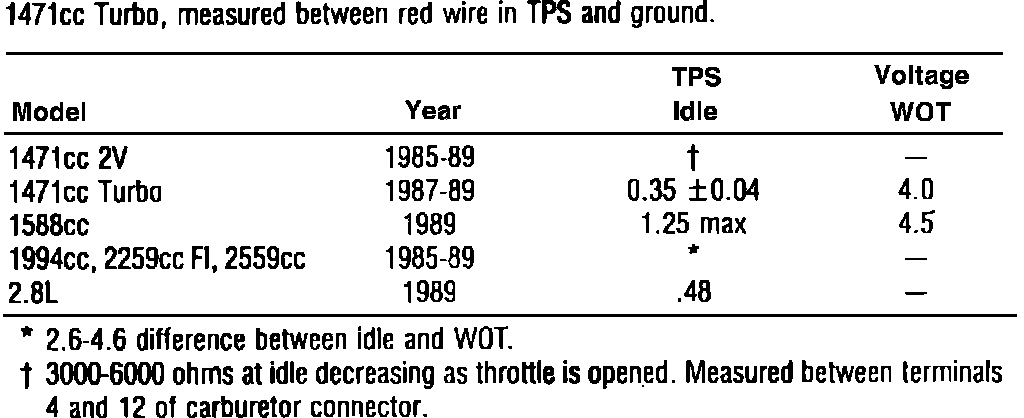

Fig. 3 Throttle Position Sensor:
