Home >> Isuzu >> 1985 >> Impulse L4-1994cc 2.0L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Ignition Coil

Ignition Coil

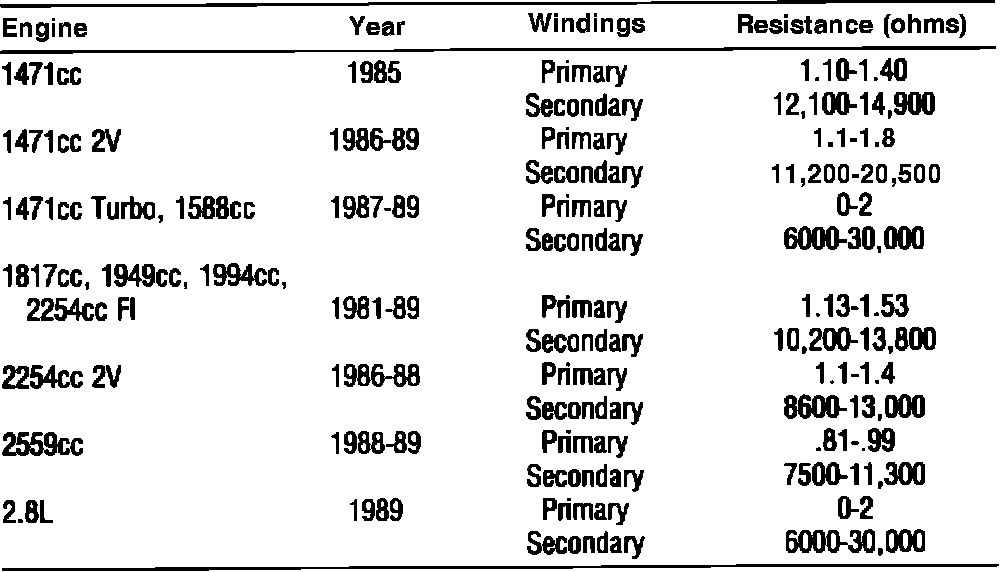

Fig. 6 Ignition Coil Specifications:

*** UPDATED BY TSB 88-04-007 AUGUST, 1990
