Home >> Isuzu >> 1985 >> Impulse L4-1994cc 2.0L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Timing >> Specifications

Ignition Timing: Specifications

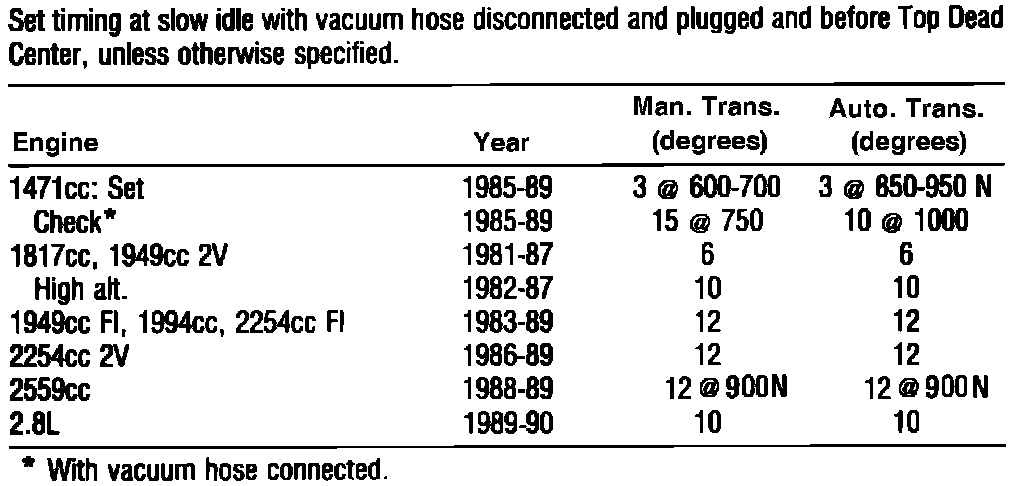

Fig. 8 Base Timing Specifications:
