Fuel Injector Control Module: Diagrams

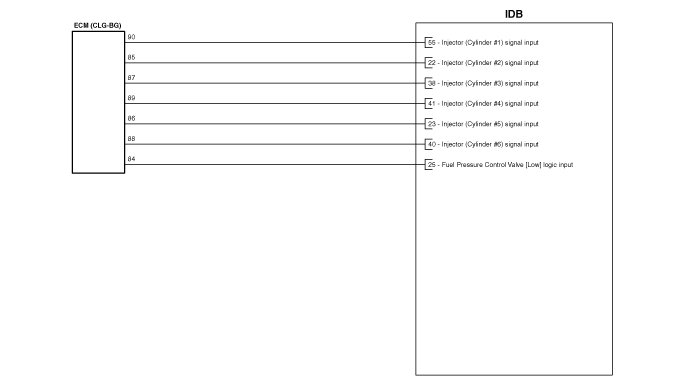

IDB terminal and Inoutput

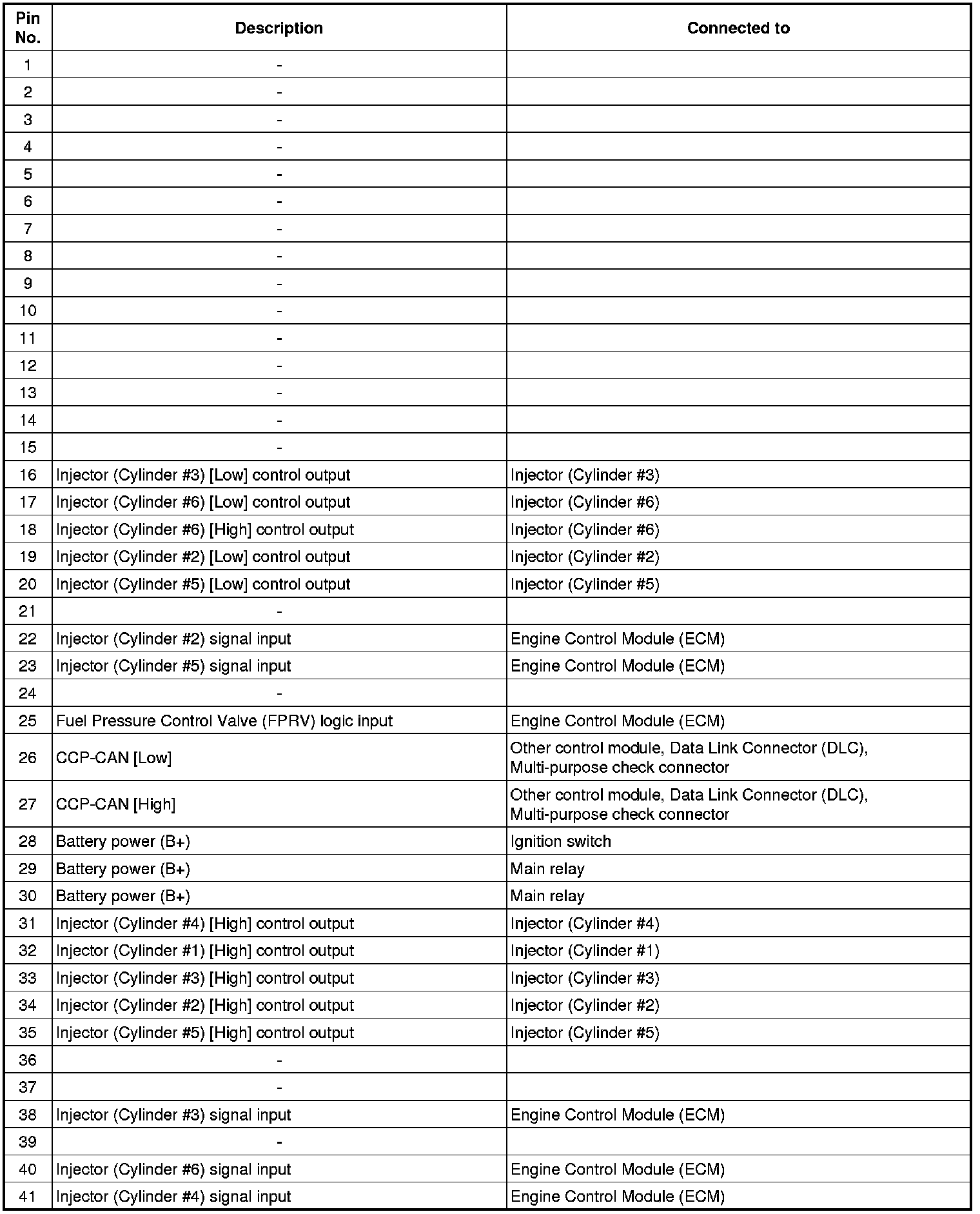

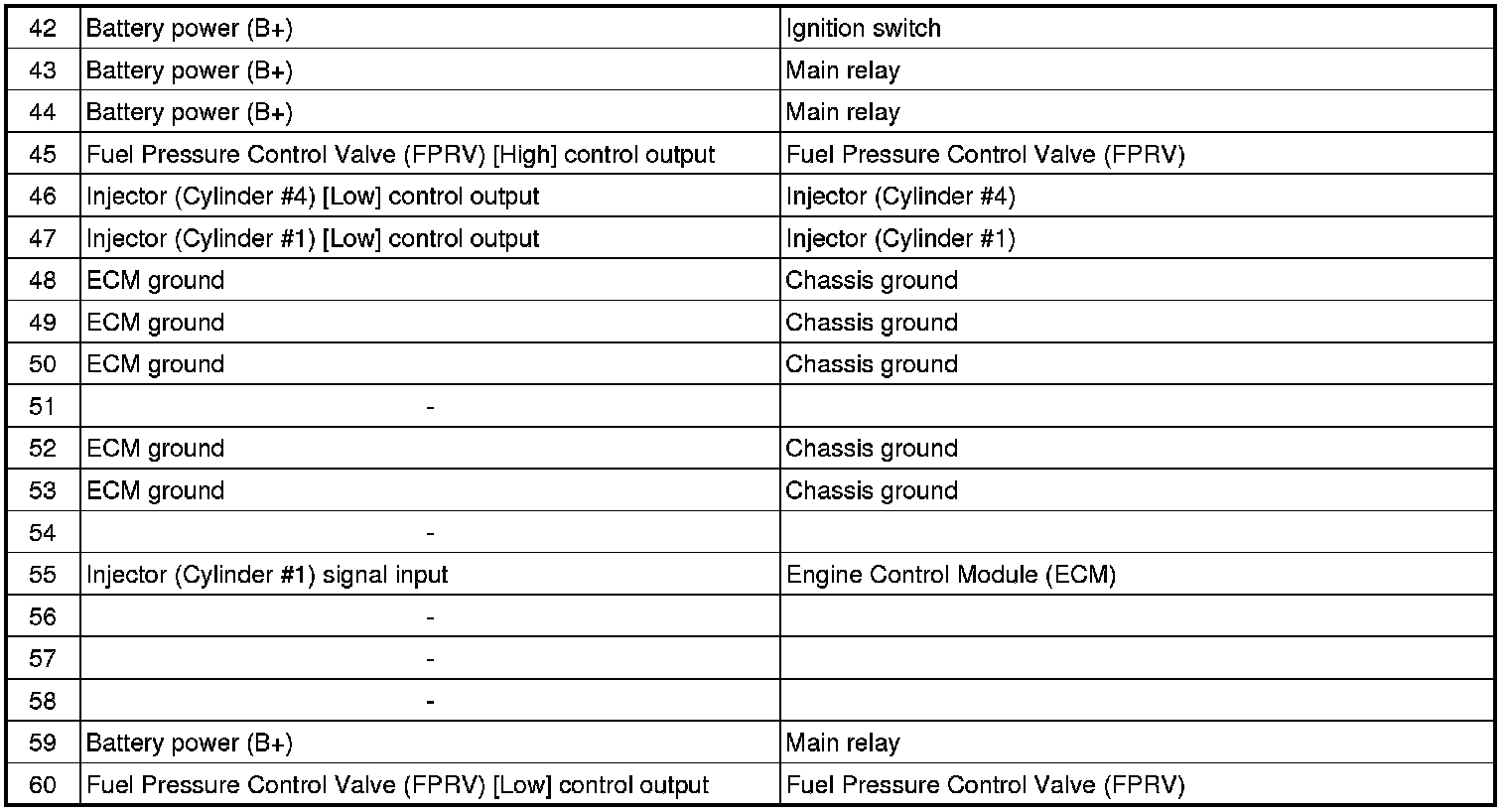

IDB terminal function

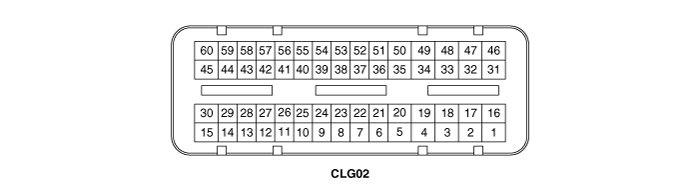

Connector [CLG02]

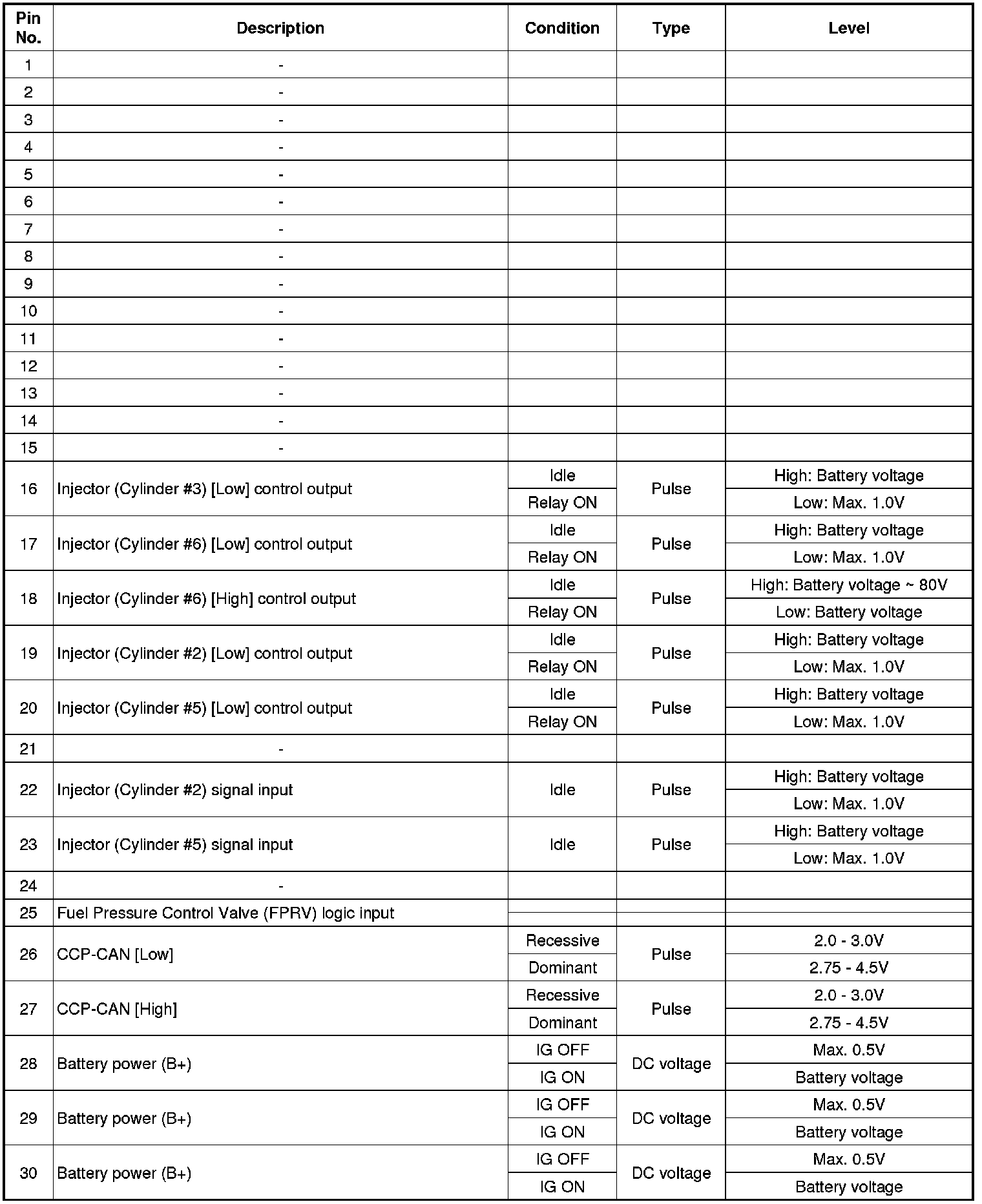

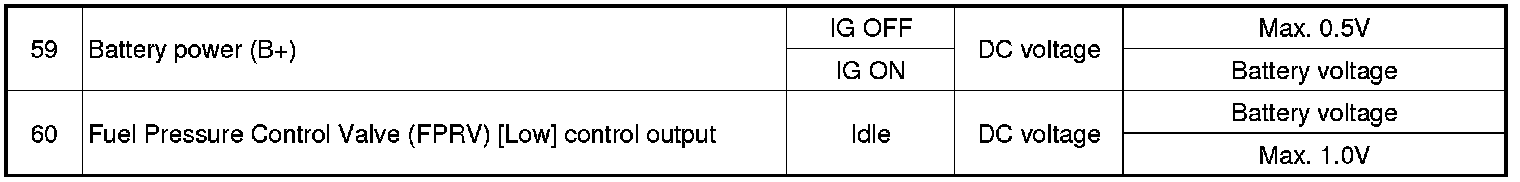

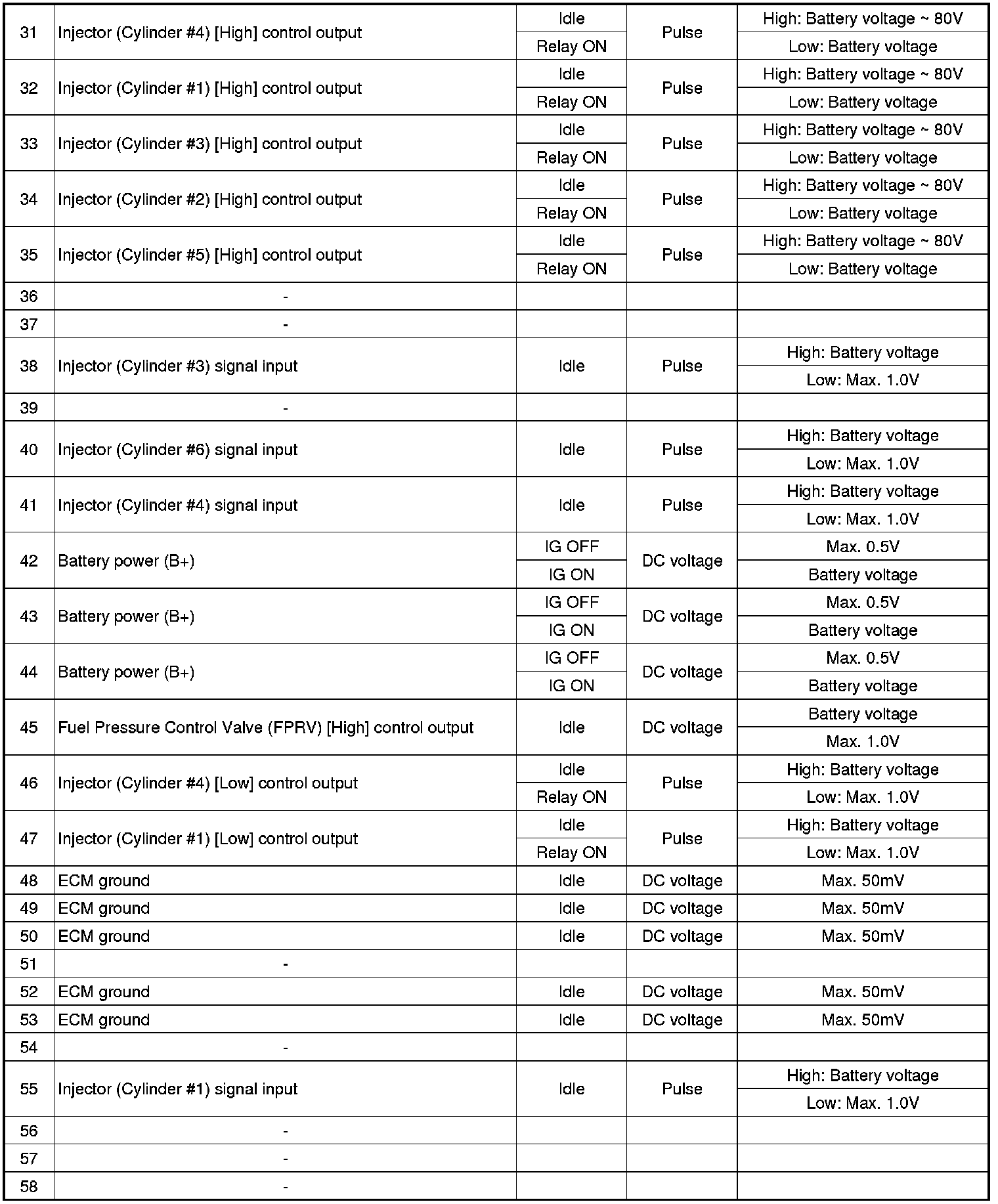

IDB Terminal input/output signal
Connector [CLG02]

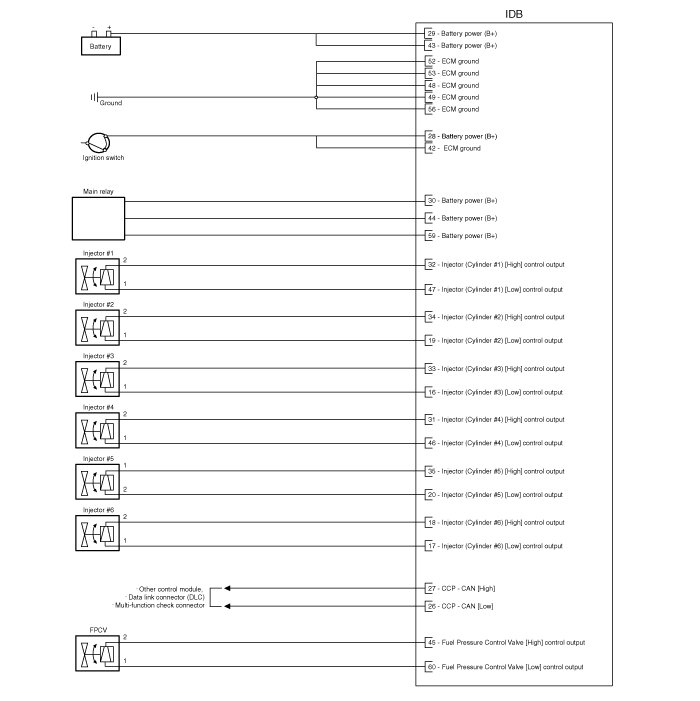

Circuit Diagram
