Cruise Control System
Cruise Control System

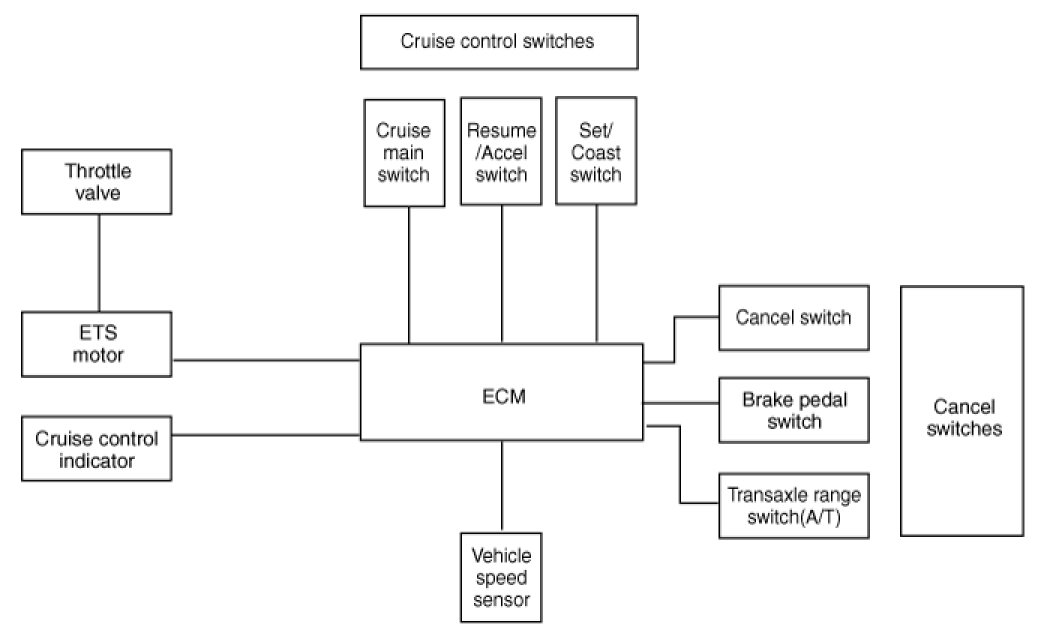

System Block Diagram

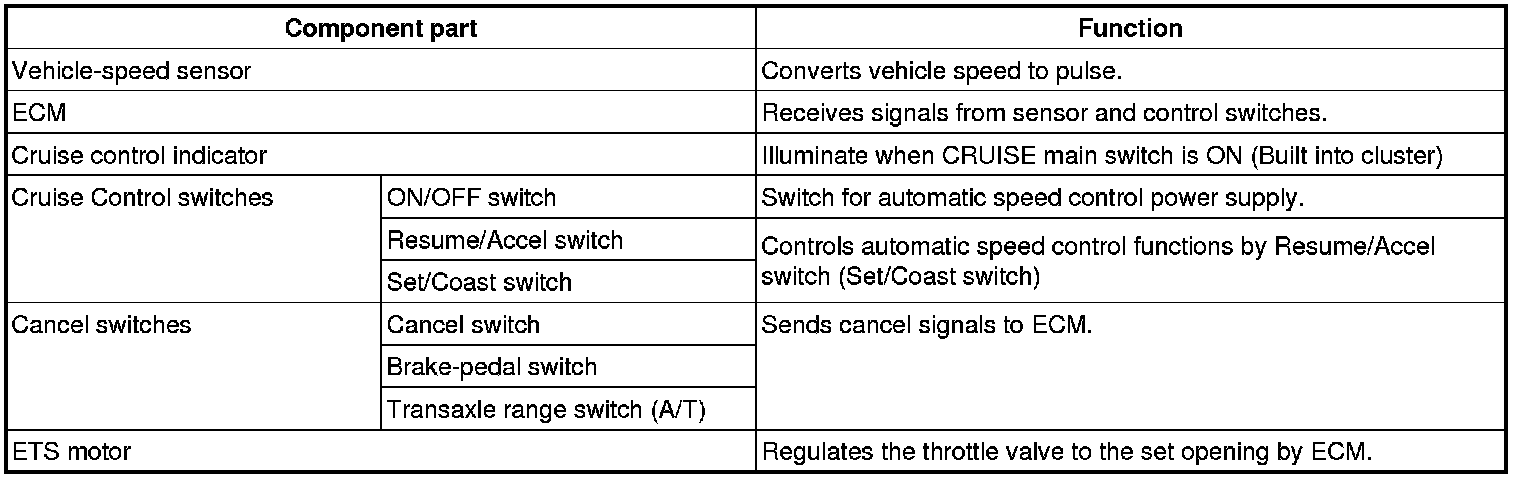

Component Parts And Function Outline
* ETS : Electronic Throttle System
