Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

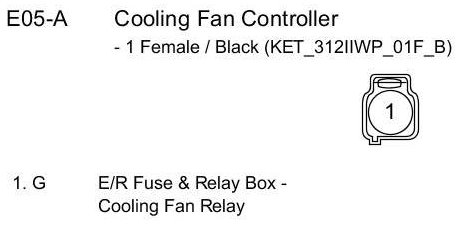

E05-A Cooling Fan Controller:

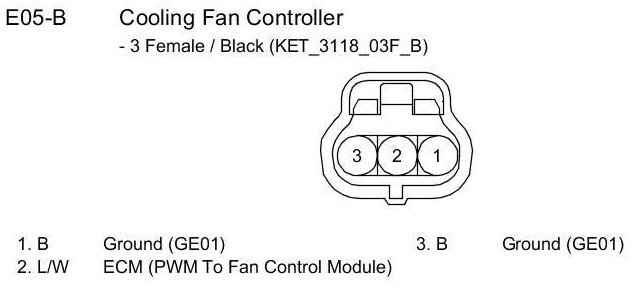

E05-B Cooling Fan Controller:
