Power Trunk / Liftgate Control Module
Power Trunk / Liftgate Control Module

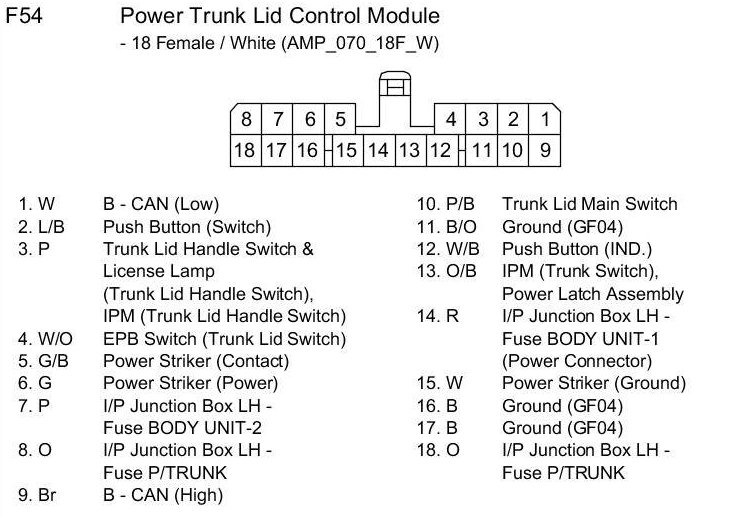

F54 Power Trunk Lid Control Module:
