lemon-mirror
:
Home
>>
Hyundai
>>
2012
>>
Equus V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector Control Module
Fuel Injector Control Module

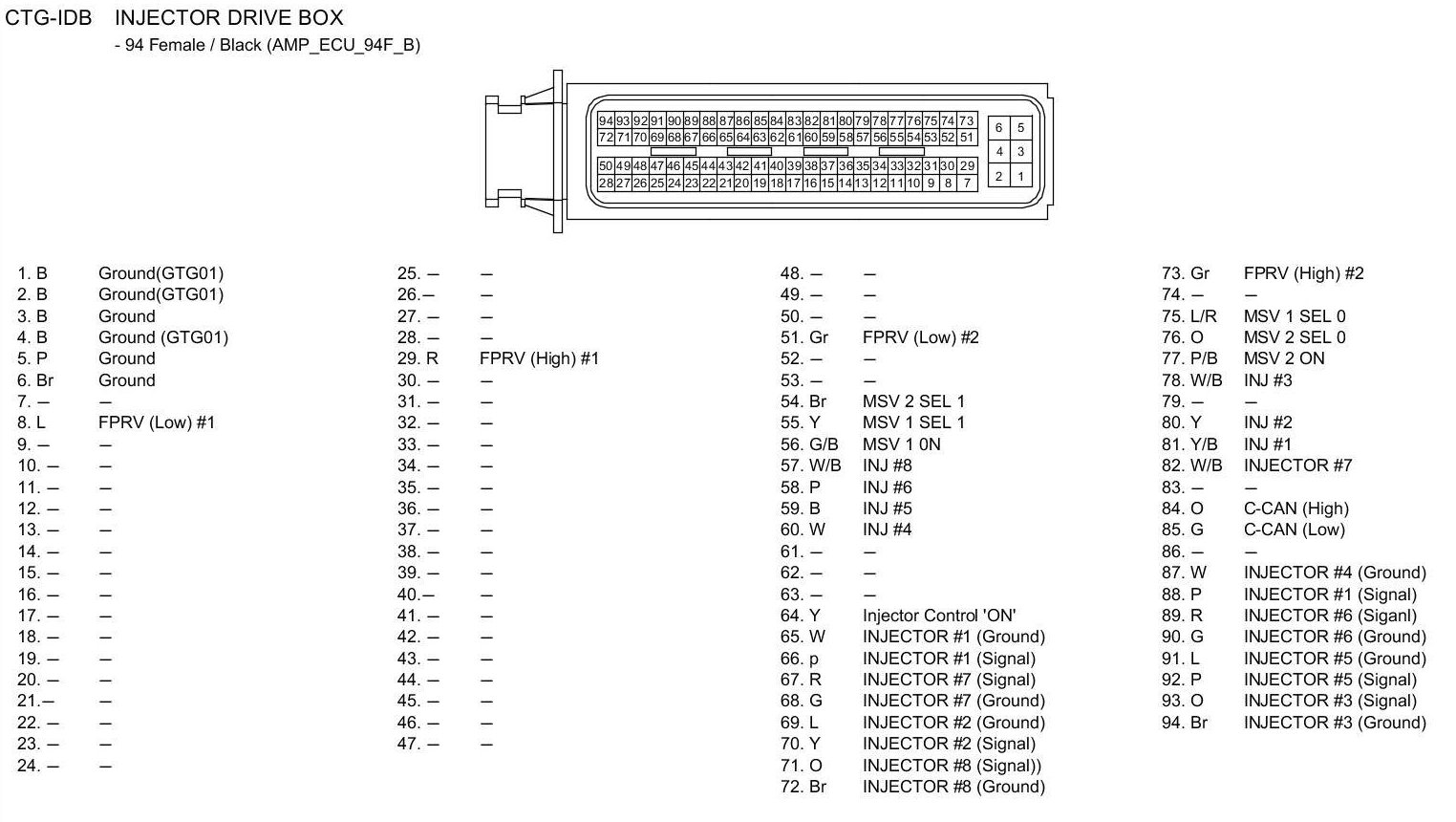

CTG-IDB Injector Driver Box:
