Home >> Hyundai >> 2012 >> Equus V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Entertainment Systems >> Entertainment System Control Module >> Media Module

Media Module

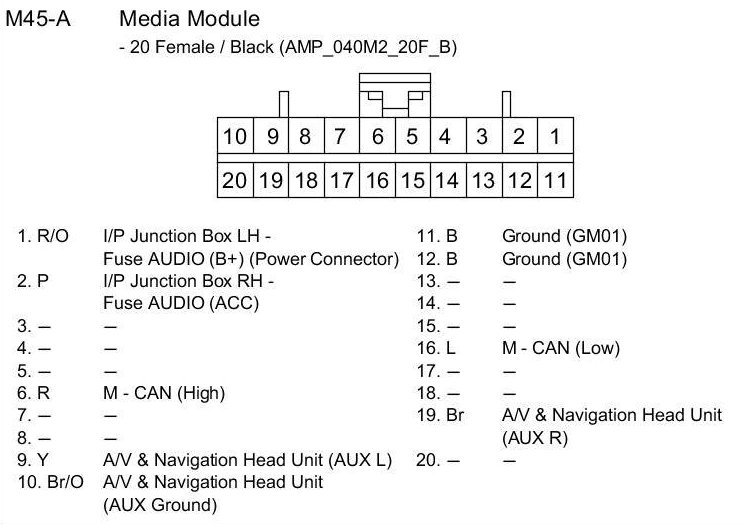

M45-A Media Module:

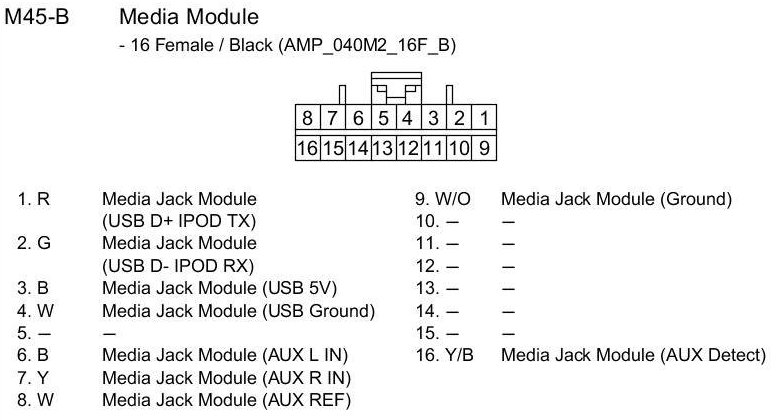

M45-B Media Module:
