Hyundai
>>
2012
>>
Equus V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor/Pump Relay, Suspension Control
Compressor/Pump Relay, Suspension Control

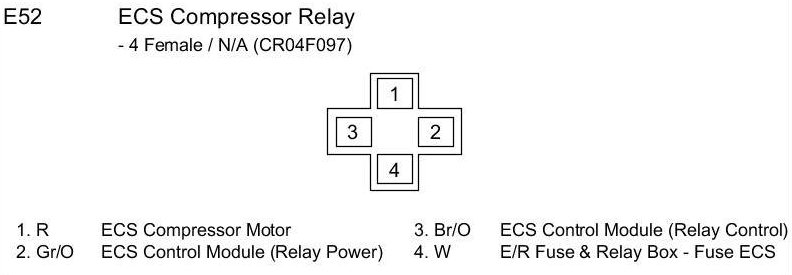

E52 ECS Compressor Relay:
