Passenger Door Module

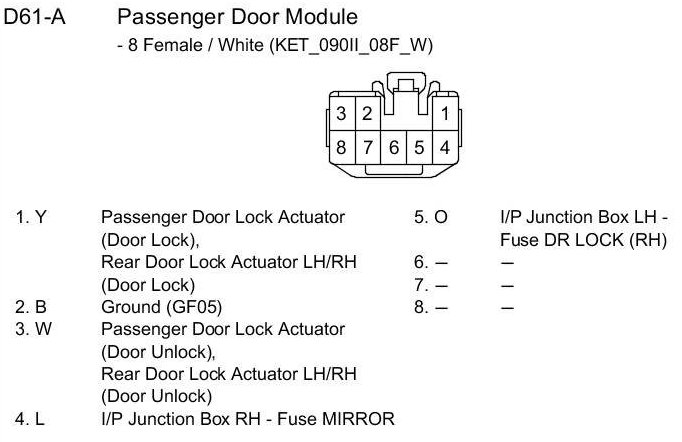

D61-A Passenger Door Module:

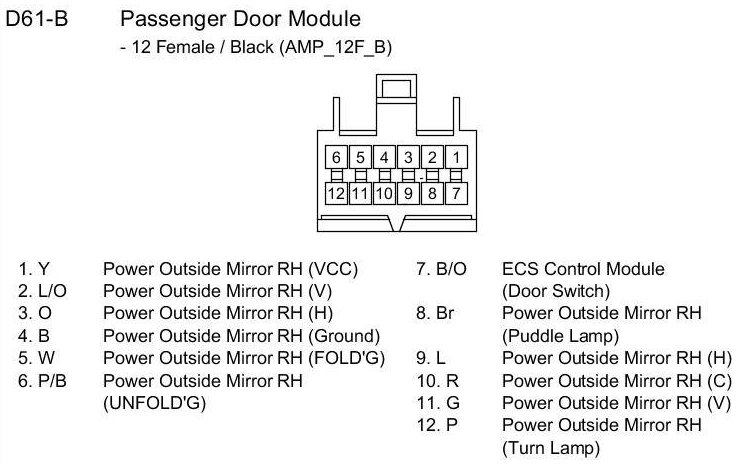

D61-B Passenger Door Module:

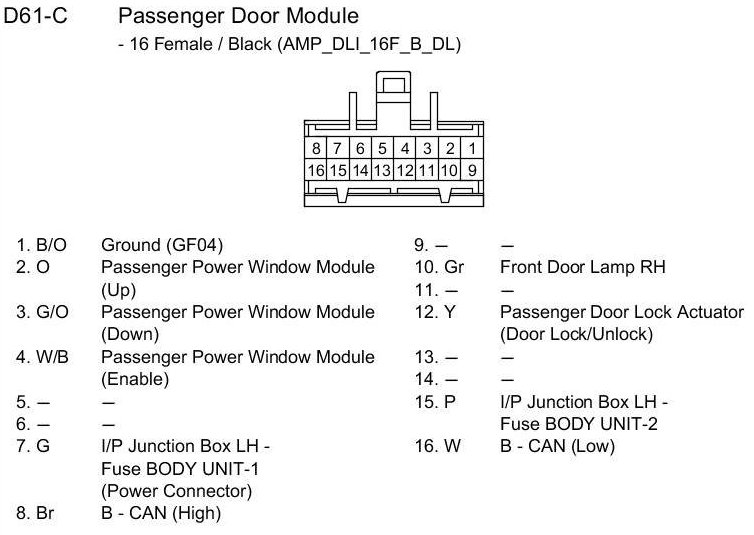

D61-C Passenger Door Module:
