Home >> Hyundai >> 2012 >> Equus V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Driver Door Module

Driver Door Module

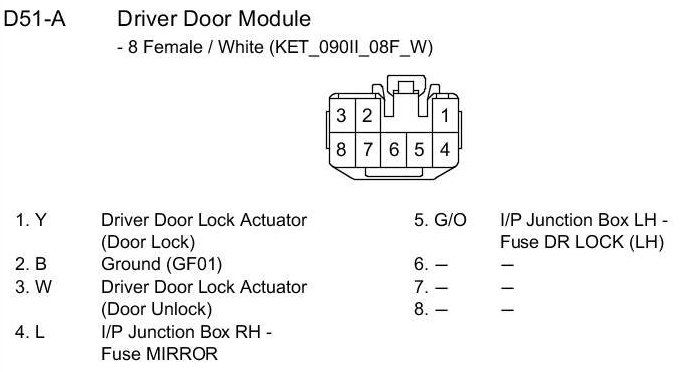

D51-A Driver Door Module:

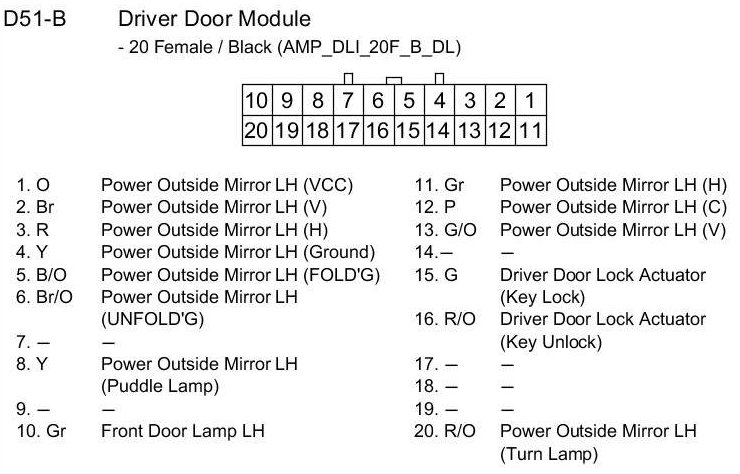

D51-B Driver Door Module:

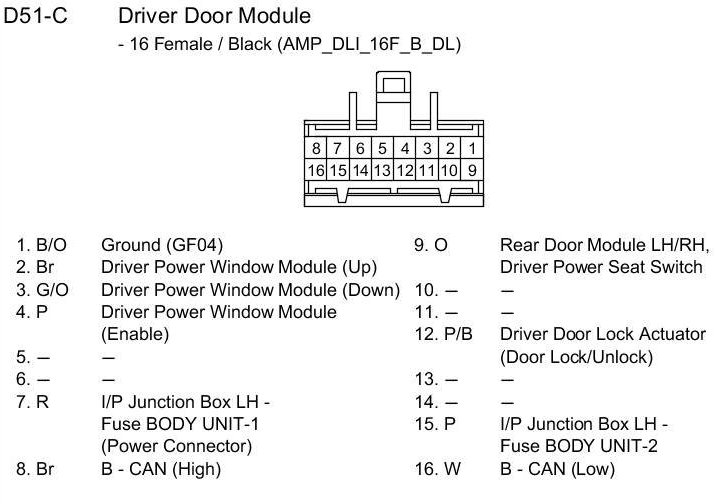

D51-C Driver Door Module:
