Keyless Entry and Burglar System

ETACS MODULE INPUT SIGNAL TEST
1. Disconnect the wire connector from the ETACS module.

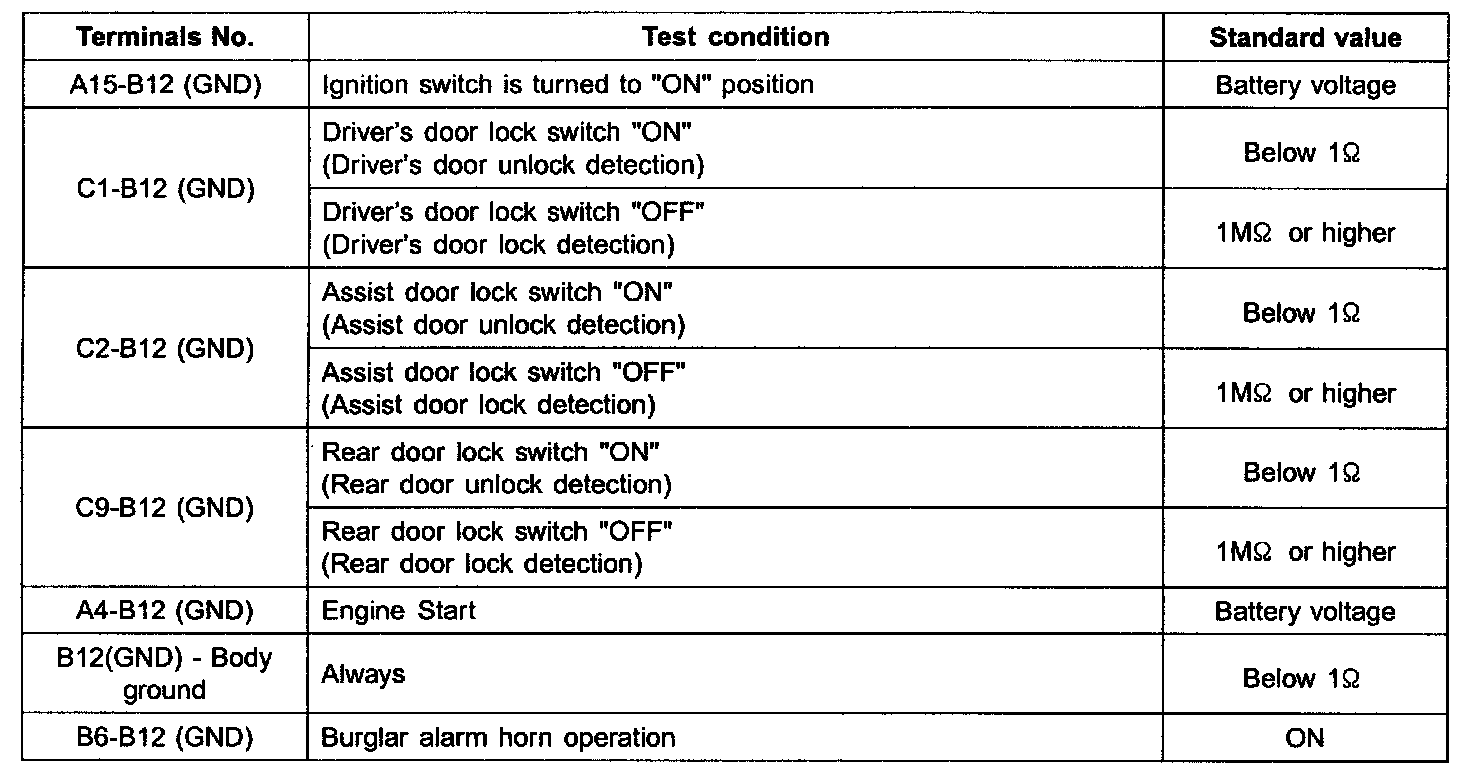

ETACS Module Input Signal Test (Part 1):

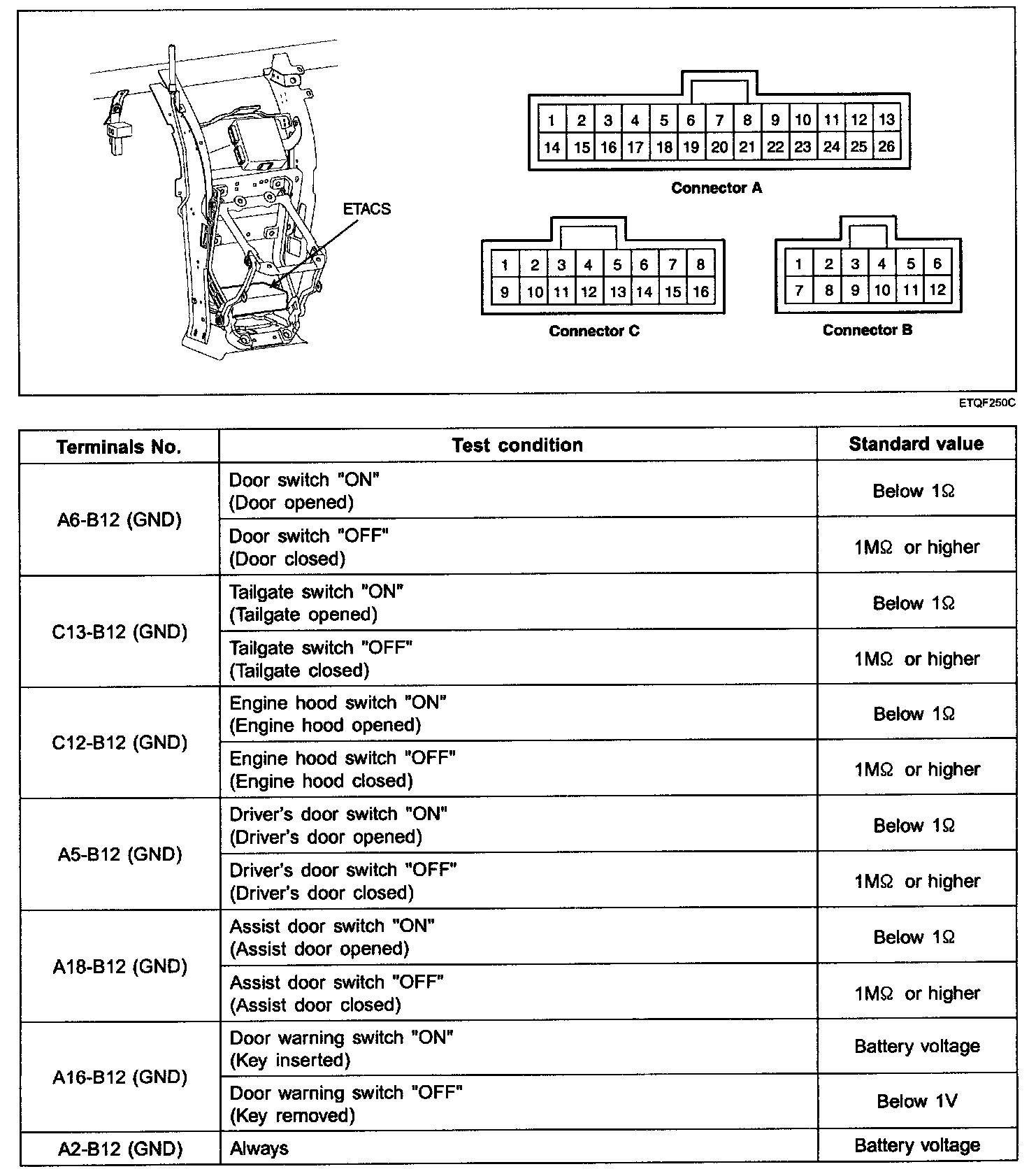

ETACS Module Input Signal Test (Part 2):

2. Inspect the connector on wire harness side as shown in the above.
