Body Control Systems: Service and Repair

ETACS (ELECTRONIC TIME AND ALARM CONTROL SYSTEM)

REMOVAL
1. Disconnect the negative (-) battery terminal.
2. Remove the shift lever upper plate and lower trim.

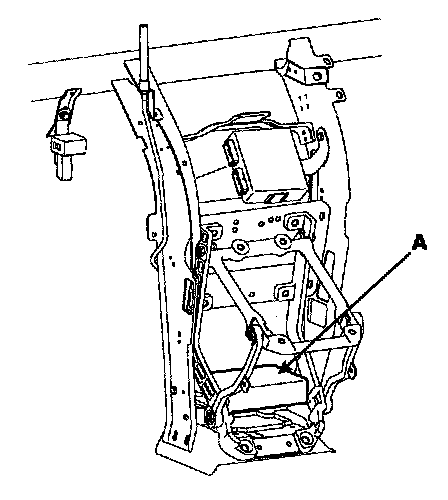

3. Remove the ETACS module (A) after removing two bolts.
4. Installation is the reverse of removal.
