Body Control Module: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the floor console.

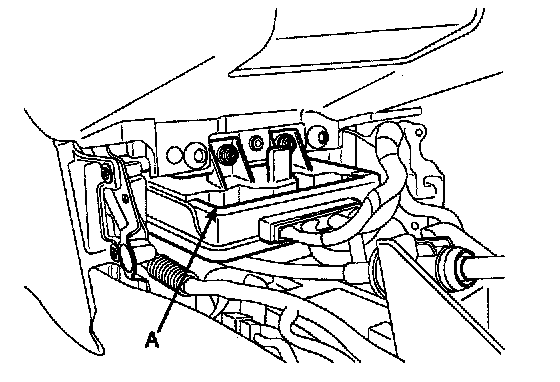

3. Remove the keyless antenna cable and body control module (A) after loosening 2 nuts.
4. Installation is the reverse of removal.
