Body Control Module

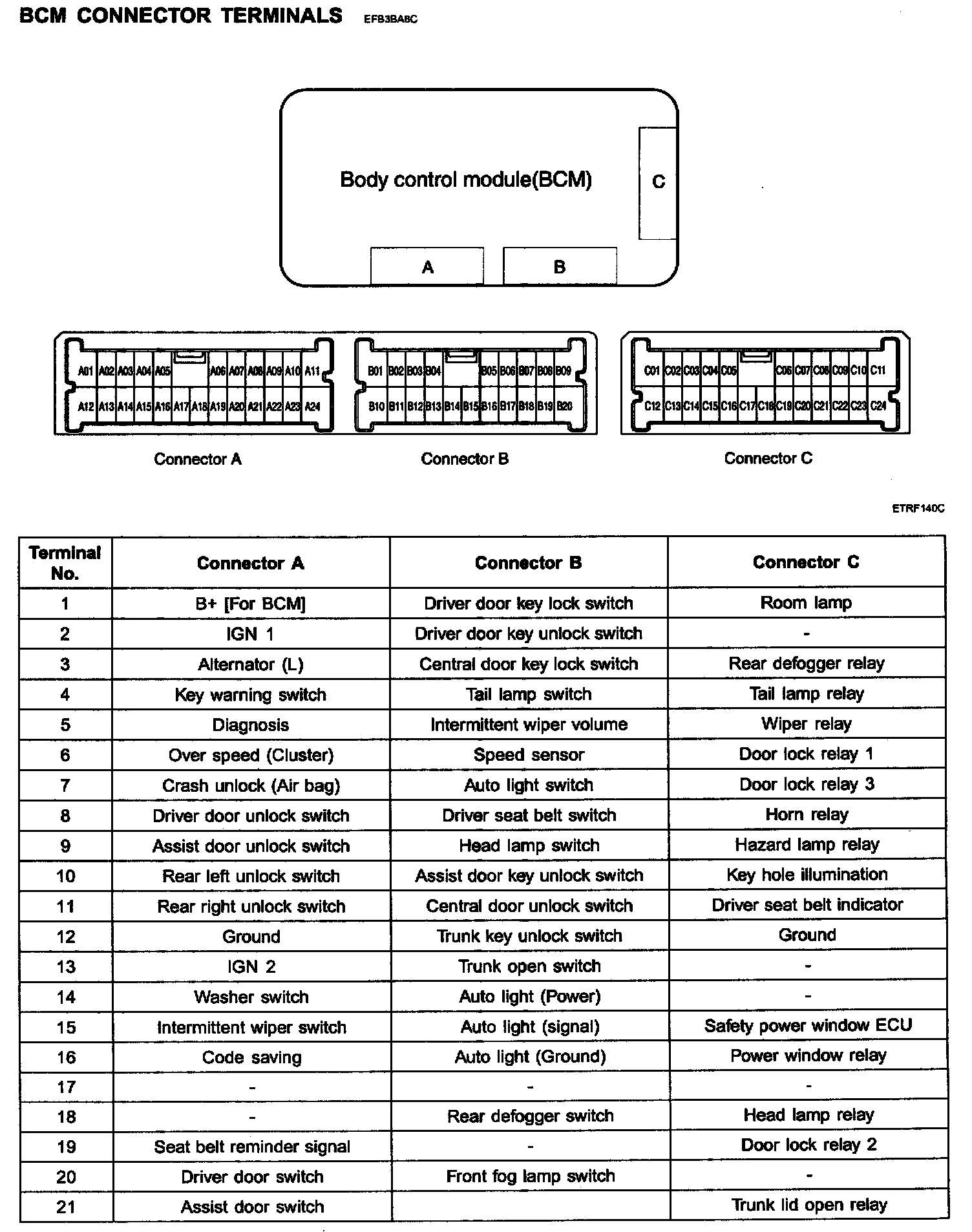

BCM Connector Terminals (Part 1):

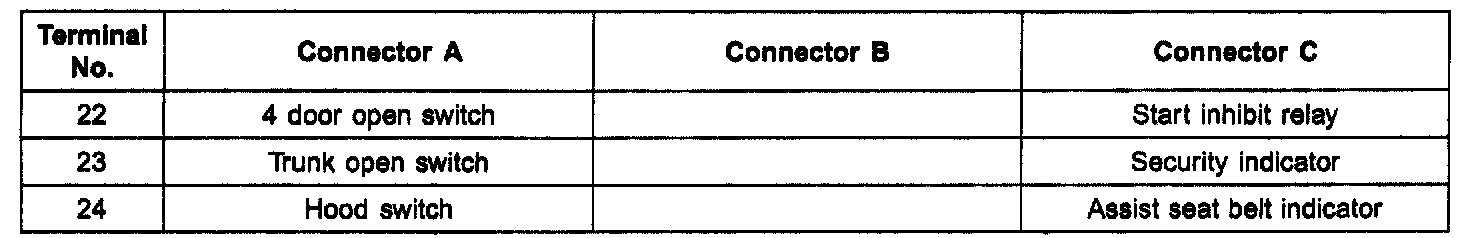

BCM Connector Terminals (Part 2):

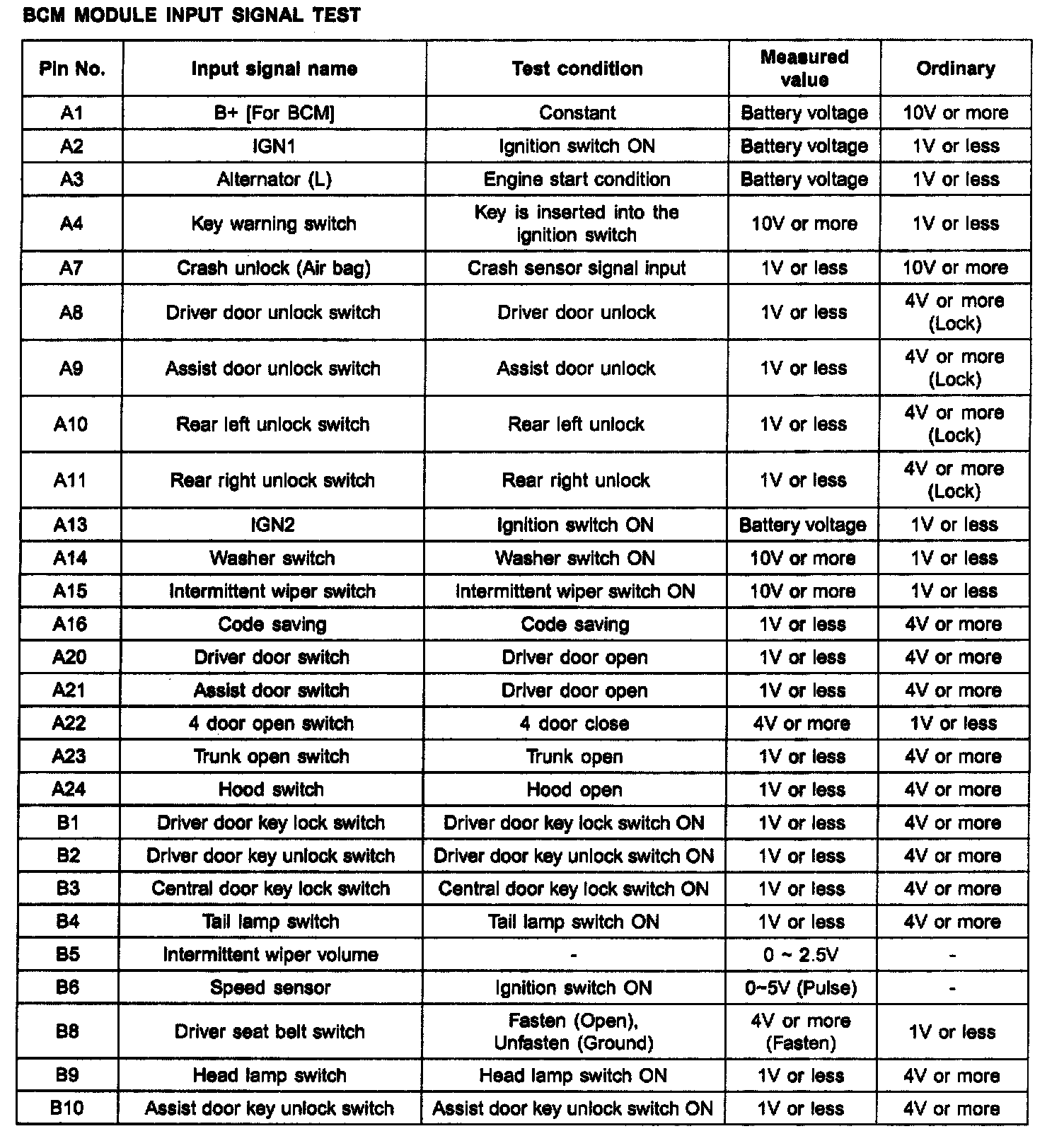

BCM Module Input Signal Test (Part 1):

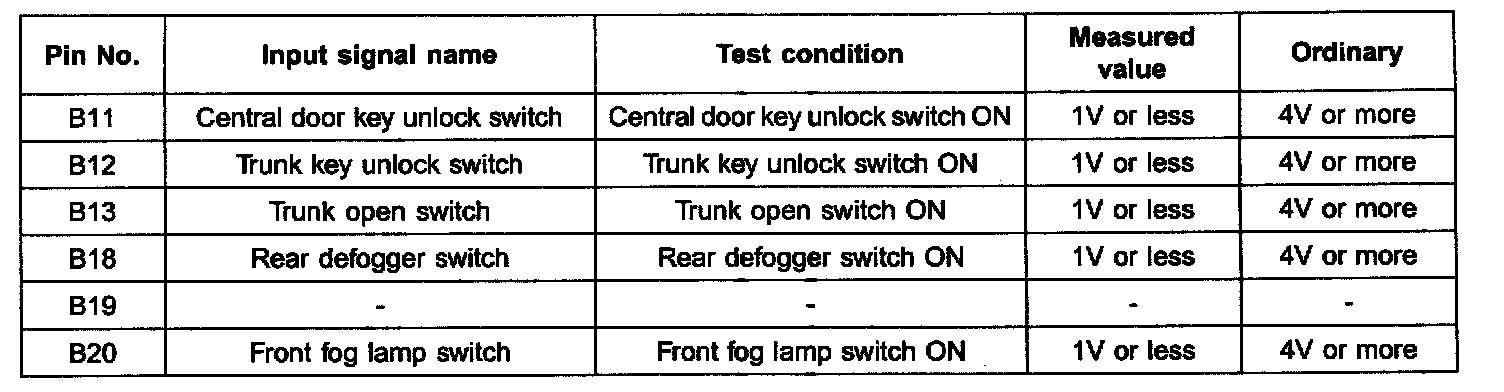

BCM Module Input Signal Test (Part 2):
