Home >> Hyundai >> 2007 >> Azera V6-3.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Testing and Inspection >> Scan Tool Testing and Procedures >> Actuator List

Actuator List

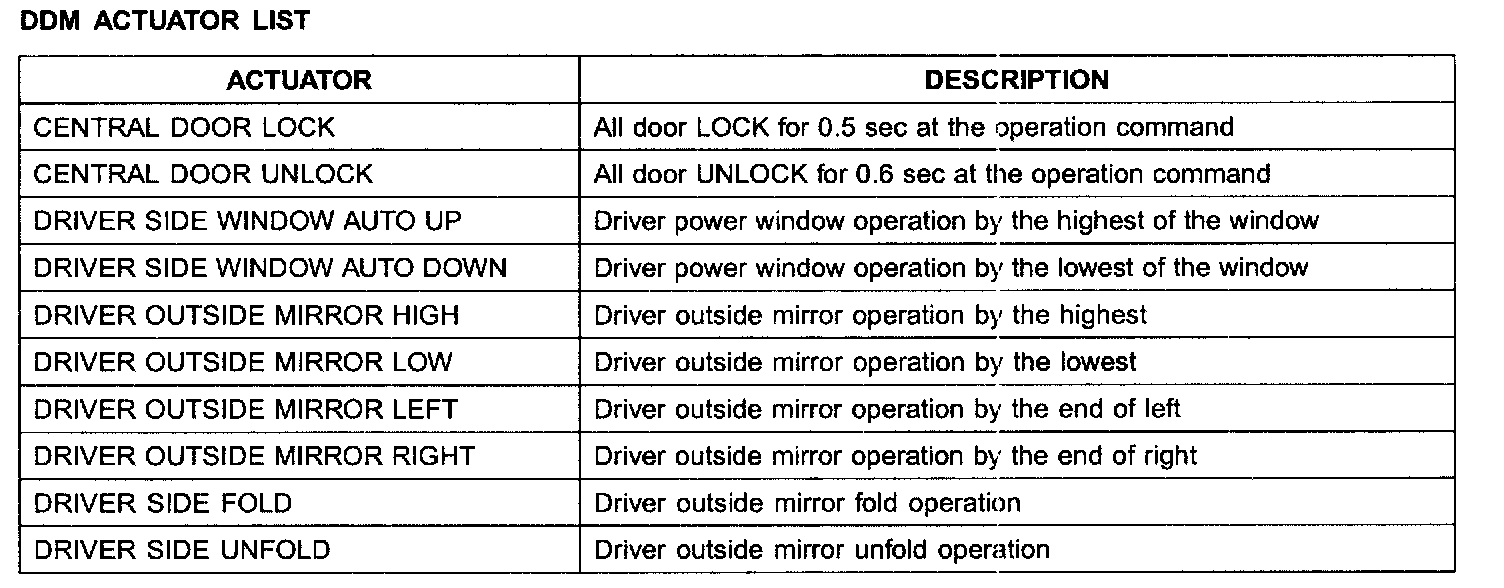

DDM Actuator List:

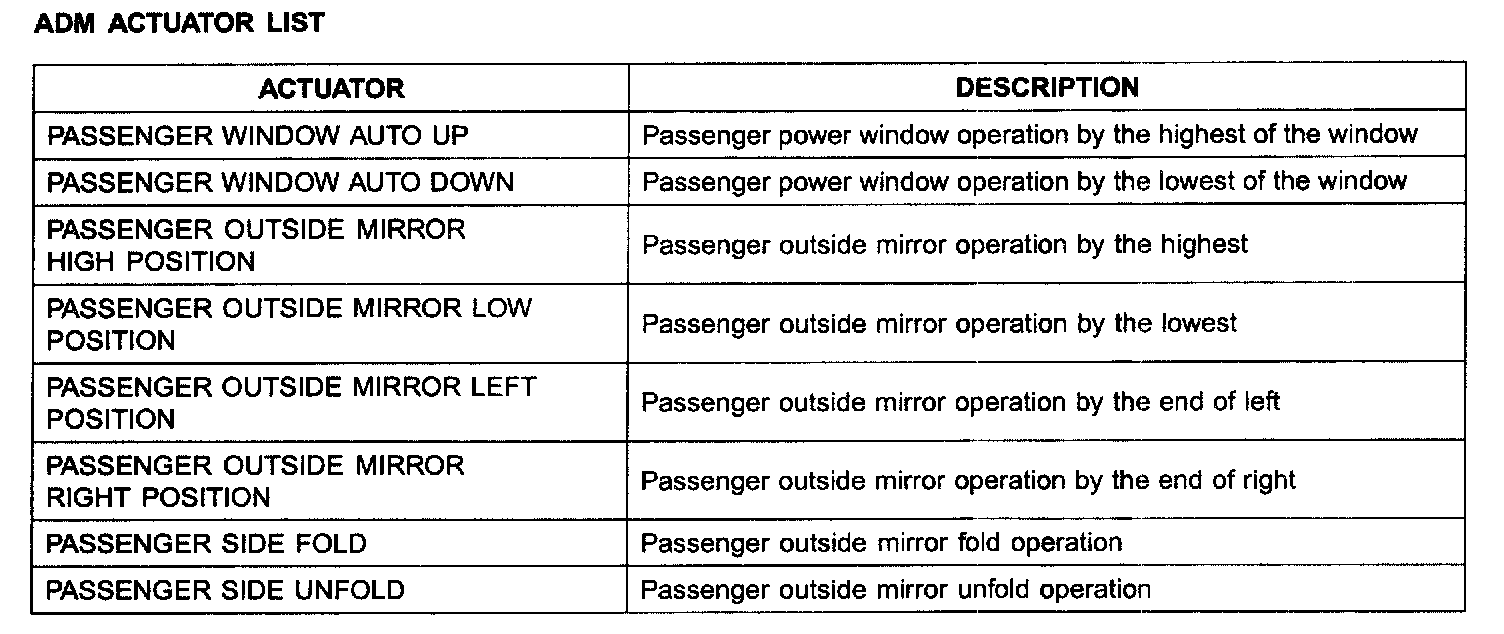

ADM Actuator List:

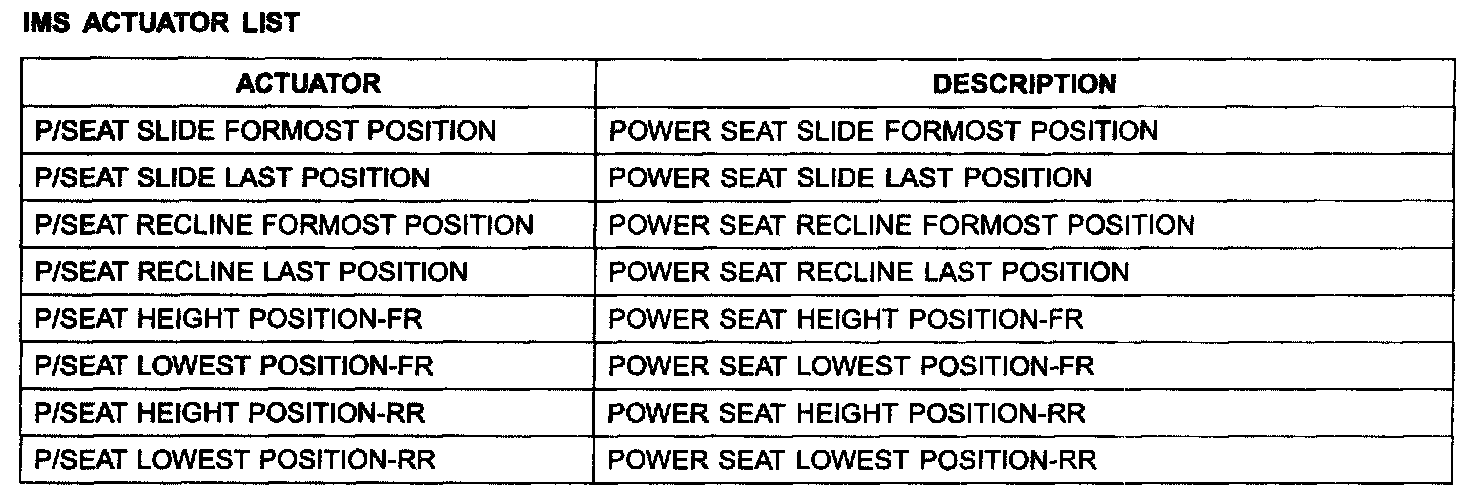

IMS Actuator List:

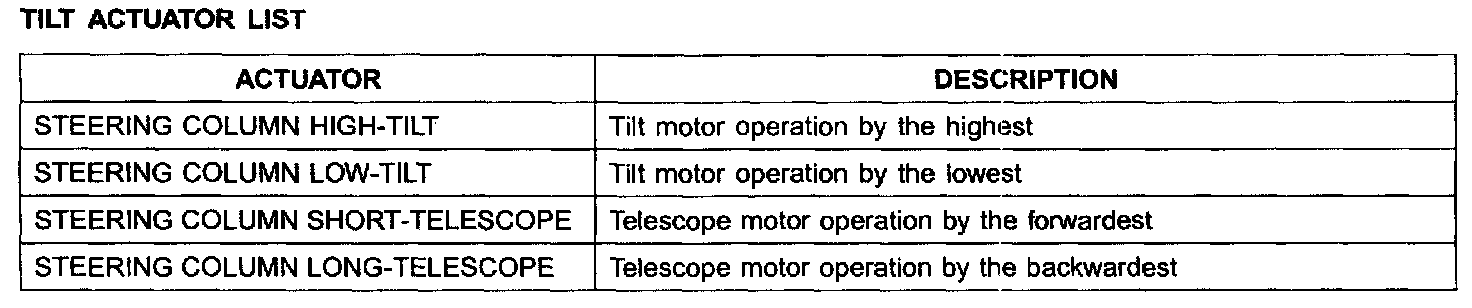

Tilt Actuator List:
