Hyundai
>>
2007
>>
Azera V6-3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Housing Assembly HVAC
Housing Assembly HVAC

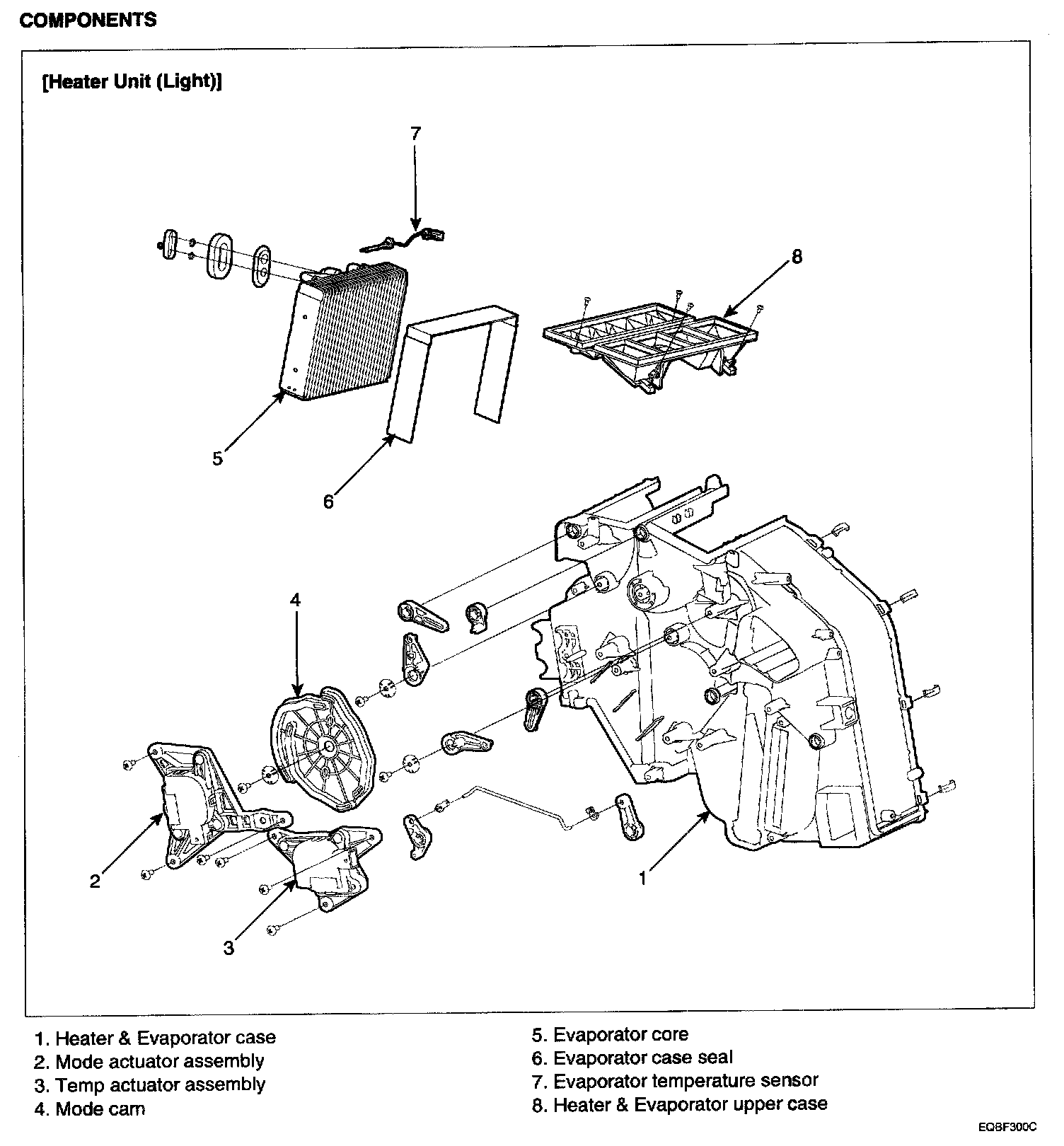

Heater Unit (Light) - Components:

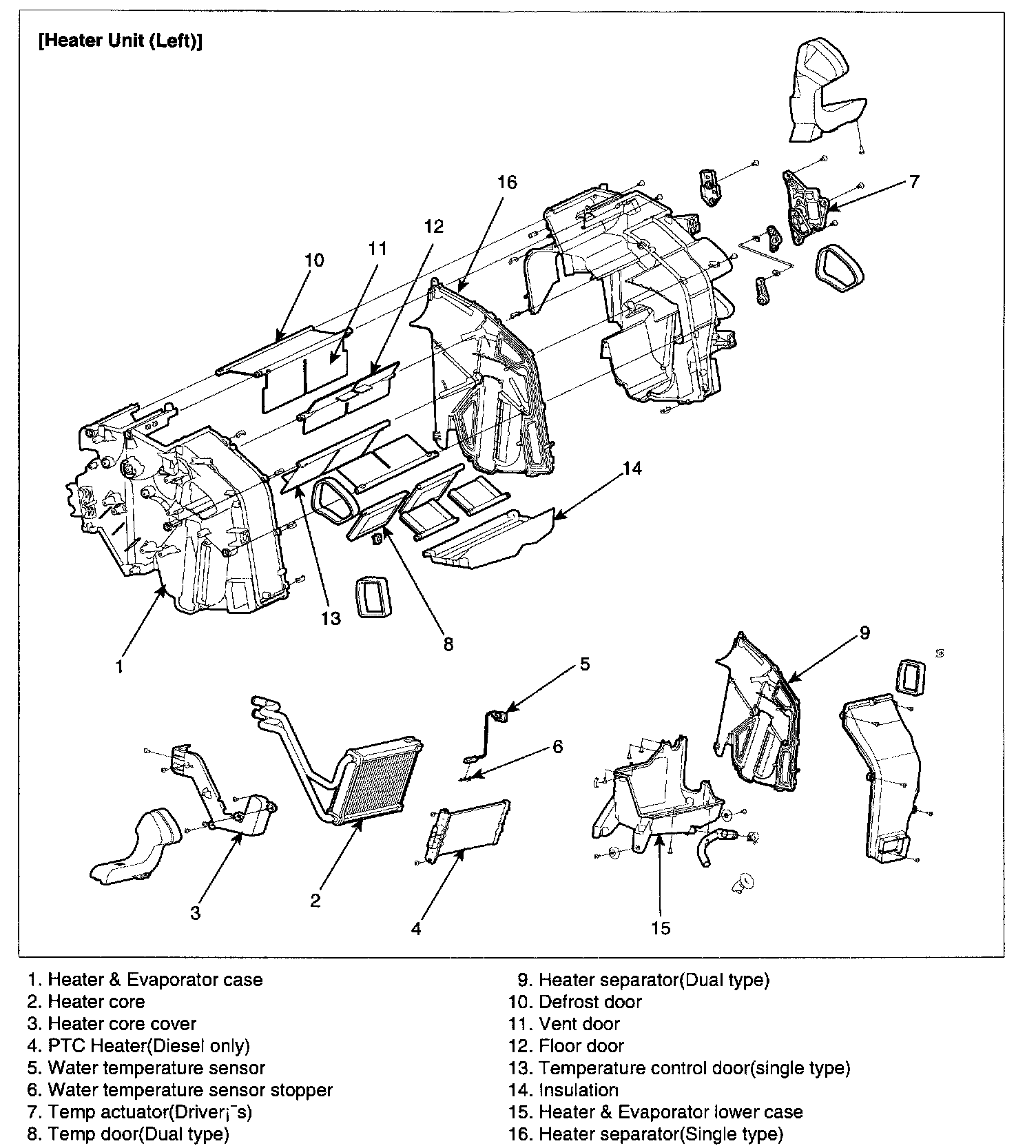

Heater Unit (Left) - Components:
