Home >> Hyundai >> 2007 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lateral Accelerometer

Lateral Accelerometer

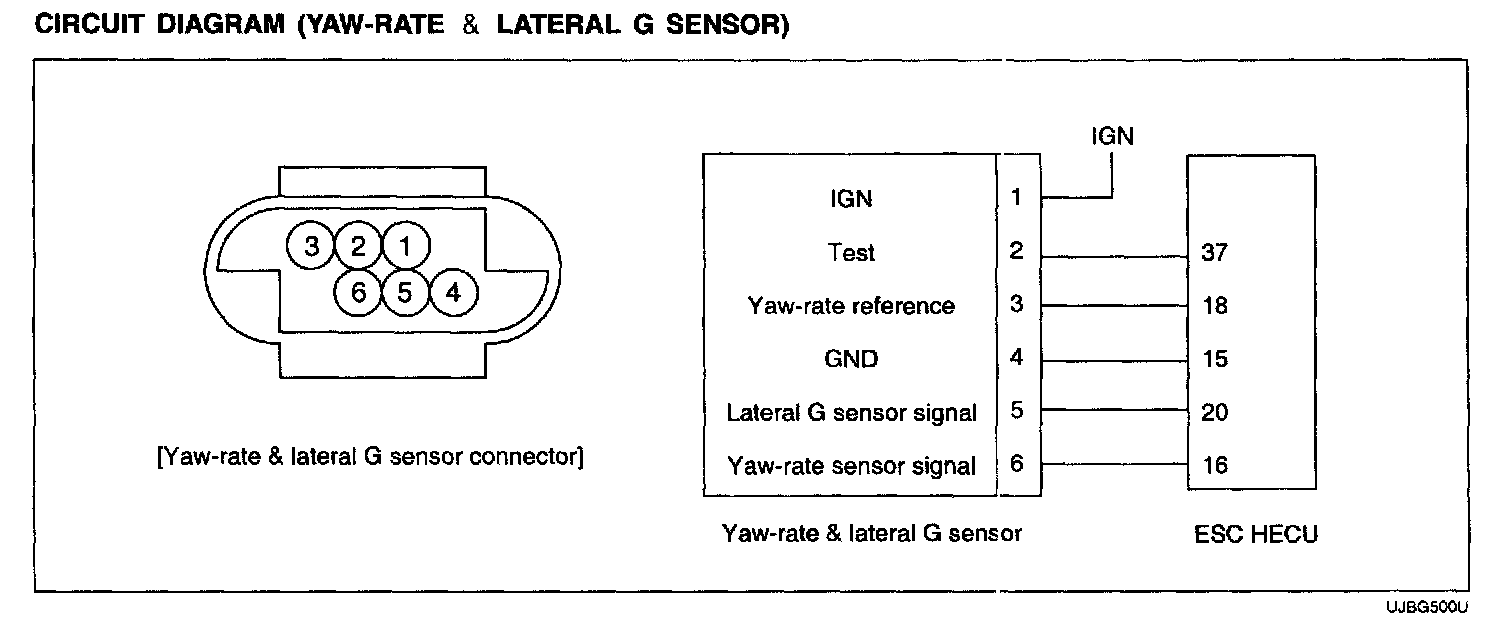

CIRCUIT DIAGRAM (YAW-RATE & LATERAL G SENSOR):
