Home >> Hyundai >> 2006 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module

Traction Control Module

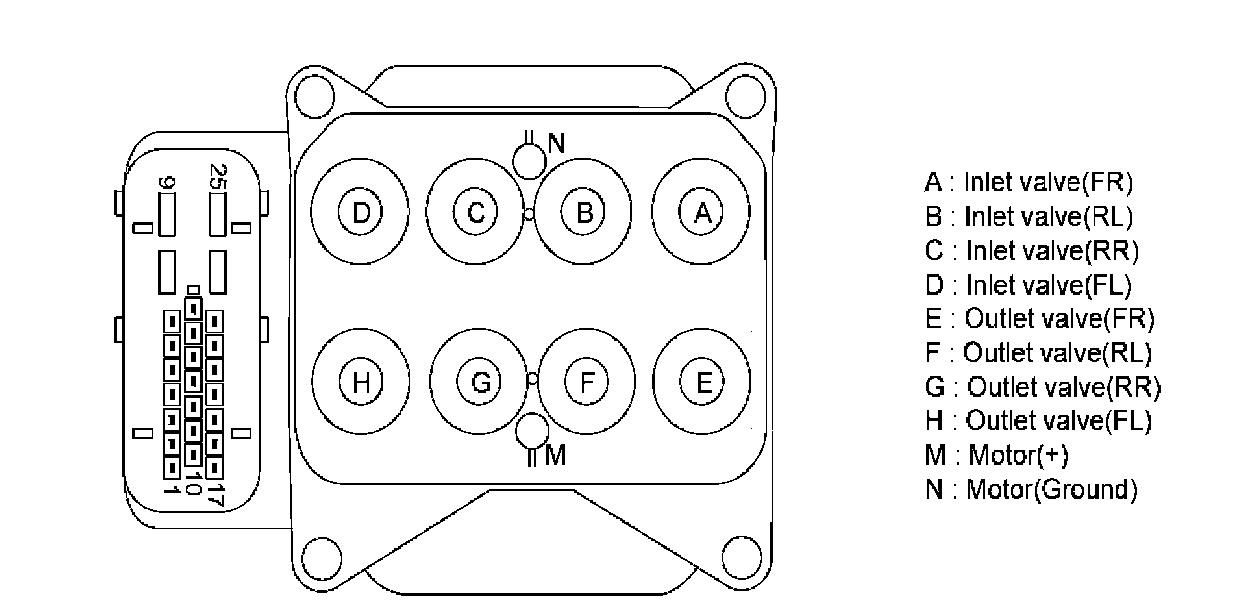

ABS HECU EXTERNAL DIAGRAM:
