ECM

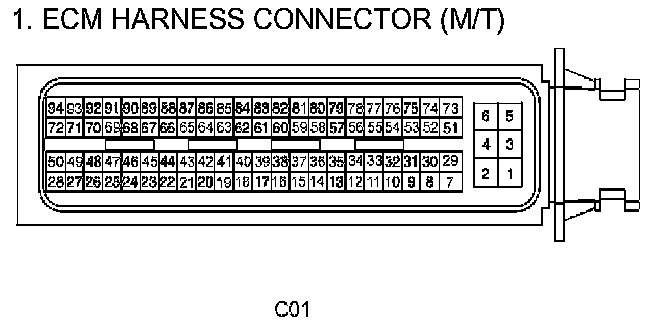

ECM Harness Connector (M/T) C01:
ECM HARNESS CONNECTOR (M/T)

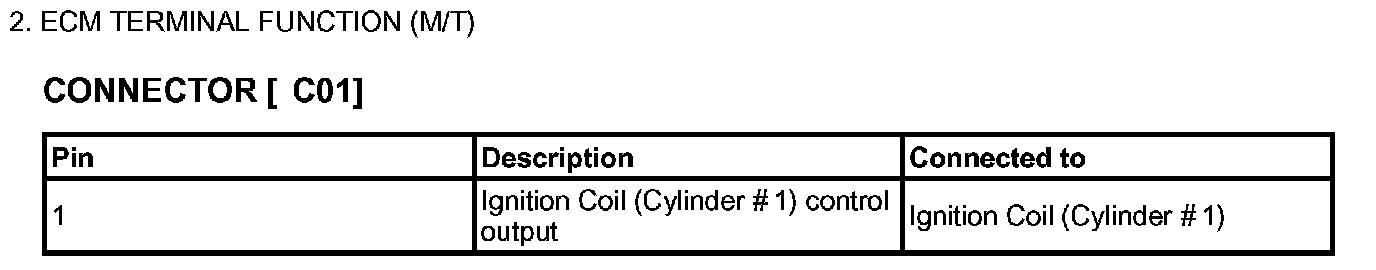

ECM Terminal Function (M/T) - C01 (Pin 1):

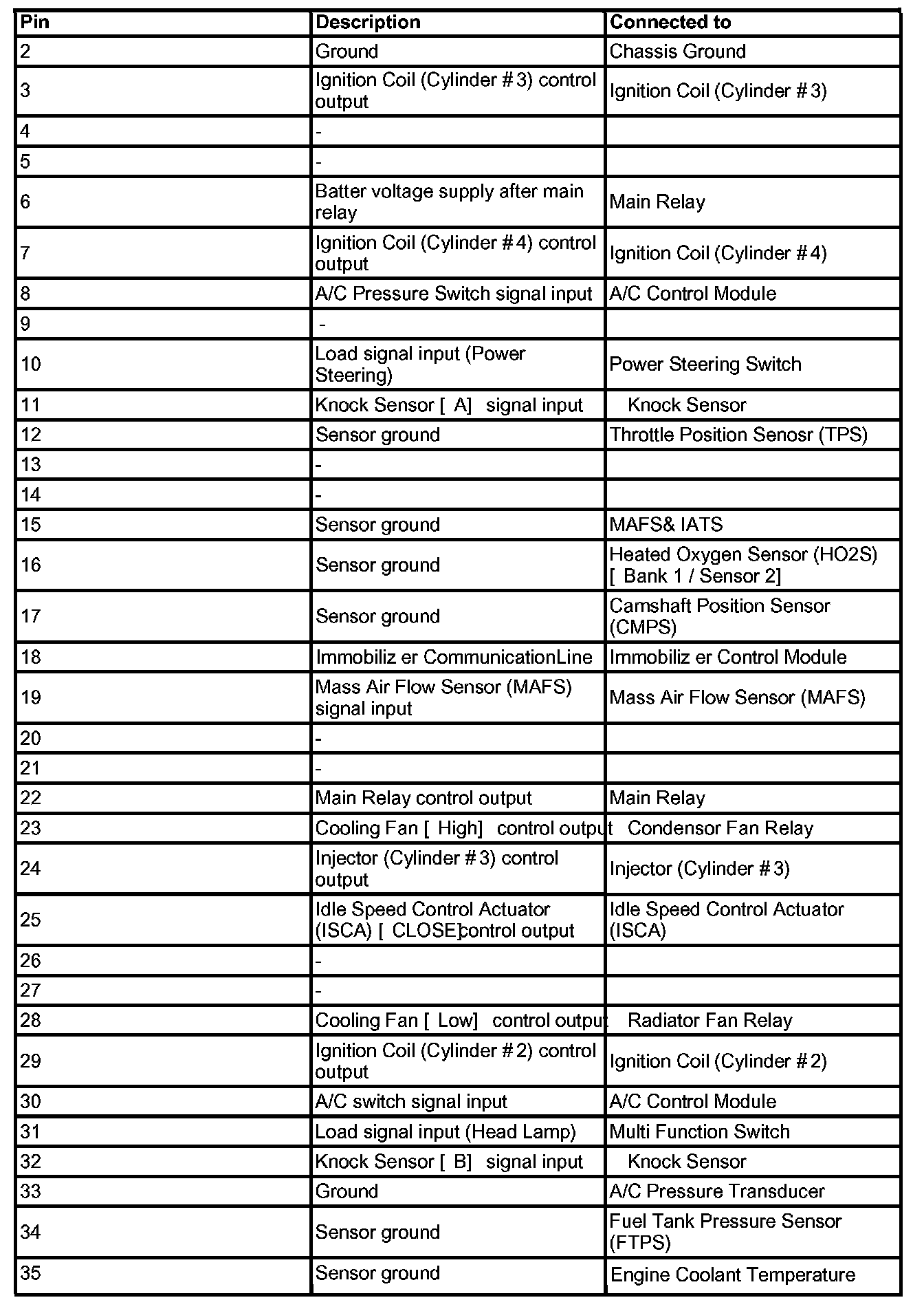

Pin 2 - Pin 35:

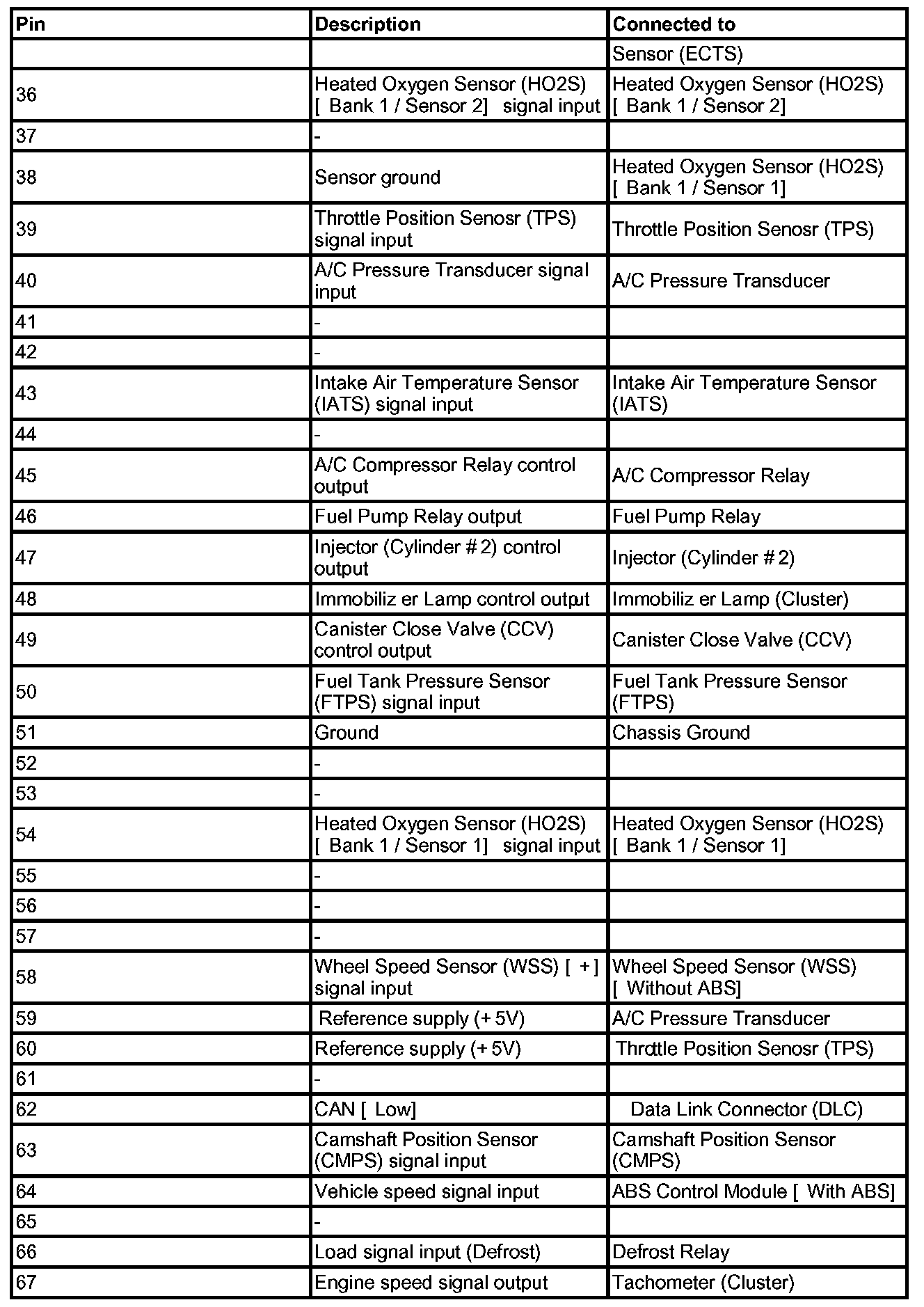

Pin 36 - Pin 67:

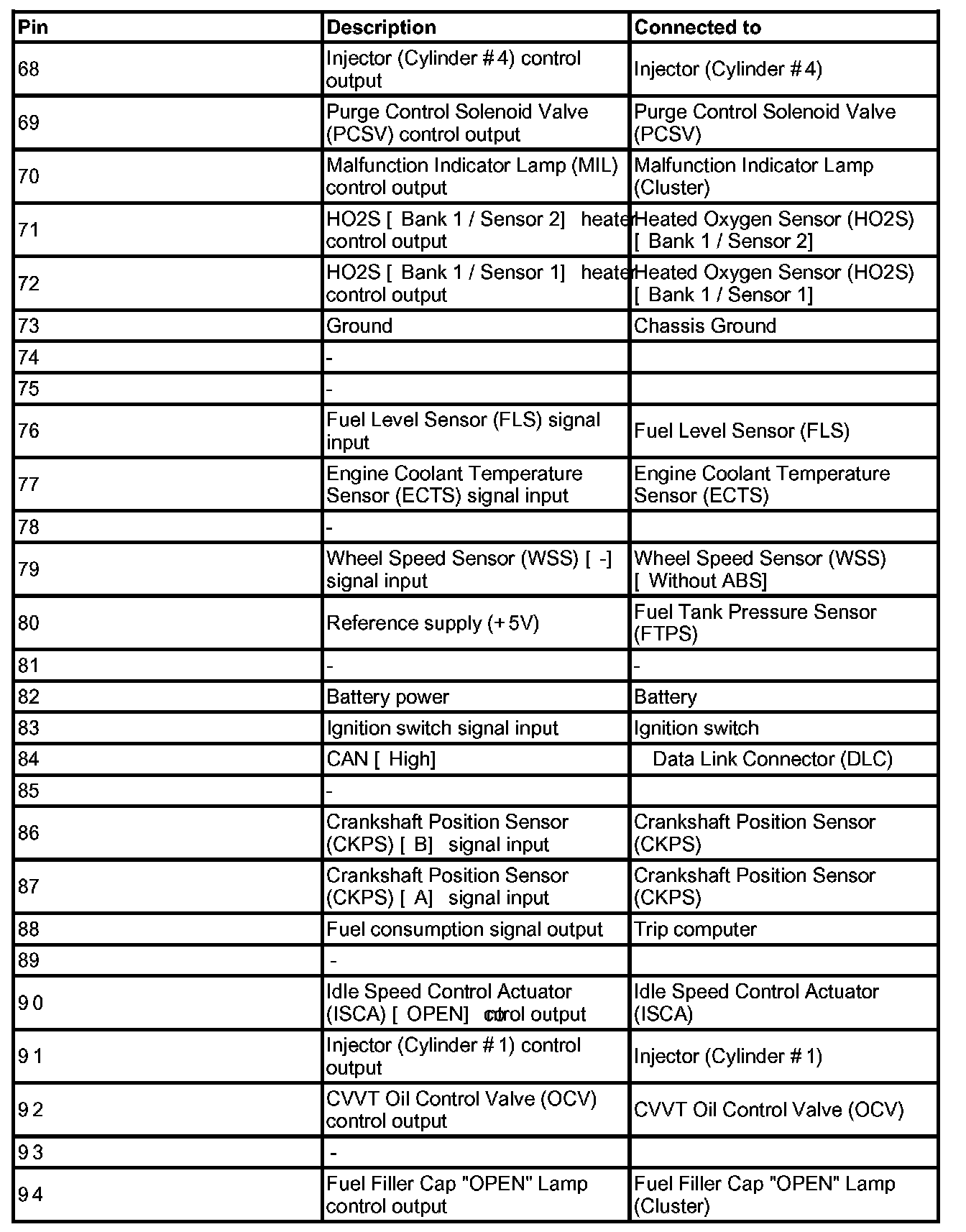

Pin 68 - Pin 94:
ECM TERMINAL FUNCTION (M/T) - CONNECTOR [C01]

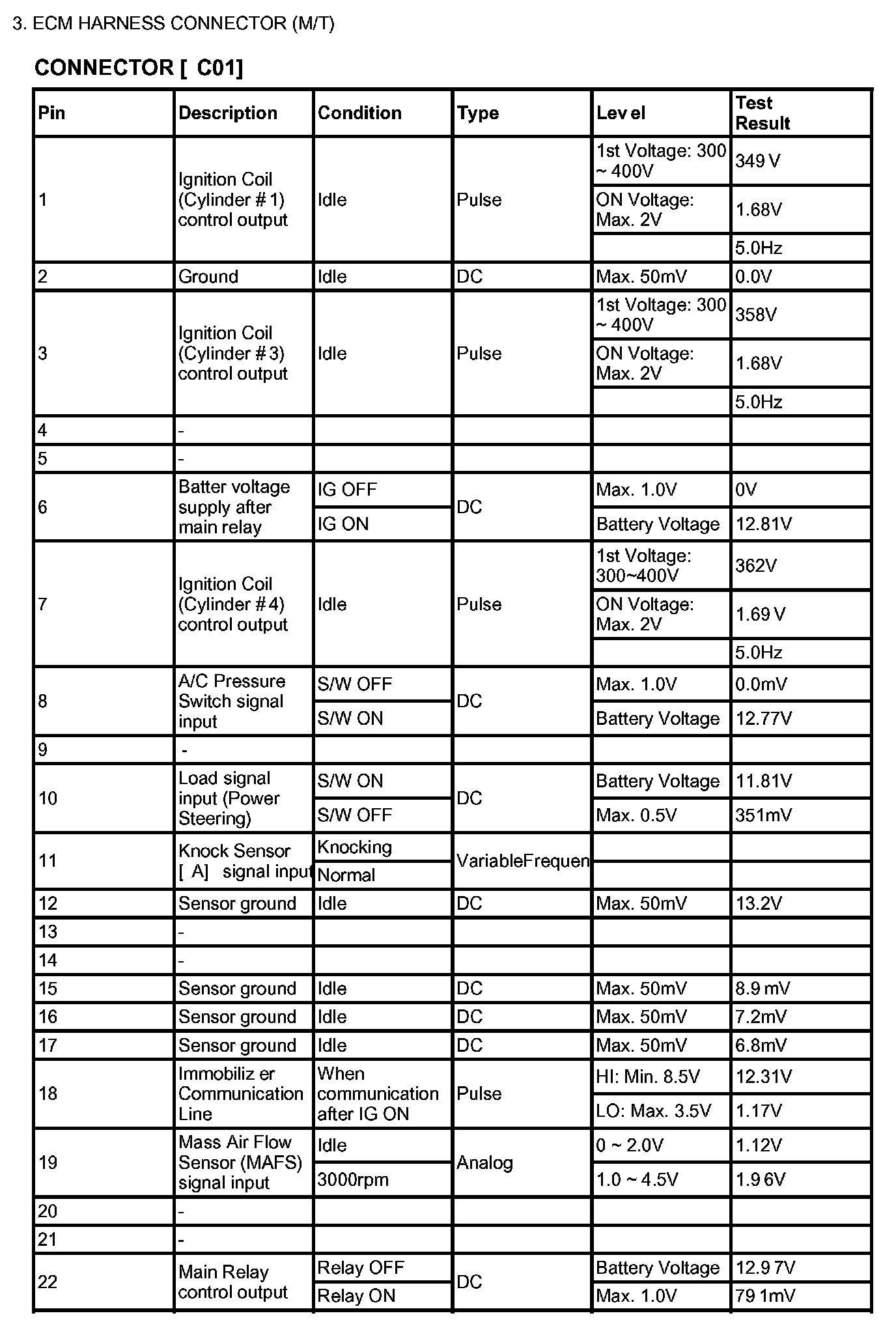

Pin 1 - Pin 22:

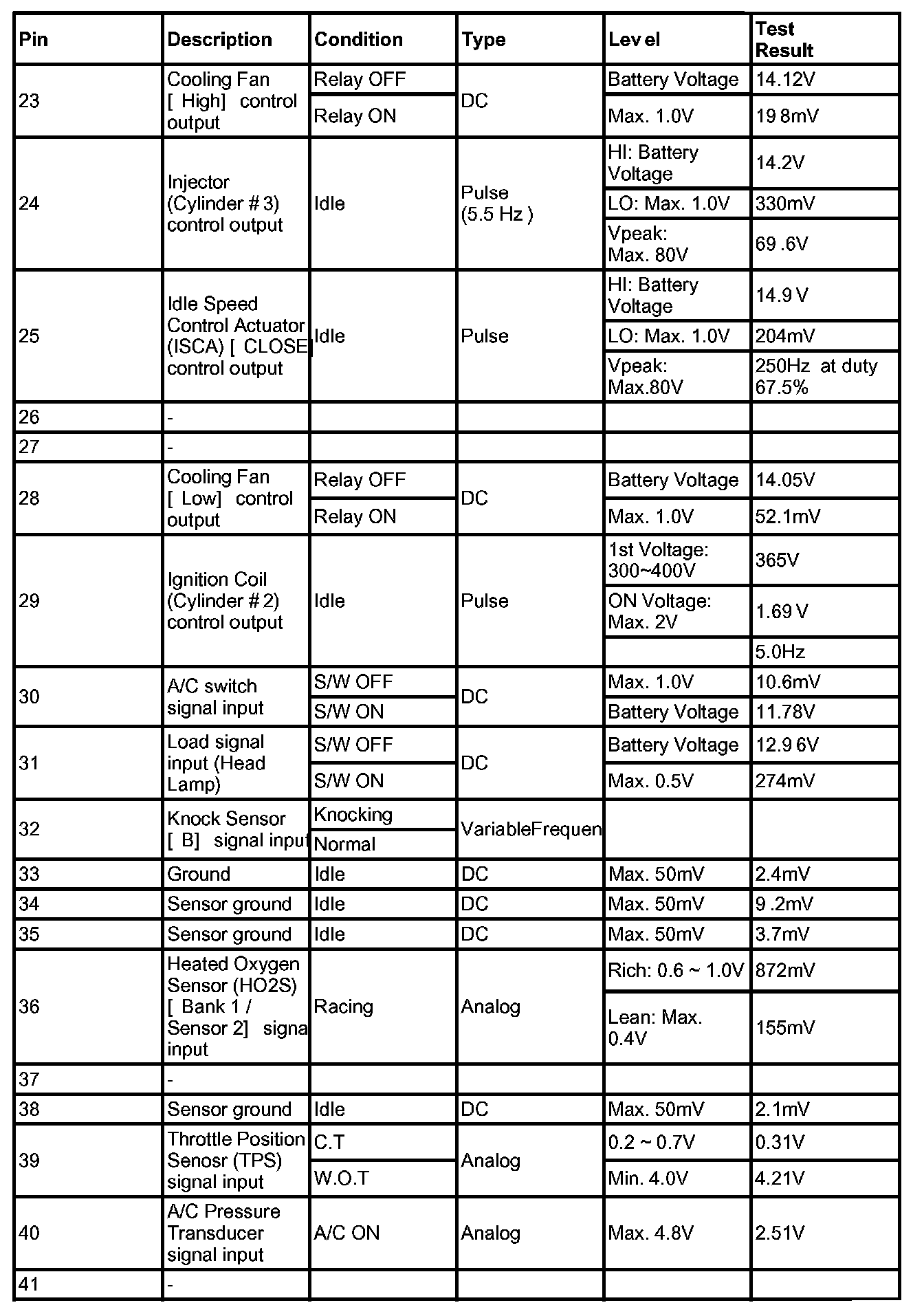

Pin 23 - Pin 41:

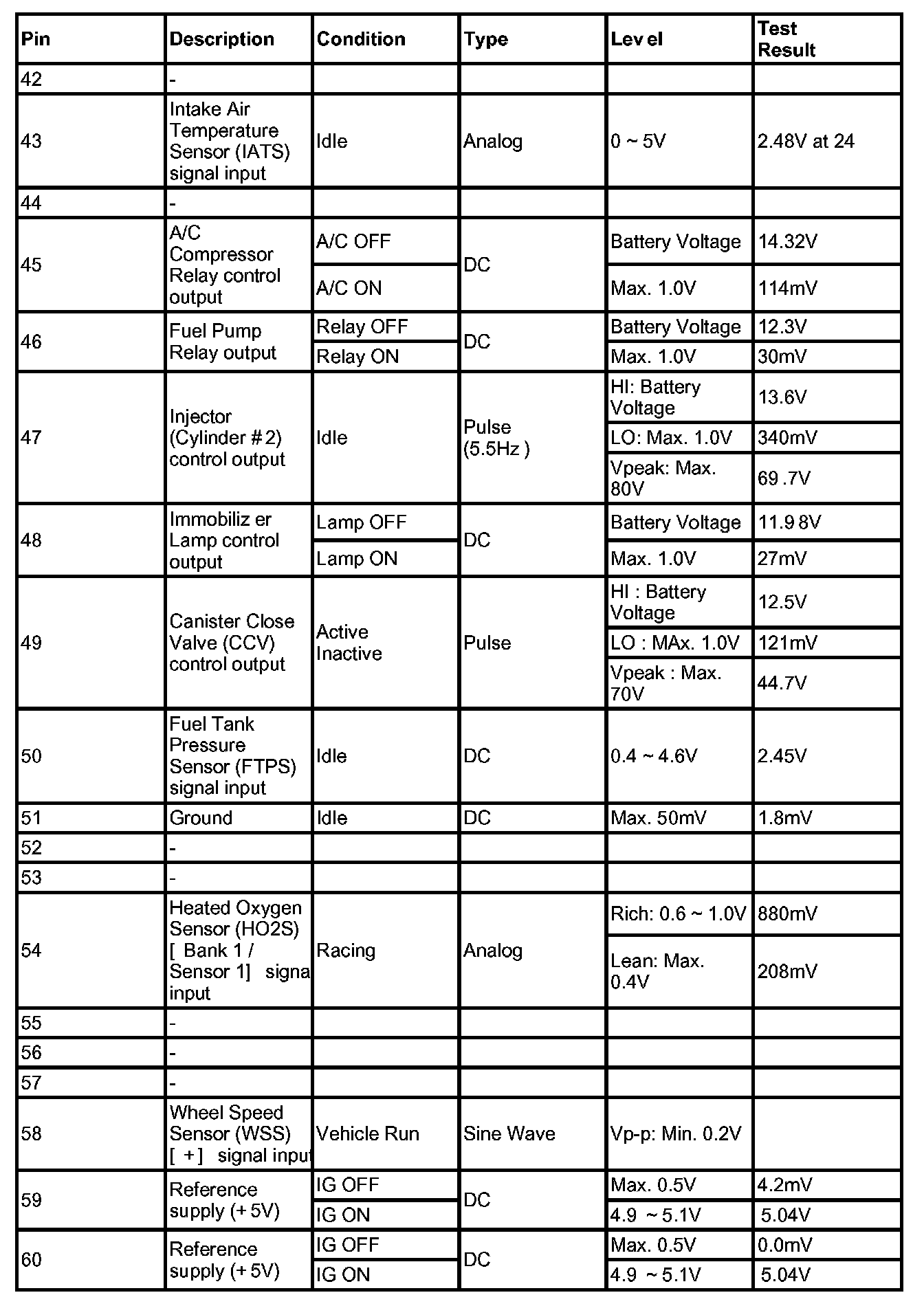

Pin 42 - Pin 60:
Pin 61 - Pin 77:

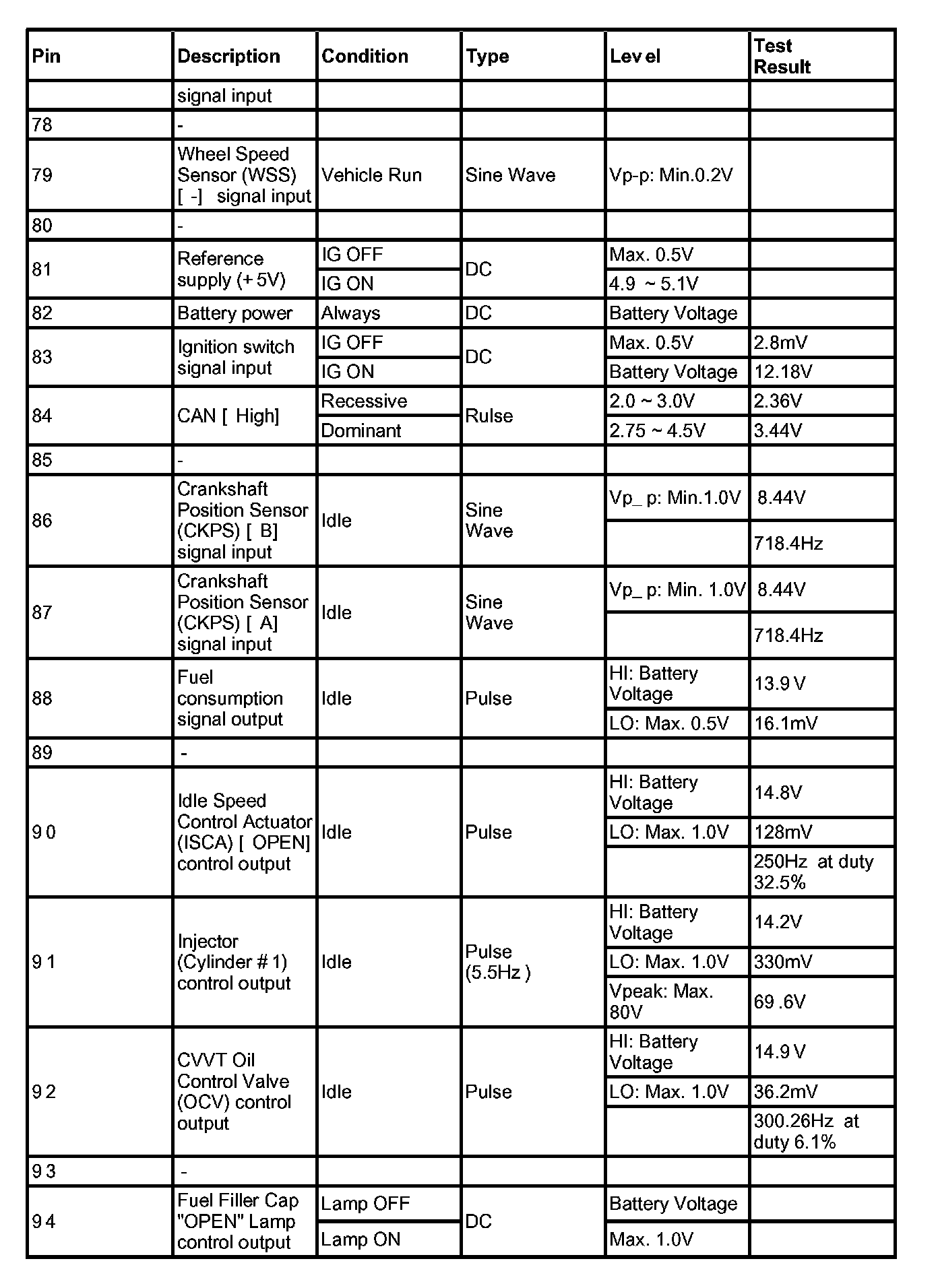

Pin 78 - Pin 94:
ECM HARNESS CONNECTOR (M/T) CONNECTOR [C01]
