Engine Control Module: Diagrams




Component Connector End Views

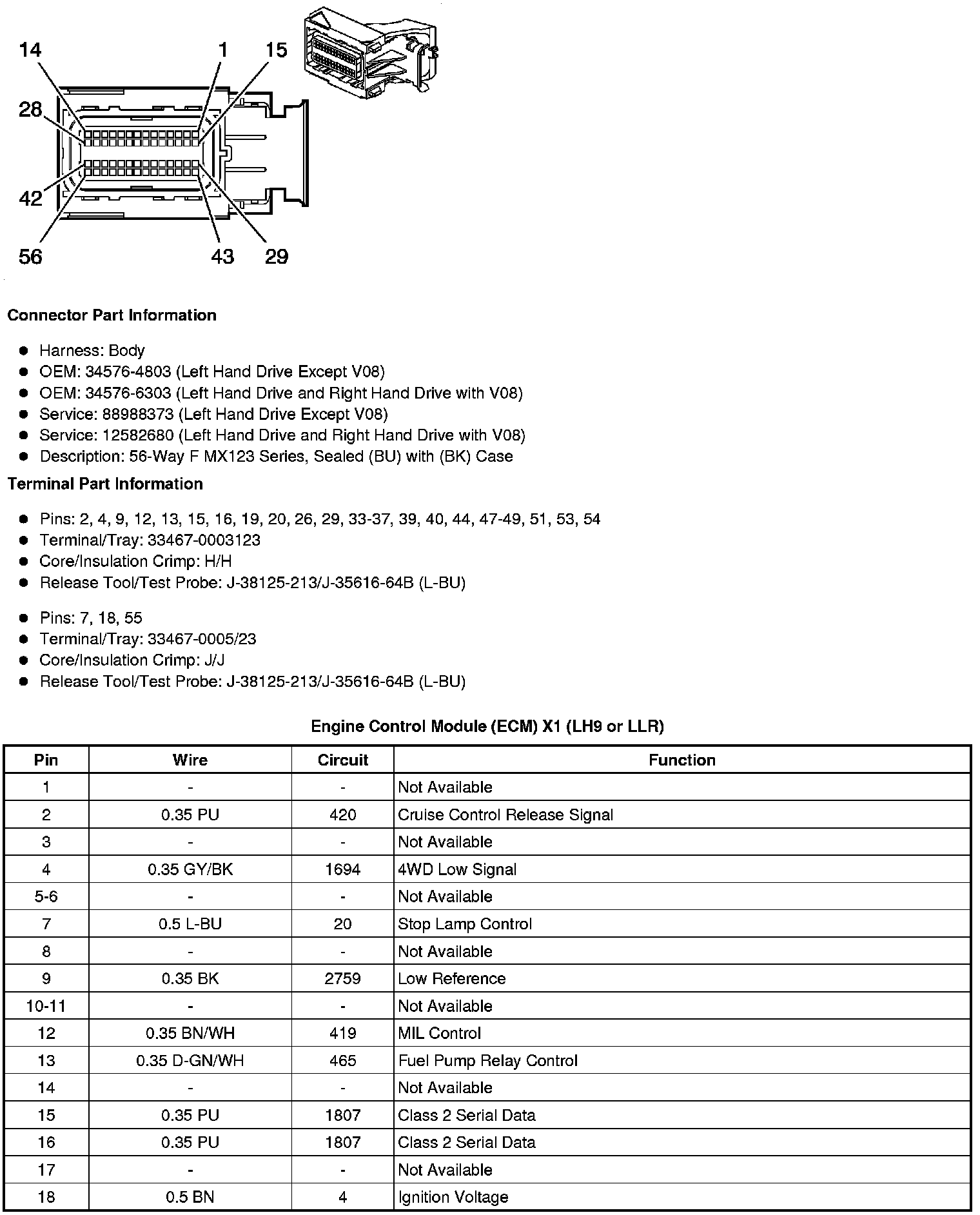

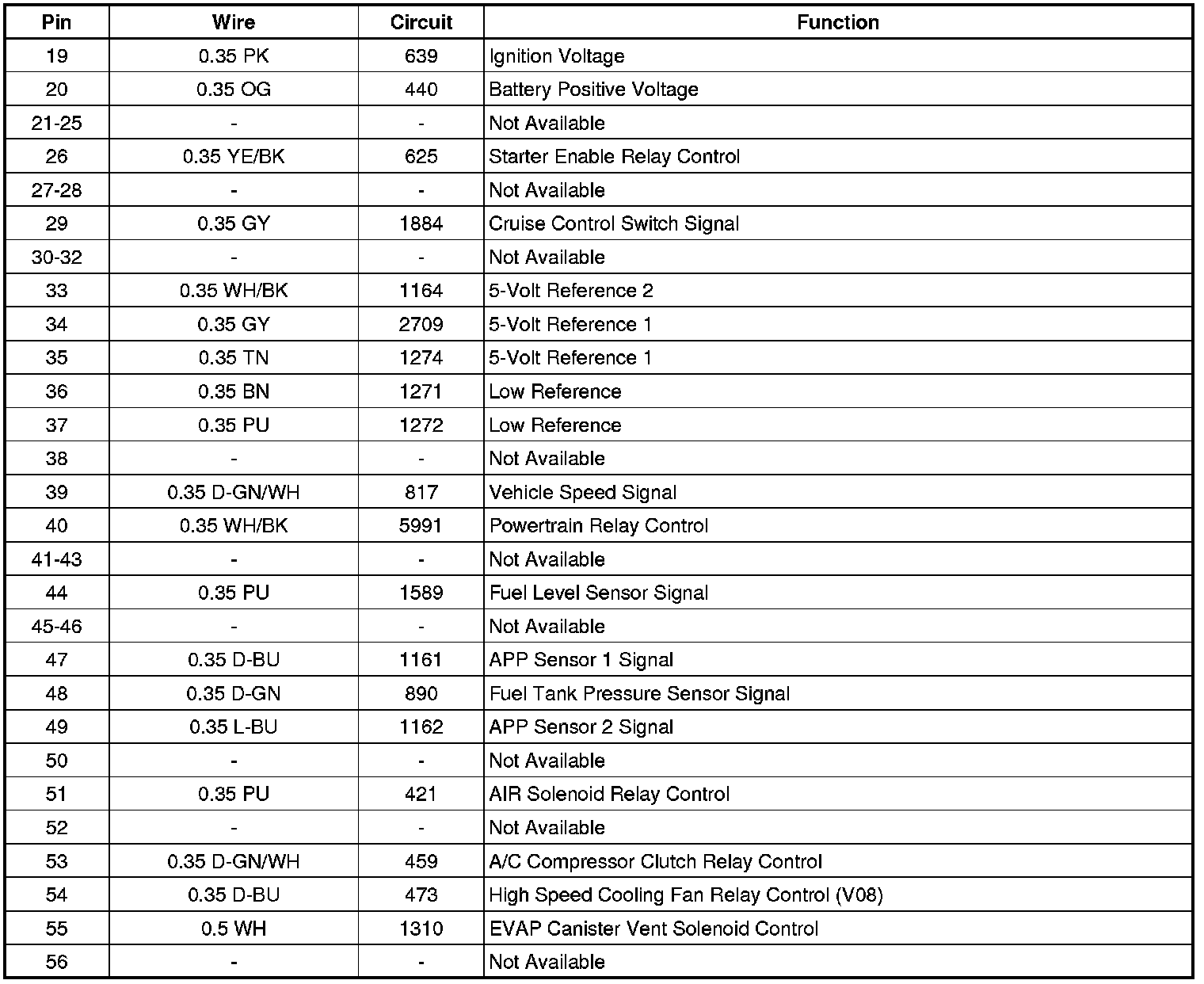

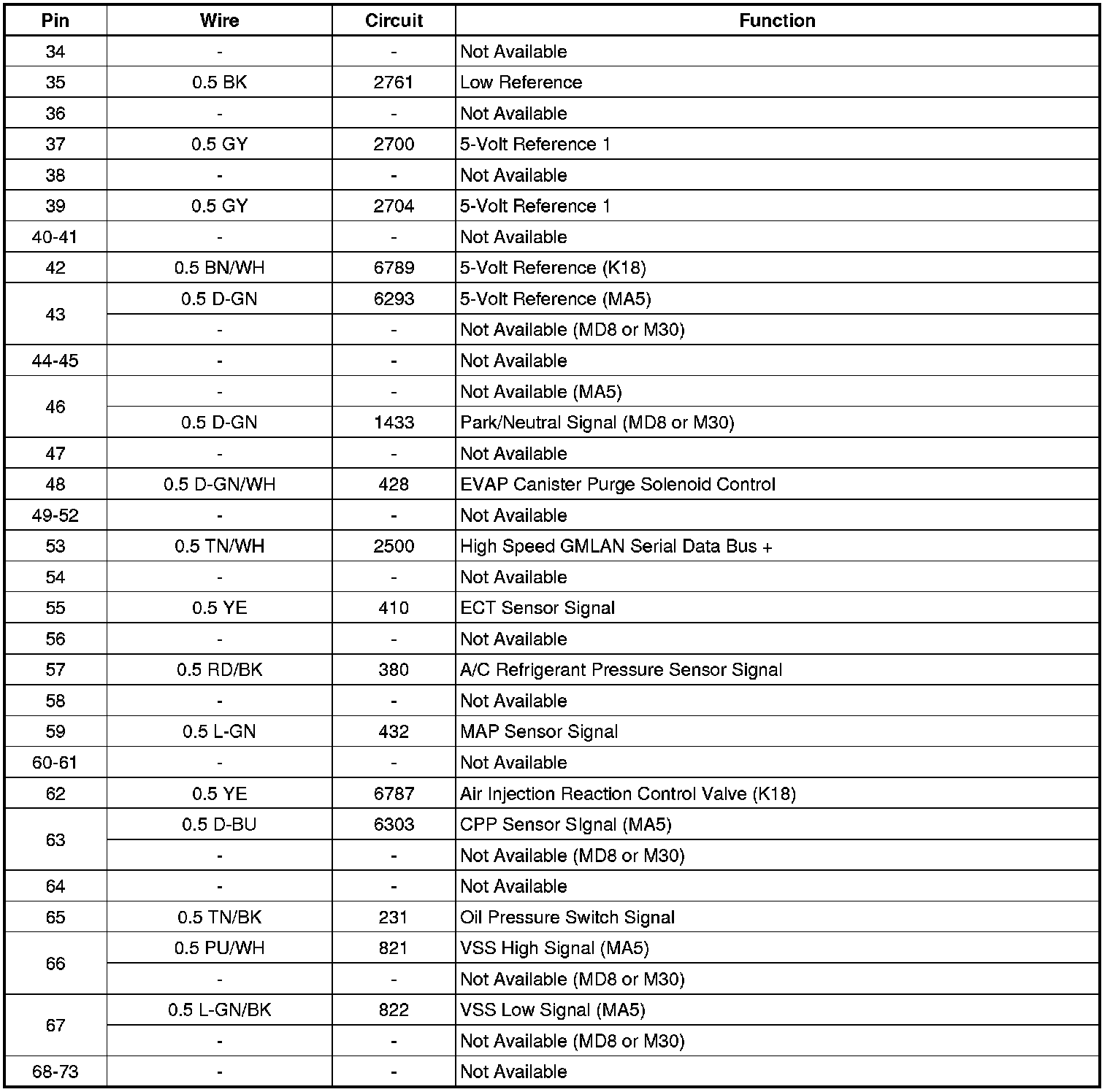

Engine Control Module (ECM) X1 (LH9 or LLR)

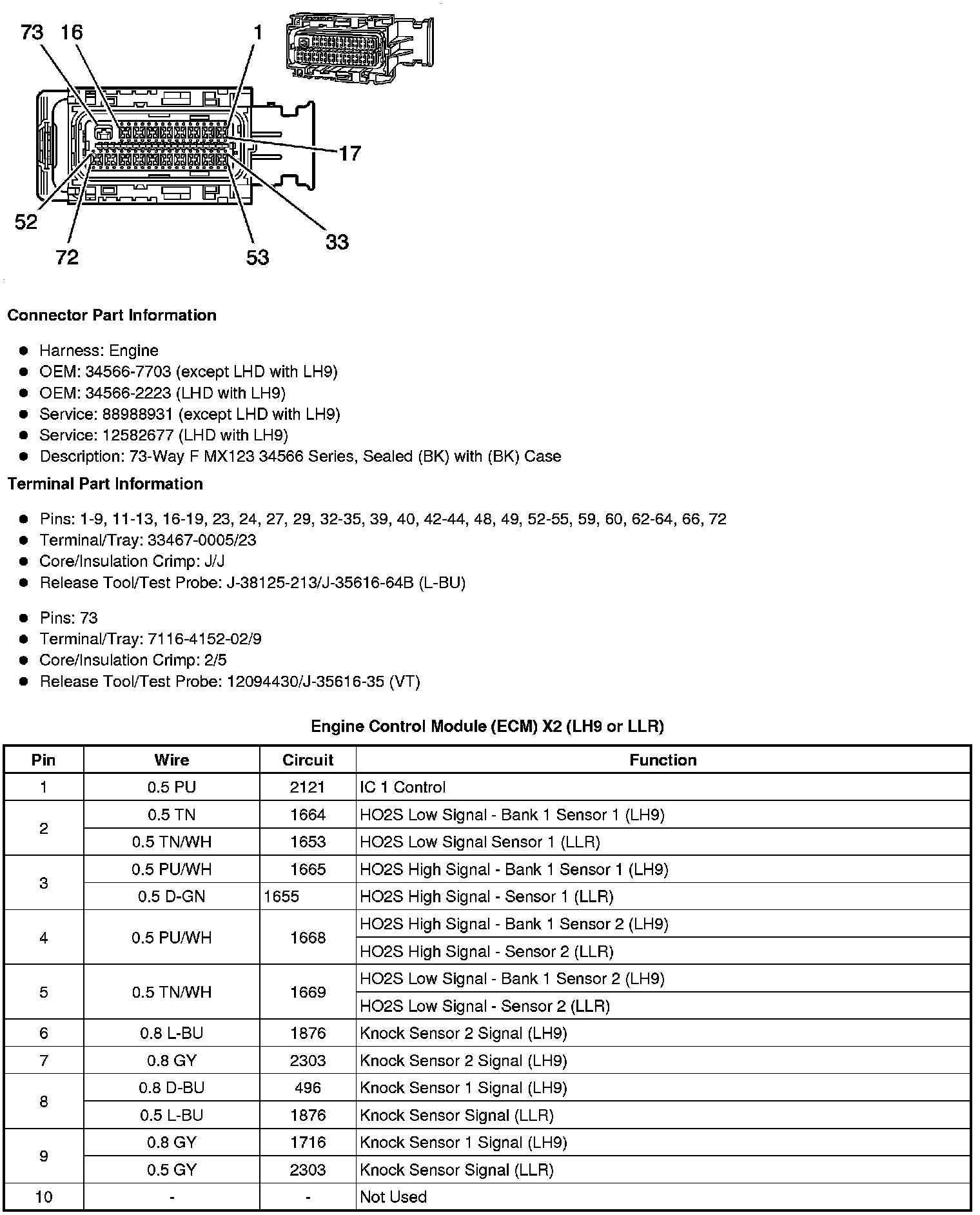

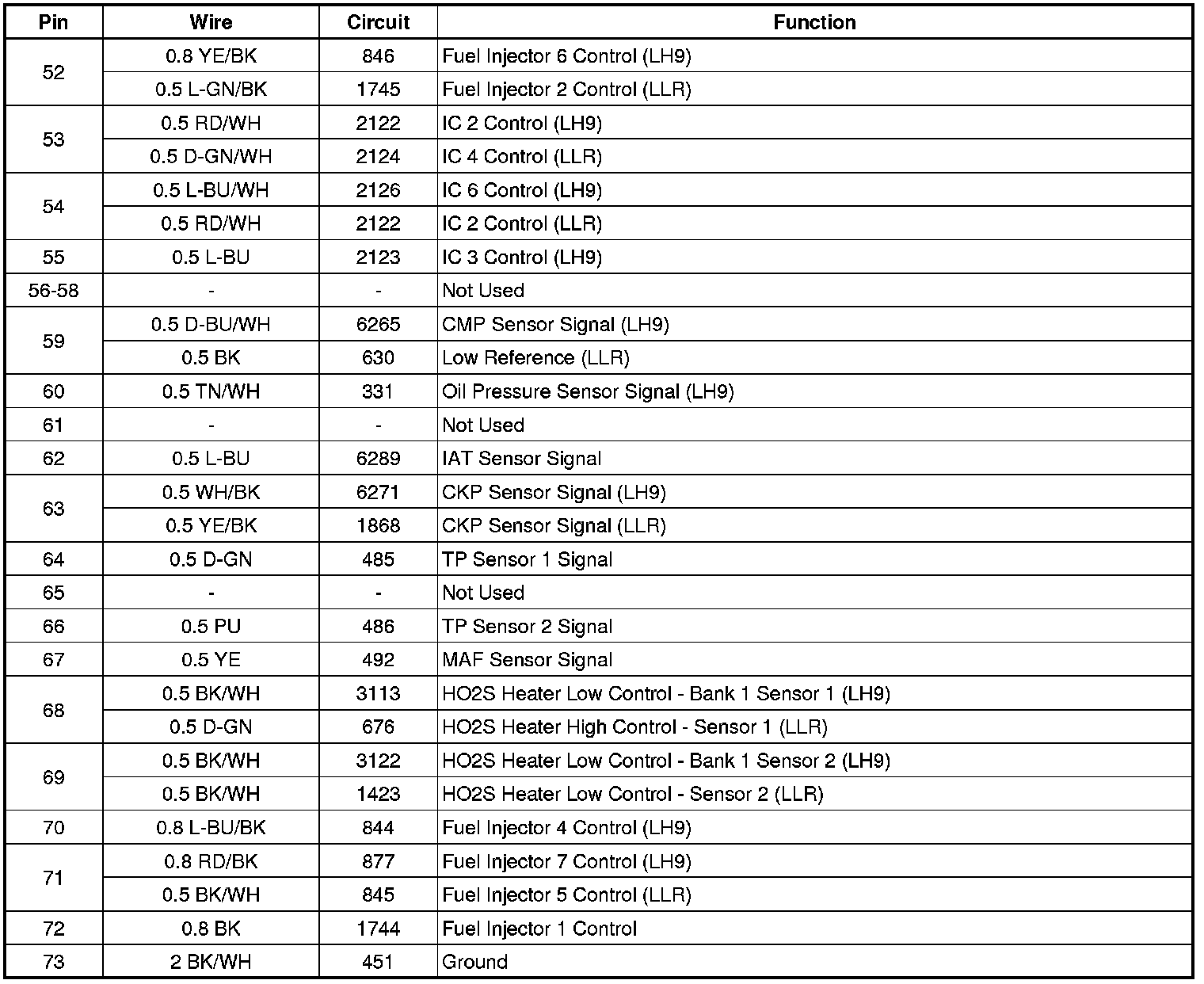

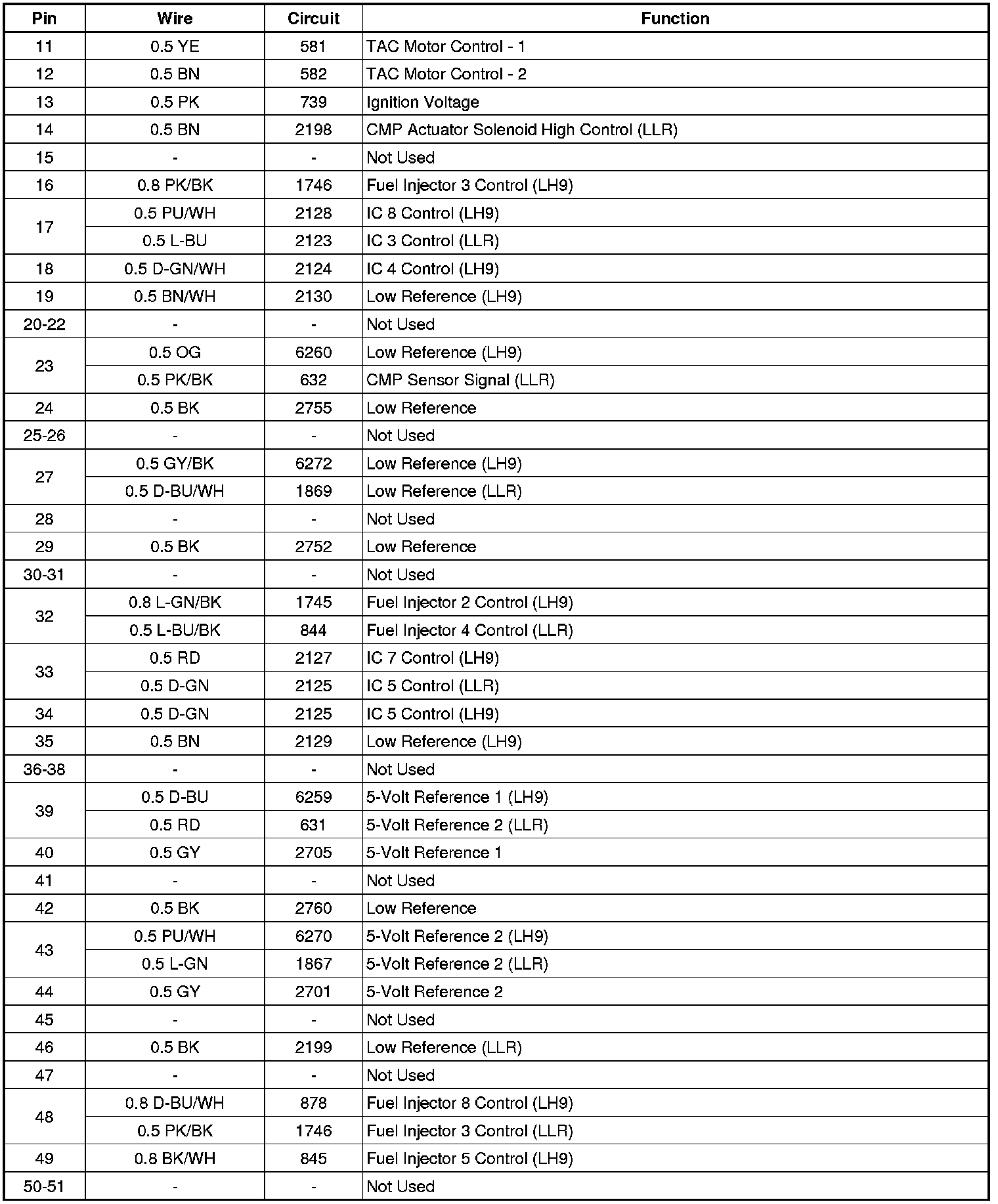

Engine Control Module (ECM) X2 (LH9 or LLR)

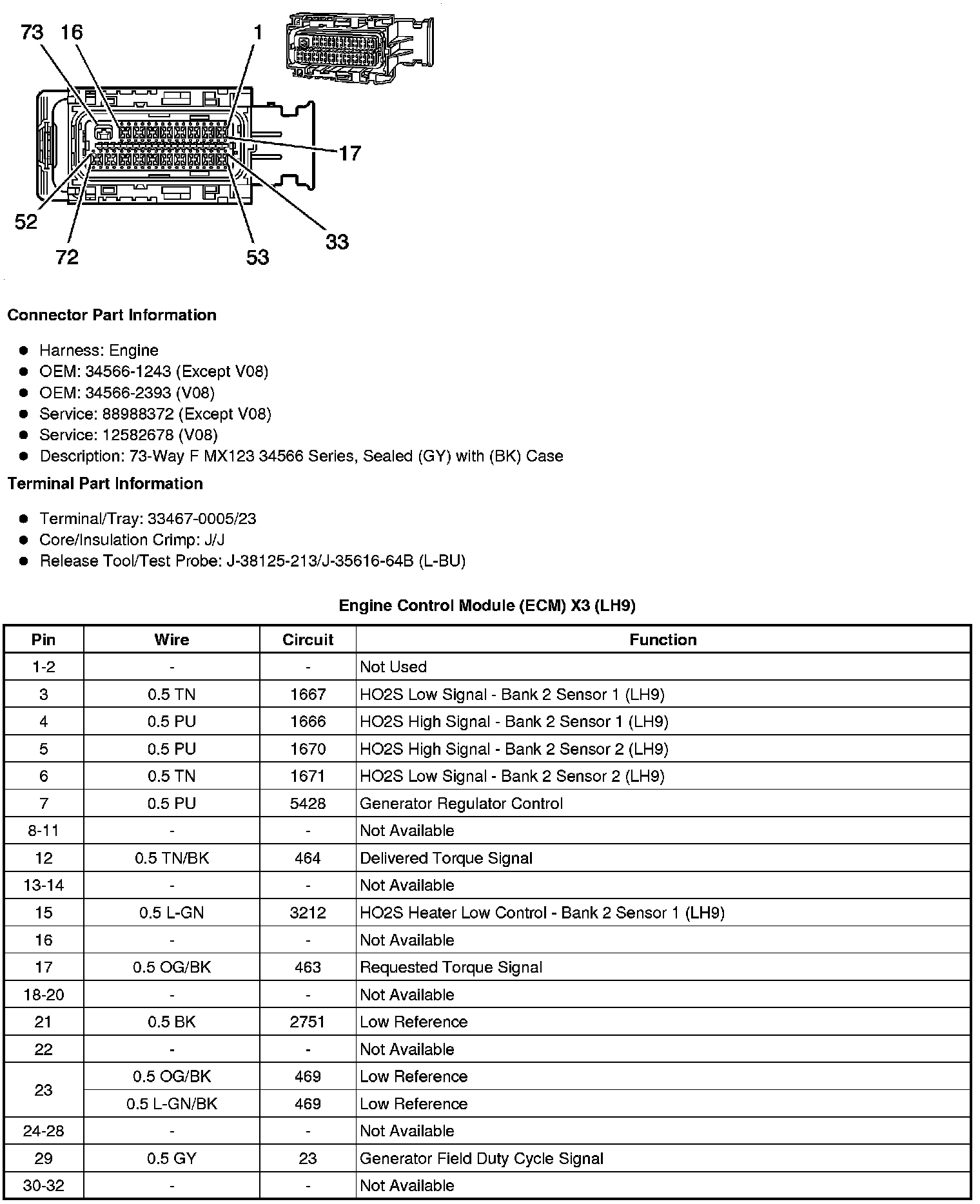

Engine Control Module (ECM) X3 (LH9)

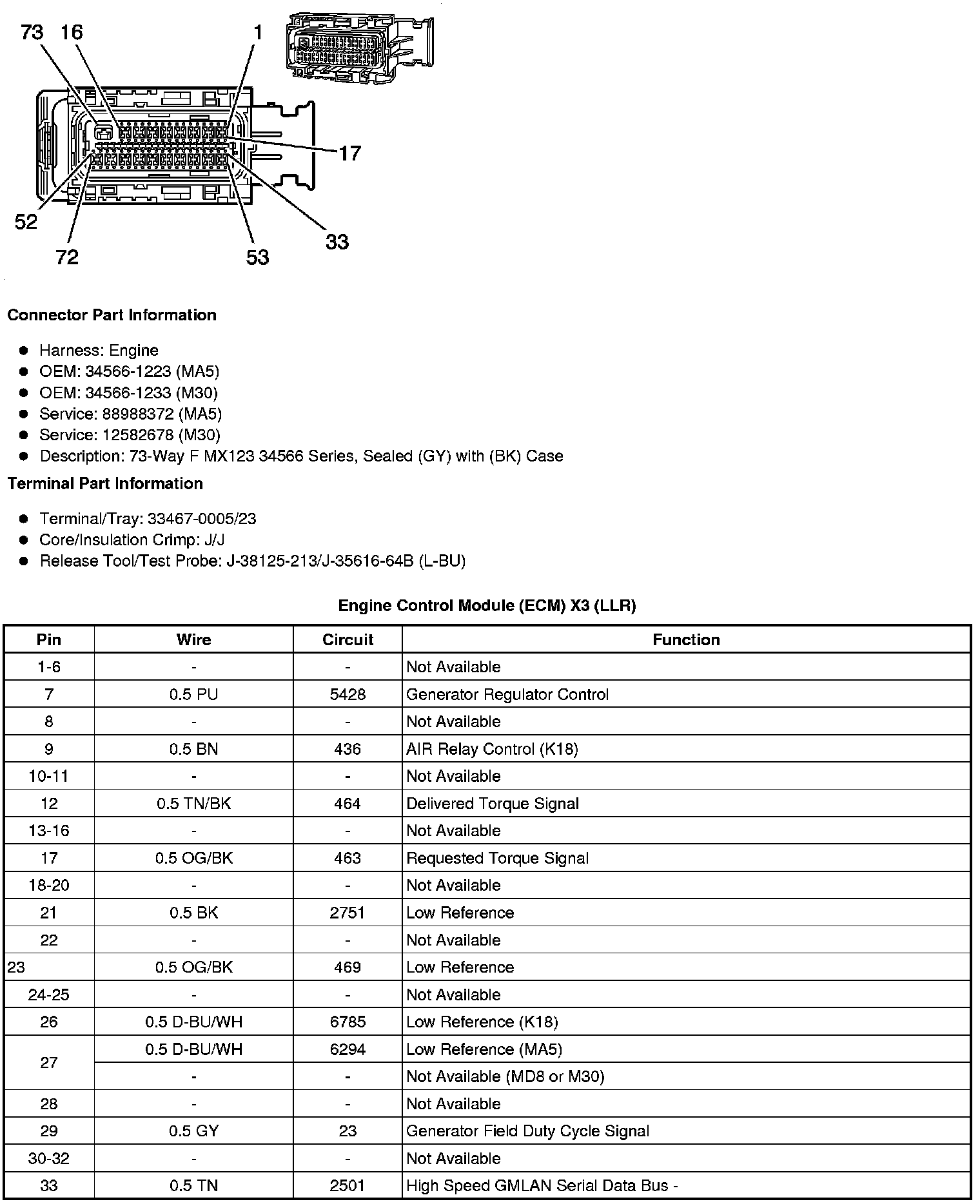

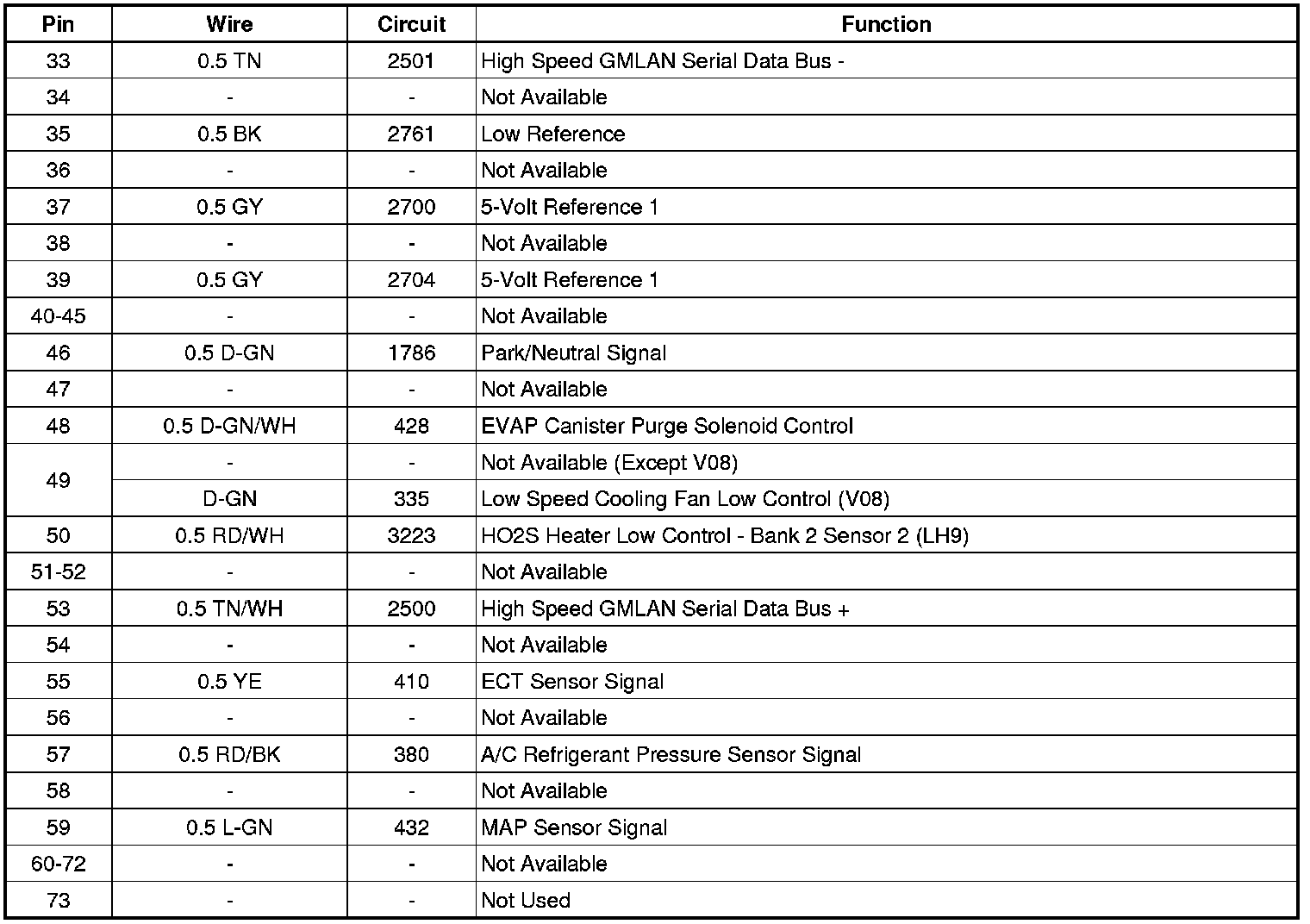

Engine Control Module (ECM) X3 (LLR)
