Master Splice List




Master Electrical Component List

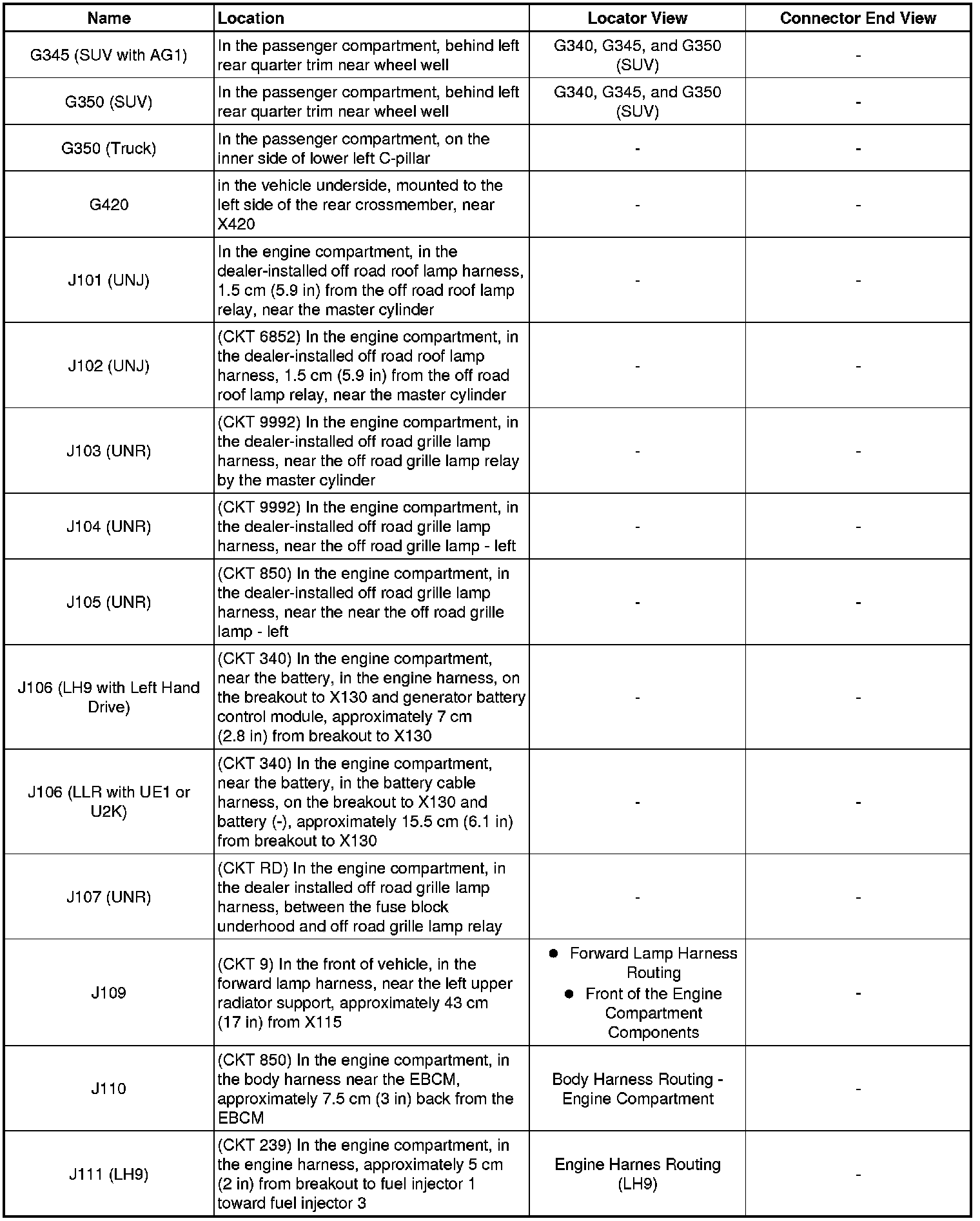

G345 - J111:

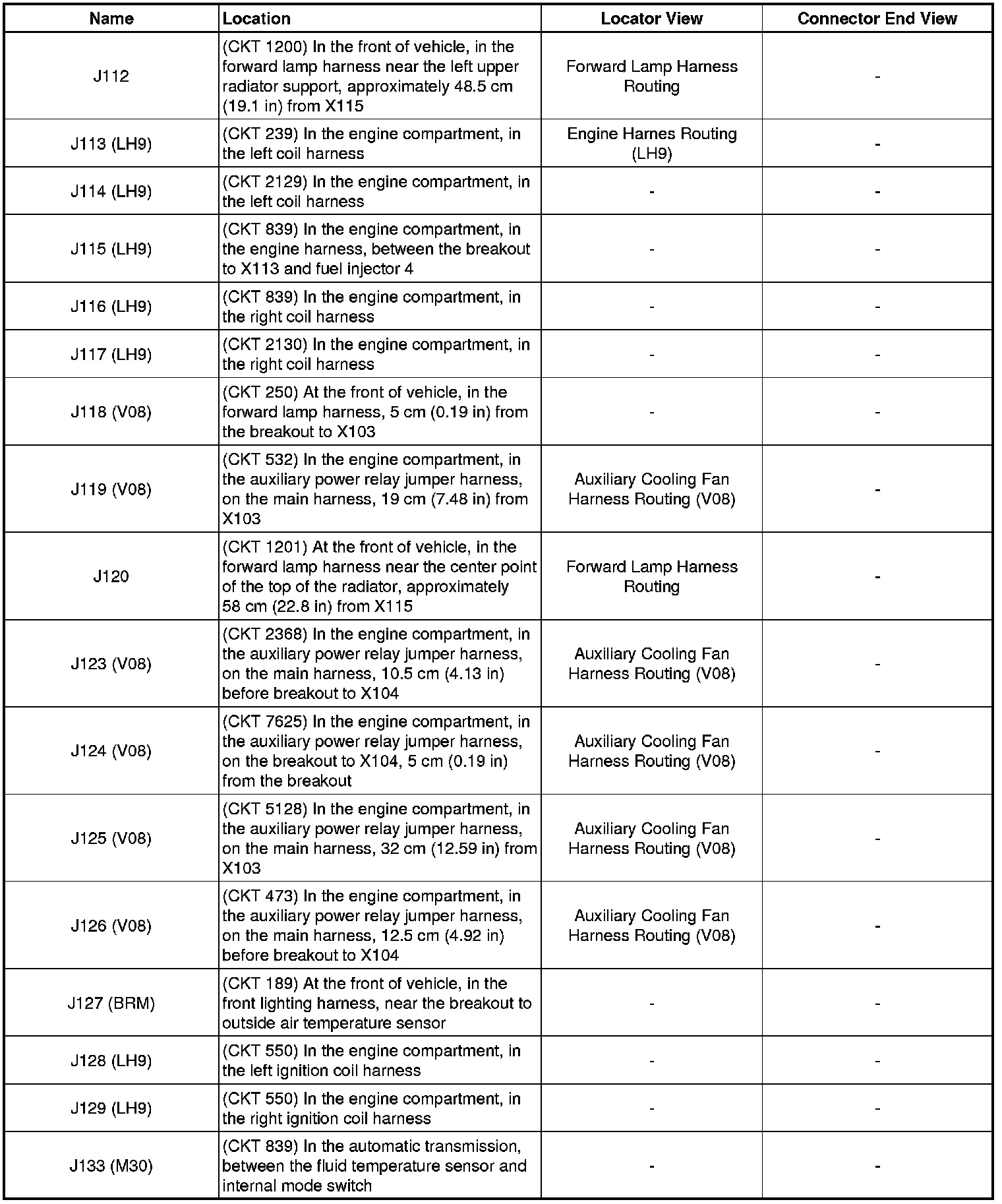

J112 - J133:

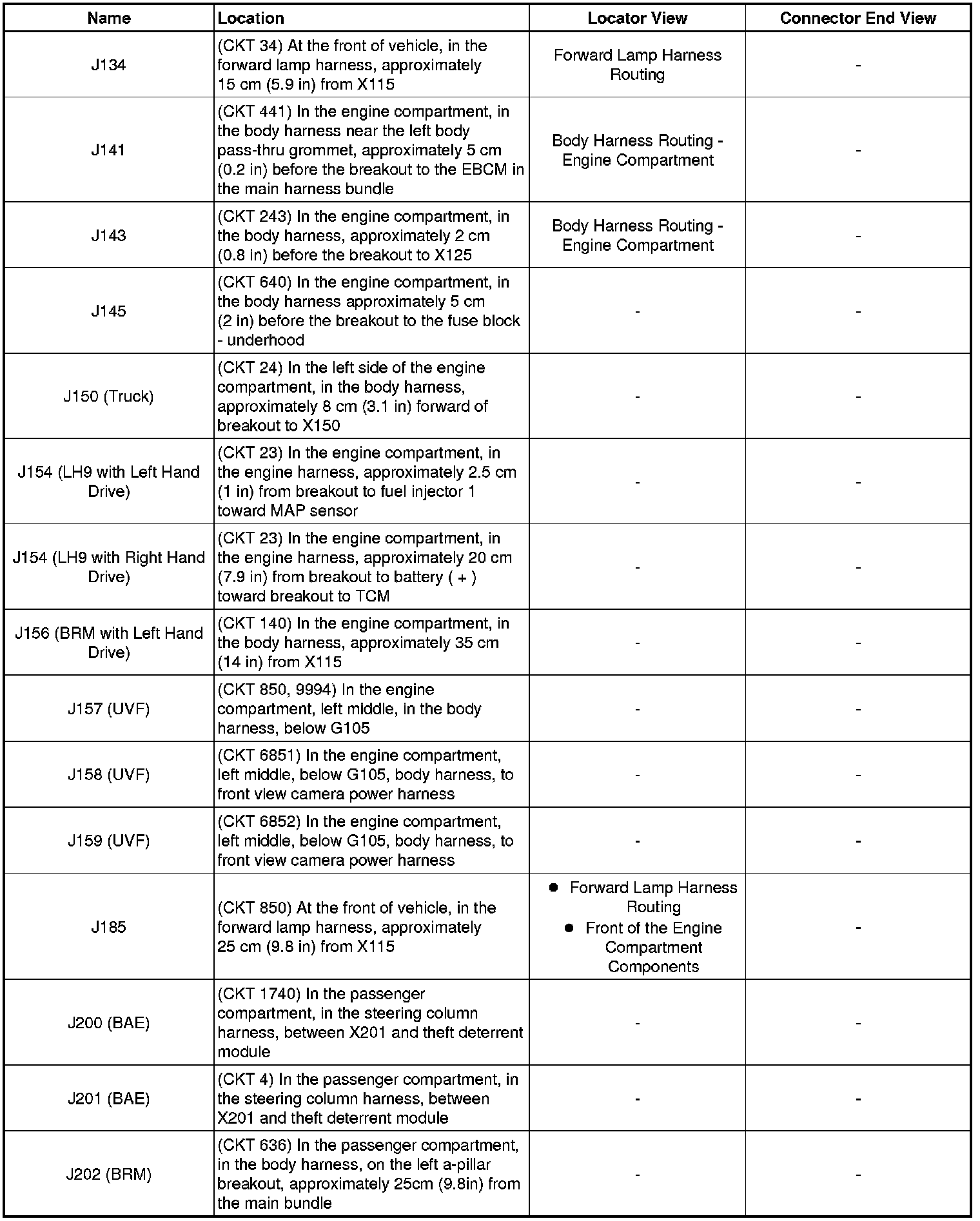

J134 - J202:





J203 - J2220:

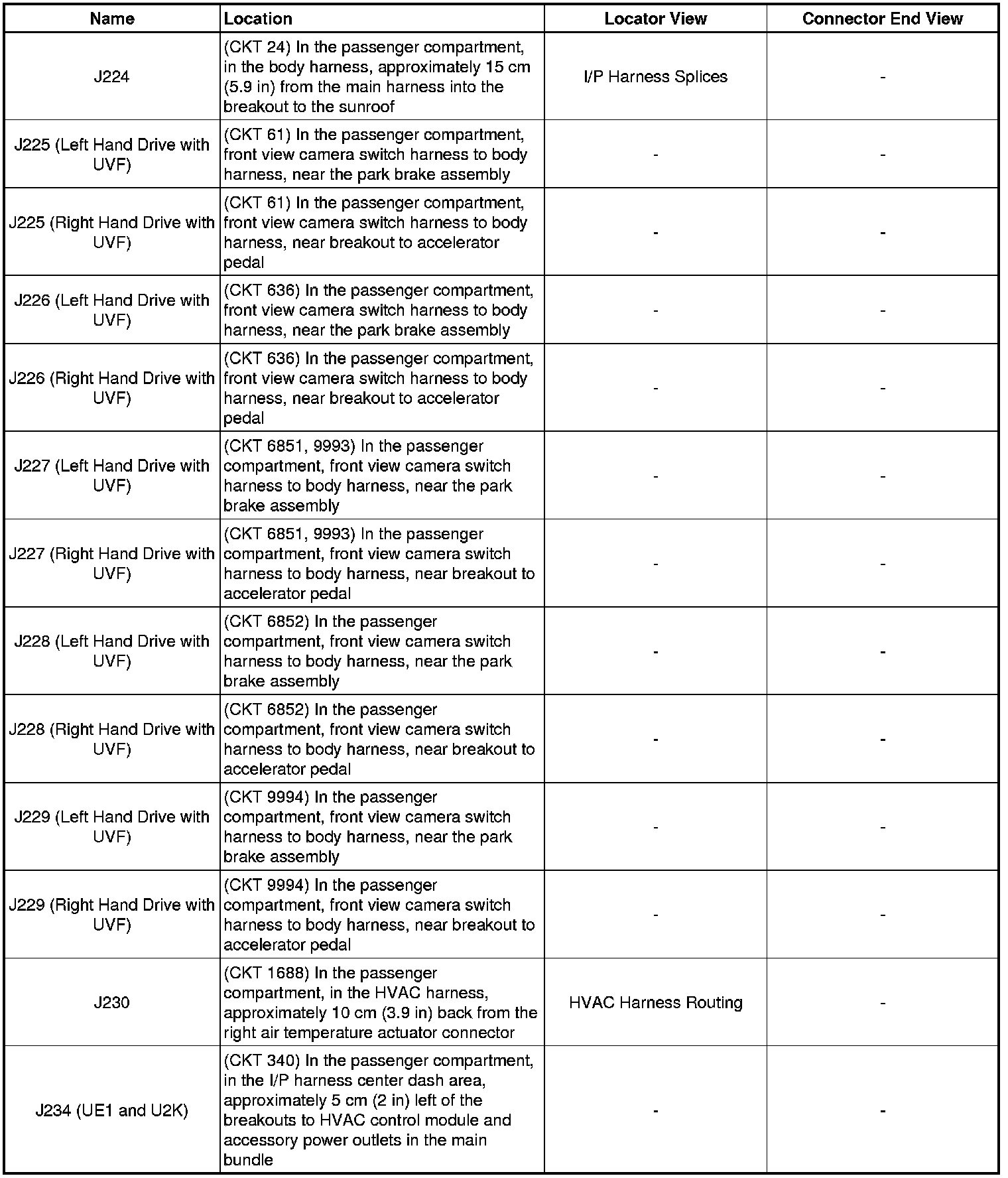

J224 - J234:

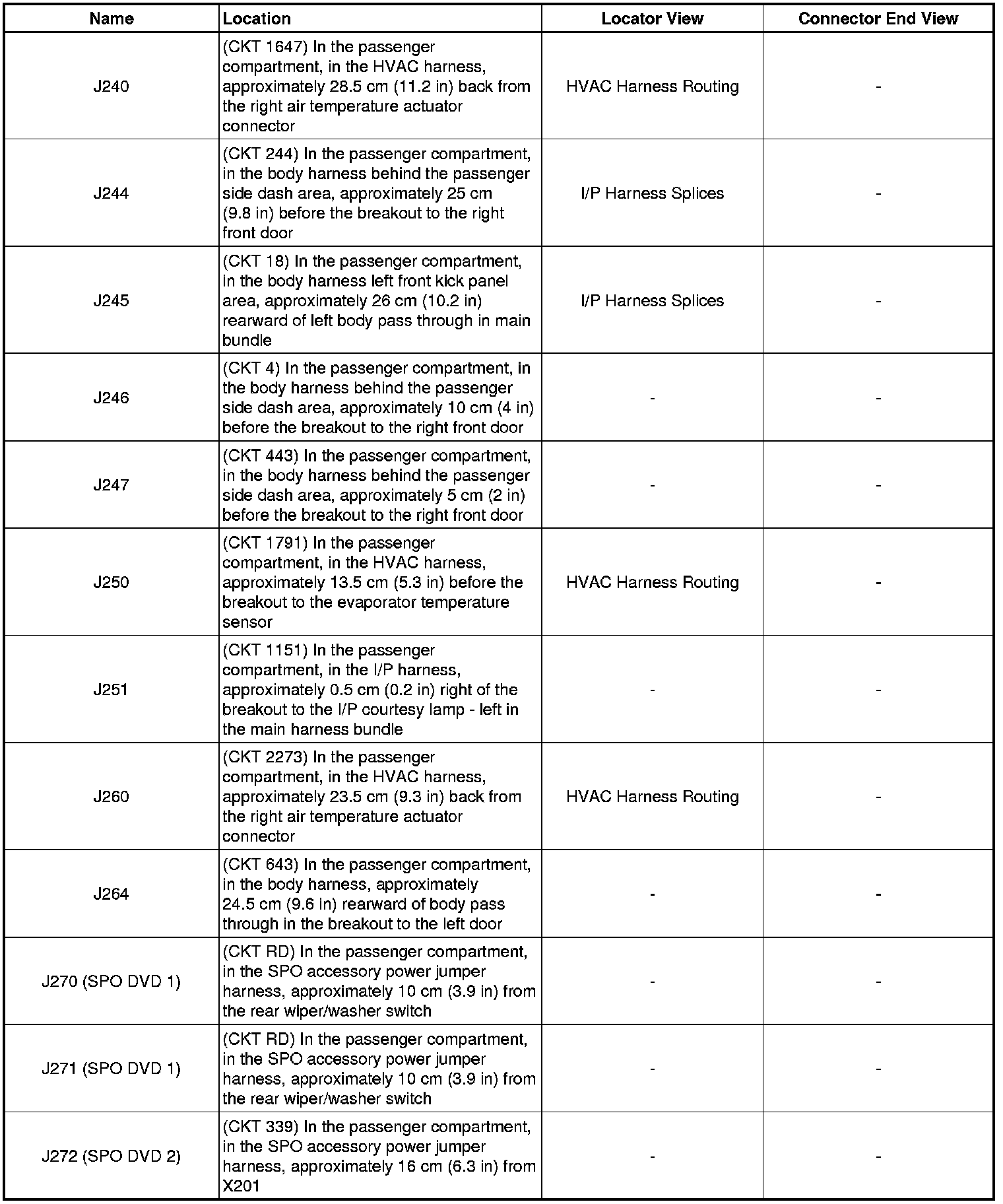

J240 - J272:

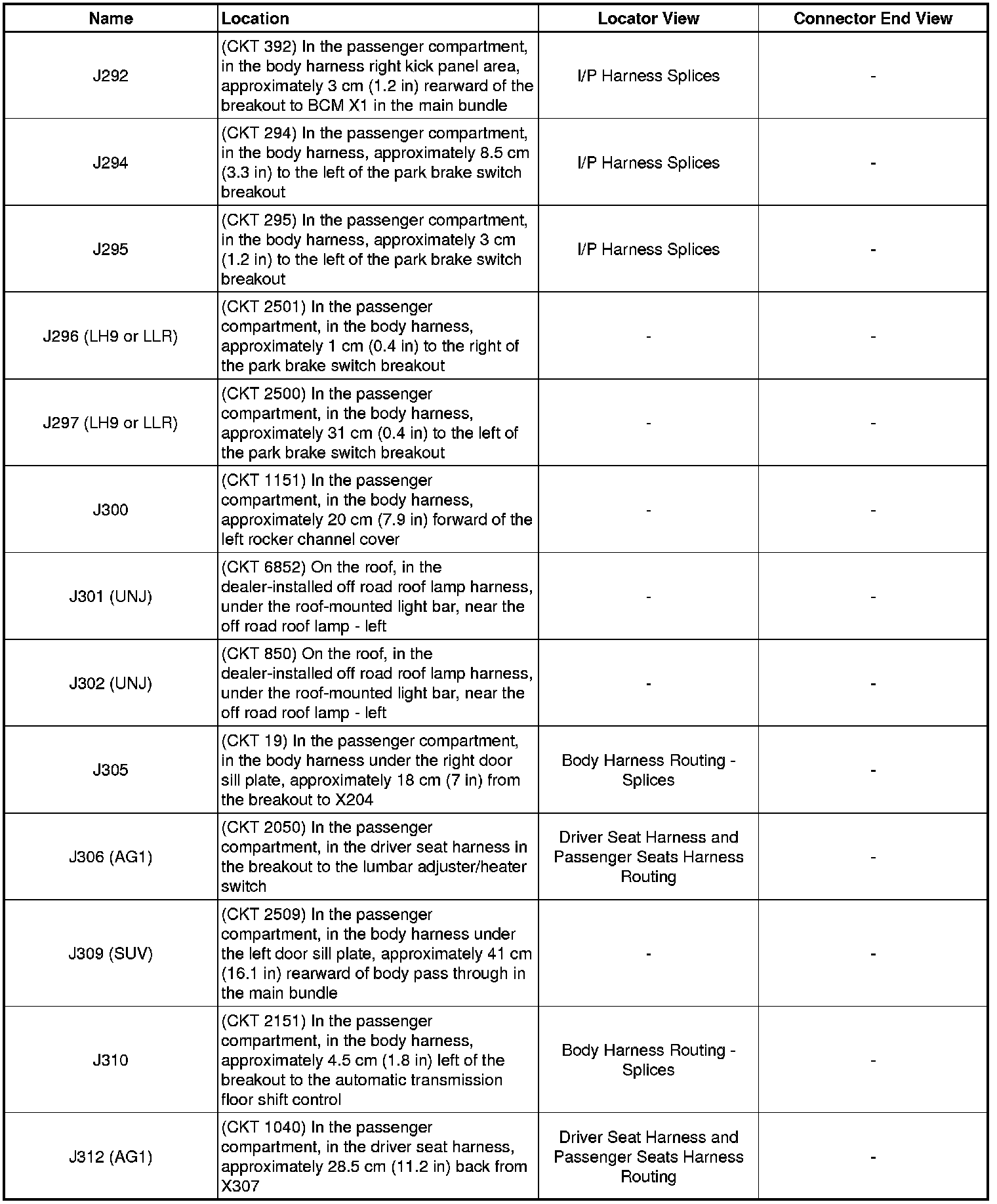

J292 - J312:

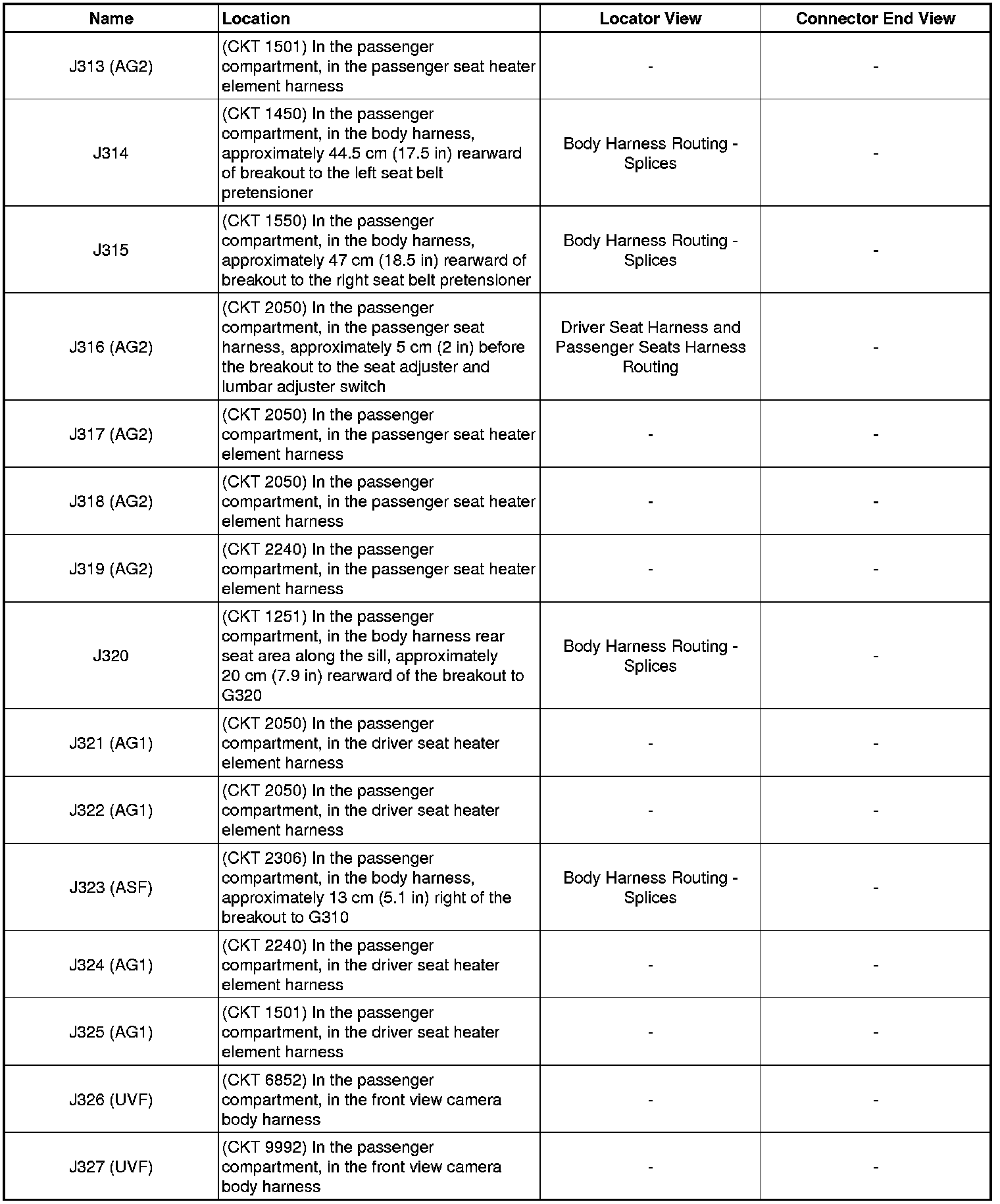

J313 - J327:

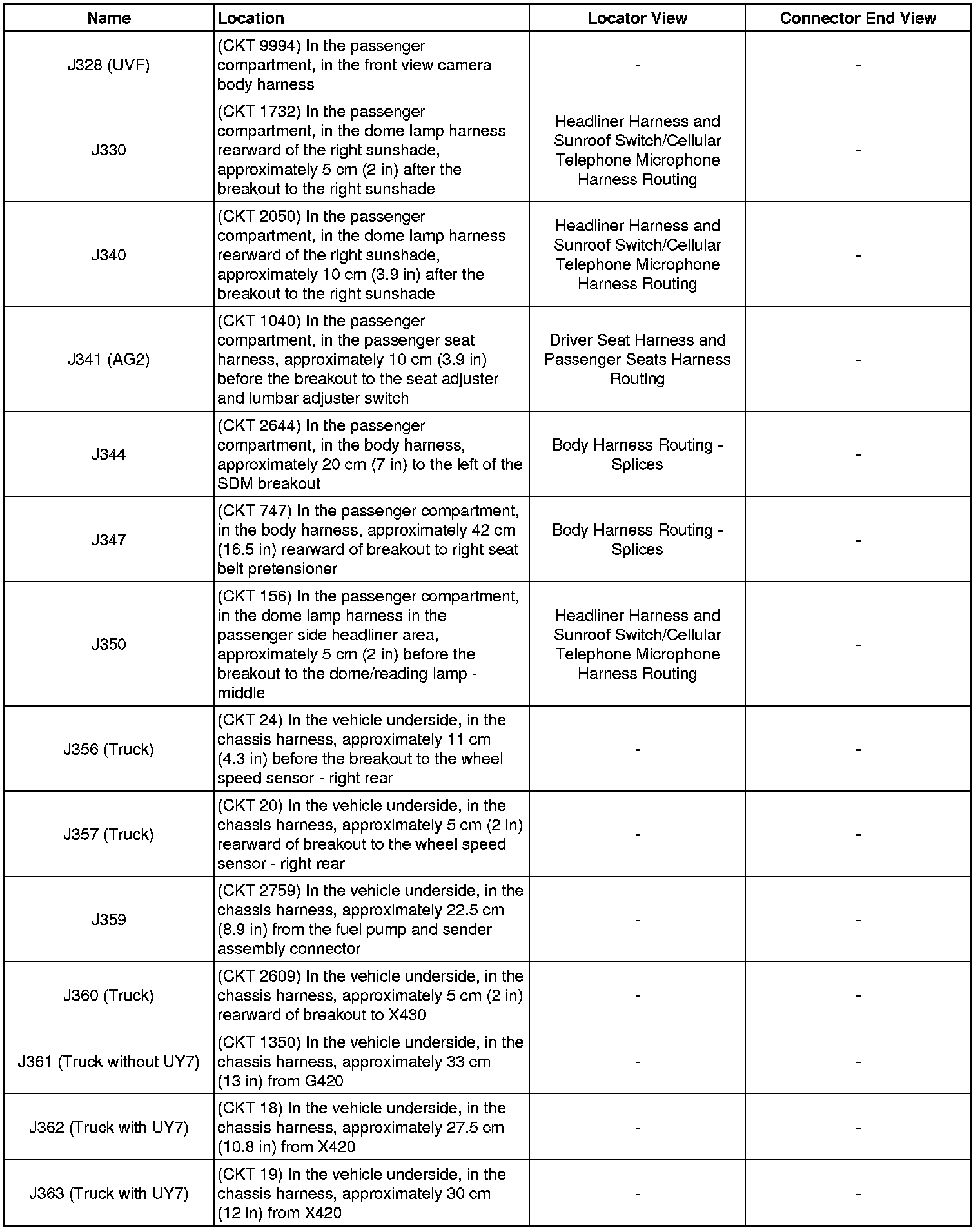

J328 - J363:

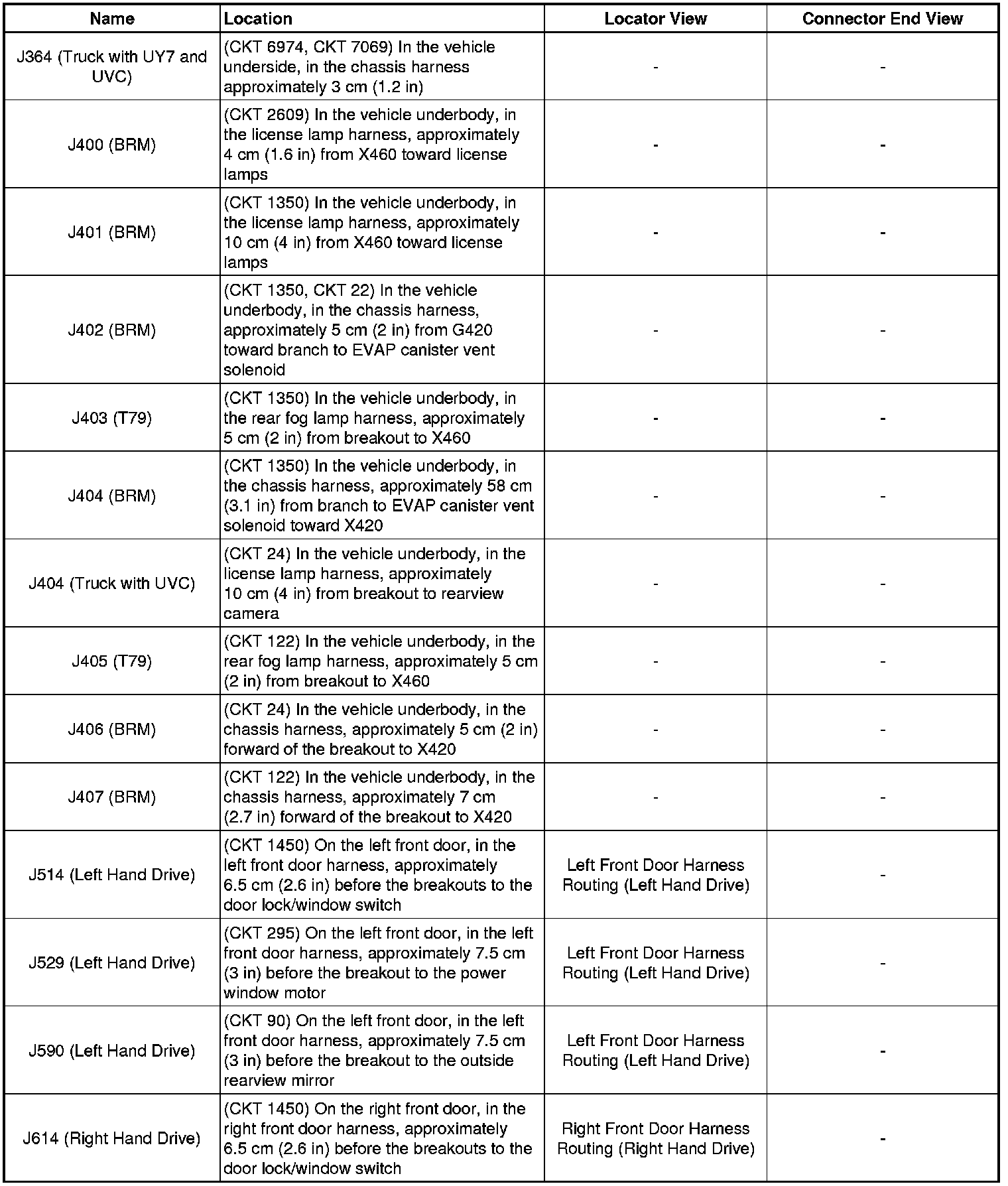

J364 - J614:

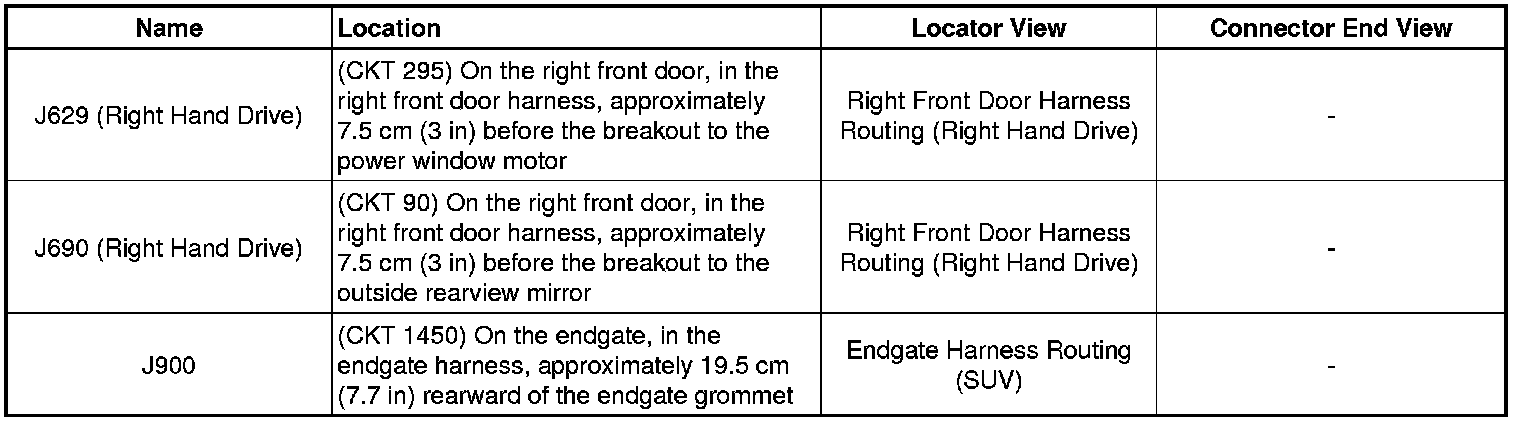

J629 - J900:
