Wiper Motor




Component Connector End Views

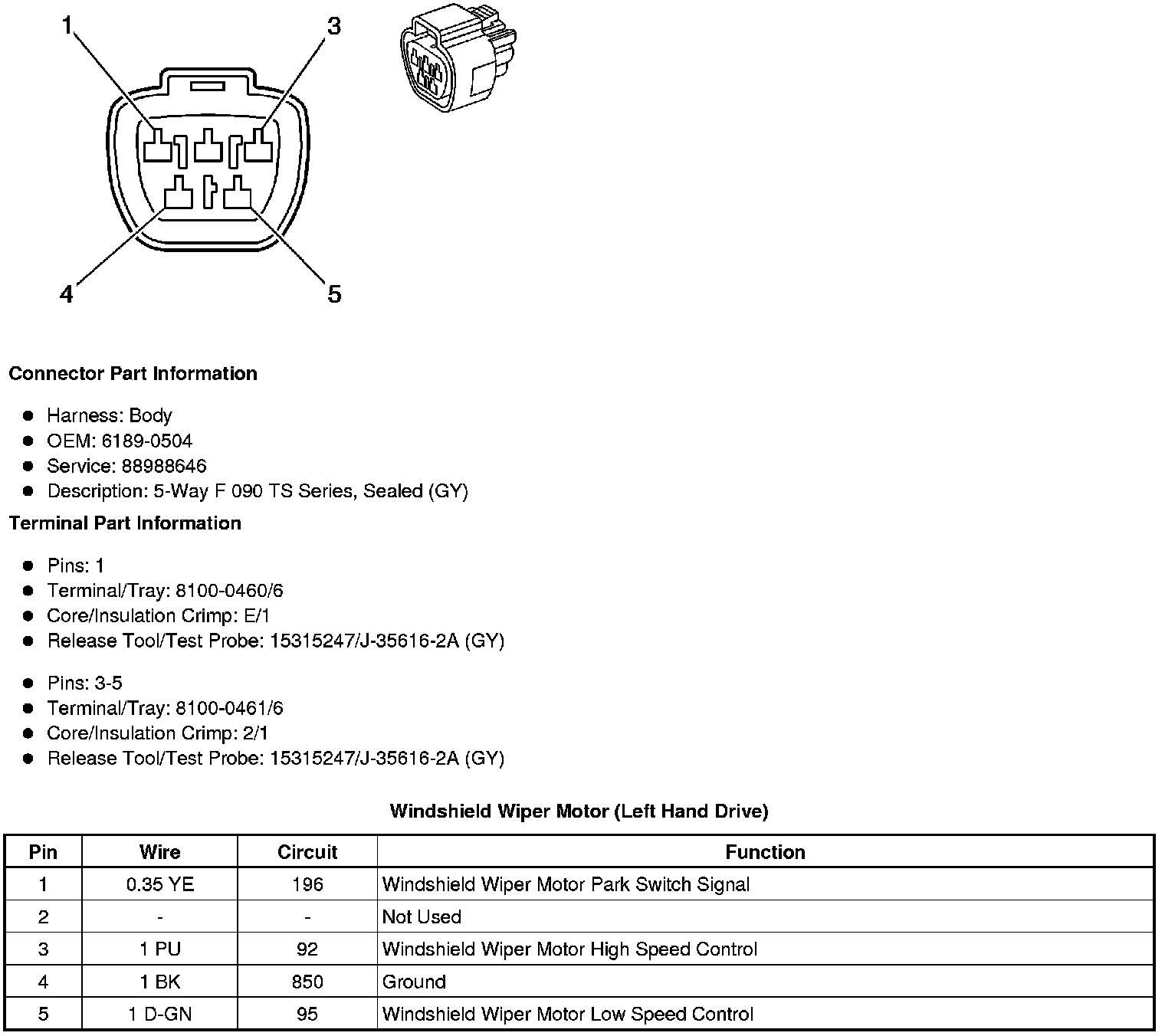

Windshield Wiper Motor (Left Hand Drive)

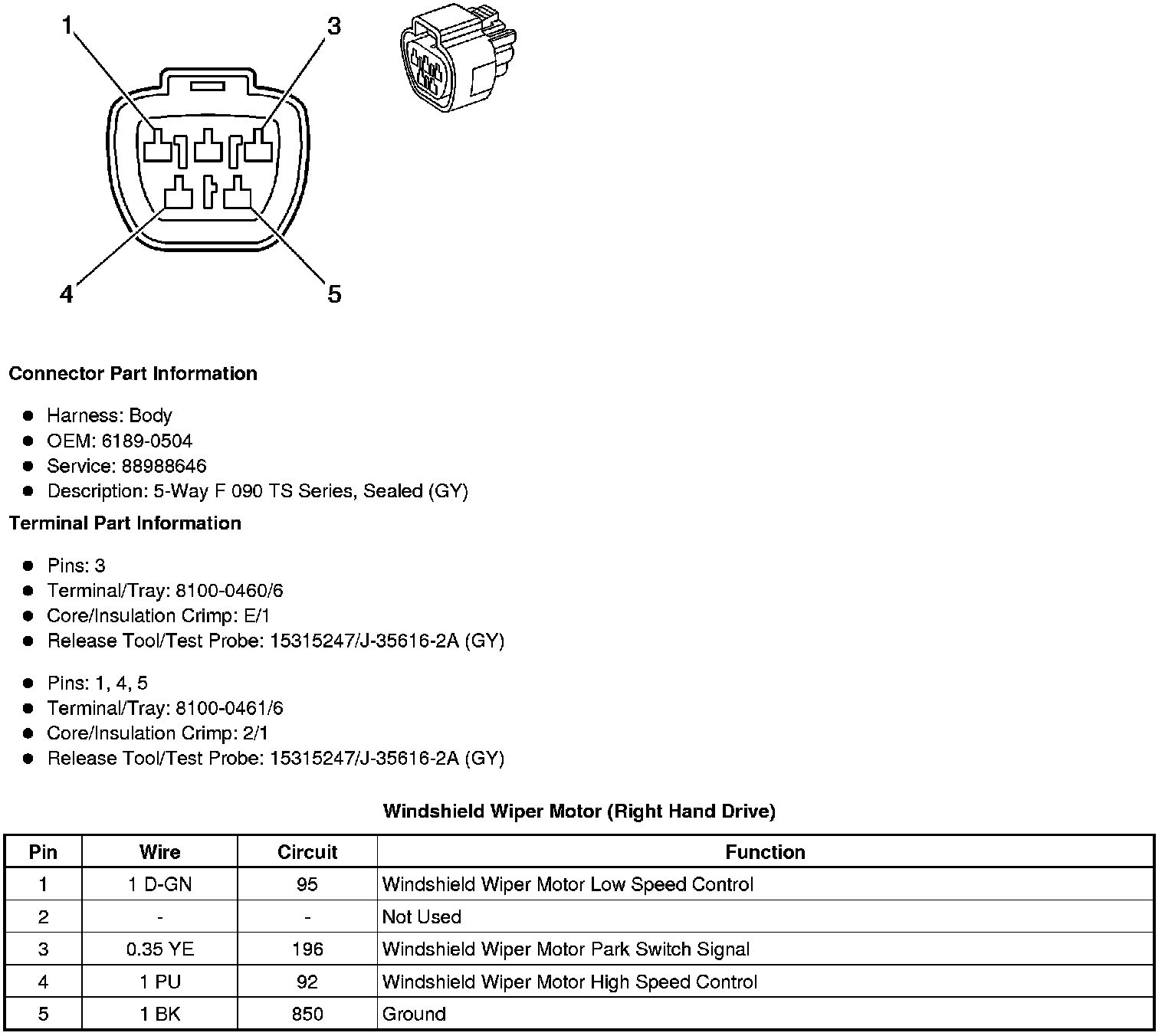

Windshield Wiper Motor (Right Hand Drive)

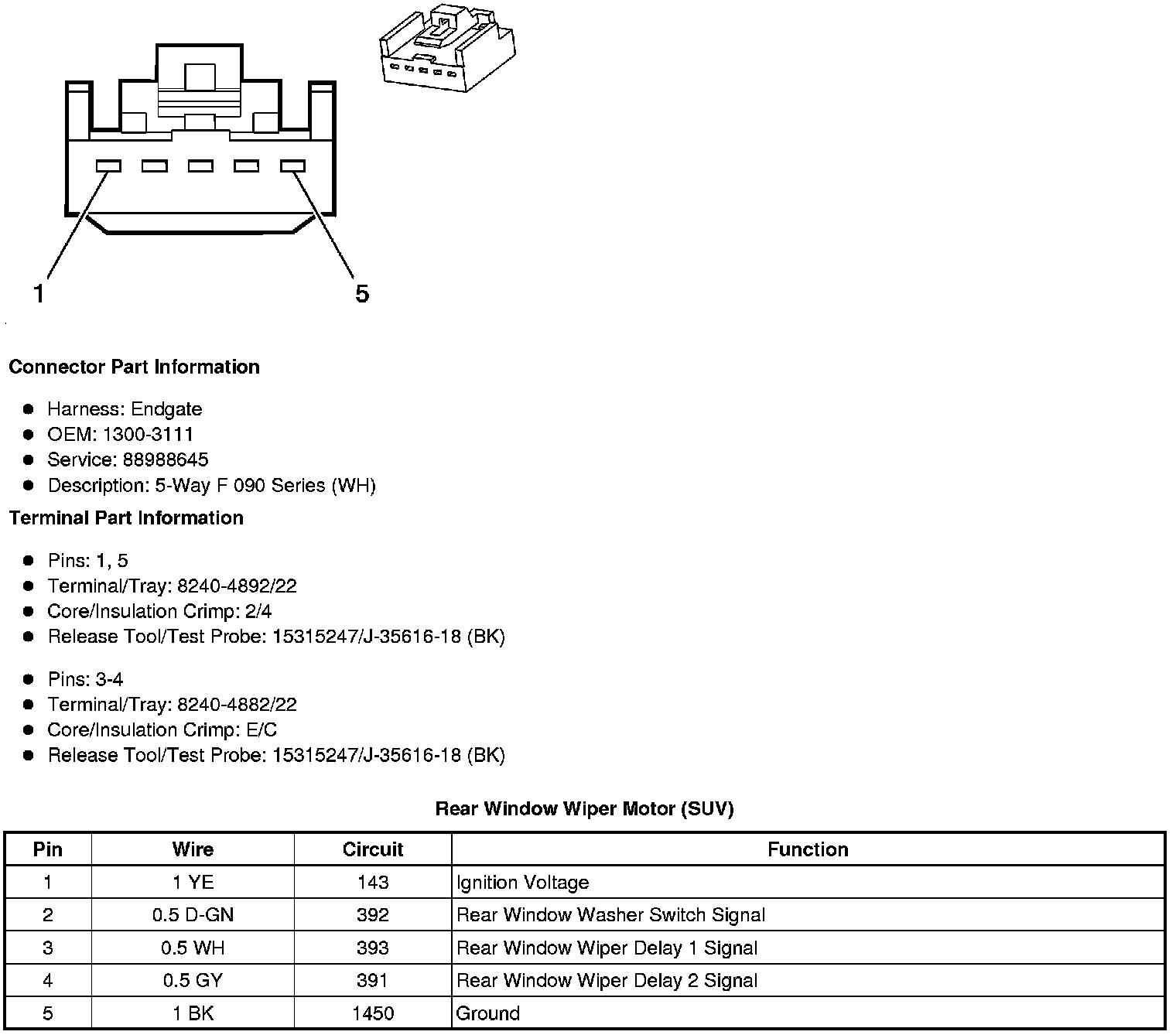

Rear Window Wiper Motor (SUV)
