Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor

Power Window Motor




Component Connector End Views

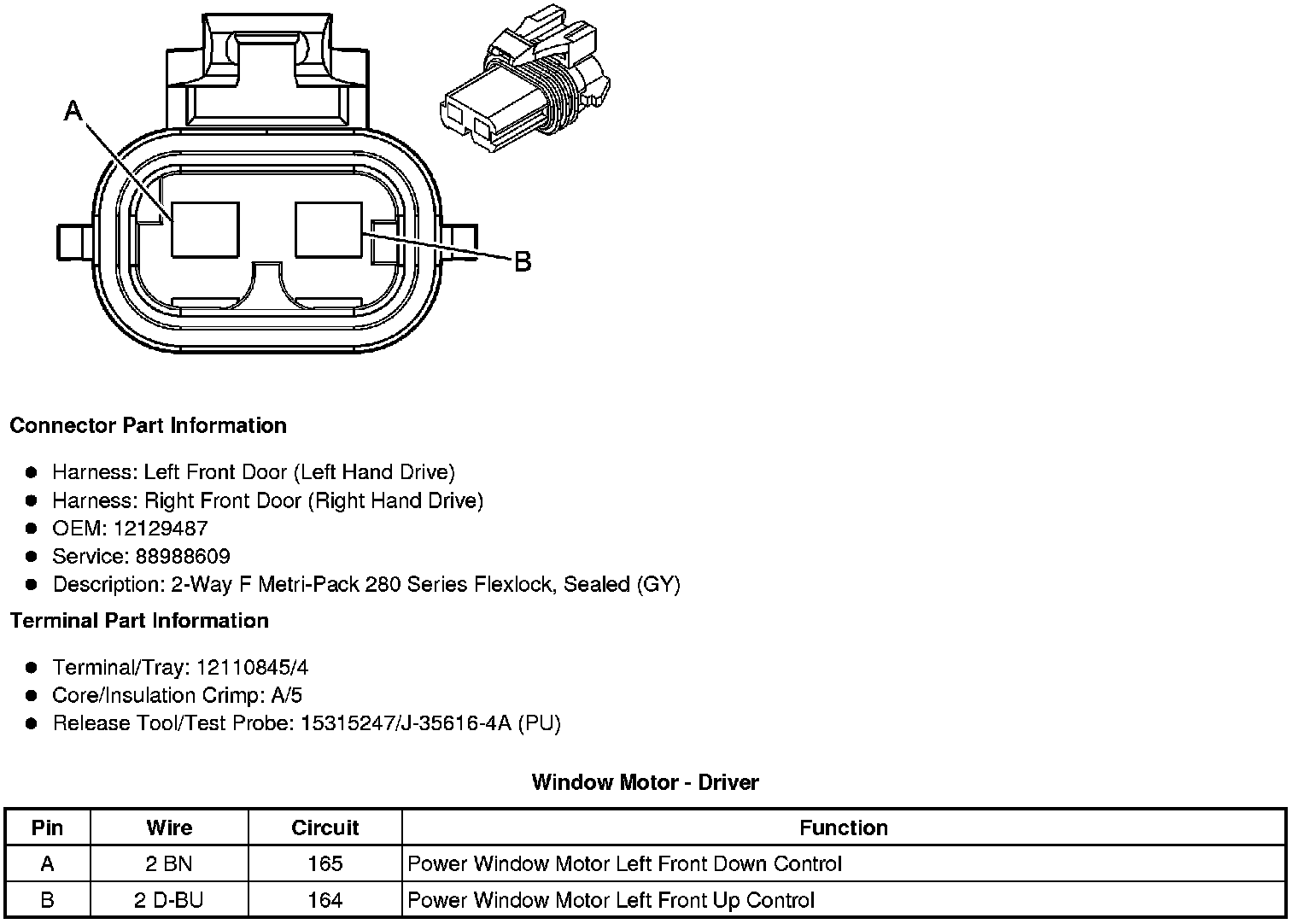

Window Motor - Driver

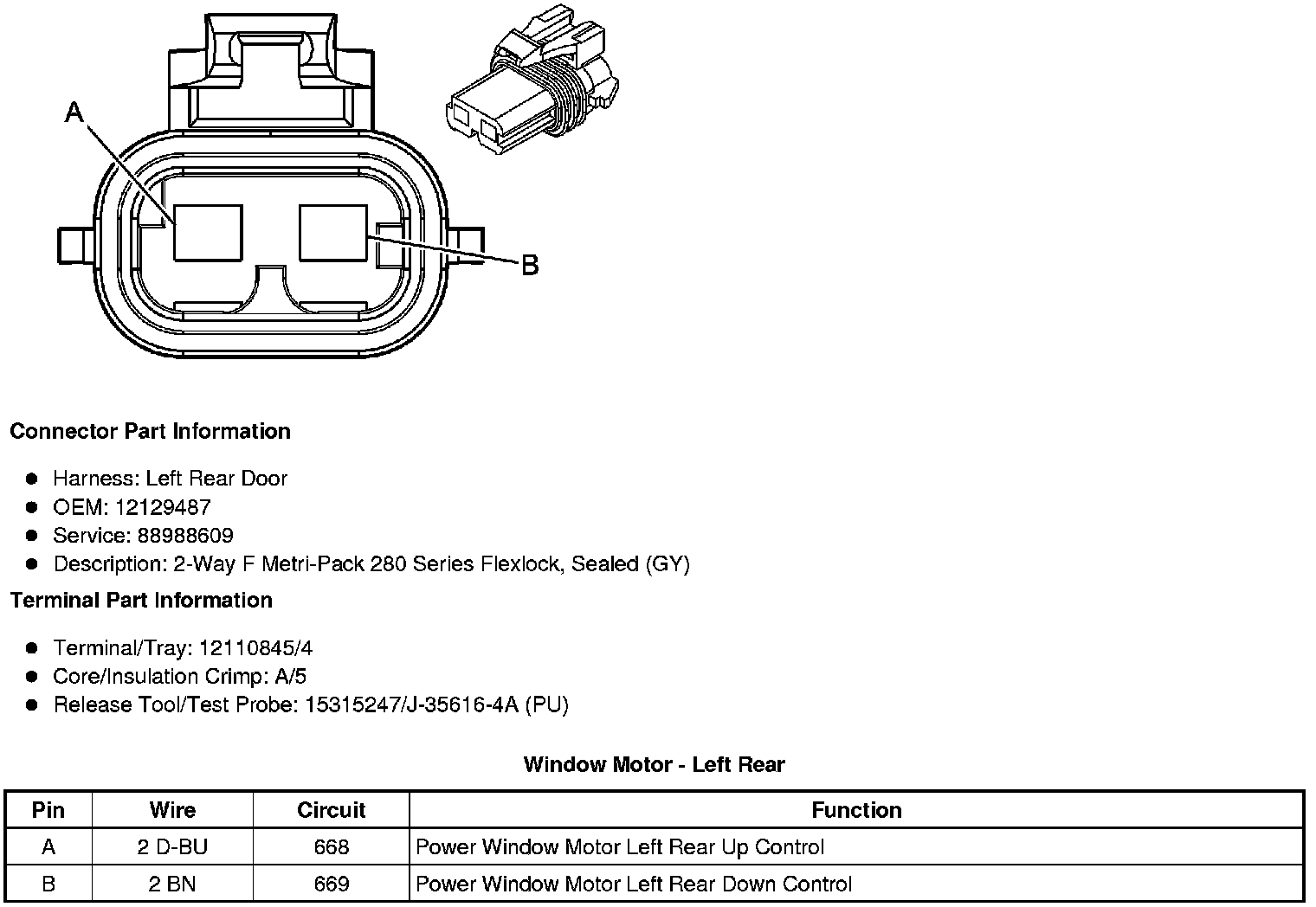

Window Motor - Left Rear

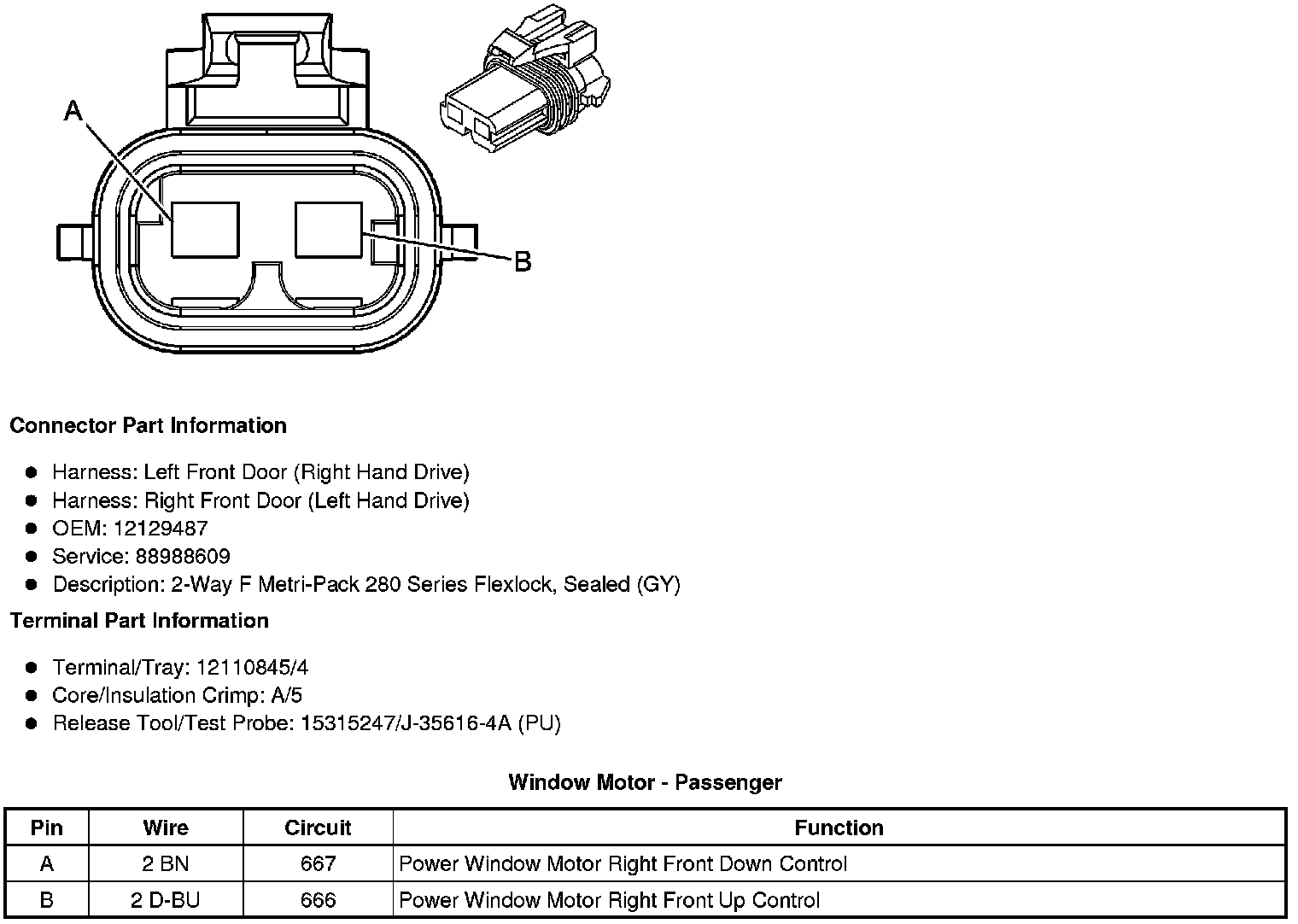

Window Motor - Passenger





Window Motor - Right Rear
