Connector Views
>>
Fuel Pressure Control Module
Fuel Pressure Control Module

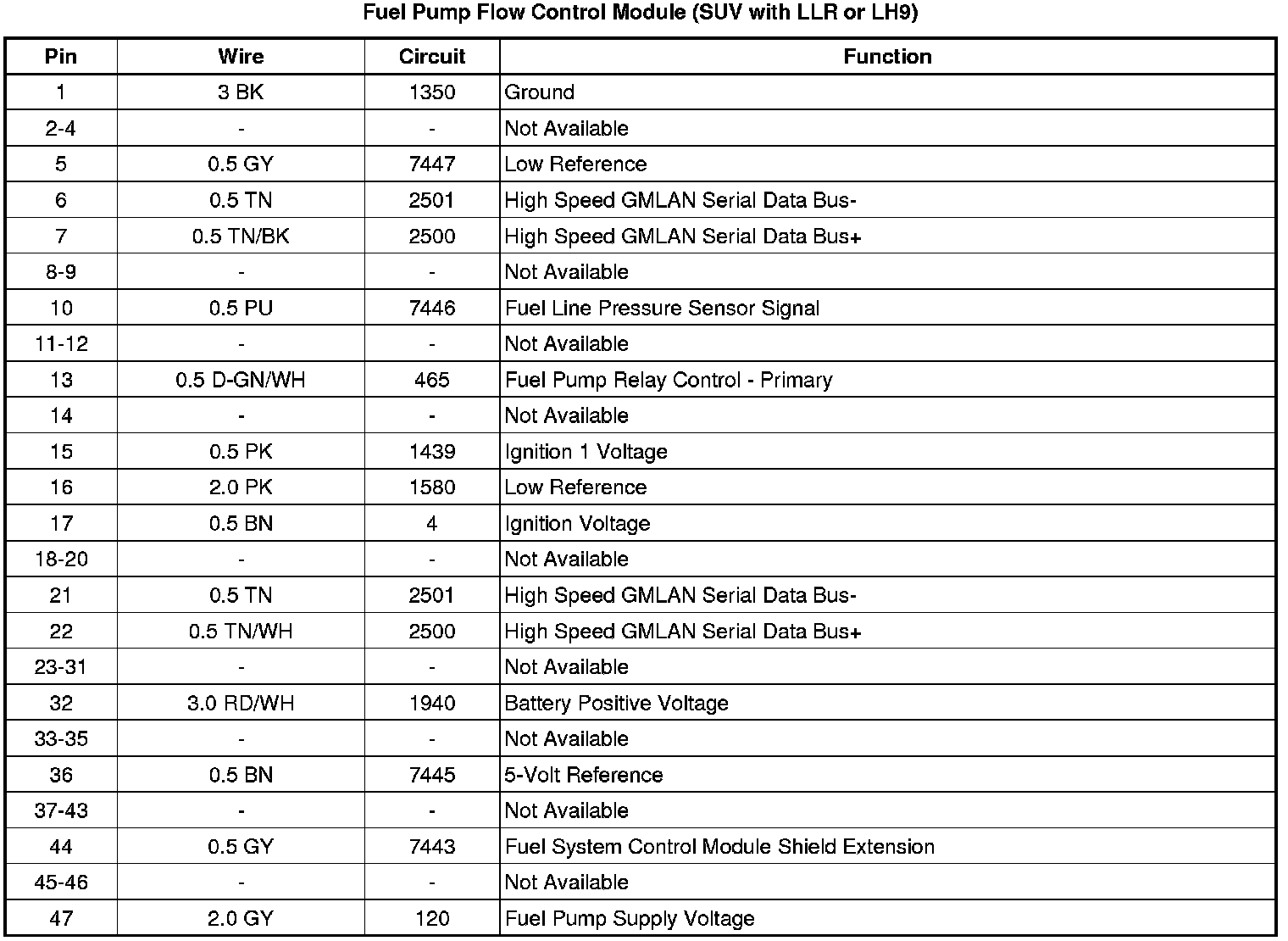

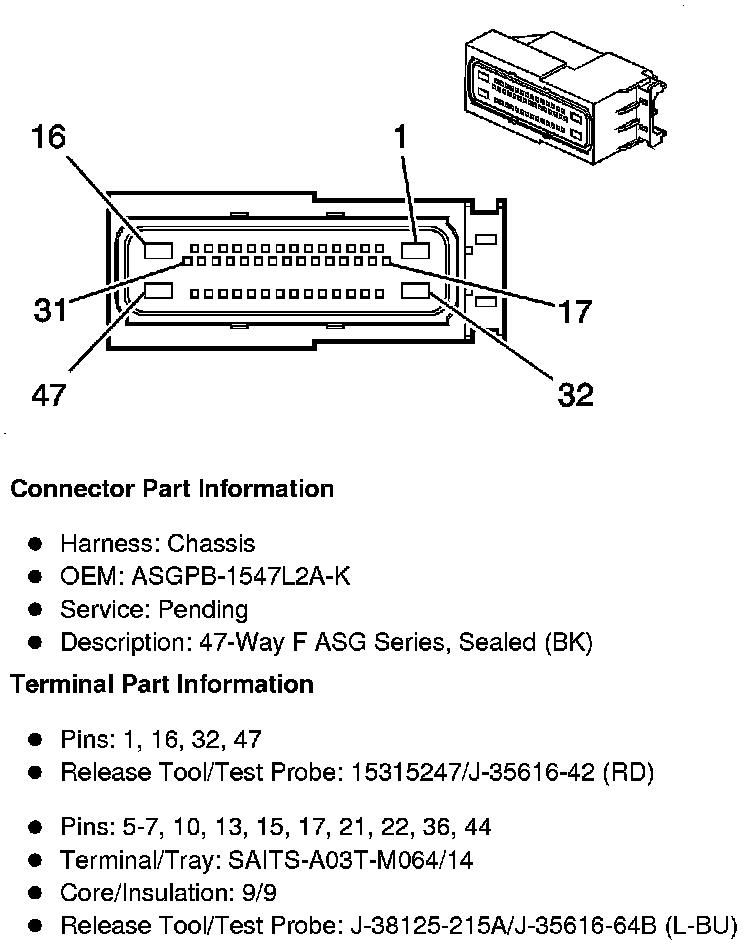

Fuel Pump Flow Control Module (SUV with LLR or LH9)

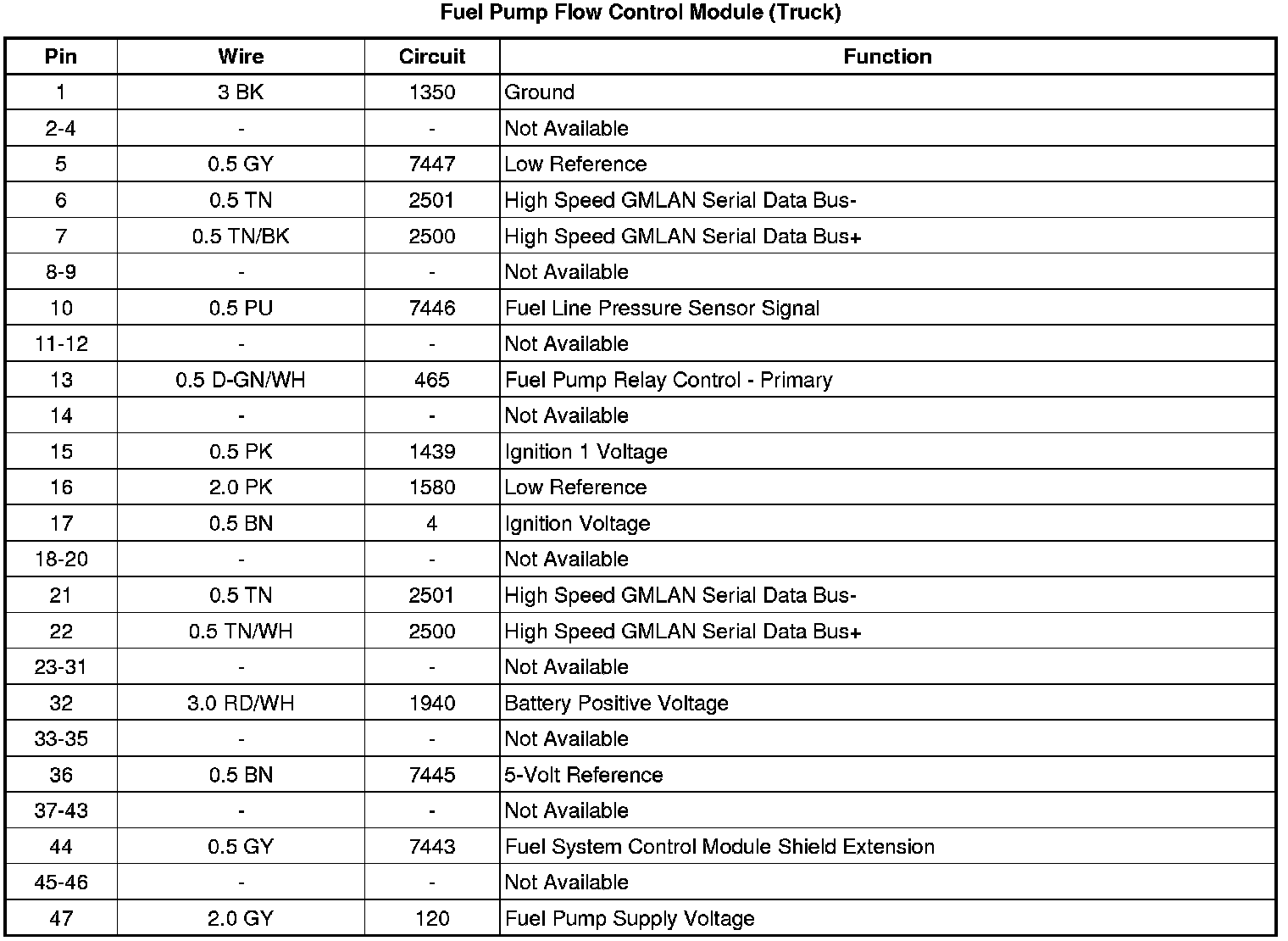

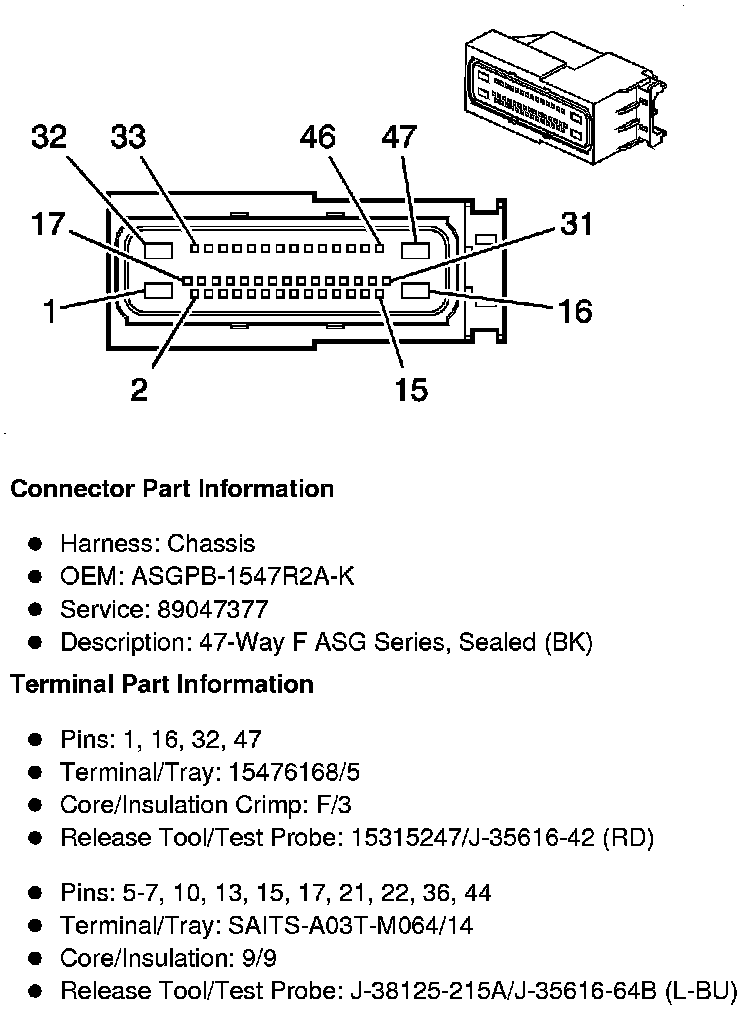

Fuel Pump Flow Control Module (Truck)
