Electronic Brake Control Module

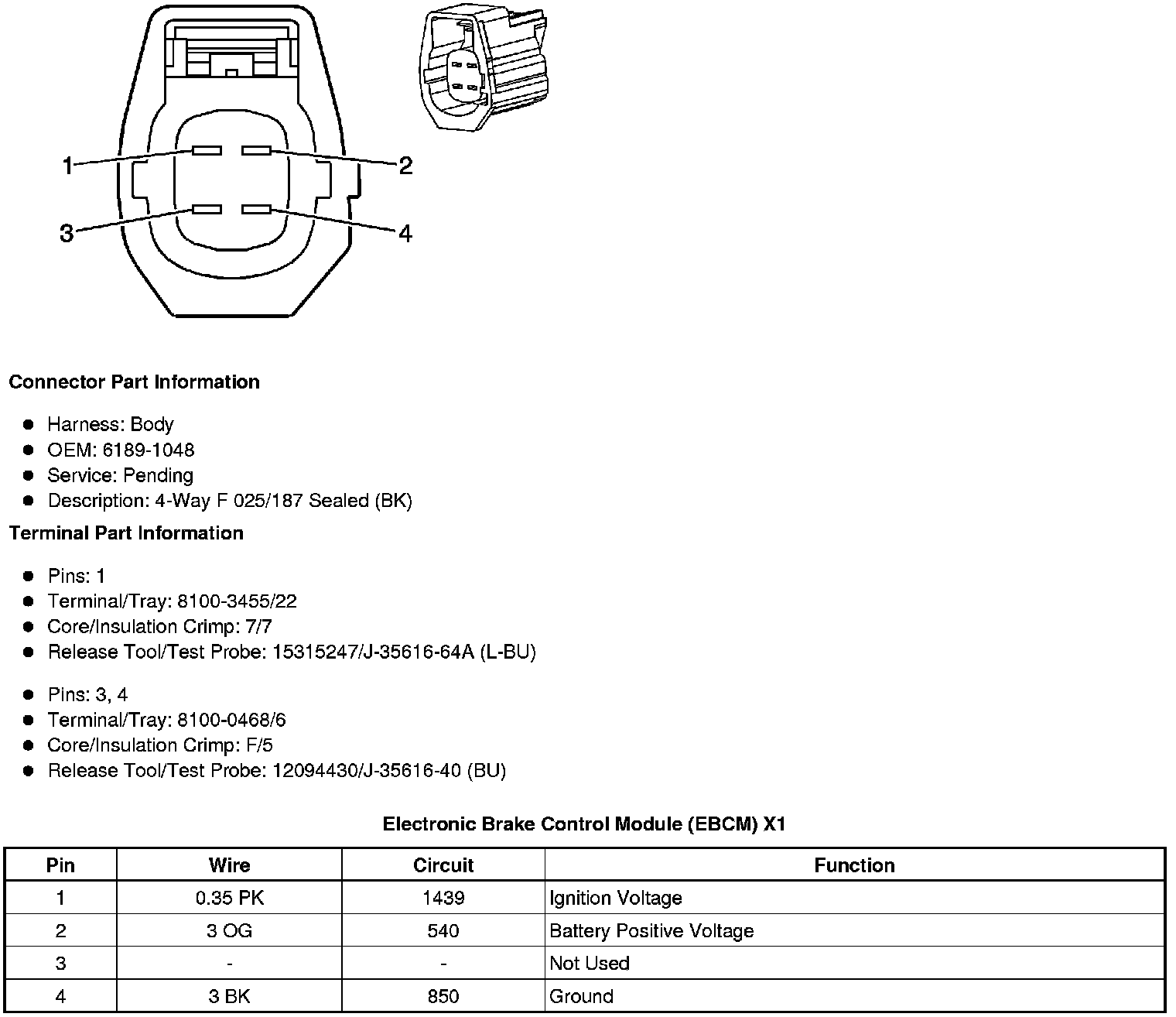

Component Connector End ViewsElectronic Brake Control Module (EBCM) X1

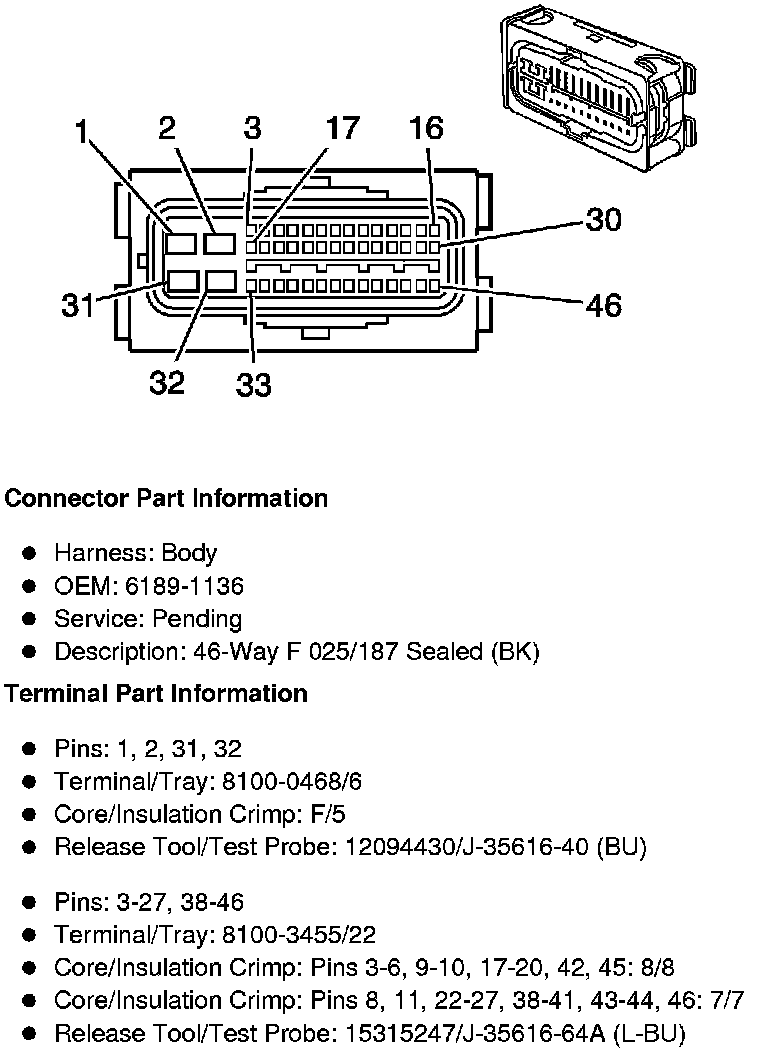

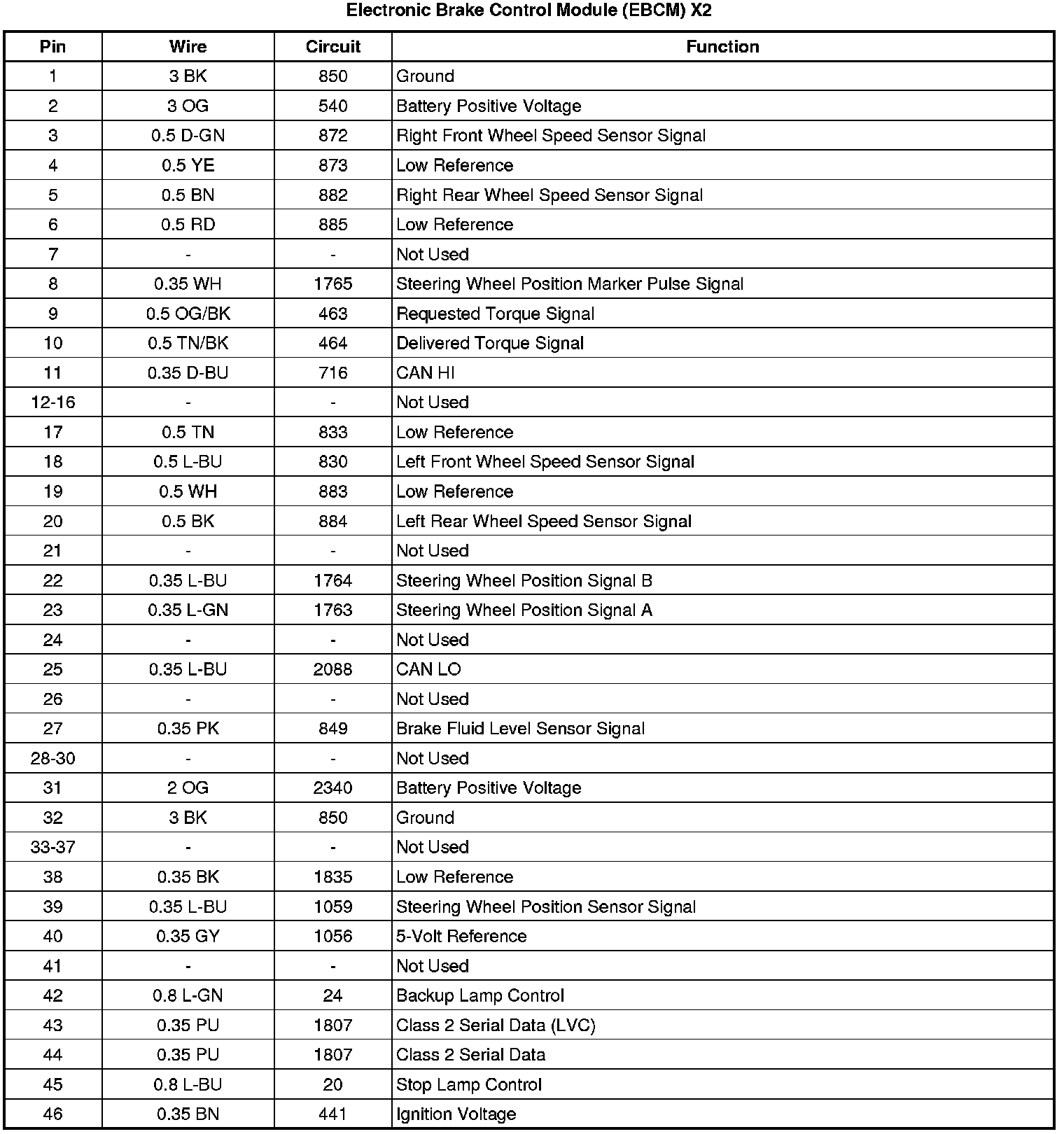

Electronic Brake Control Module (EBCM) X2
