Compressor Clutch
Compressor Clutch

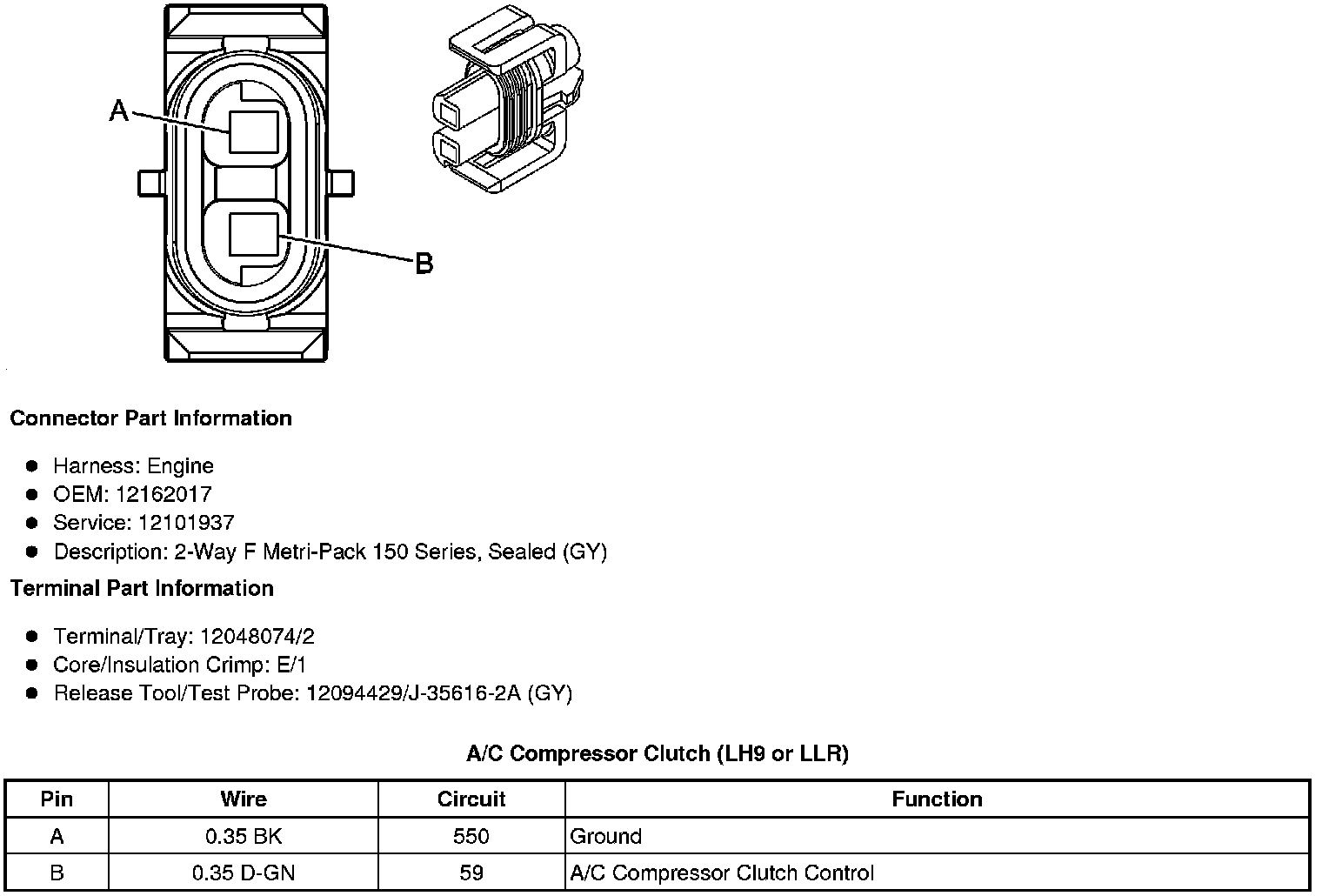

Component Connector End Views
A/C Compressor Clutch (LH9 or LLR)
