Home >> Hummer >> 2009 >> H3 V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module




Component Connector End Views

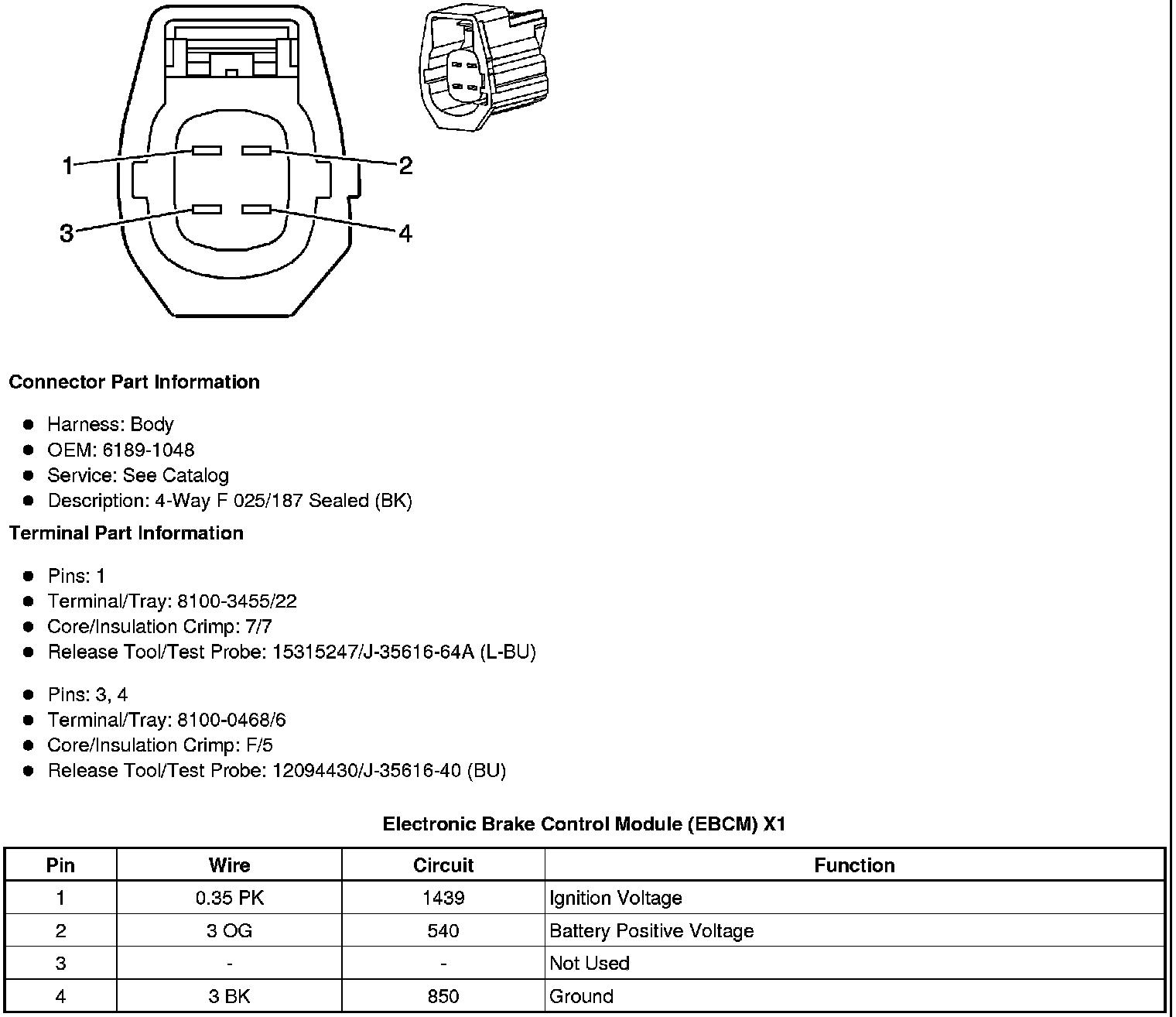

Electronic Brake Control Module (EBCM) X1

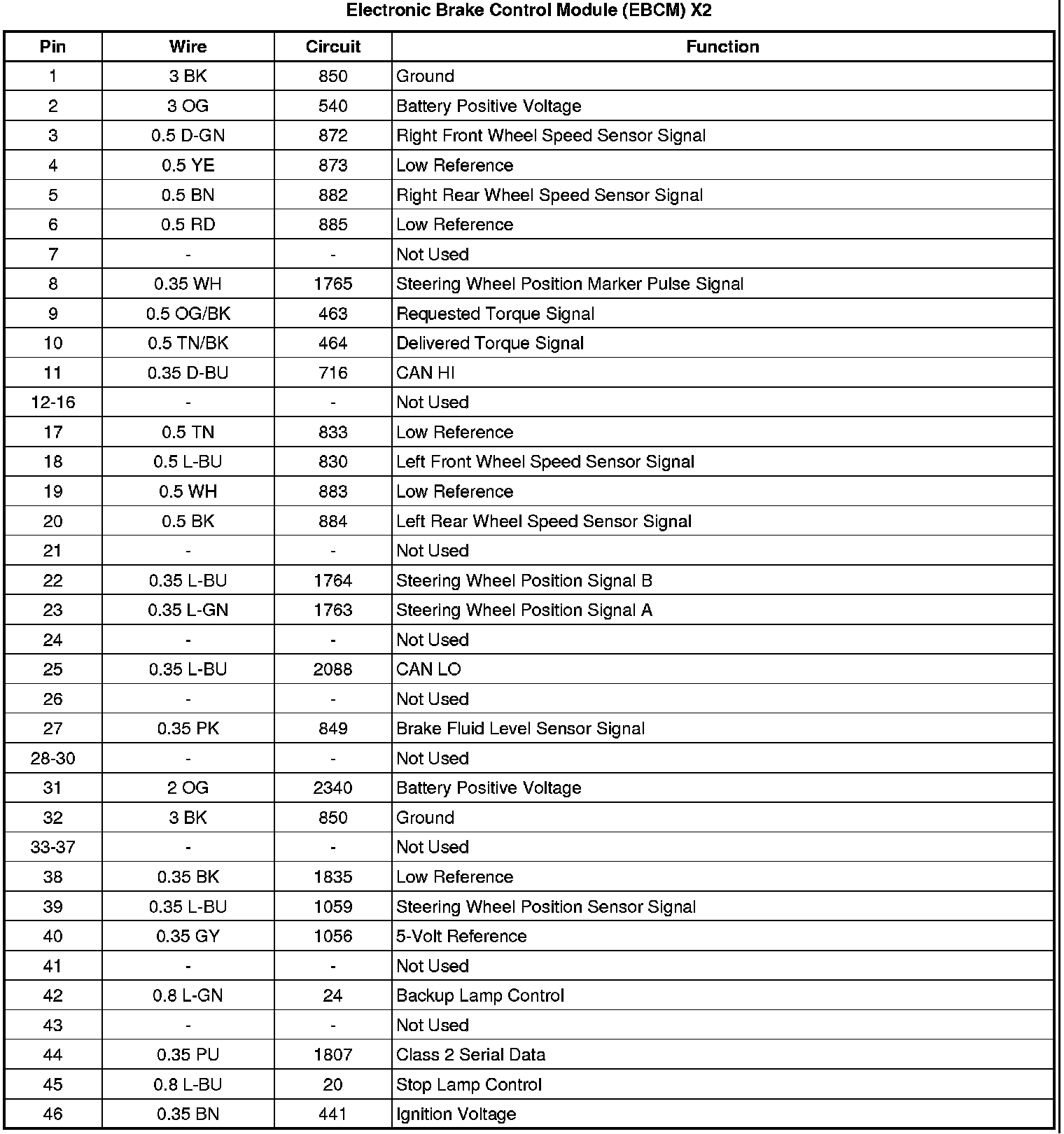

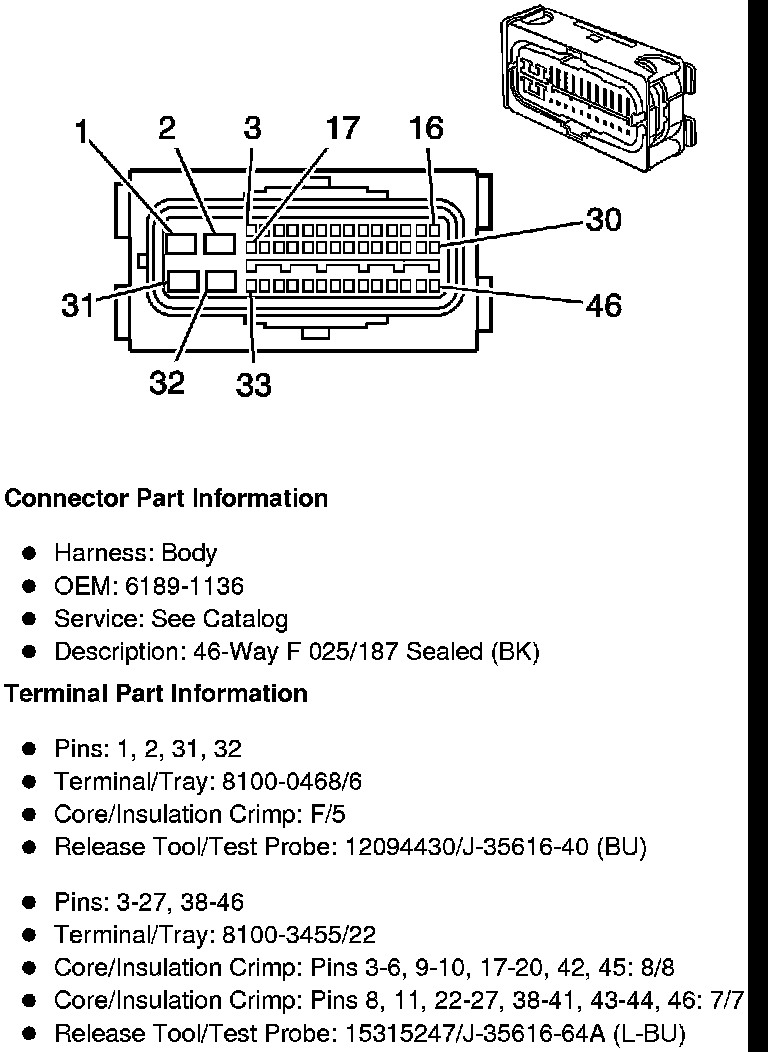

Electronic Brake Control Module (EBCM) X2
