Central Control Module
Component Connector End Views

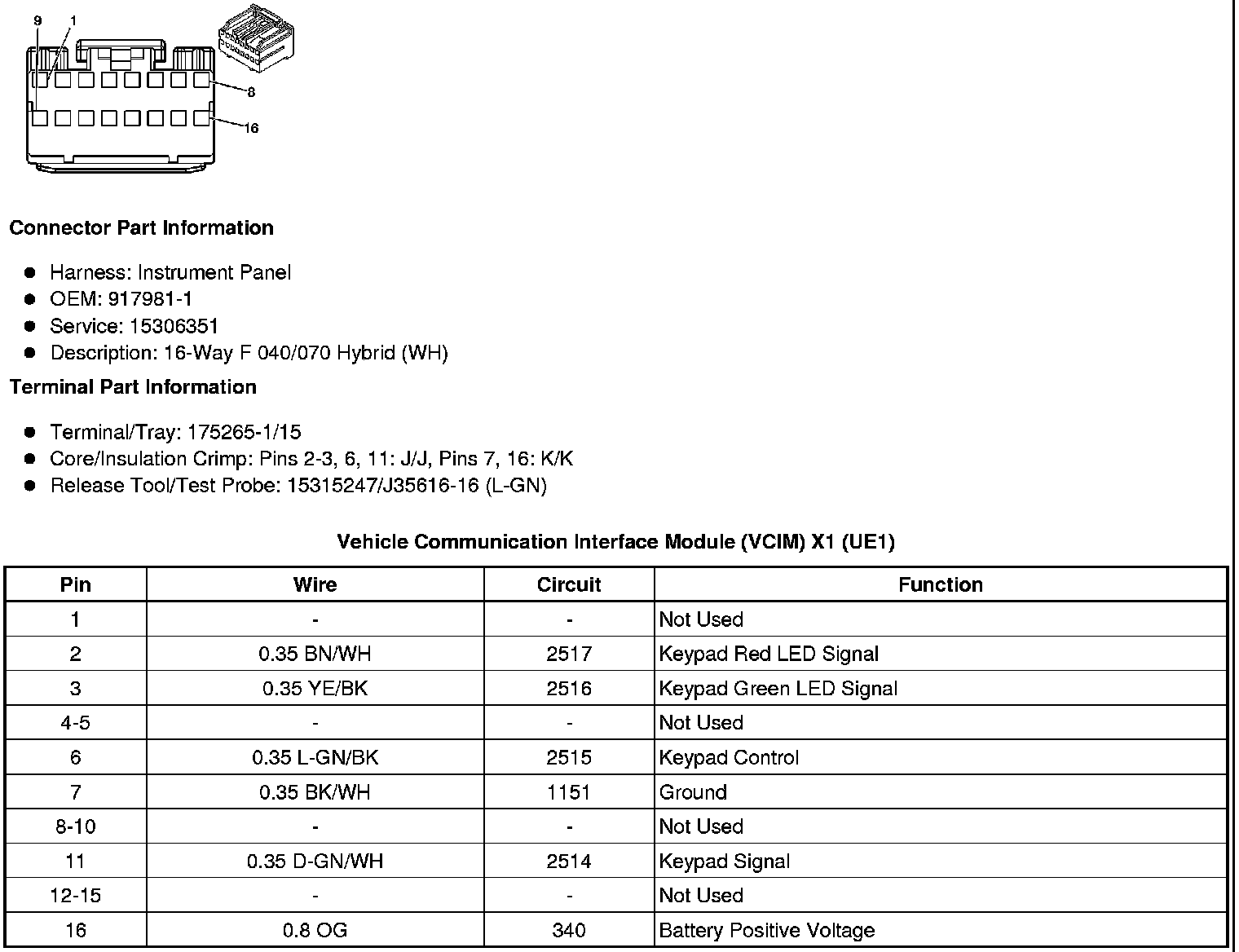

Vehicle Communication Interface Module (VCIM) X1 (UE1)

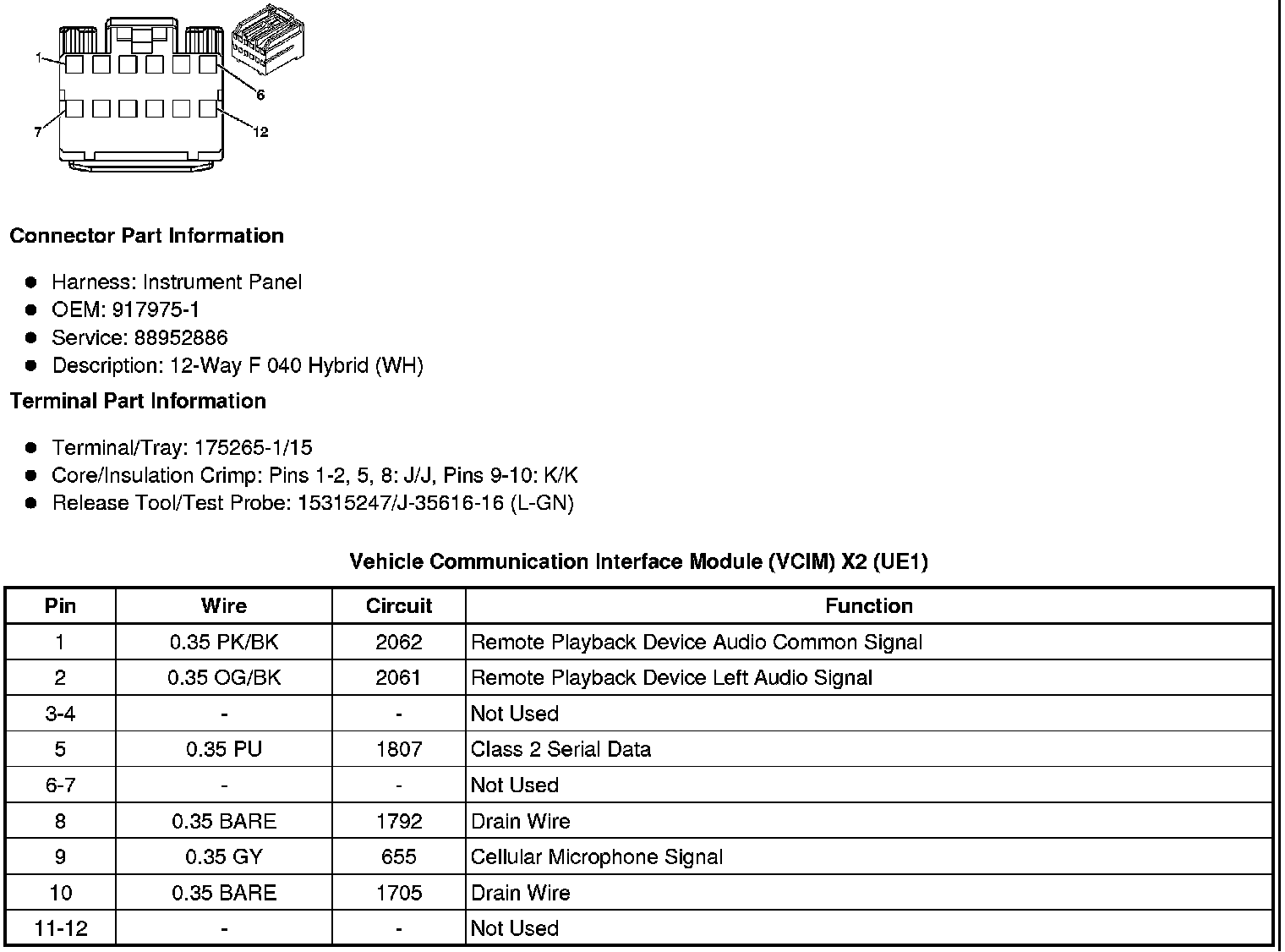

Vehicle Communication Interface Module (VCIM) X2 (UE1)
Component Connector End Views
Vehicle Communication Interface Module (VCIM) X1 (UE1)
Vehicle Communication Interface Module (VCIM) X2 (UE1)
