Engine Controls Schematic 11

Engine Controls Schematics

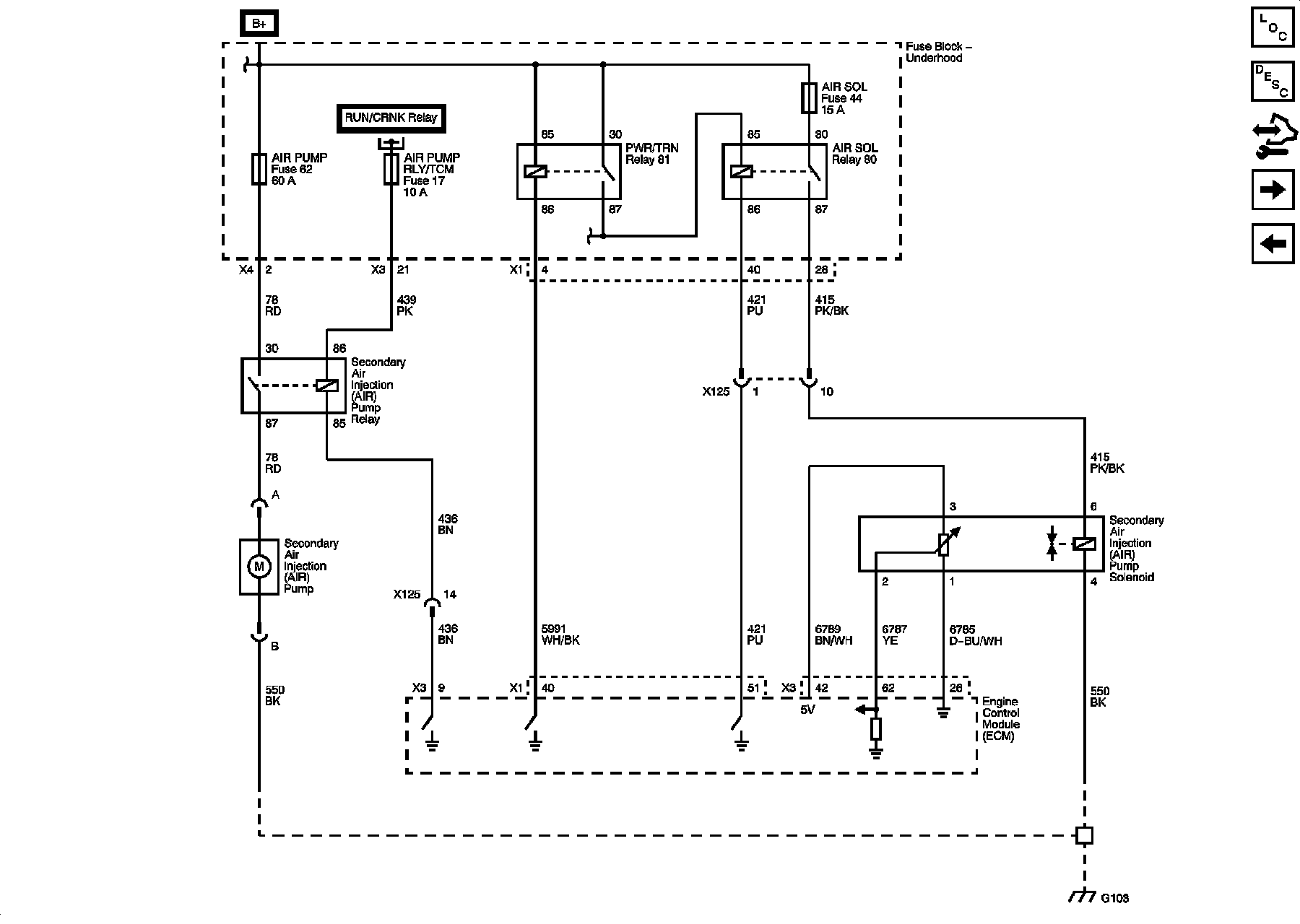

Device Controls - Secondary Air Injection (K18)
