H3 L5-3.7L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Master Splice List
Master Splice List
Master Electrical Component List

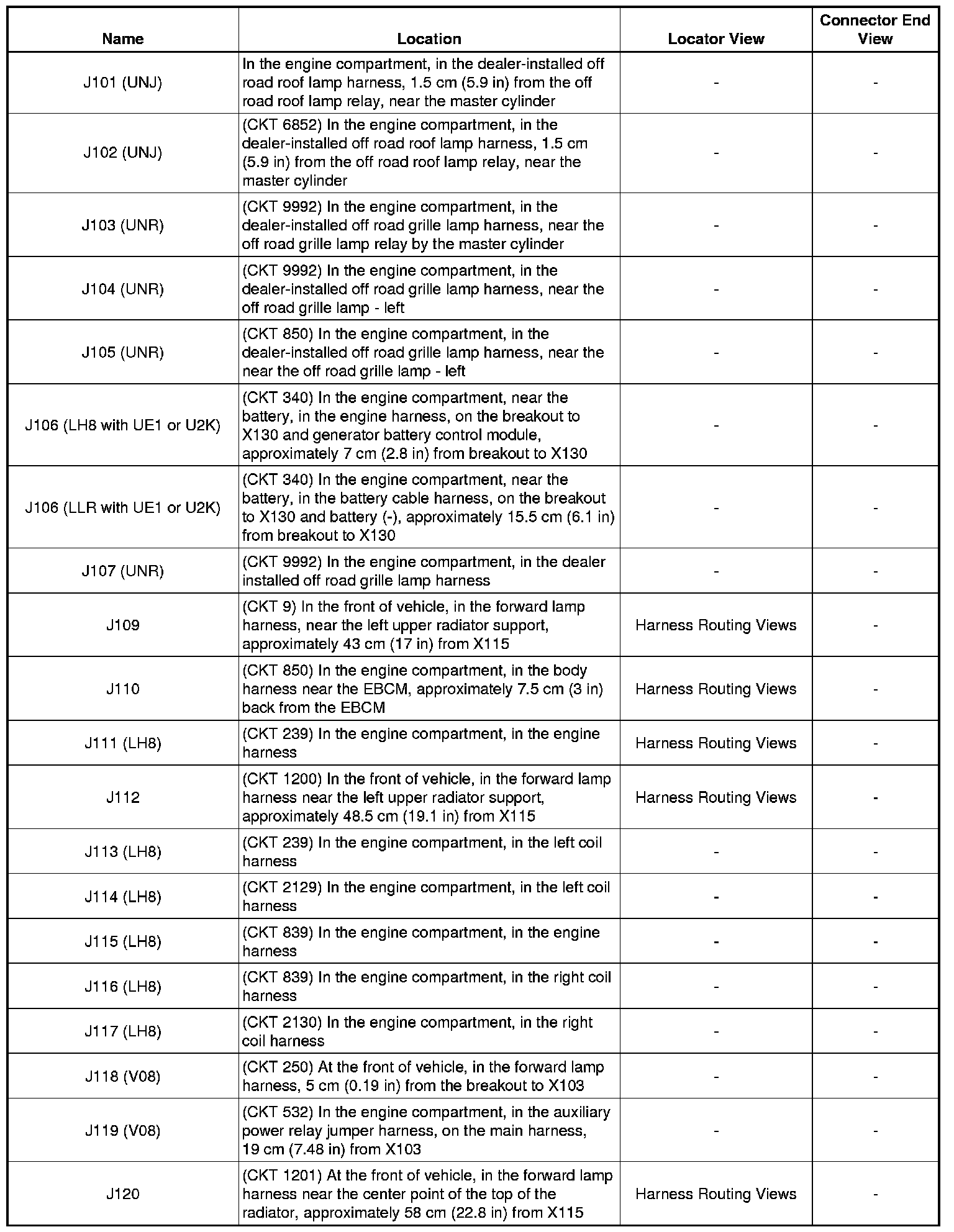

J101 - J120:

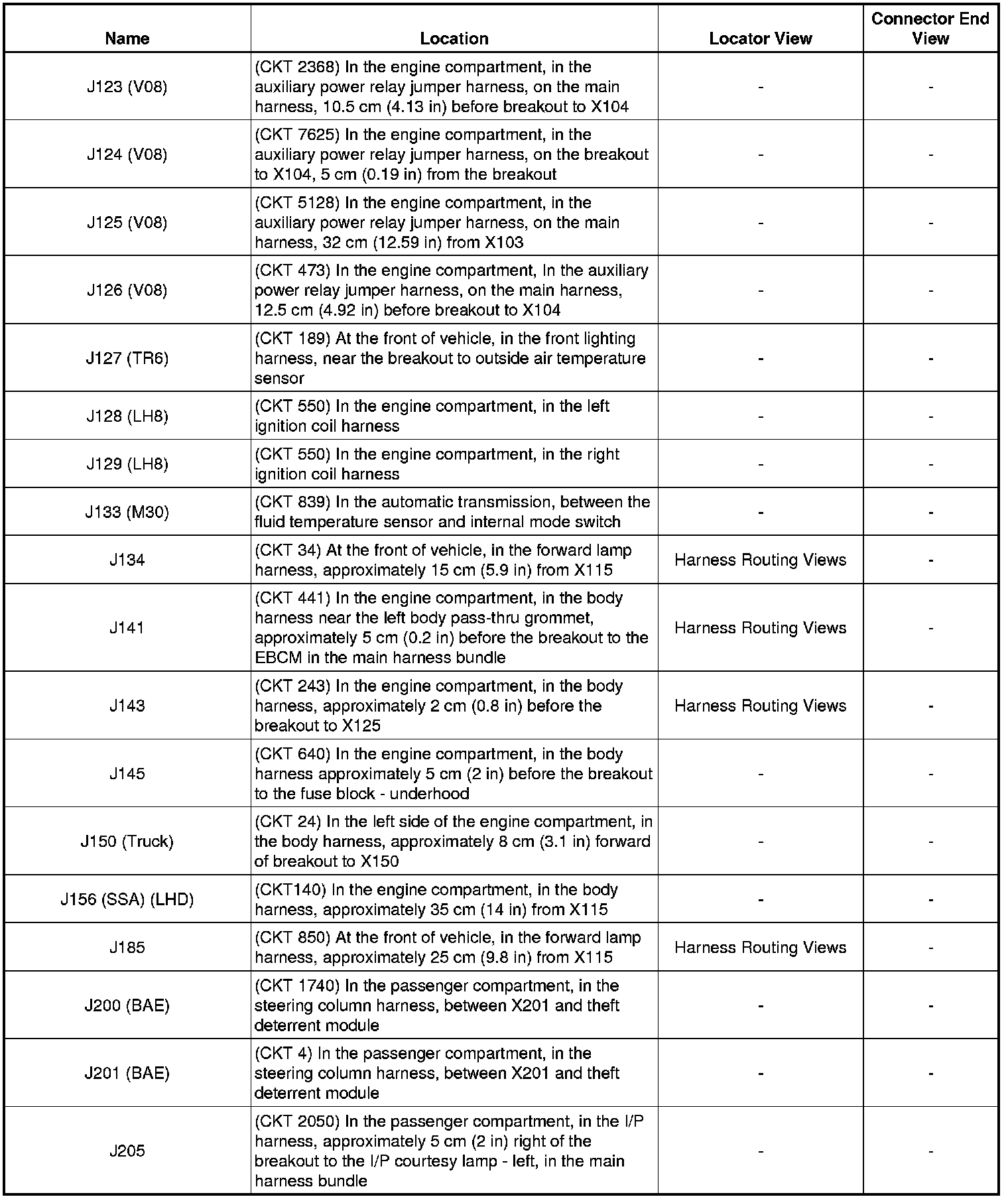

J123 - J205:

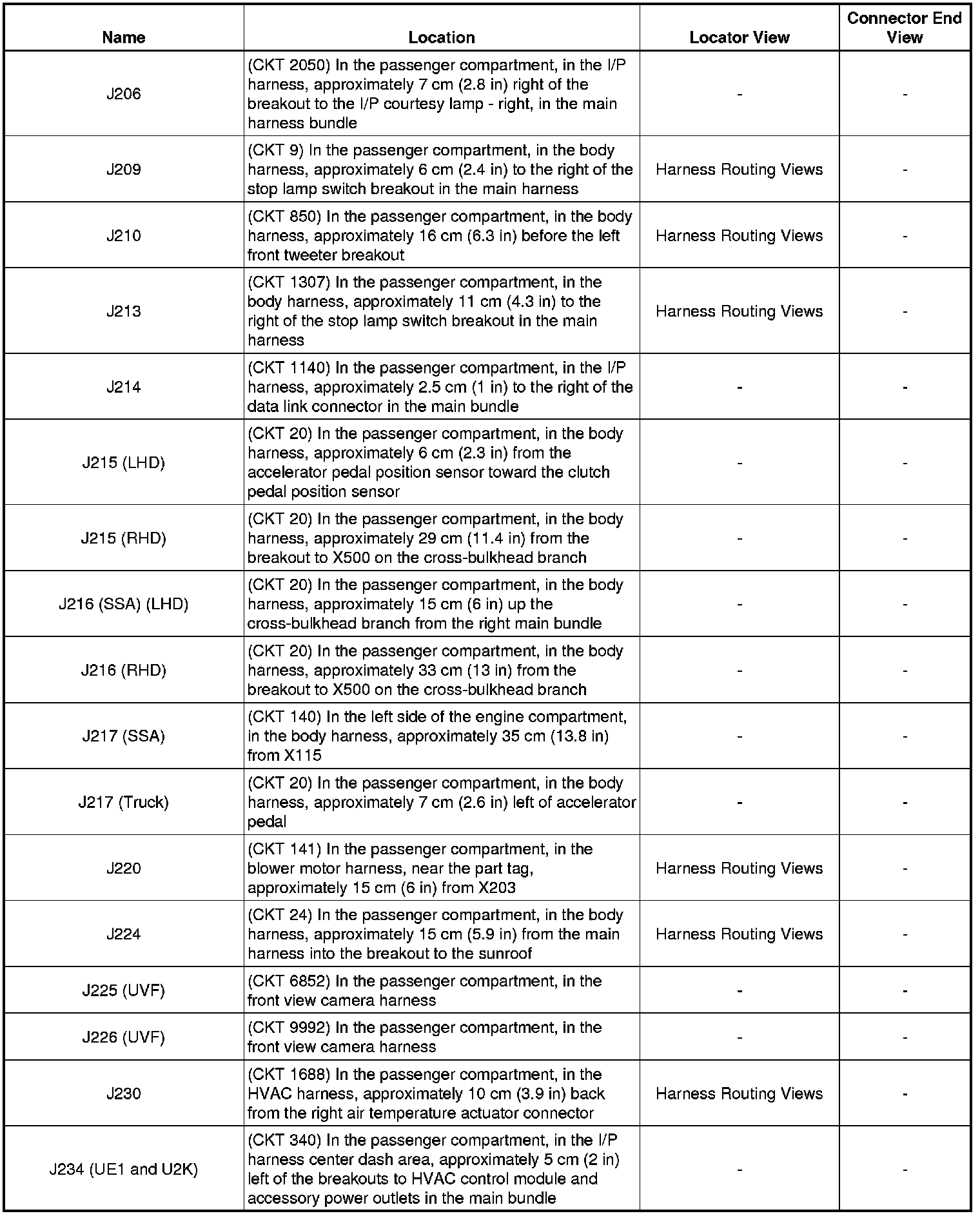

J206 - J234:

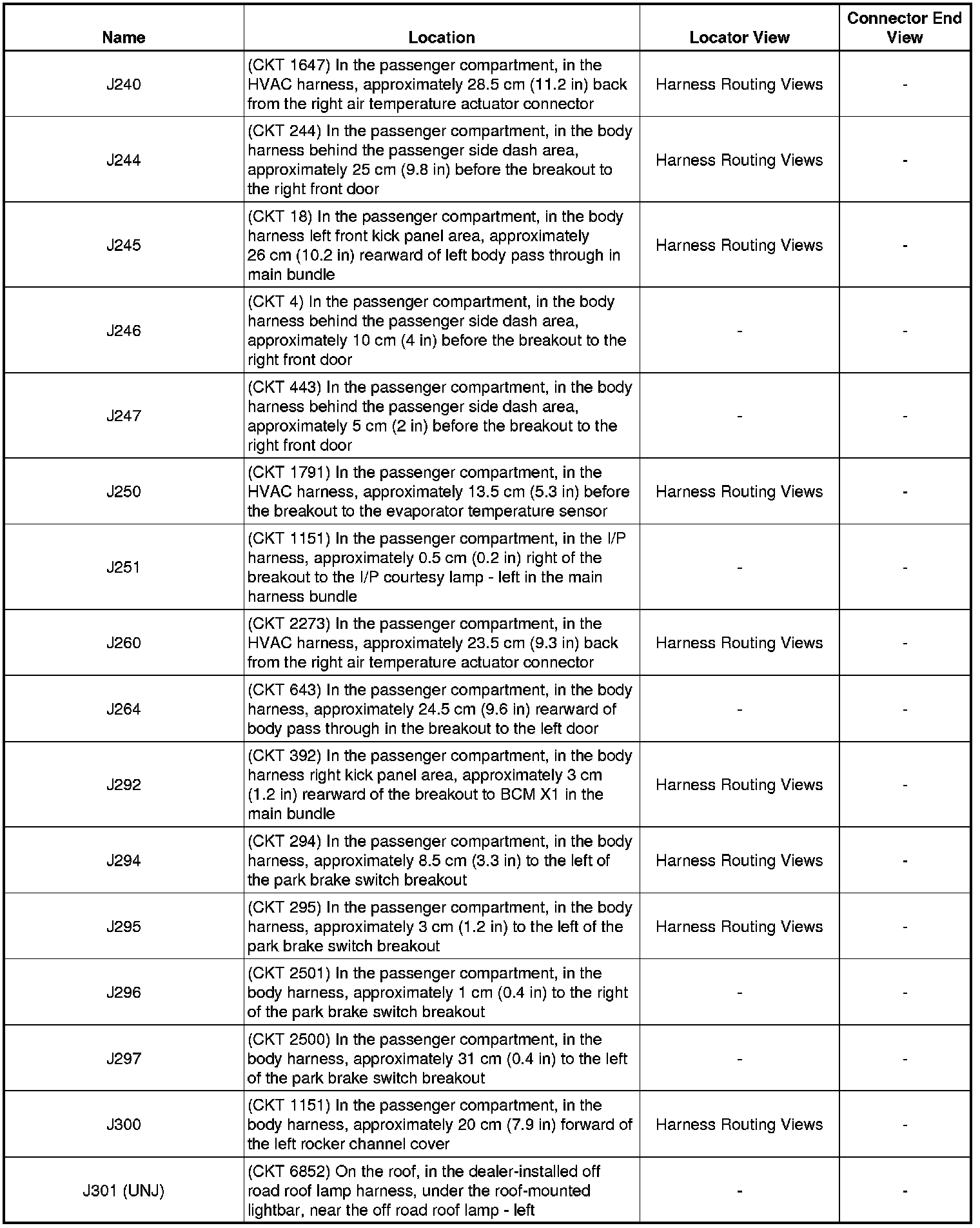

J240 - J301:

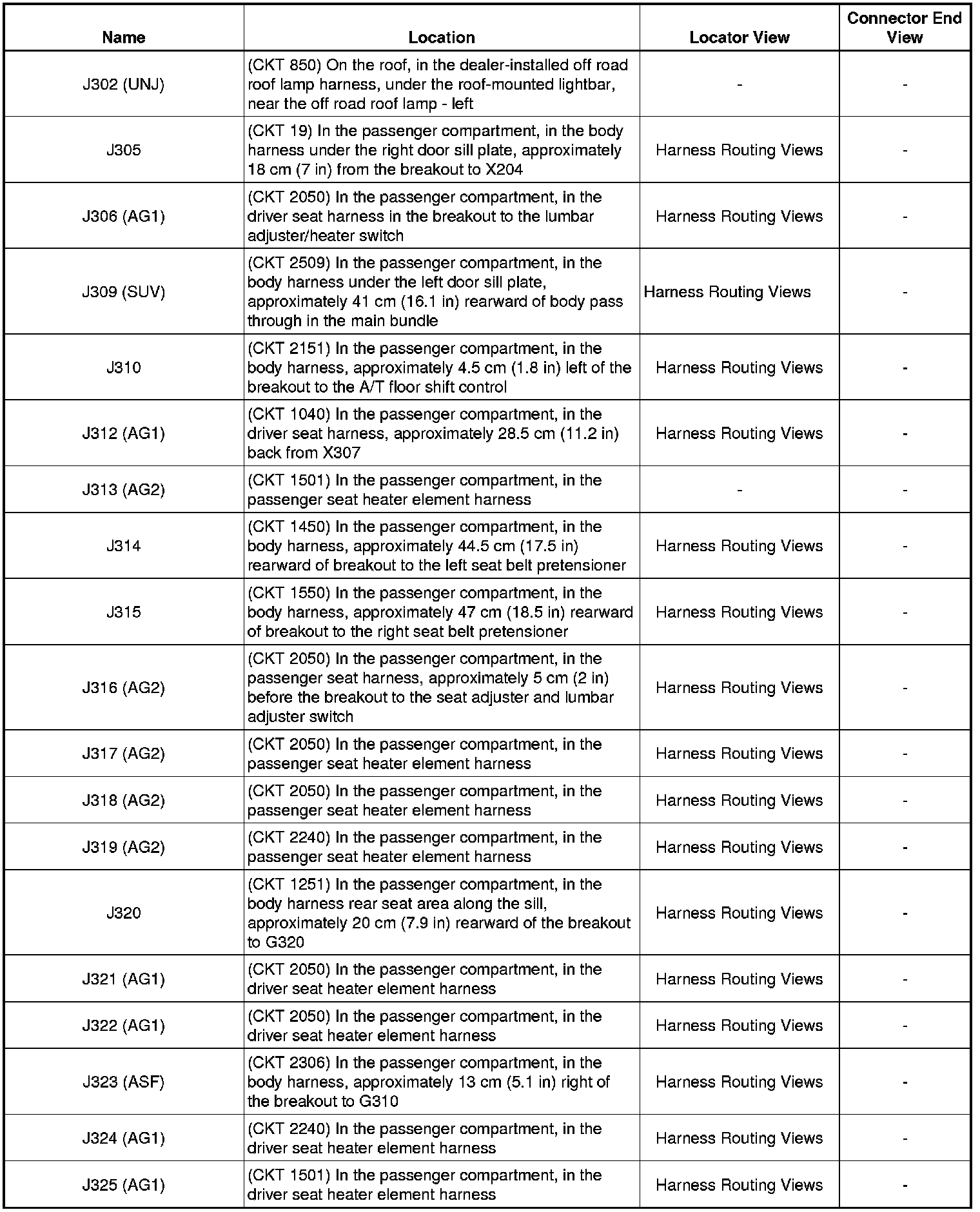

J302 - J325:

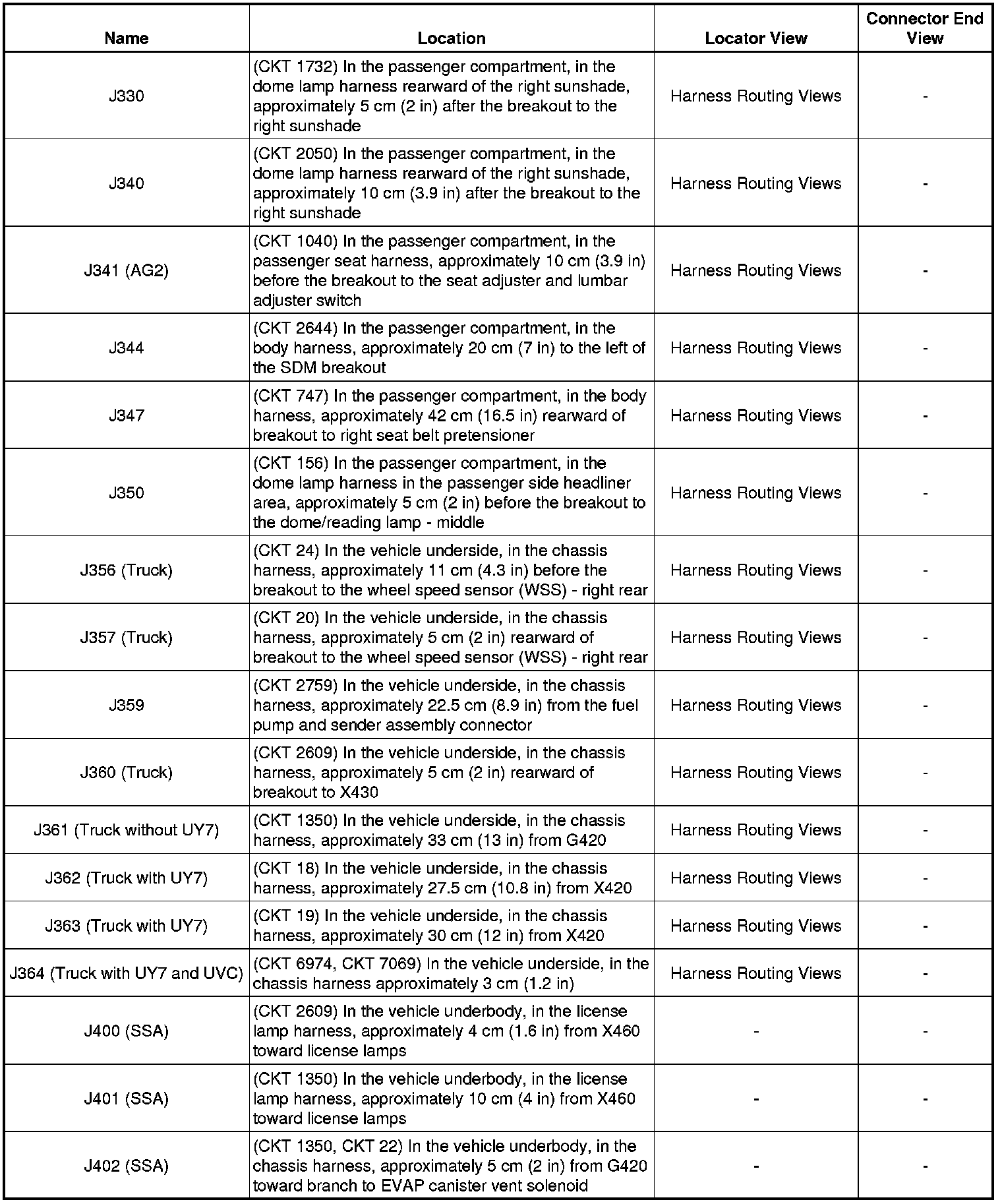

J330 - J402:

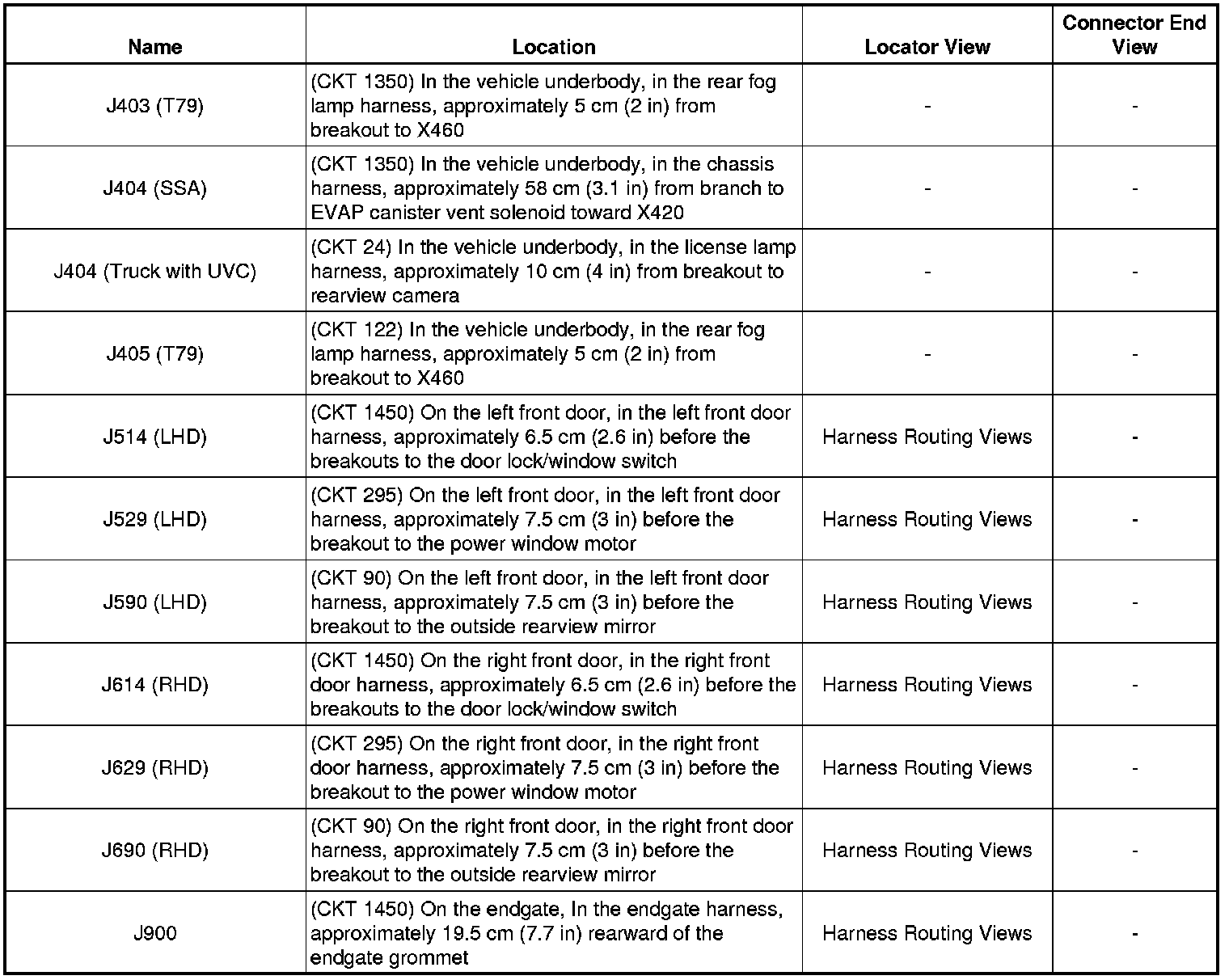

J403 - J900:
