Hummer
>>
2009
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Master Connector List
Master Connector List
Master Electrical Component List

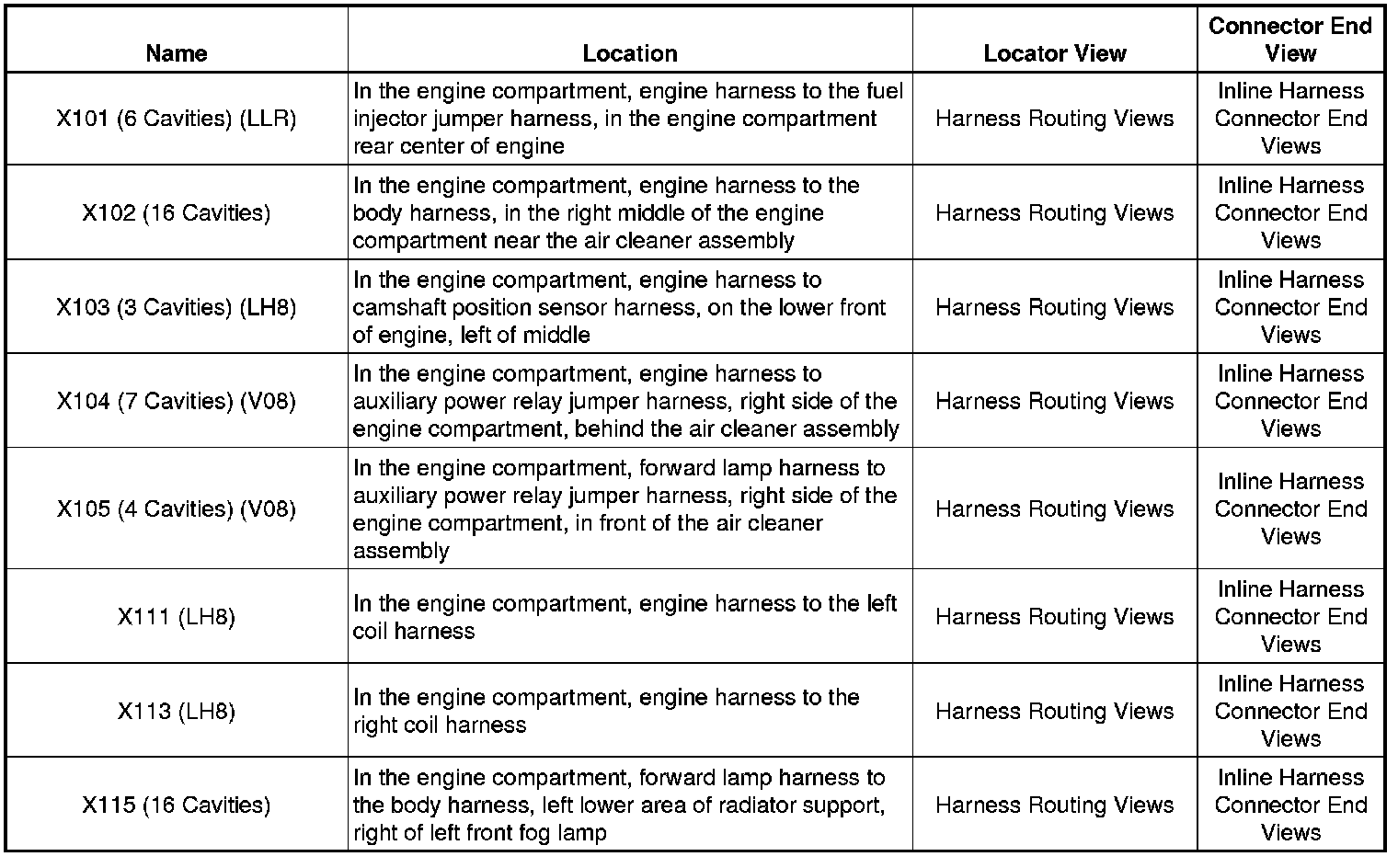

X101 - X115:

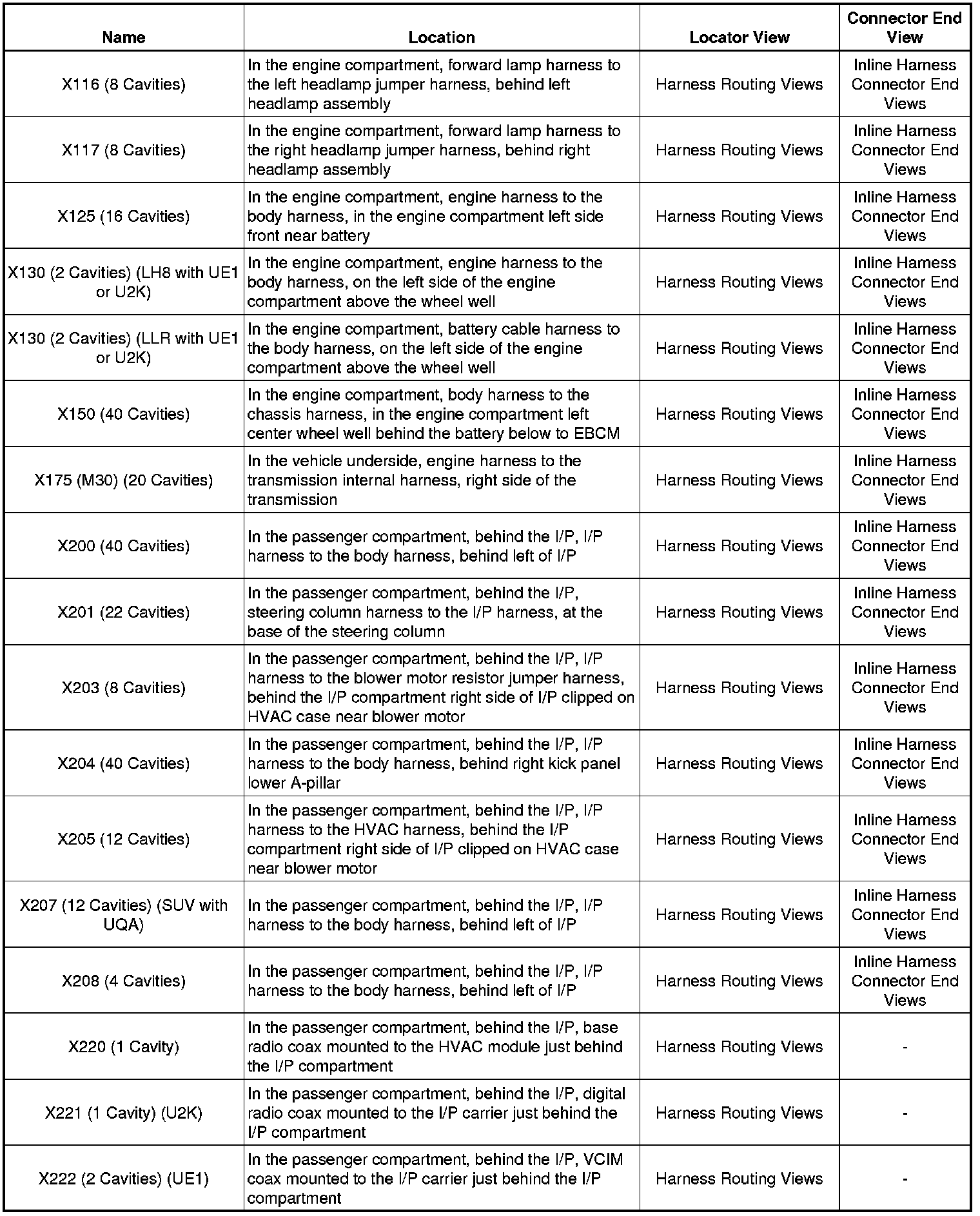

X116 - X222:

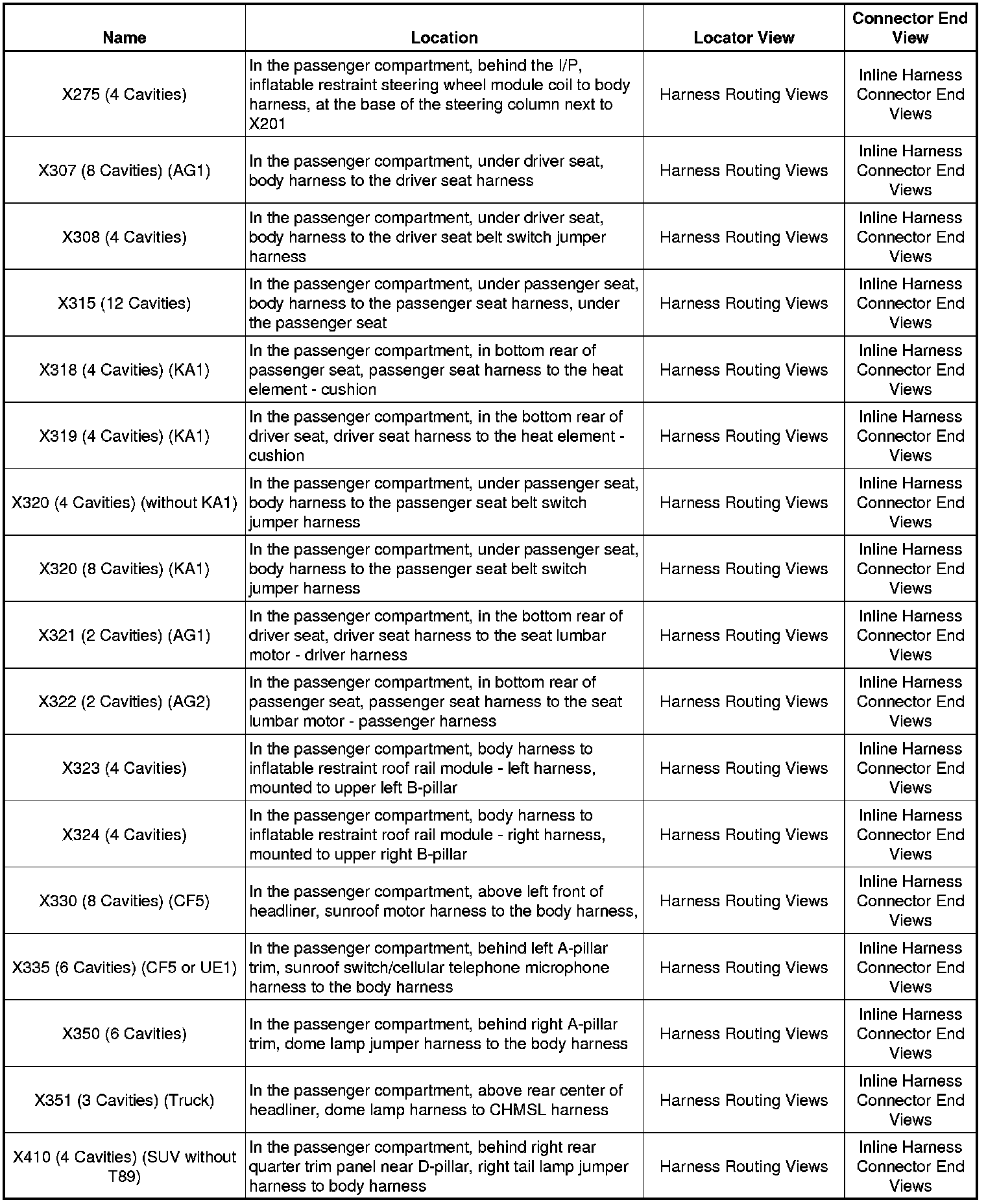

X275 - X410:

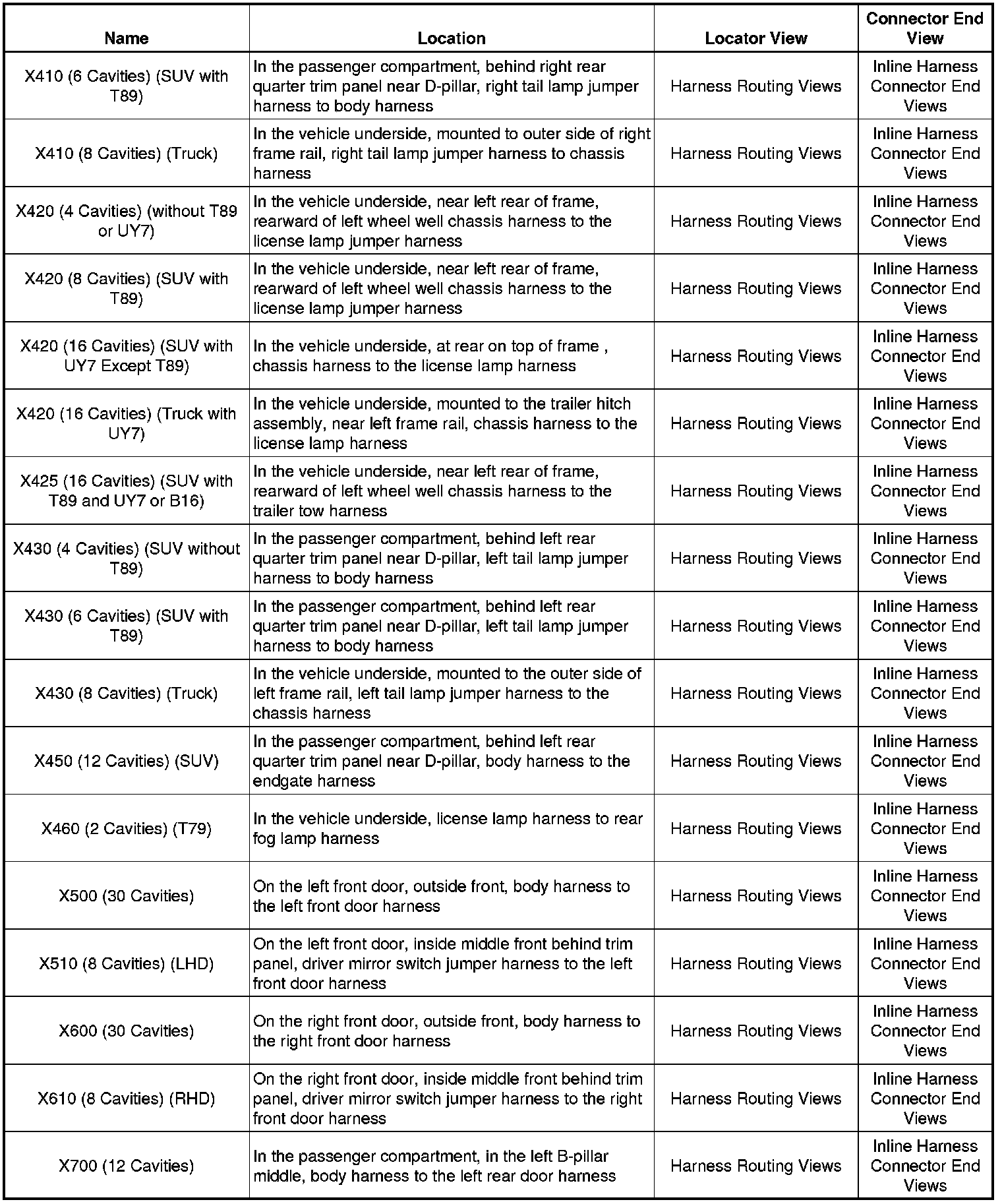

X410 - X700:

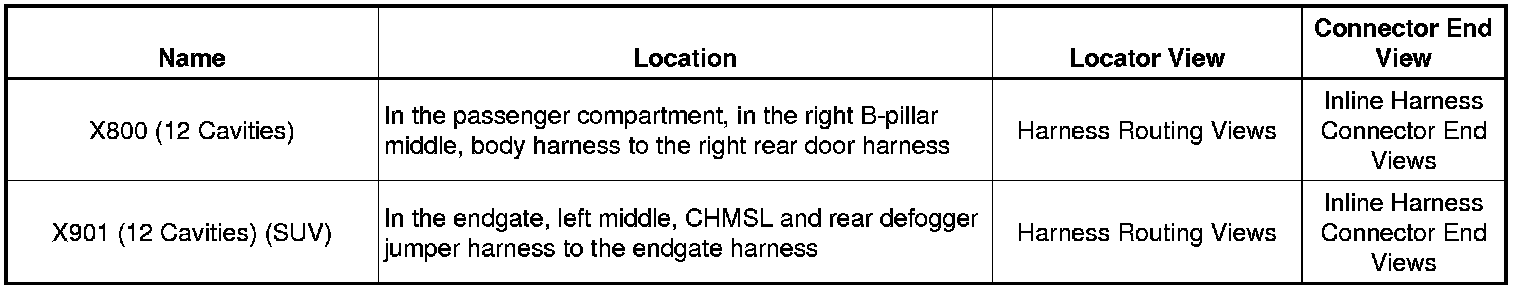

X800 - X901:
