Engine Control Module




Component Connector End Views

Engine Control Module (ECM) X1










Engine Control Module (ECM) X2

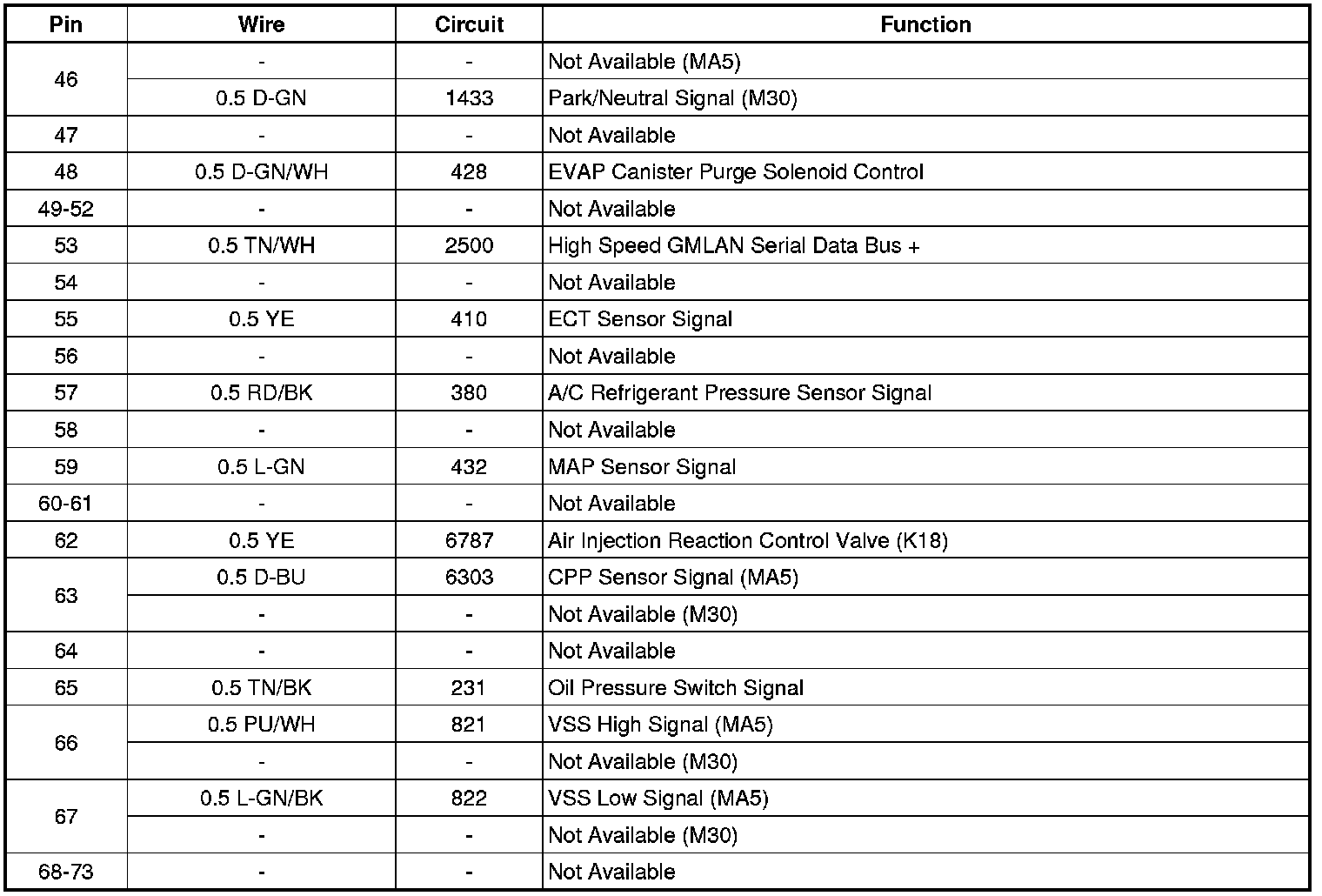

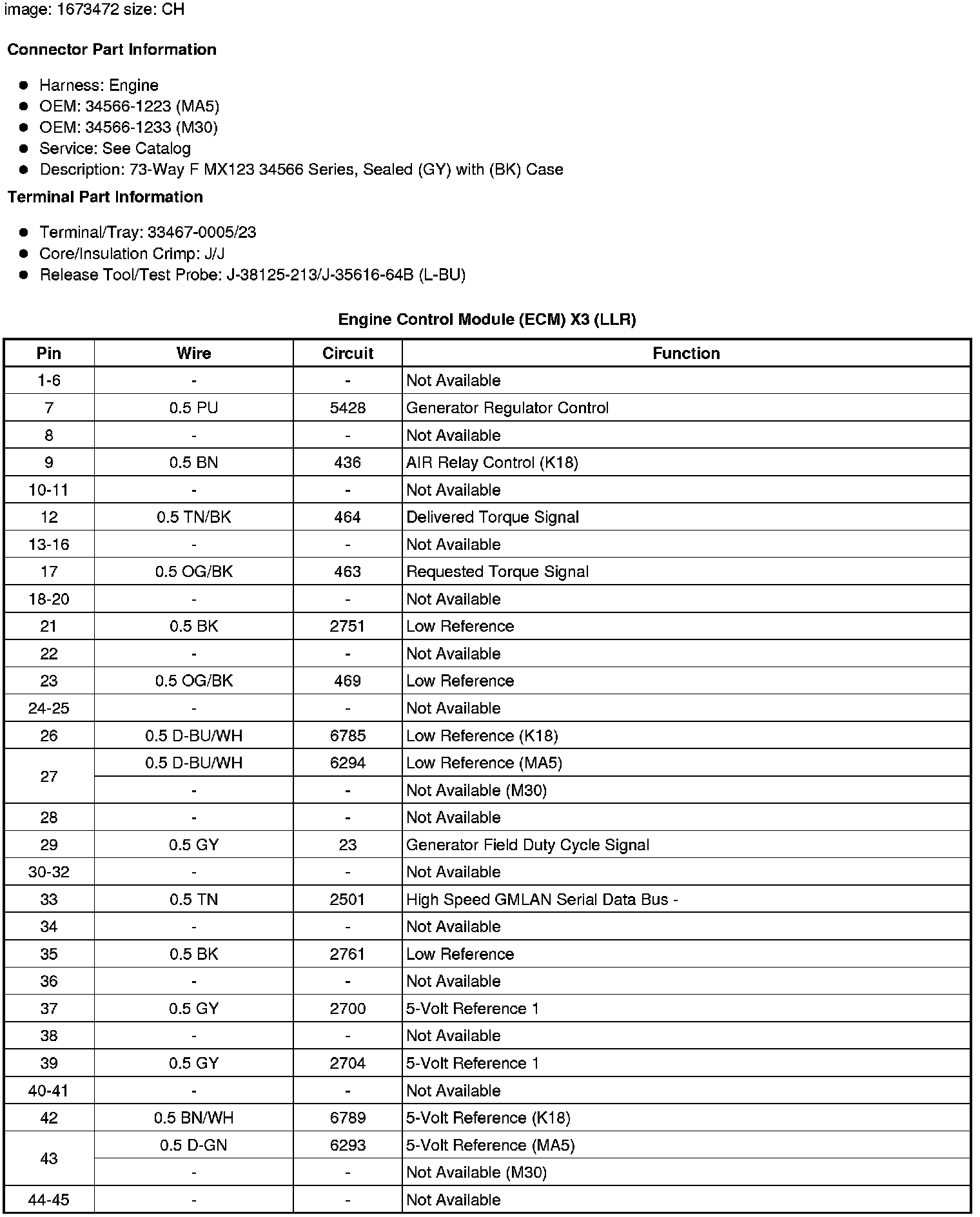

Engine Control Module (ECM) X3 (LLR)
