Windows




Moveable Window Schematics

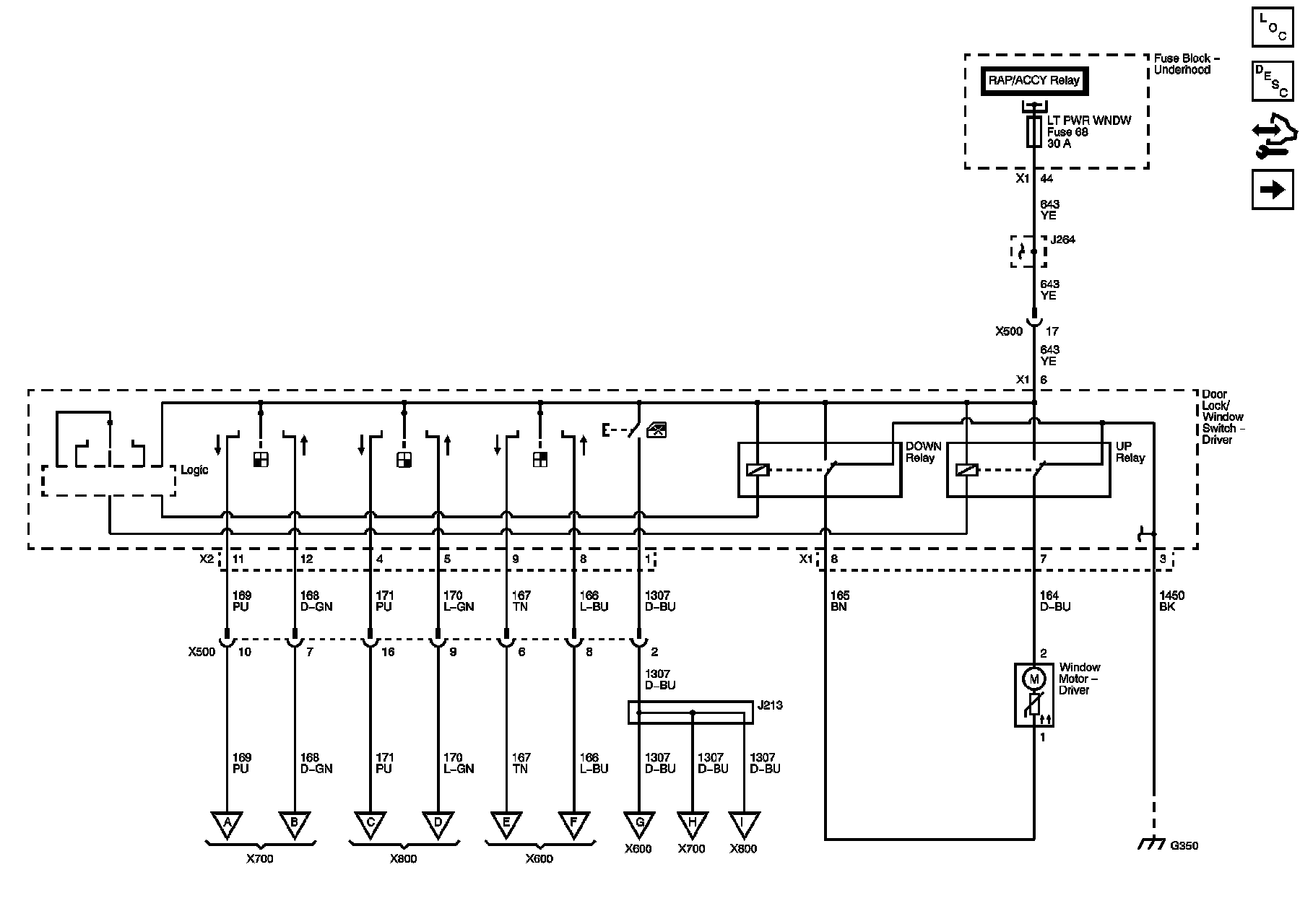

Driver Door (Left Hand Drive)

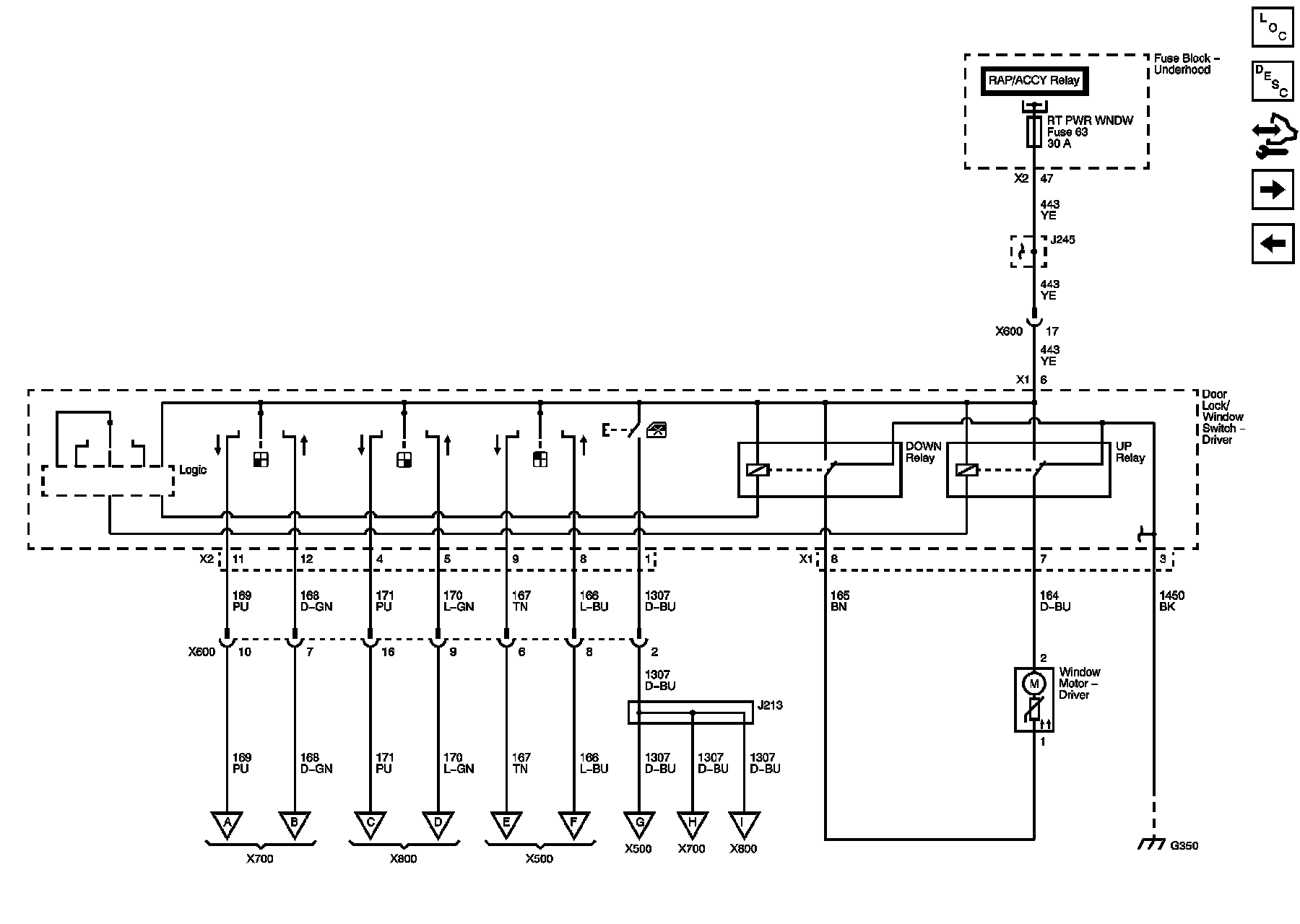

Driver Door (Right Hand Drive)

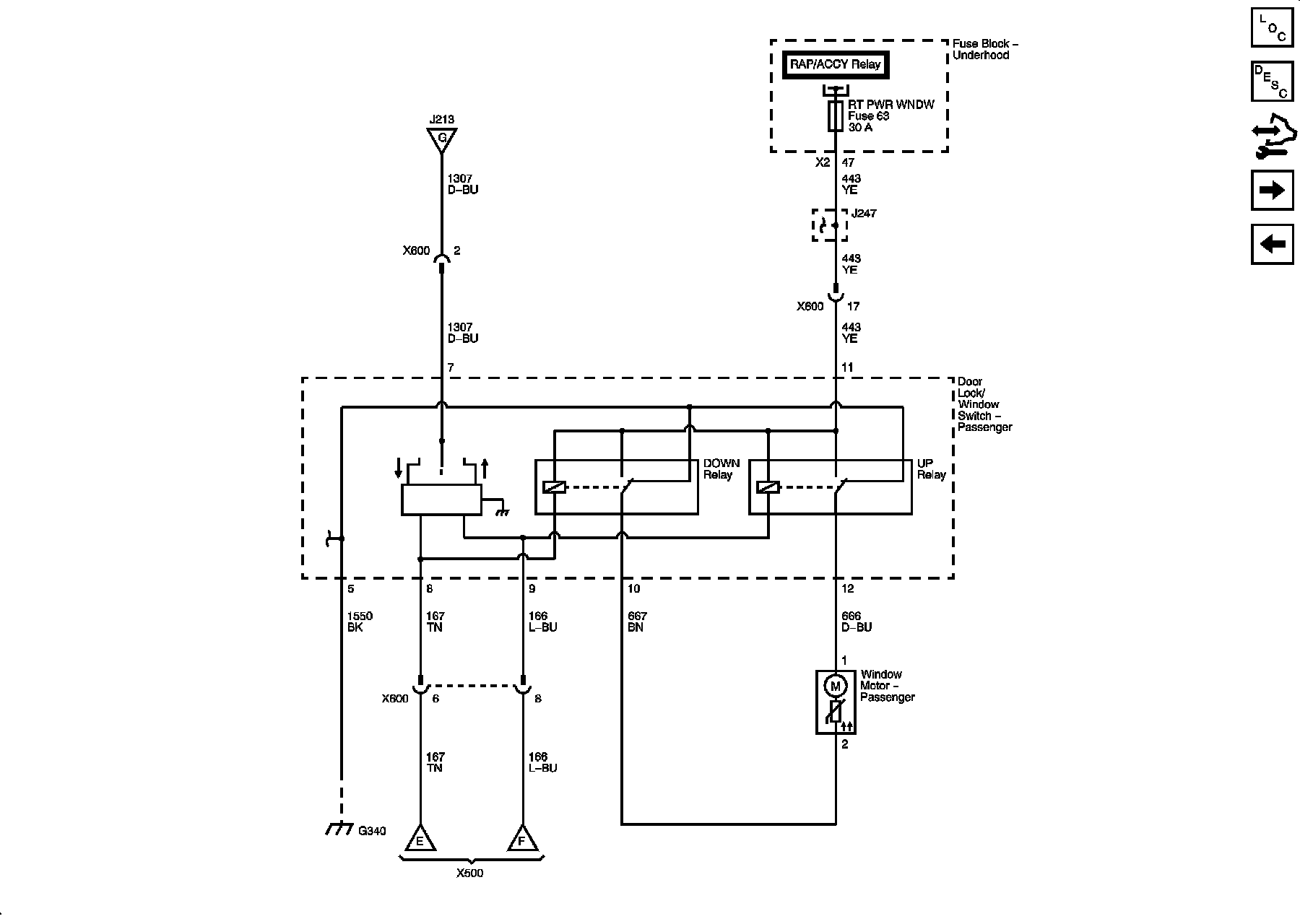

Passenger Door (Left Hand Drive)





Passenger Door - Right Hand Drive

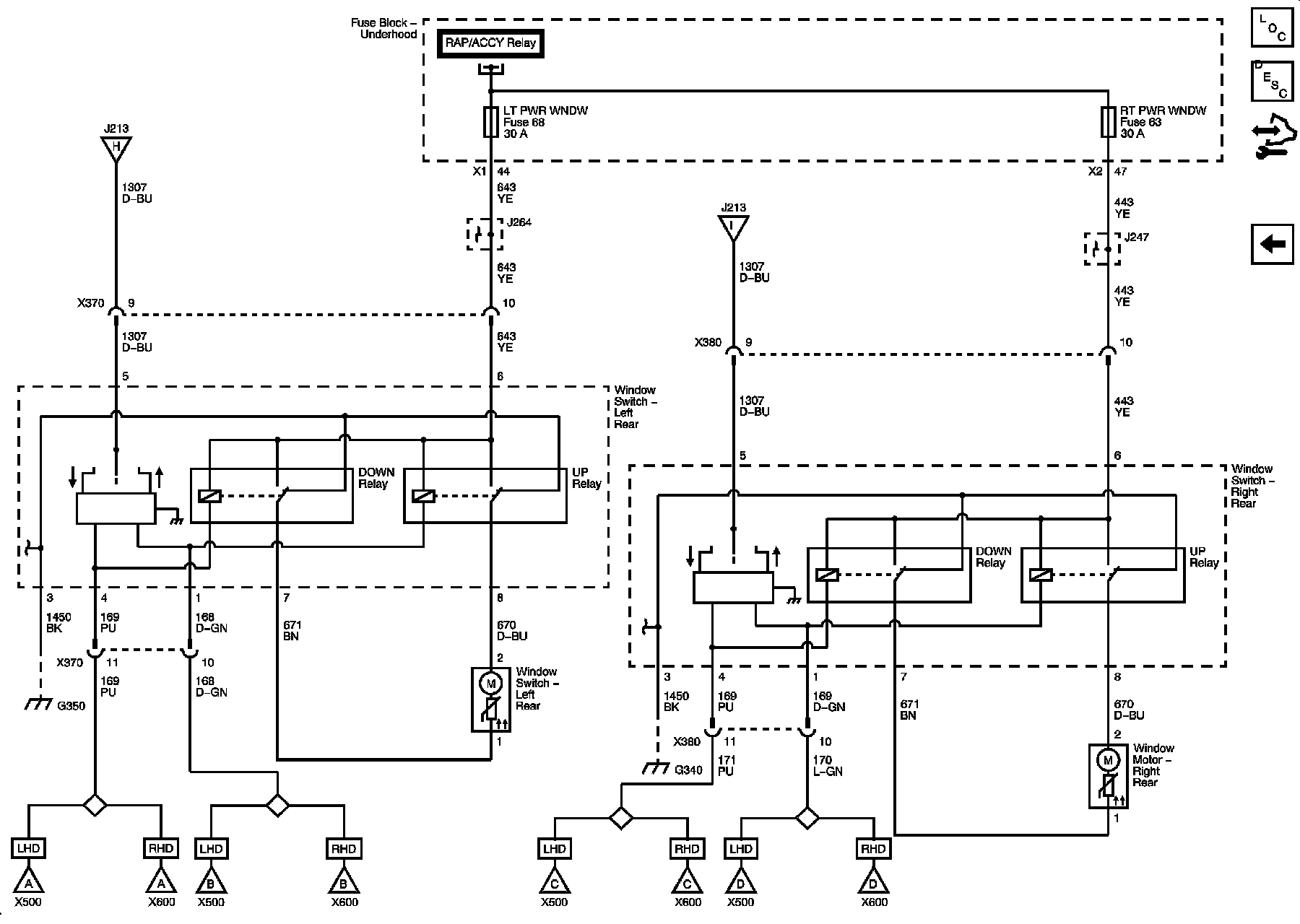

Rear Doors
