Connector Views
>>
Wiper Switch
Wiper Switch
Component Connector End Views

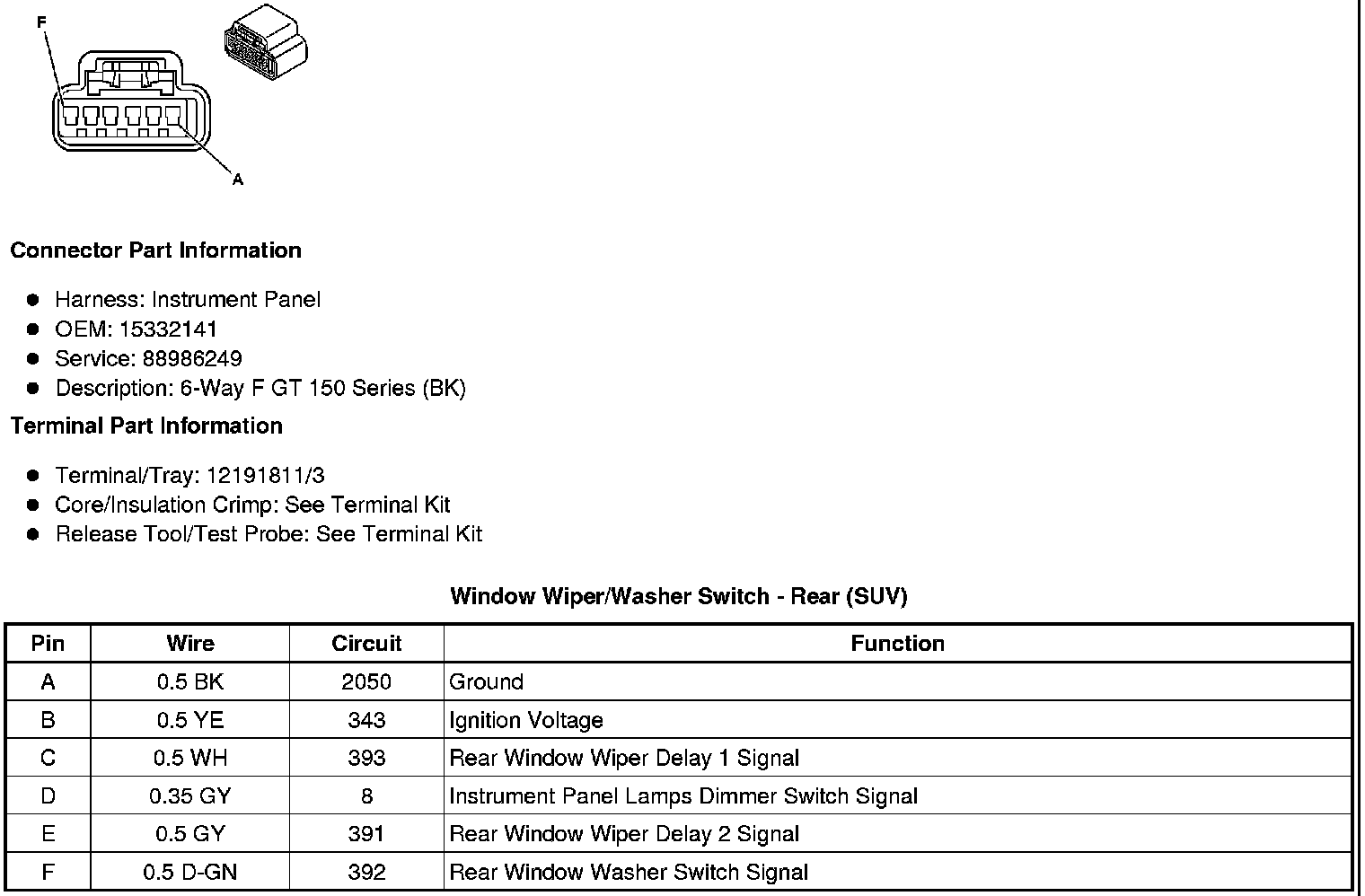

Window Wiper/Washer Switch - Rear (SUV)
