Transmission Temperature Sensor/Switch, A/T
Transmission Temperature Sensor/Switch, A/T

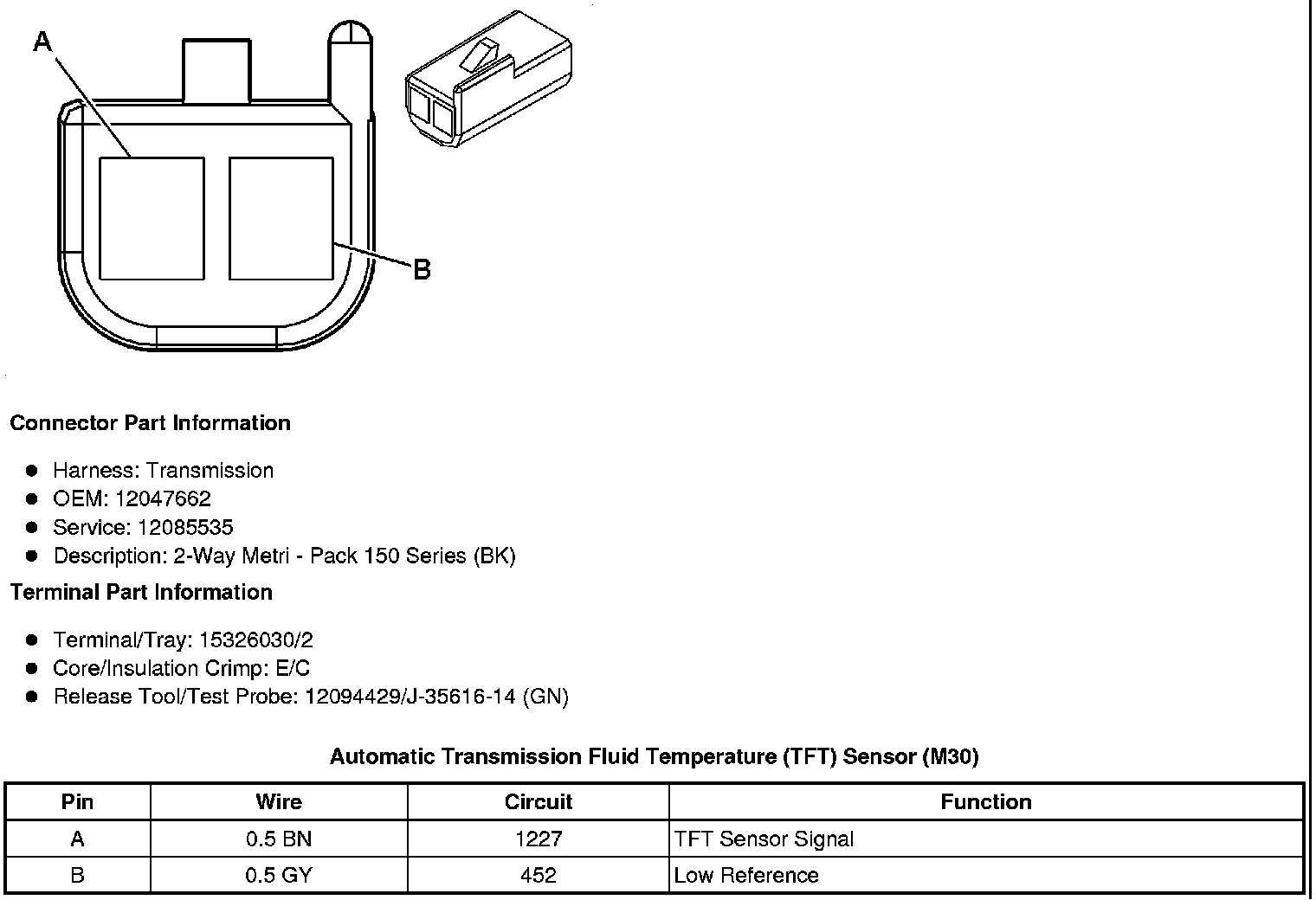

Component Connector End Views
Automatic Transmission Fluid Temperature (TFT) Sensor (M30)
